PB–18PARKING BRAKE – PARKING BRAKE ASSEMBLY
PB
6. INSTALL PARKING BRAKE SHOE ASSEMBLY LH
NO.1
(a) Install the parking brake shoe assembly LH No. 1
with the shoe hold-down compression spring pin
No. 1, shoe hold-down compression spring and 2
cups.
(b) Install the tension spring and 2 shoe return tension
springs.
7. CHECK PARKING BRAKE INSTALLATION
(a) Check that each part is installed properly.
NOTICE:
No oil or grease should be adhered to the
friction surface of the shoe lining and disc.
8. INSTALL REAR DISC
9. ADJUST PARKING BRAKE SHOE CLEARANCE
(a) Temporarily install the hub nuts.
(b) Remove the hole plug, and turn the adjuster and
expand the shoes until the disc locks.
(c) Contract the shoe adjuster until the disc can rotate
smoothly.
Standard:
Return 8 notches
(d) Check that the brake disc rotates smoothly.
(e) Install the hole plug.
F012039
F045276E01
F040026E02
Page 2658 of 3000
PARKING BRAKE – PARKING BRAKE ASSEMBLYPB–19
PB
10. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY
LH
11 . I NS TA L L R E A R WH E E L
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
12. INSPECT PARKING BRAKE PEDAL TRAVEL (See
page PB-1)
13. ADJUST PARKING BRAKE PEDAL TRAVEL (See
page PB-1)
Page 2659 of 3000

PARKING BRAKE – PARKING BRAKE PEDALPB–5
PB
REMOVAL
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE COWL SIDE TRIM BOARD LH
4. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-
ASSEMBLY LOWER LH (See page IP-6)
5. REMOVE REAR DOOR SCUFF PLATE RH
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE FRONT SEAT ASSEMBLY LH
HINT:
• Manual Seat Type (See page SE-48)
• Power Seat Type (See page SE-58)
• Fold Flat Type (See page SE-40)
8. REMOVE REAR SEAT NO.1 ASSEMBLY
HINT:
• Captain Seat Type (See page SE-68)
• Center Seat Type (See page SE-77)
9. REMOVE REAR FLOOR SEAT LOCK COVER
10. REMOVE REAR FLOOR SEAT LOCK COVER
11. REMOVE PARKING BRAKE CONTROL PEDAL
ASSEMBLY
(a) Remove the 4 nuts and separate the instrument
panel junction block assembly w/ wiring harness
connector from the body.
(b) Disconnect the parking brake switch connector.
(c) Remove the bolt, 2 nuts and parking brake control
pedal assembly.
DISASSEMBLY
1. REMOVE PARKING BRAKE PEDAL BRACKET
PROTECTOR
(a) Using a flat-head screwdriver, disengage the 2
claws on the parking brake pedal bracket protector.
F045025
F045029
Page 2660 of 3000
PB–6PARKING BRAKE – PARKING BRAKE PEDAL
PB
(b) Turning the parking brake pedal bracket protector
clockwise, remove the parking brake pedal bracket
protector from the parking brake control pedal.
2. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.1
(a) Remove the lock nut, adjusting nut, clip and
disconnect the parking brake cable assembly No. 1
from the parking brake control pedal assembly.
(b) Take up the floor carpet.
(c) Remove the 6 bolts and disconnect the parking
brake cable assembly No. 1 from the floor. (Except
7 Passenger Type)
(d) Remove the 7 bolts and disconnect the parking
brake cable assembly No. 1 from the floor. (7
Passenger Type)
(e) Disconnect the parking brake cable No. 1 from the
parking brake equalizer, and remove the parking
brake cable No. 1.
3. REMOVE PARKING BRAKE SWITCH ASSEMBLY
(a) Remove the screw and parking brake switch.
F045030
F045026
F045027E01
Page 2661 of 3000
PARKING BRAKE – PARKING BRAKE CABLEPB–9
PB
BRAKE
PARKING BRAKE
PARKING BRAKE CABLE

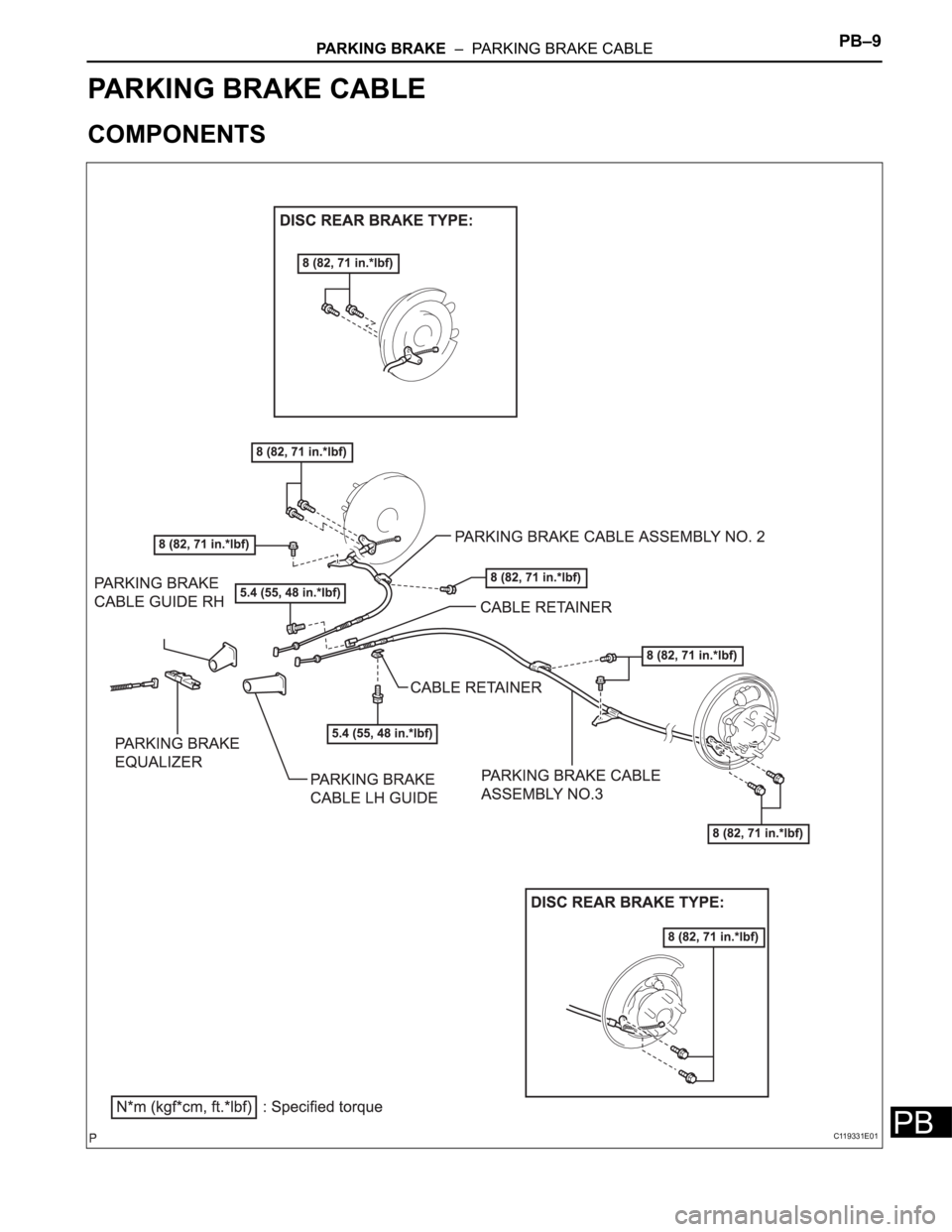

COMPONENTS
C119331E01
Page 2662 of 3000

PB–10PARKING BRAKE – PARKING BRAKE CABLE
PB
REMOVAL
HINT:
For the parking brake cable assembly No. 2, perform the
same procedure to the parking brake cable assembly No. 3.
1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (for
Drum Type) (See page BR-37)
3. REMOVE FRONT BRAKE SHOE (for Drum Type) (See
page BR-37)
4. REMOVE REAR BRAKE SHOE (for Drum Type) (See
page BR-38)
5. SEPARATE REAR DISC BRAKE CALIPER
ASSEMBLY LH (for Disc Type) (See page PB-15)
6. REMOVE REAR DISC (for Disc Type) (See page BR-
32)
7. REMOVE PARKING BRAKE SHOE ASSEMBLY LH
NO.1 (for Disc Type) (See page PB-15)
8. REMOVE PARKING BRAKE SHOE ADJUSTING
SCREW SET (for Disc Type)
9. REMOVE PARKING BRAKE SHOE STRUT LH (for
Disc Type)
10. REMOVE PARKING BRAKE SHOE ASSEMBLY LH
NO.2 (for Disc Type) (See page PB-15)
11. SEPARATE PARKING BRAKE CABLE ASSEMBLY
NO.3
(a) Remove the 2 bolts, and disconnect the parking
brake cable No. 3 from the backing plate.
12. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.3
(a) Remove the 3 bolts and the button to disconnect the
parking brake cable No. 3 from the body.
(b) Disconnect the parking brake cable No. 3 from the
parking brake equalizer, and remove the parking
brake cable No. 3.
(c) Remove the parking brake cable LH guide from the
parking brake cable assembly No. 3.
F045063E01
Page 2663 of 3000
PARKING BRAKE – PARKING BRAKE CABLEPB–11
PB
F045028
Page 2664 of 3000
PB–14PARKING BRAKE – PARKING BRAKE ASSEMBLY
PB
BRAKE
PARKING BRAKE

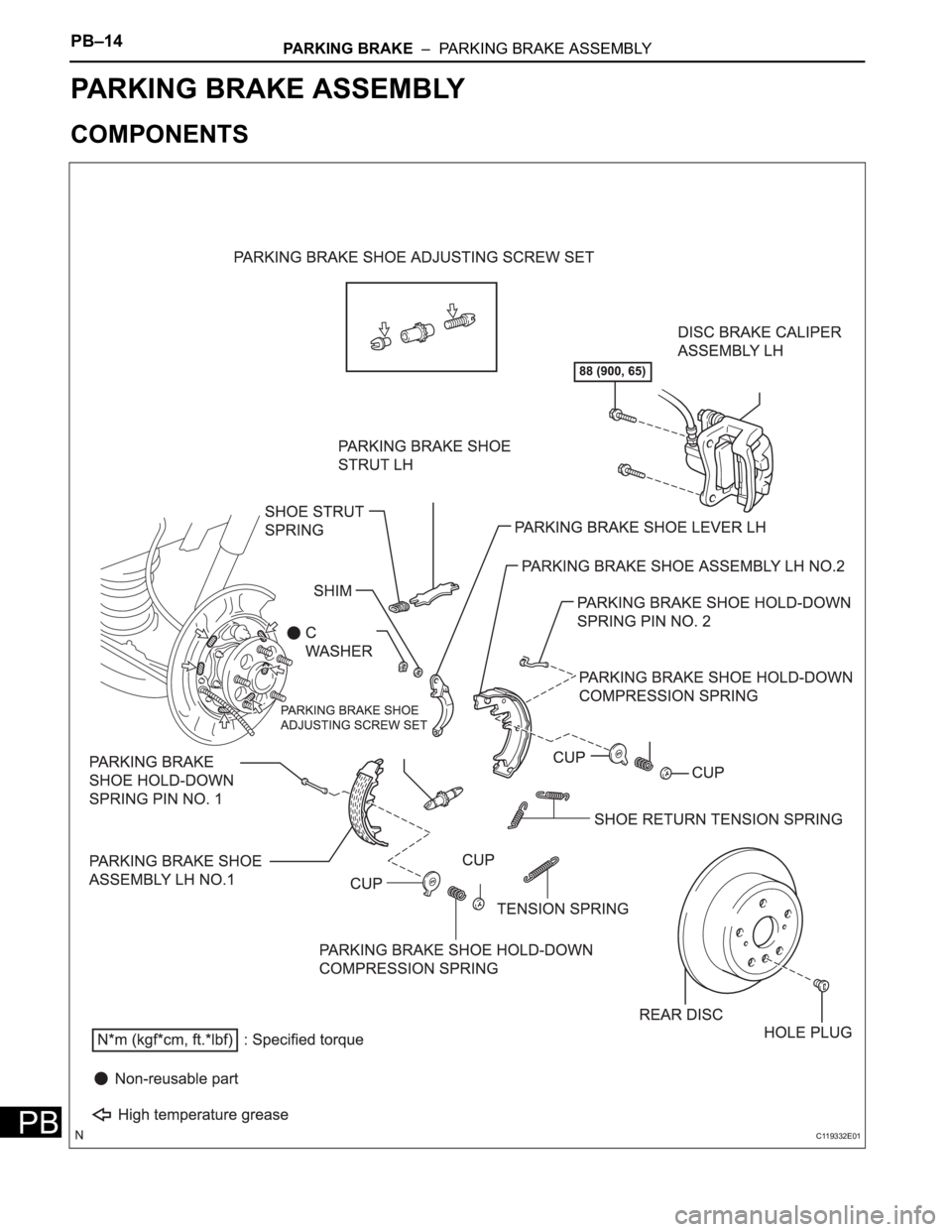

PARKING BRAKE ASSEMBLY
COMPONENTS
C119332E01
