Page 1001 of 3000

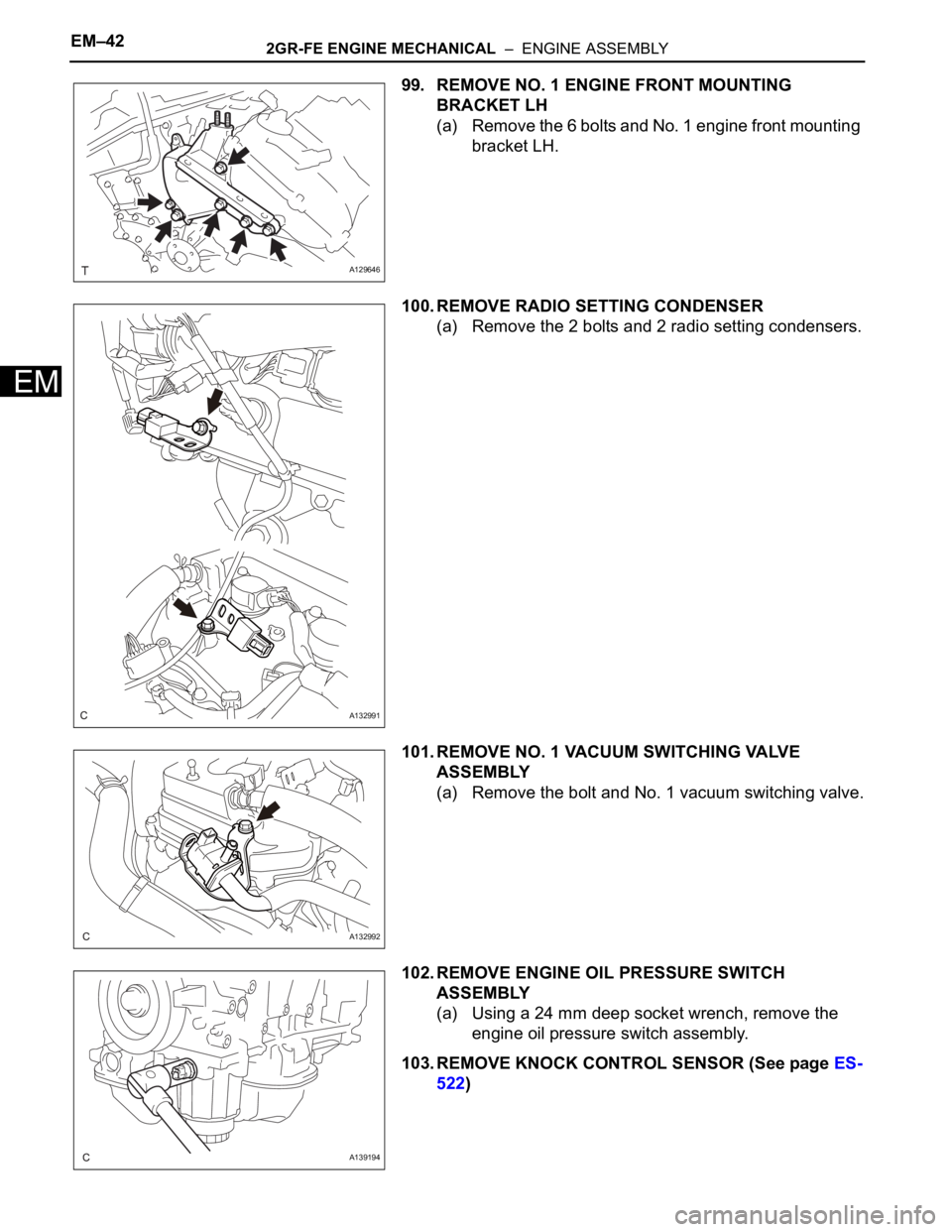

TOYOTA SIENNA 2007 Service Repair Manual EM–422GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM 99. REMOVE NO. 1 ENGINE FRONT MOUNTING BRACKET LH (a) Remove the 6 bolts and No. 1 engine front mounting bracket LH. 100. REMOVE RADIO SETTIN

Page 1002 of 3000

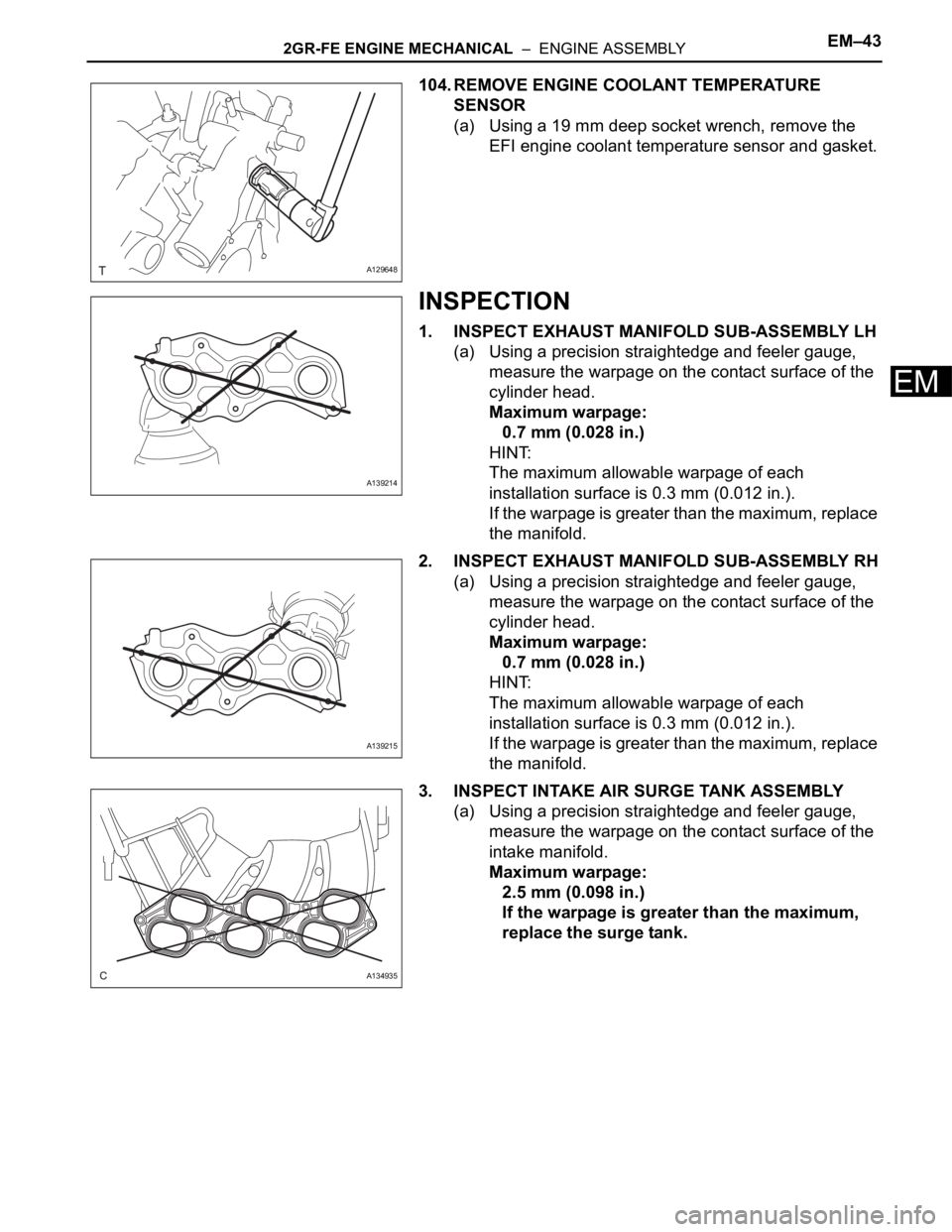

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–43 EM 104. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (a) Using a 19 mm deep socket wrench, remove the EFI engine coolant temperature sensor and gask

Page 1003 of 3000

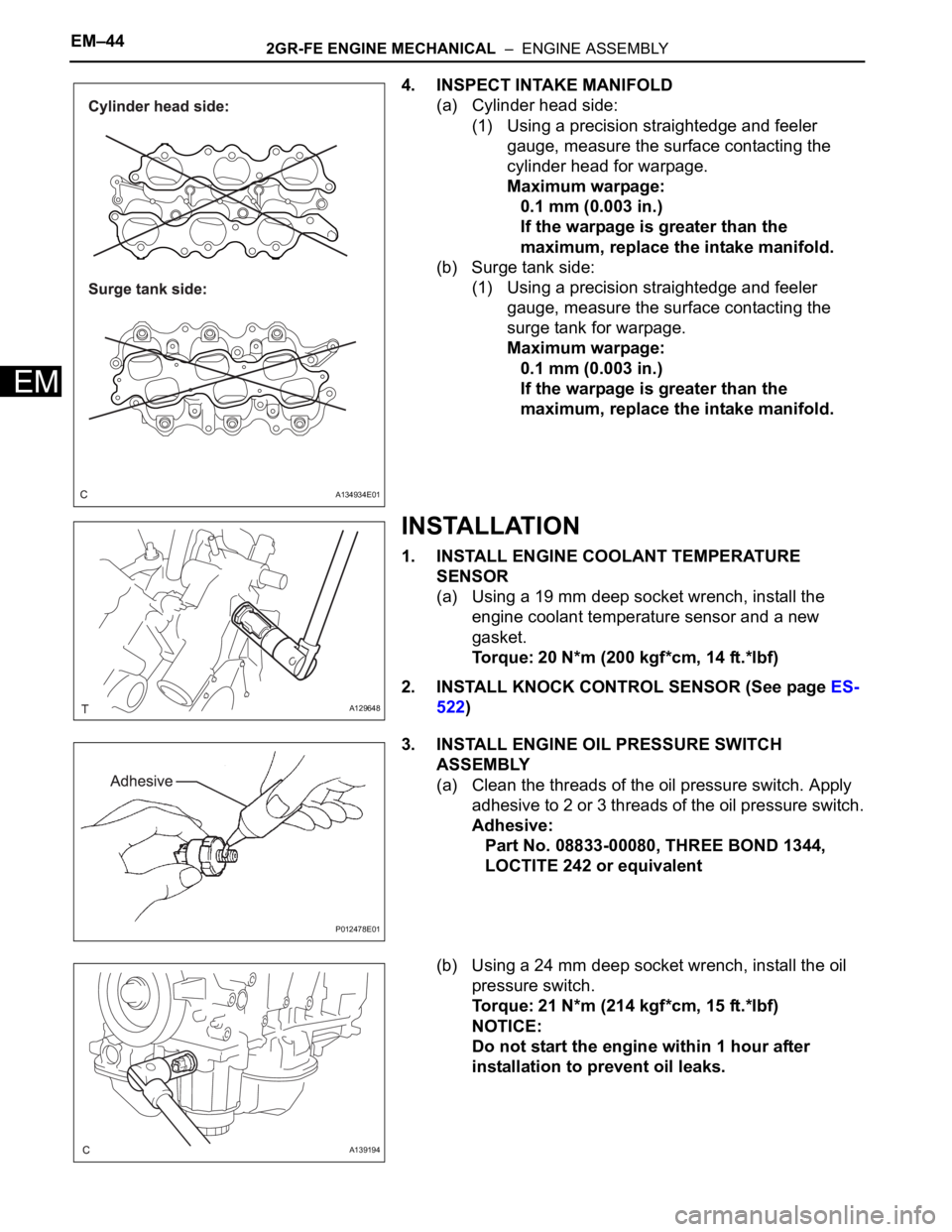

TOYOTA SIENNA 2007 Service Repair Manual EM–442GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM 4. INSPECT INTAKE MANIFOLD (a) Cylinder head side: (1) Using a precision straightedge and feeler gauge, measure the surface contacting the cy

Page 1004 of 3000

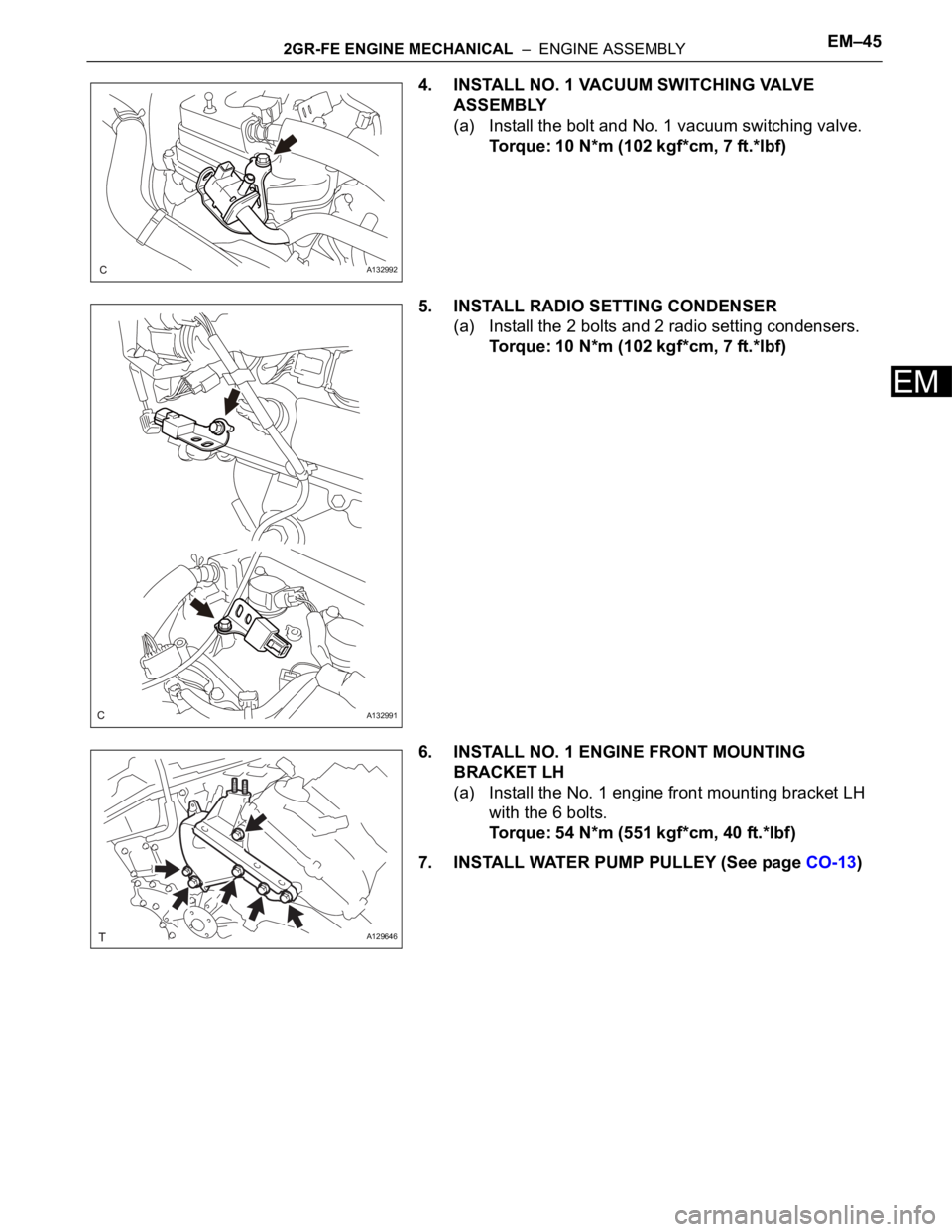

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–45 EM 4. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (a) Install the bolt and No. 1 vacuum switching valve. Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Page 1005 of 3000

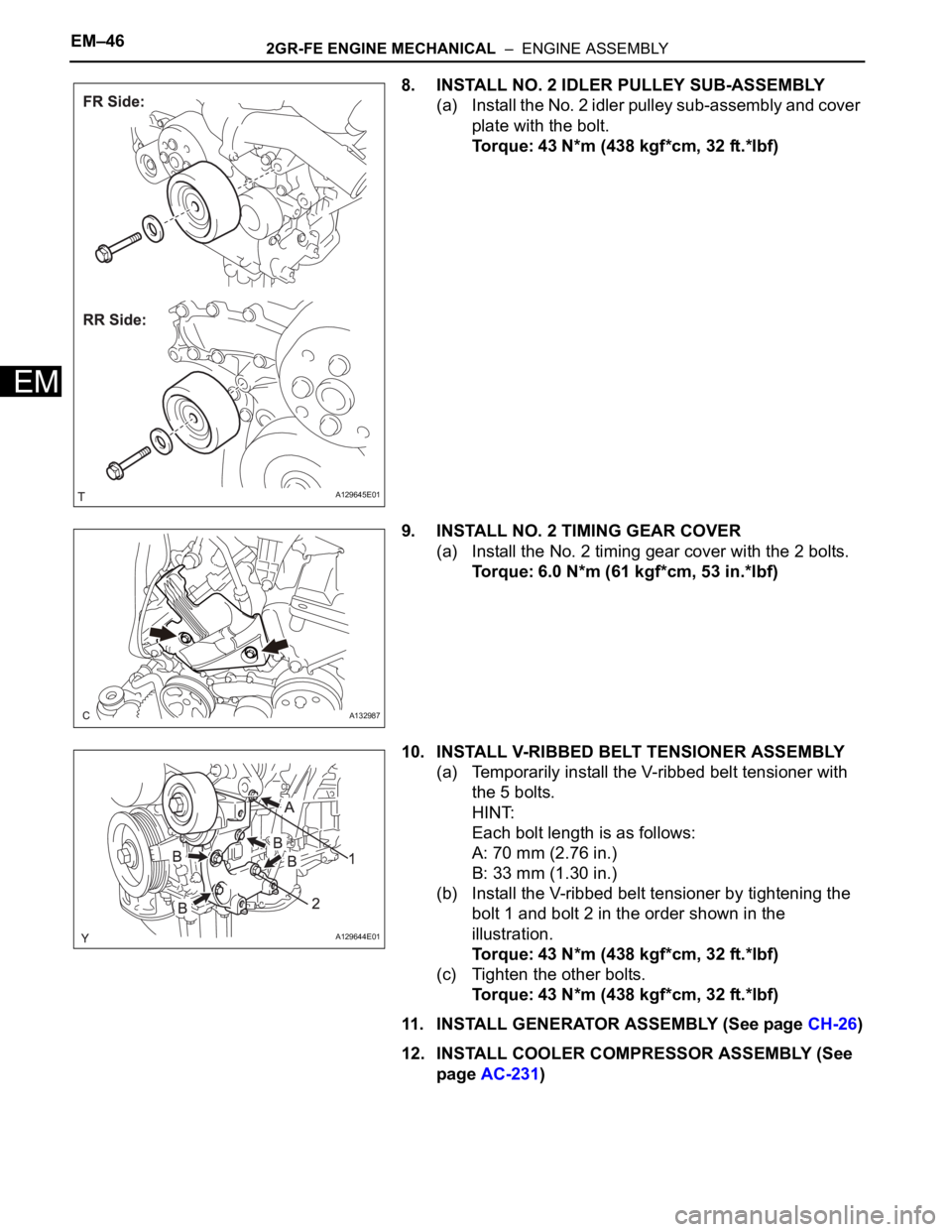

TOYOTA SIENNA 2007 Service Repair Manual EM–462GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM 8. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY (a) Install the No. 2 idler pulley sub-assembly and cover plate with the bolt. Torque: 43 N*m (438

Page 1006 of 3000

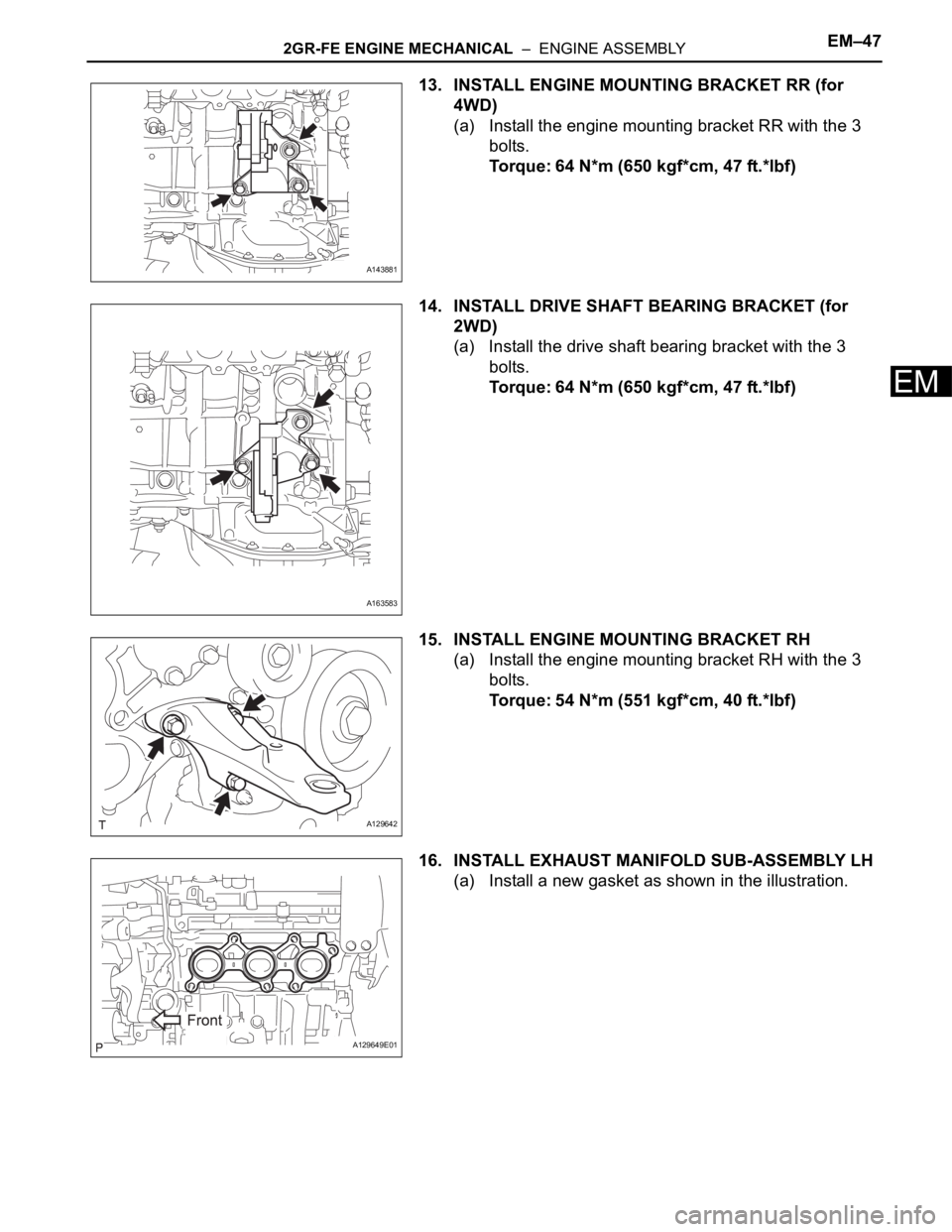

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–47 EM 13. INSTALL ENGINE MOUNTING BRACKET RR (for 4WD) (a) Install the engine mounting bracket RR with the 3 bolts. Torque: 64 N*m (650 kgf*cm, 47

Page 1007 of 3000

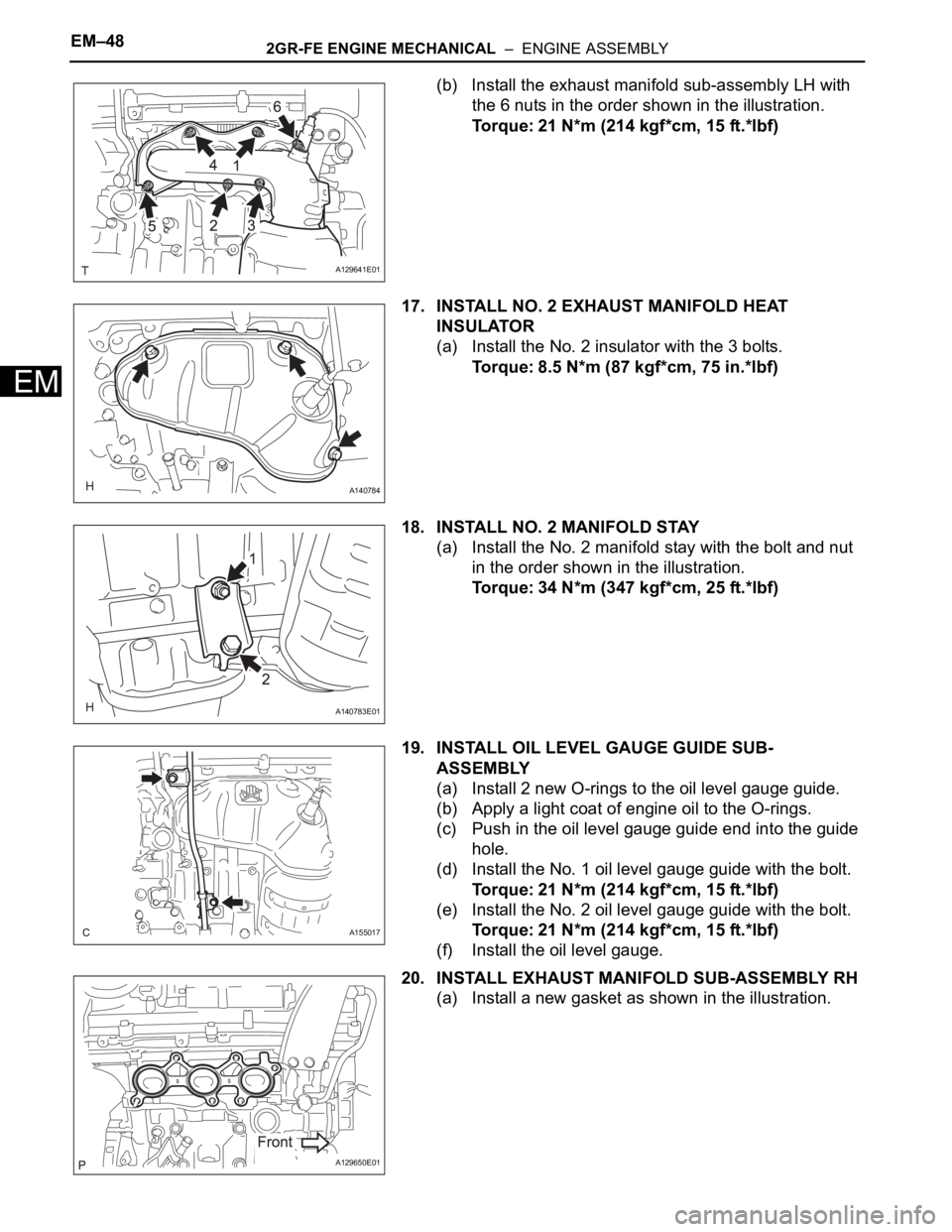

TOYOTA SIENNA 2007 Service Repair Manual EM–482GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY EM (b) Install the exhaust manifold sub-assembly LH with the 6 nuts in the order shown in the illustration. Torque: 21 N*m (214 kgf*cm, 15 ft.*lb

Page 1008 of 3000

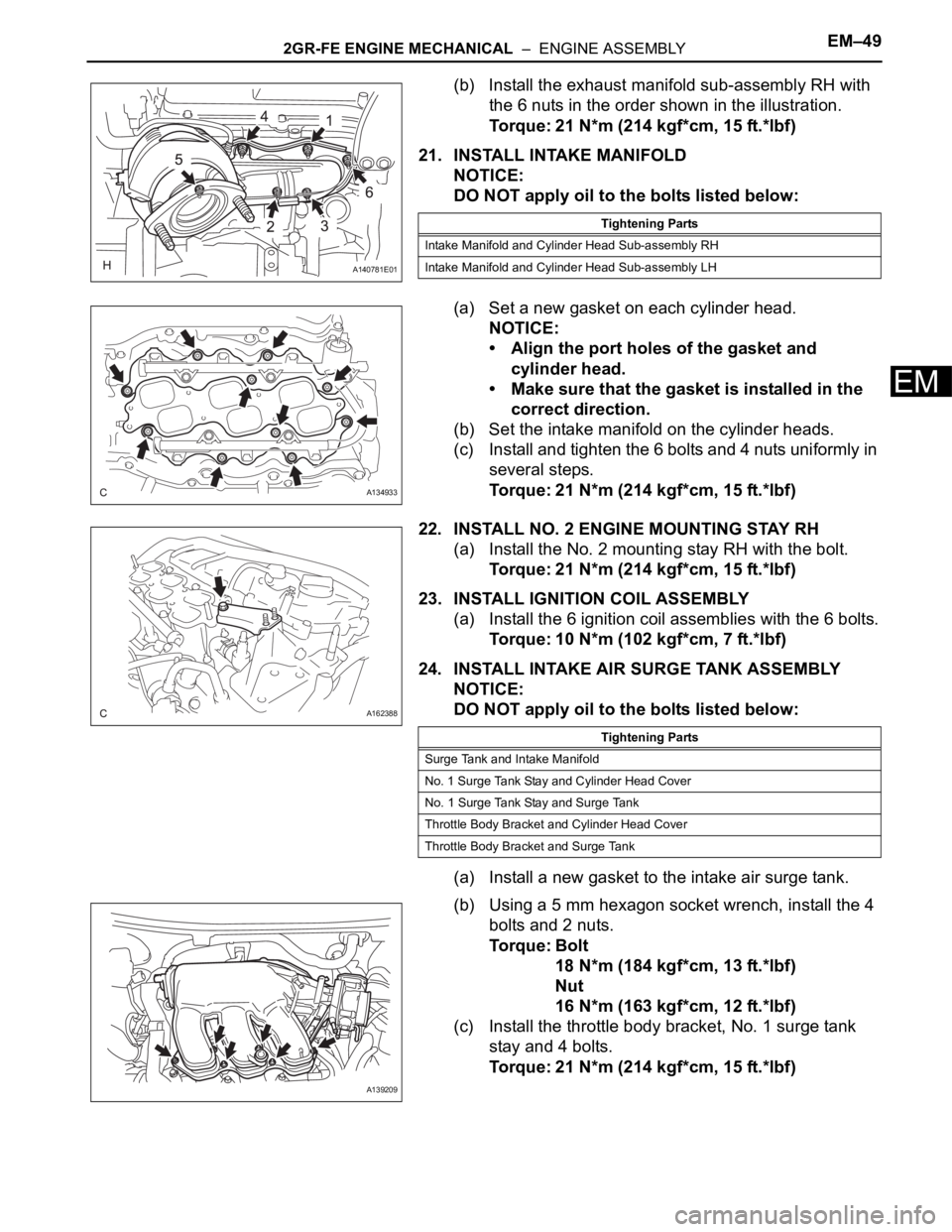

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–49 EM (b) Install the exhaust manifold sub-assembly RH with the 6 nuts in the order shown in the illustration. Torque: 21 N*m (214 kgf*cm, 15 ft.*lb
