EM–1262GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
REASSEMBLY

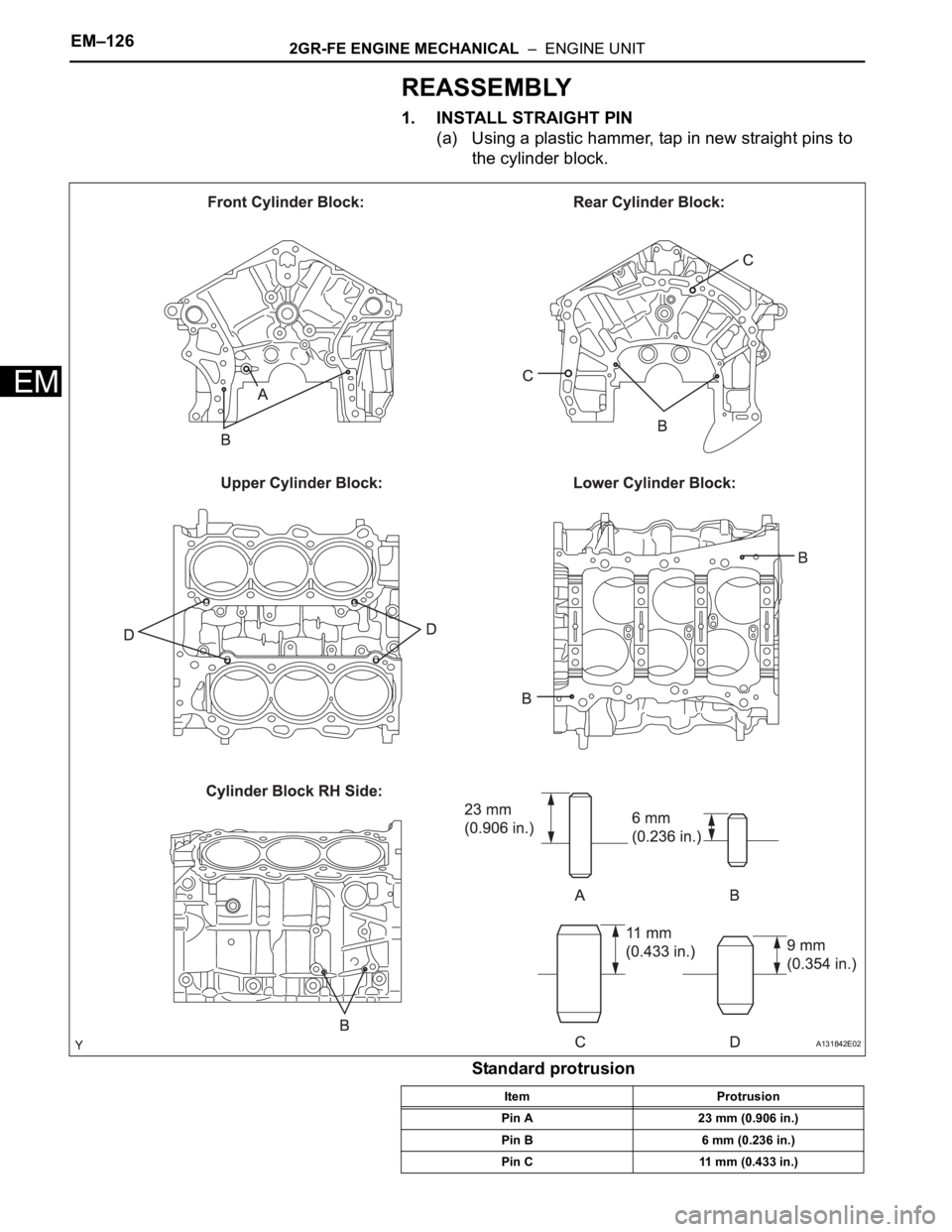

1. INSTALL STRAIGHT PIN
(a) Using a plastic hammer, tap in new straight pins to
the cylinder block.
Standard protrusion
A131842E02
Item Protrusion
Pin A 23 mm (0.906 in.)
Pin B 6 mm (0.236 in.)
Pin C 11 mm (0.433 in.)
Page 1074 of 3000
2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–127
EM

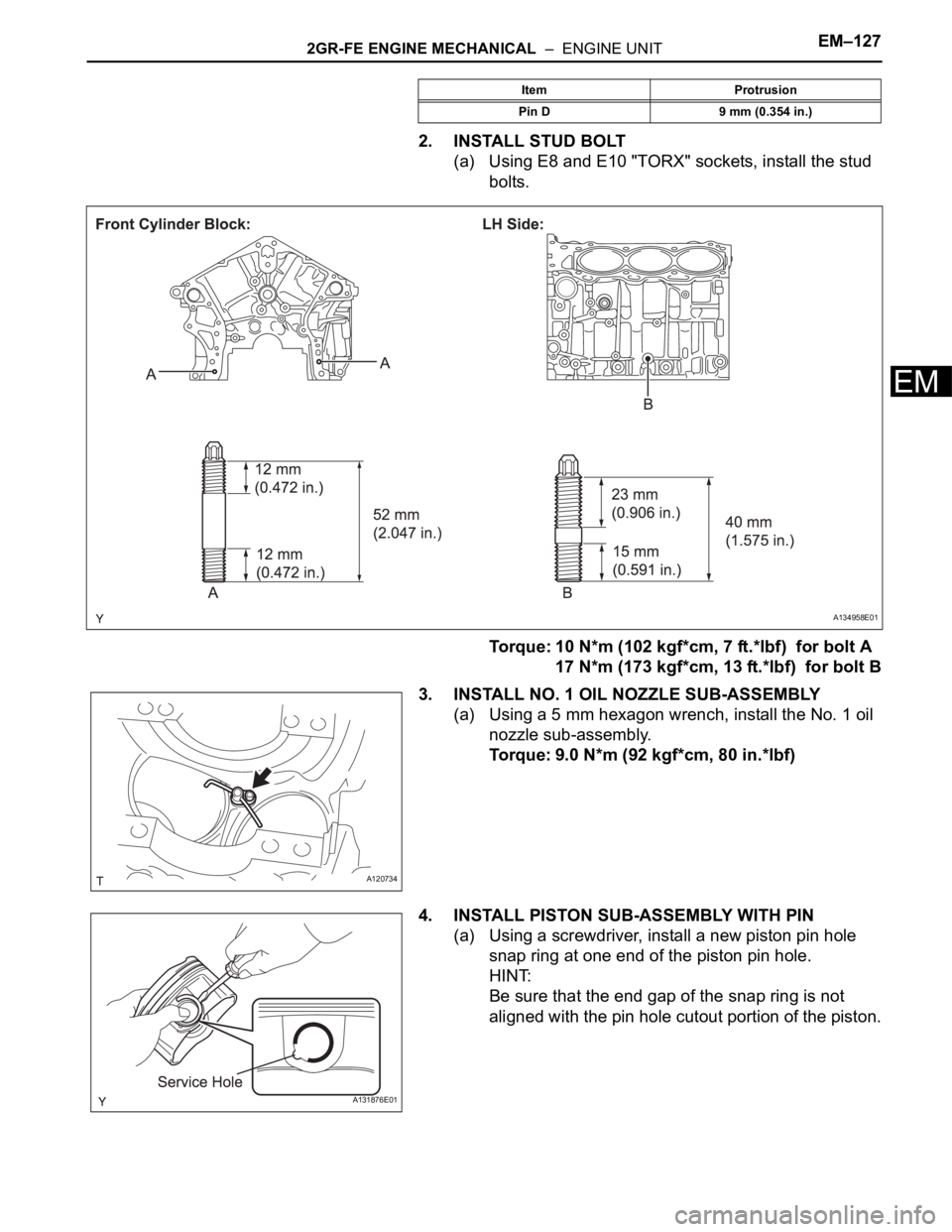

2. INSTALL STUD BOLT
(a) Using E8 and E10 "TORX" sockets, install the stud
bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf) for bolt A
17 N*m (173 kgf*cm, 13 ft.*lbf) for bolt B
3. INSTALL NO. 1 OIL NOZZLE SUB-ASSEMBLY
(a) Using a 5 mm hexagon wrench, install the No. 1 oil
nozzle sub-assembly.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
4. INSTALL PISTON SUB-ASSEMBLY WITH PIN
(a) Using a screwdriver, install a new piston pin hole
snap ring at one end of the piston pin hole.
HINT:
Be sure that the end gap of the snap ring is not
aligned with the pin hole cutout portion of the piston.
Pin D 9 mm (0.354 in.)Item Protrusion
A134958E01
A120734
A131876E01
Page 1075 of 3000
EM–1282GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM

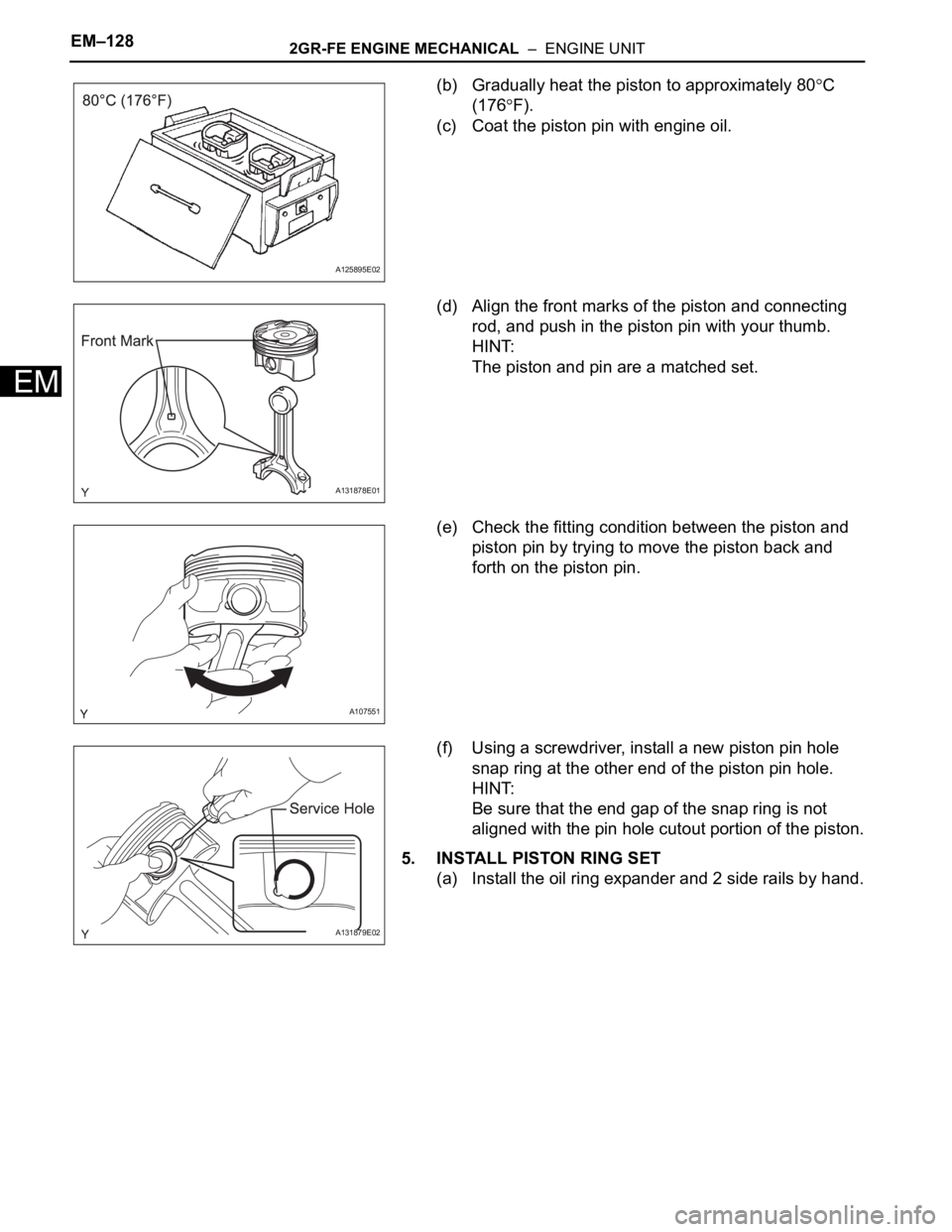

(b) Gradually heat the piston to approximately 80C
(176
F).
(c) Coat the piston pin with engine oil.
(d) Align the front marks of the piston and connecting
rod, and push in the piston pin with your thumb.
HINT:
The piston and pin are a matched set.
(e) Check the fitting condition between the piston and
piston pin by trying to move the piston back and
forth on the piston pin.
(f) Using a screwdriver, install a new piston pin hole
snap ring at the other end of the piston pin hole.
HINT:
Be sure that the end gap of the snap ring is not
aligned with the pin hole cutout portion of the piston.
5. INSTALL PISTON RING SET
(a) Install the oil ring expander and 2 side rails by hand.
A125895E02
A131878E01
A107551
A131879E02
Page 1076 of 3000
2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–129
EM

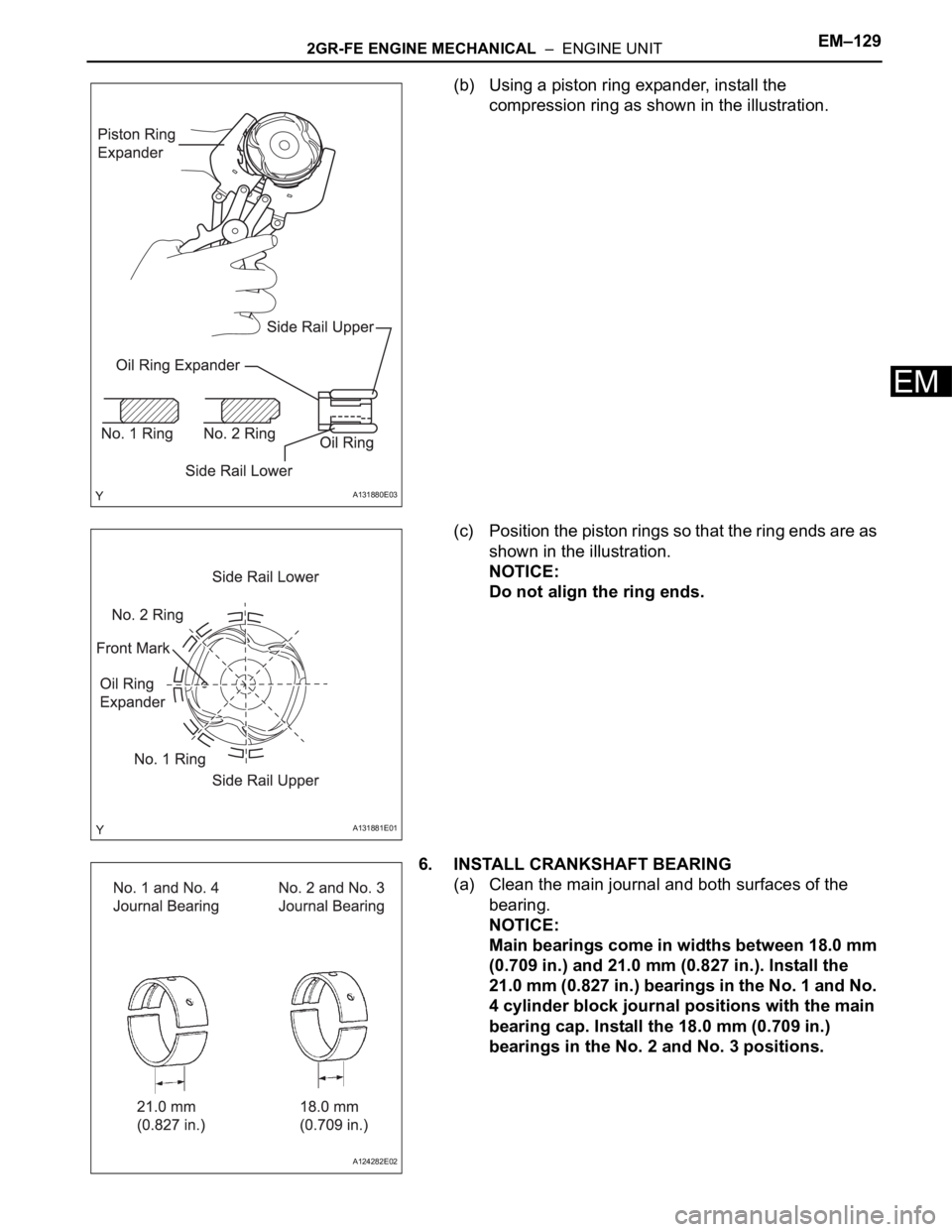

(b) Using a piston ring expander, install the
compression ring as shown in the illustration.
(c) Position the piston rings so that the ring ends are as
shown in the illustration.
NOTICE:
Do not align the ring ends.
6. INSTALL CRANKSHAFT BEARING
(a) Clean the main journal and both surfaces of the
bearing.
NOTICE:
Main bearings come in widths between 18.0 mm
(0.709 in.) and 21.0 mm (0.827 in.). Install the
21.0 mm (0.827 in.) bearings in the No. 1 and No.
4 cylinder block journal positions with the main
bearing cap. Install the 18.0 mm (0.709 in.)
bearings in the No. 2 and No. 3 positions.
A131880E03
A131881E01
A124282E02
Page 1077 of 3000

EM–1302GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM

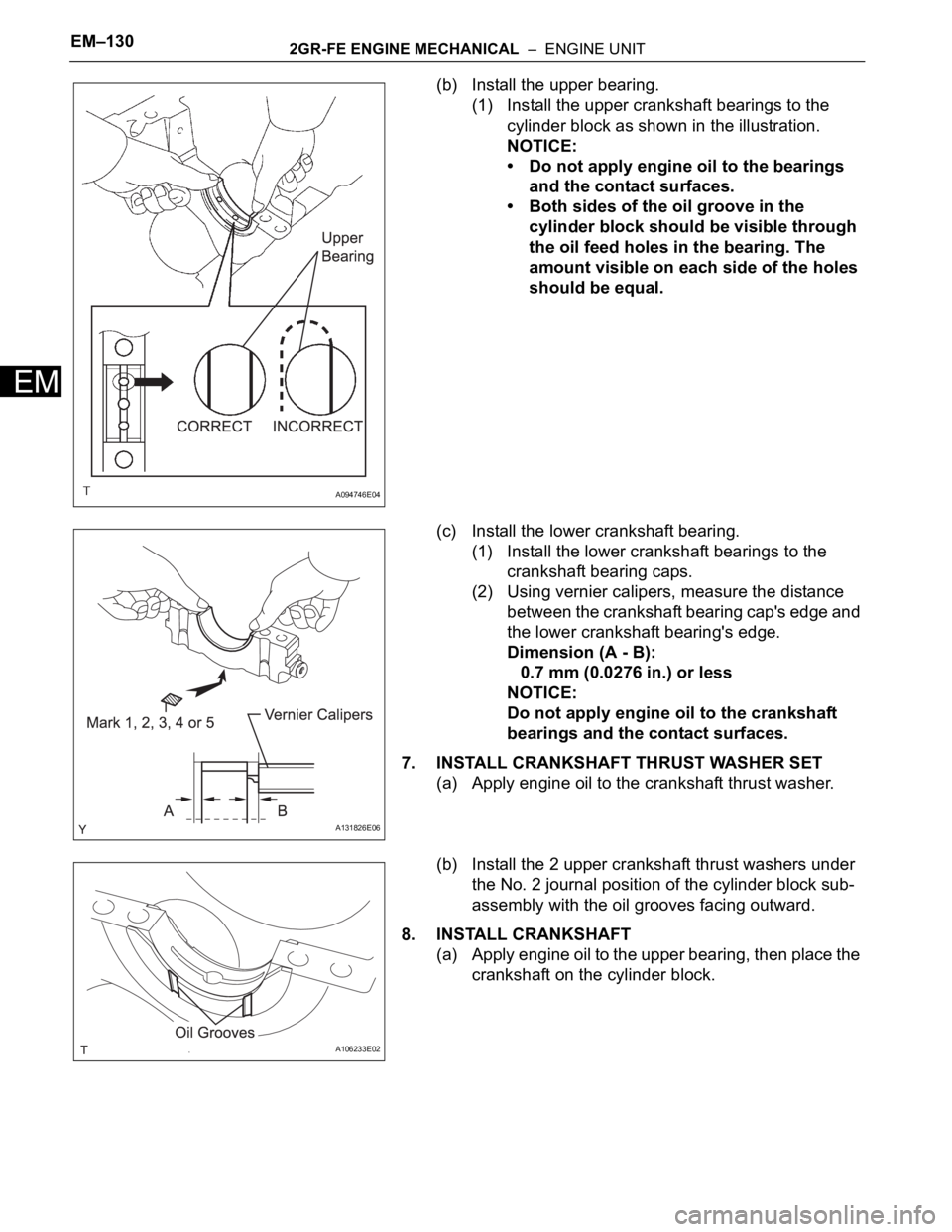

(b) Install the upper bearing.
(1) Install the upper crankshaft bearings to the
cylinder block as shown in the illustration.
NOTICE:
• Do not apply engine oil to the bearings
and the contact surfaces.
• Both sides of the oil groove in the
cylinder block should be visible through
the oil feed holes in the bearing. The
amount visible on each side of the holes
should be equal.
(c) Install the lower crankshaft bearing.
(1) Install the lower crankshaft bearings to the
crankshaft bearing caps.
(2) Using vernier calipers, measure the distance
between the crankshaft bearing cap's edge and
the lower crankshaft bearing's edge.
Dimension (A - B):
0.7 mm (0.0276 in.) or less
NOTICE:
Do not apply engine oil to the crankshaft
bearings and the contact surfaces.
7. INSTALL CRANKSHAFT THRUST WASHER SET
(a) Apply engine oil to the crankshaft thrust washer.
(b) Install the 2 upper crankshaft thrust washers under
the No. 2 journal position of the cylinder block sub-
assembly with the oil grooves facing outward.
8. INSTALL CRANKSHAFT
(a) Apply engine oil to the upper bearing, then place the
crankshaft on the cylinder block.
A094746E04
A131826E06
A106233E02
Page 1078 of 3000
2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–131
EM

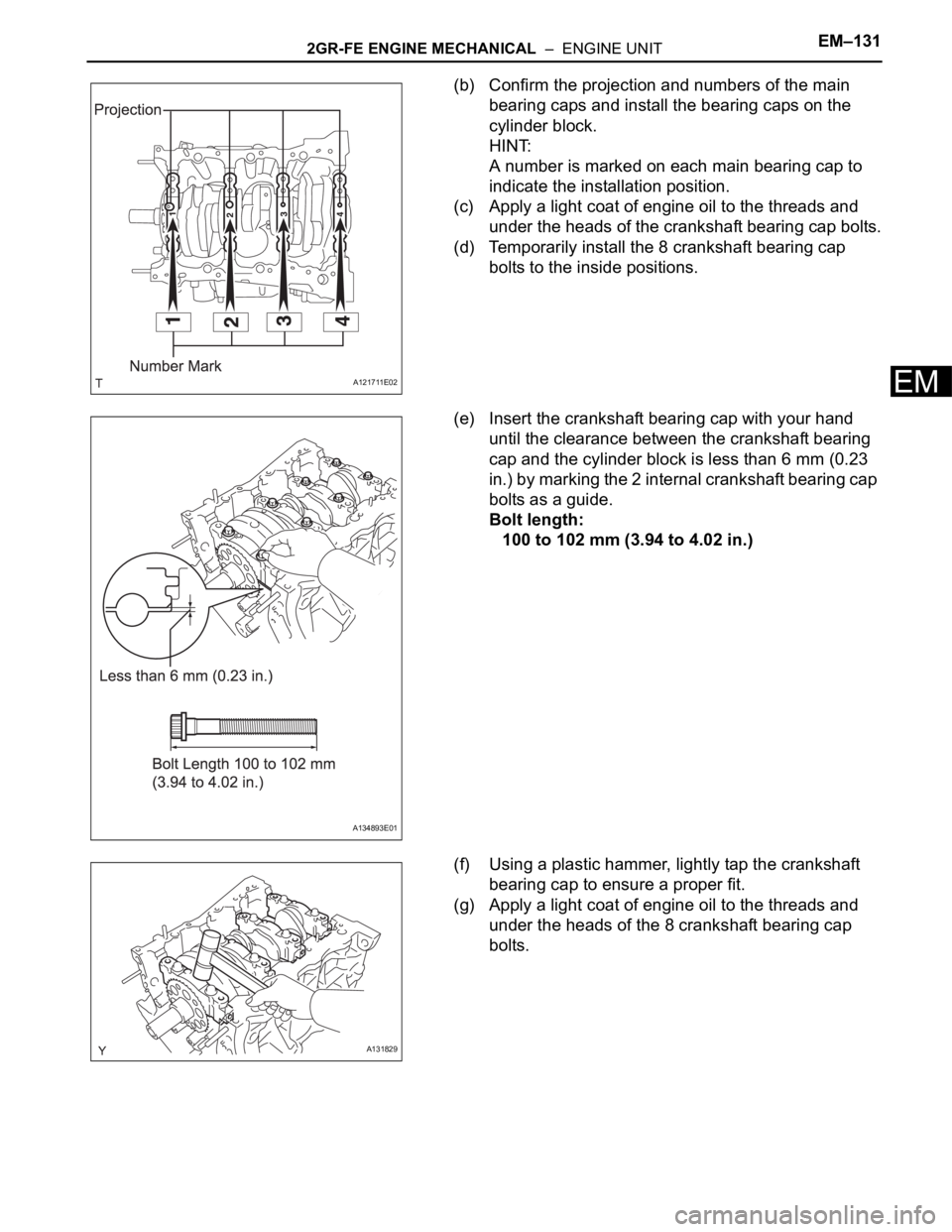

(b) Confirm the projection and numbers of the main
bearing caps and install the bearing caps on the
cylinder block.
HINT:
A number is marked on each main bearing cap to
indicate the installation position.
(c) Apply a light coat of engine oil to the threads and
under the heads of the crankshaft bearing cap bolts.
(d) Temporarily install the 8 crankshaft bearing cap
bolts to the inside positions.
(e) Insert the crankshaft bearing cap with your hand
until the clearance between the crankshaft bearing
cap and the cylinder block is less than 6 mm (0.23
in.) by marking the 2 internal crankshaft bearing cap
bolts as a guide.
Bolt length:
100 to 102 mm (3.94 to 4.02 in.)
(f) Using a plastic hammer, lightly tap the crankshaft
bearing cap to ensure a proper fit.
(g) Apply a light coat of engine oil to the threads and
under the heads of the 8 crankshaft bearing cap
bolts.
A121711E02
A134893E01
A131829
Page 1079 of 3000

EM–1322GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM

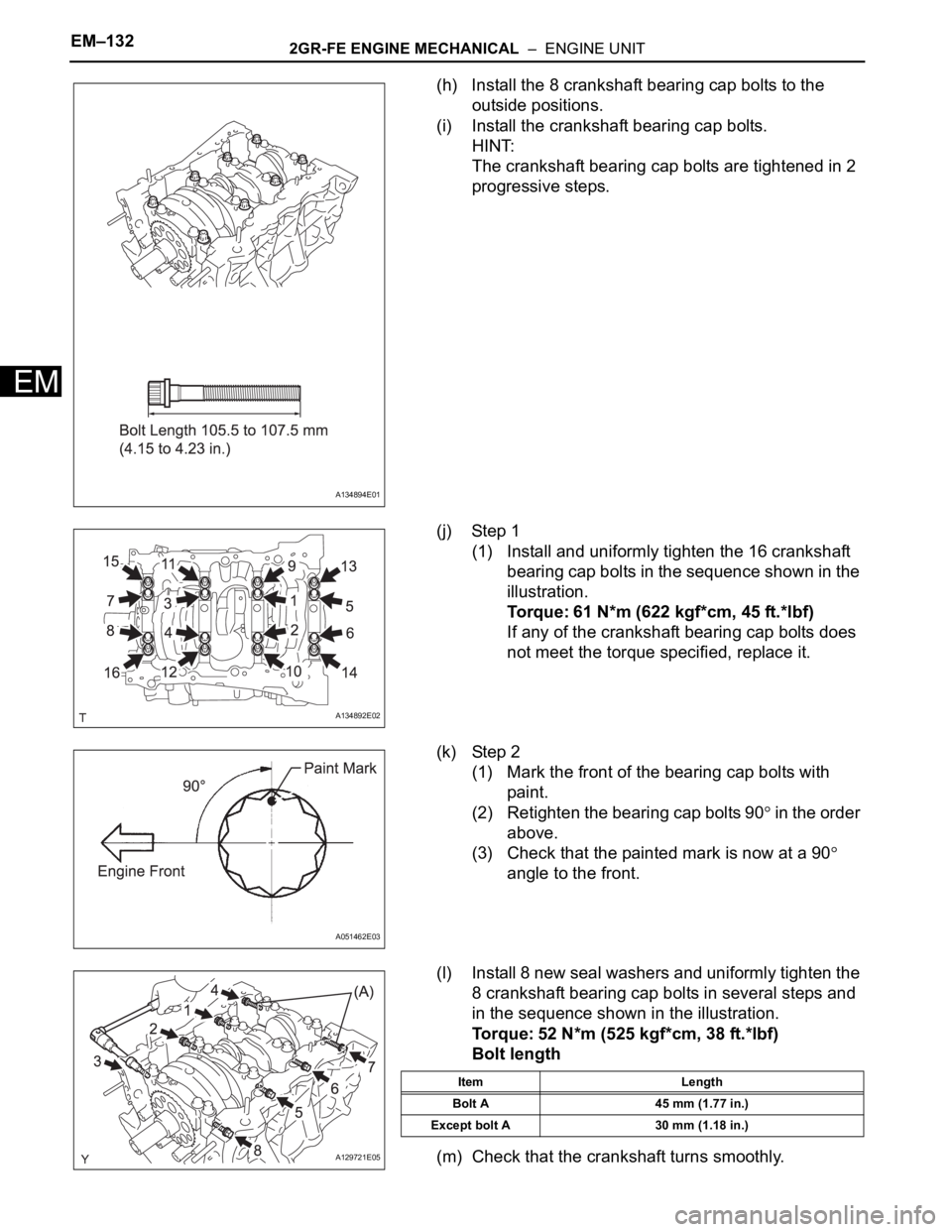

(h) Install the 8 crankshaft bearing cap bolts to the
outside positions.
(i) Install the crankshaft bearing cap bolts.
HINT:
The crankshaft bearing cap bolts are tightened in 2
progressive steps.
(j) Step 1
(1) Install and uniformly tighten the 16 crankshaft
bearing cap bolts in the sequence shown in the
illustration.
Torque: 61 N*m (622 kgf*cm, 45 ft.*lbf)
If any of the crankshaft bearing cap bolts does
not meet the torque specified, replace it.
(k) Step 2
(1) Mark the front of the bearing cap bolts with
paint.
(2) Retighten the bearing cap bolts 90
in the order
above.
(3) Check that the painted mark is now at a 90
angle to the front.
(l) Install 8 new seal washers and uniformly tighten the
8 crankshaft bearing cap bolts in several steps and
in the sequence shown in the illustration.
Torque: 52 N*m (525 kgf*cm, 38 ft.*lbf)
Bolt length
(m) Check that the crankshaft turns smoothly.
A134894E01
A134892E02
A051462E03
A129721E05
Item Length
Bolt A 45 mm (1.77 in.)
Except bolt A 30 mm (1.18 in.)
Page 1080 of 3000
2GR-FE ENGINE MECHANICAL – ENGINE UNITEM–133
EM
(n) Check the crankshaft thrust clearance (See page
EM-118).

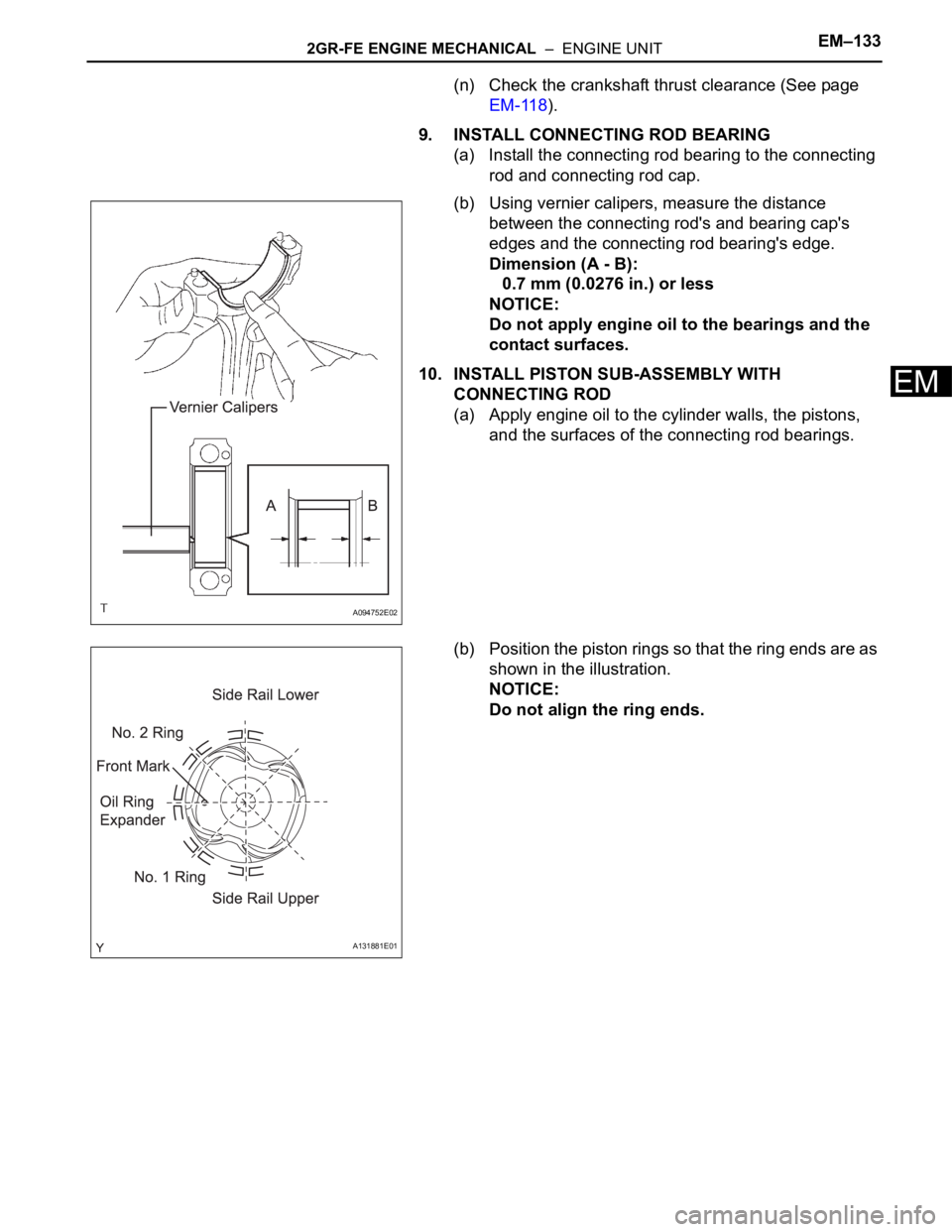

9. INSTALL CONNECTING ROD BEARING
(a) Install the connecting rod bearing to the connecting
rod and connecting rod cap.
(b) Using vernier calipers, measure the distance
between the connecting rod's and bearing cap's
edges and the connecting rod bearing's edge.
Dimension (A - B):
0.7 mm (0.0276 in.) or less
NOTICE:
Do not apply engine oil to the bearings and the
contact surfaces.
10. INSTALL PISTON SUB-ASSEMBLY WITH
CONNECTING ROD
(a) Apply engine oil to the cylinder walls, the pistons,
and the surfaces of the connecting rod bearings.
(b) Position the piston rings so that the ring ends are as
shown in the illustration.
NOTICE:
Do not align the ring ends.
A094752E02
A131881E01
