Page 2809 of 3000

AC–66AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC

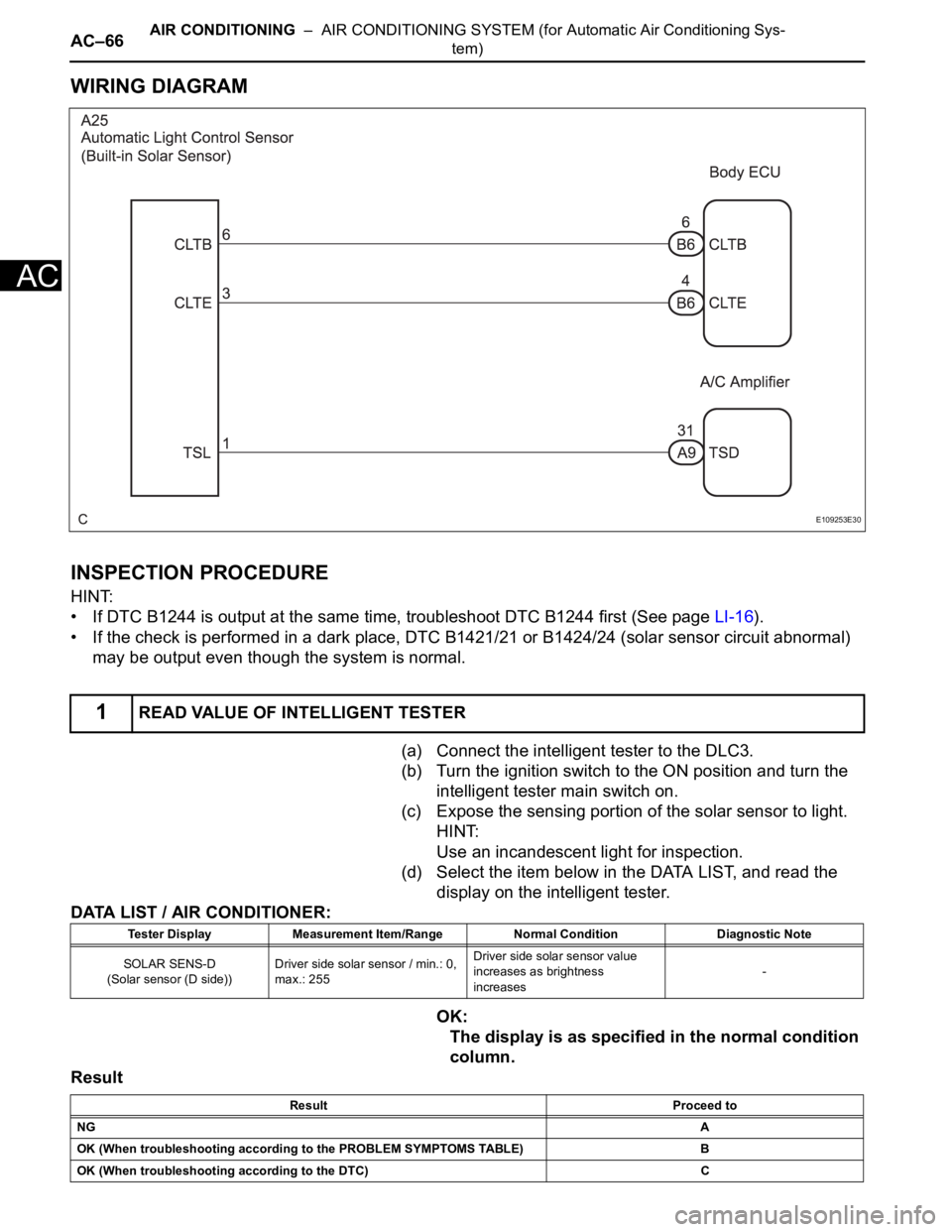

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
• If DTC B1244 is output at the same time, troubleshoot DTC B1244 first (See page LI-16).
• If the check is performed in a dark place, DTC B1421/21 or B1424/24 (solar sensor circuit abnormal)
may be output even though the system is normal.
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the
intelligent tester main switch on.
(c) Expose the sensing portion of the solar sensor to light.
HINT:
Use an incandescent light for inspection.
(d) Select the item below in the DATA LIST, and read the
display on the intelligent tester.
DATA LIST / AIR CONDITIONER:
OK:
The display is as specified in the normal condition
column.
Result
1READ VALUE OF INTELLIGENT TESTER
E109253E30
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
SOLAR SENS-D
(Solar sensor (D side))Driver side solar sensor / min.: 0,
max.: 255Driver side solar sensor value
increases as brightness
increases-
Result Proceed to
NGA
OK (When troubleshooting according to the PROBLEM SYMPTOMS TABLE) B
OK (When troubleshooting according to the DTC) C
Page 2810 of 3000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–67
AC
B
C
A
(a) Disconnect the solar sensor connector.
(b) Measure the voltage according to the value(s) in the
table below.
Standard voltage
OK
NG
(a) Disconnect the body ECU connector.PROCEED TO NEXT CIRCUIT INSPECTION
SHOWN IN PROBLEM SYMPTOMS TABLE
REPLACE A/C AMPLIFIER

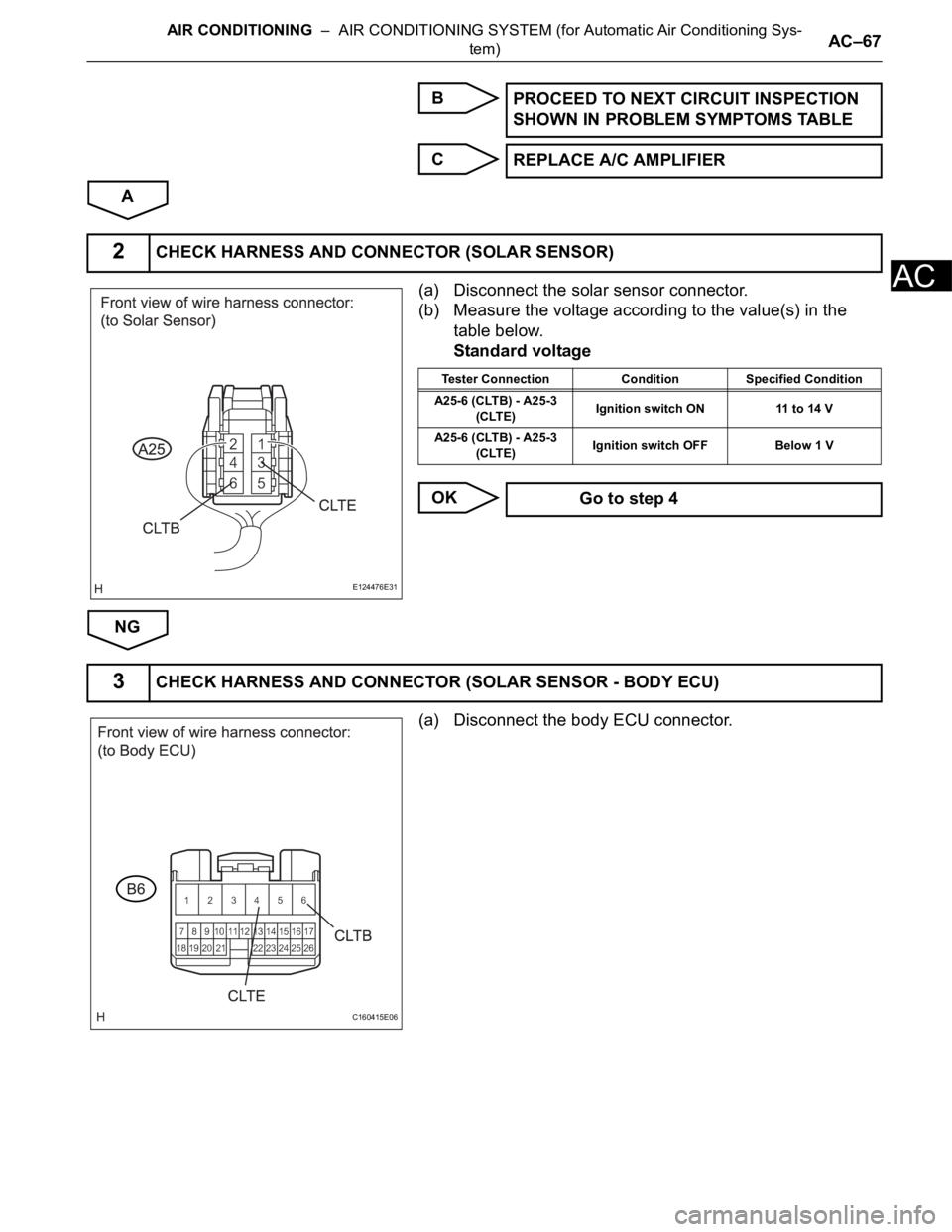

2CHECK HARNESS AND CONNECTOR (SOLAR SENSOR)
E124476E31
Tester Connection Condition Specified Condition
A25-6 (CLTB) - A25-3
(CLTE)Ignition switch ON 11 to 14 V
A25-6 (CLTB) - A25-3
(CLTE)Ignition switch OFF Below 1 V
Go to step 4
3CHECK HARNESS AND CONNECTOR (SOLAR SENSOR - BODY ECU)
C160415E06
Page 2811 of 3000

AC–68AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
(b) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK
(a) Remove the solar sensor with its connector still
connected.
(b) Connect the positive (+) lead from the battery to terminal
6 (CLTB), and the negative (-) lead to terminal 3 (CLTE)
of the solar sensor.
(c) Measure the voltage according to the value(s) in the
table below.
Standard voltage
NOTICE:
While using the battery during inspection, do not
bring the positive and negative tester probes too
close to each other as a short circuit may occur.
HINT:
• Use an incandescent light for inspection. Bring it
within about 30 cm (11.8 in.) of the solar sensor.
• As the inspection light is moved away from the
sensor, the voltage increases.
NG
OK
E124476E31
Tester Connection Condition Specified Condition
B6-6 (CLTB) - A25-6
(CLTB)Always Below 1
B6-4 (CLTE) - A25-3
(CLTE)Always Below 1
B6-6 (CLTB) - Body
groundAlways 10 k or higher
B6-4 (CLTE) - Body
groundAlways 10 k
or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR
REPLACE BODY ECU

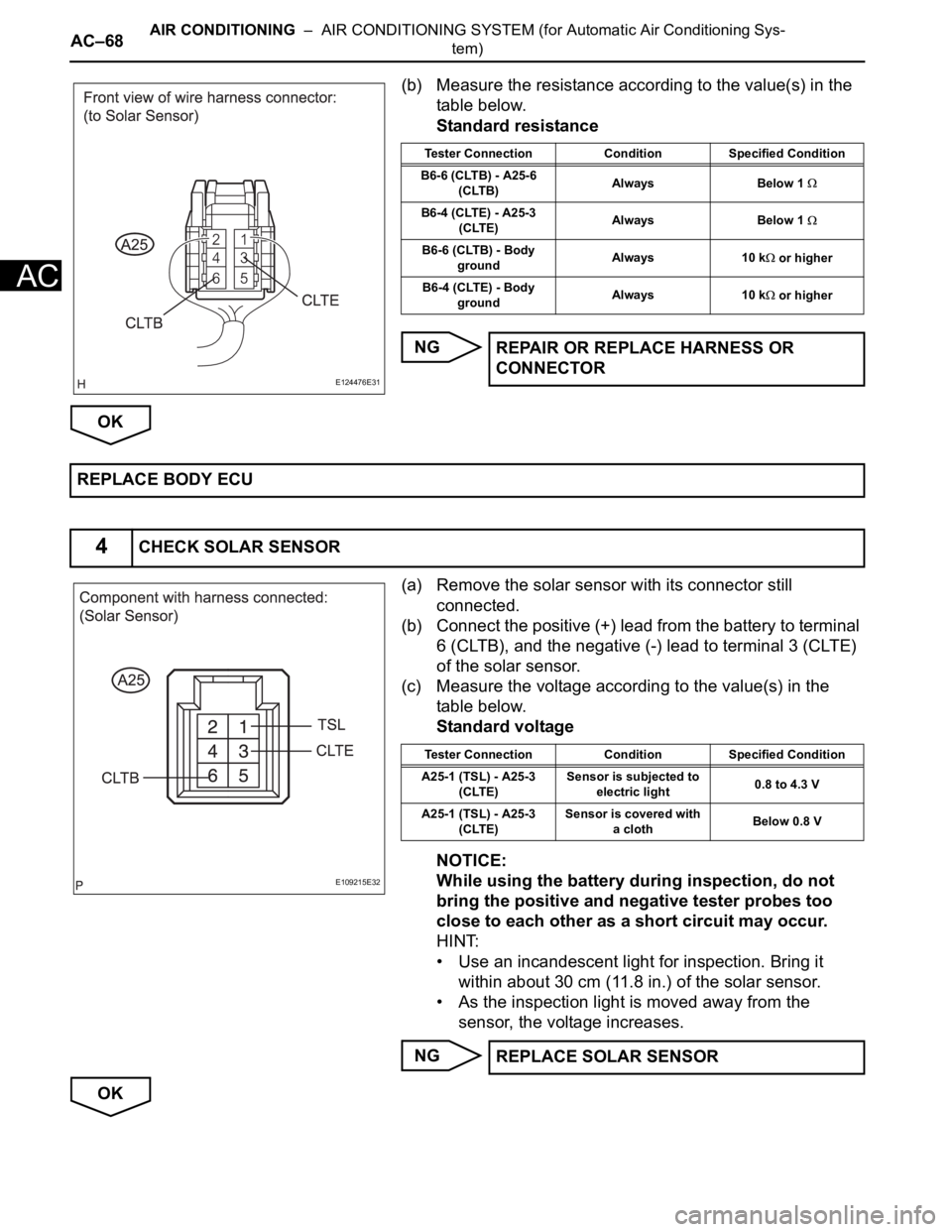

4CHECK SOLAR SENSOR
E109215E32
Tester Connection Condition Specified Condition
A25-1 (TSL) - A25-3
(CLTE)Sensor is subjected to
electric light0.8 to 4.3 V
A25-1 (TSL) - A25-3
(CLTE)Sensor is covered with
a clothBelow 0.8 V
REPLACE SOLAR SENSOR
Page 2812 of 3000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–69
AC
(a) Disconnect the solar sensor connector.
(b) Disconnect the A/C amplifier connector.
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK

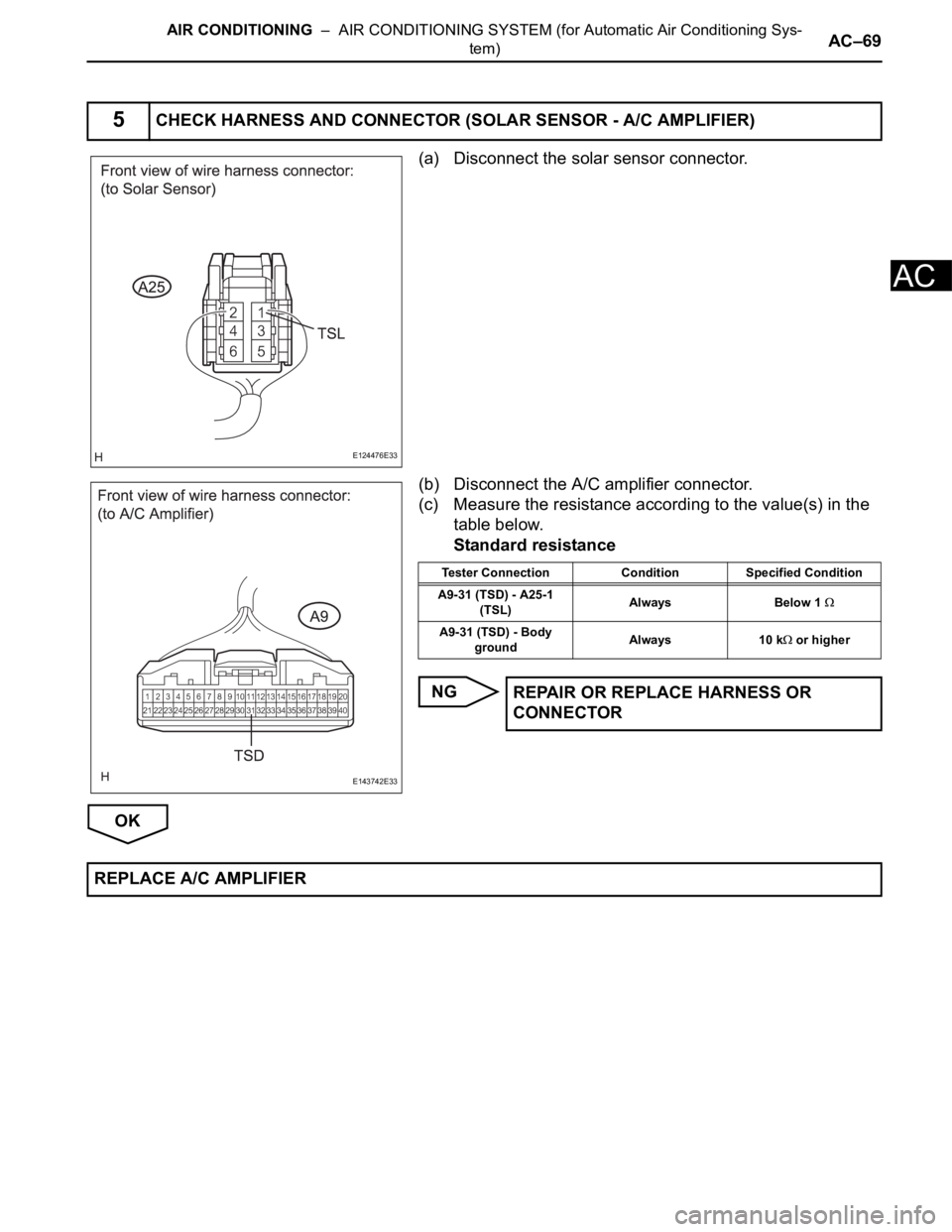

5CHECK HARNESS AND CONNECTOR (SOLAR SENSOR - A/C AMPLIFIER)
E124476E33
E143742E33
Tester Connection Condition Specified Condition
A9-31 (TSD) - A25-1
(TSL)Always Below 1
A9-31 (TSD) - Body
groundAlways 10 k or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR
REPLACE A/C AMPLIFIER
Page 2813 of 3000

AC–70AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
DESCRIPTION

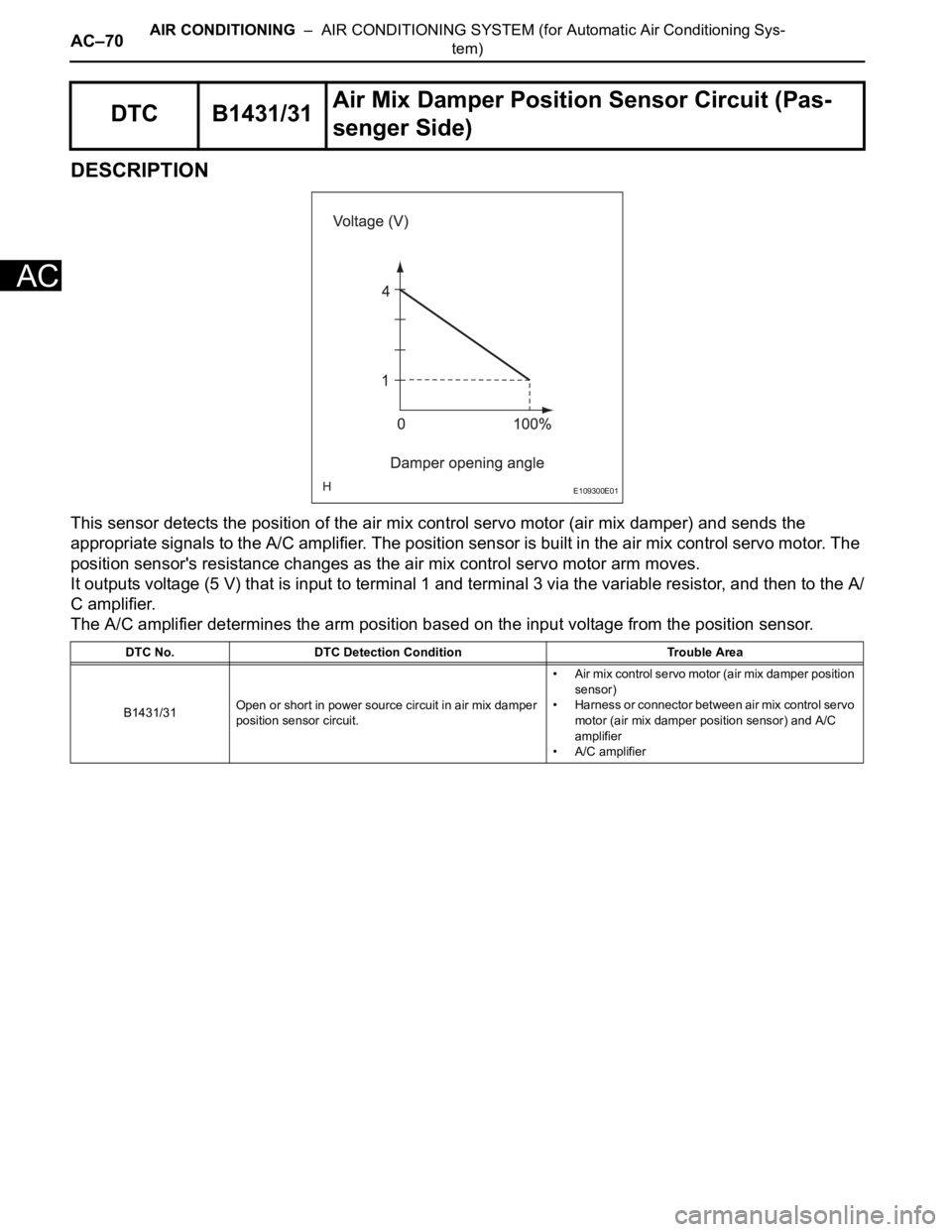

This sensor detects the position of the air mix control servo motor (air mix damper) and sends the
appropriate signals to the A/C amplifier. The position sensor is built in the air mix control servo motor. The
position sensor's resistance changes as the air mix control servo motor arm moves.
It outputs voltage (5 V) that is input to terminal 1 and terminal 3 via the variable resistor, and then to the A/
C amplifier.
The A/C amplifier determines the arm position based on the input voltage from the position sensor.
DTC B1431/31Air Mix Damper Position Sensor Circuit (Pas-
senger Side)
DTC No. DTC Detection Condition Trouble Area
B1431/31Open or short in power source circuit in air mix damper
position sensor circuit.• Air mix control servo motor (air mix damper position
sensor)
• Harness or connector between air mix control servo
motor (air mix damper position sensor) and A/C
amplifier
• A/C amplifier
E109300E01
Page 2814 of 3000

AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–71
AC
WIRING DIAGRAM
INSPECTION PROCEDURE
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the
intelligent tester main switch on.
(c) Select the items below in the DATA LIST, and read the
display on the intelligent tester.
DATA LIST / AIR CONDITIONER
OK:
The display is as specified in the normal condition
column.
Result
B
1READ VALUE OF INTELLIGENT TESTER
I036321E21
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
A/M DAMP POS-PAir mix damper position
(Passenger side) / min.: -14%,
max.: 113.5%
Damper is at "MAX. COOL": -5%
Damper is at "MAX. HOT": 105%-
A/M DAMP TARG-PAir mix damper target position
(Passenger side) / min.: -14%,
max.: 113.5%
Result Proceed to
NGA
OK (When troubleshooting according to the PROBLEM SYMPTOMS TABLE) B
OK (When troubleshooting according to the DTC) C
PROCEED TO NEXT CIRCUIT INSPECTION
SHOWN IN PROBLEM SYMPTOMS TABLE
Page 2815 of 3000
AC–72AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
C
A
(a) Remove the air mix control servo motor.
(b) Disconnect the connector from the air mix control servo
motor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance
(d) Measure the resistance according to the value(s) in the
table below.
Standard resistance
(e) As the air mix control servo motor moves from the cool
side to the hot side, the resistance decreases gradually
without interruption.
NG
OKREPLACE A/C AMPLIFIER

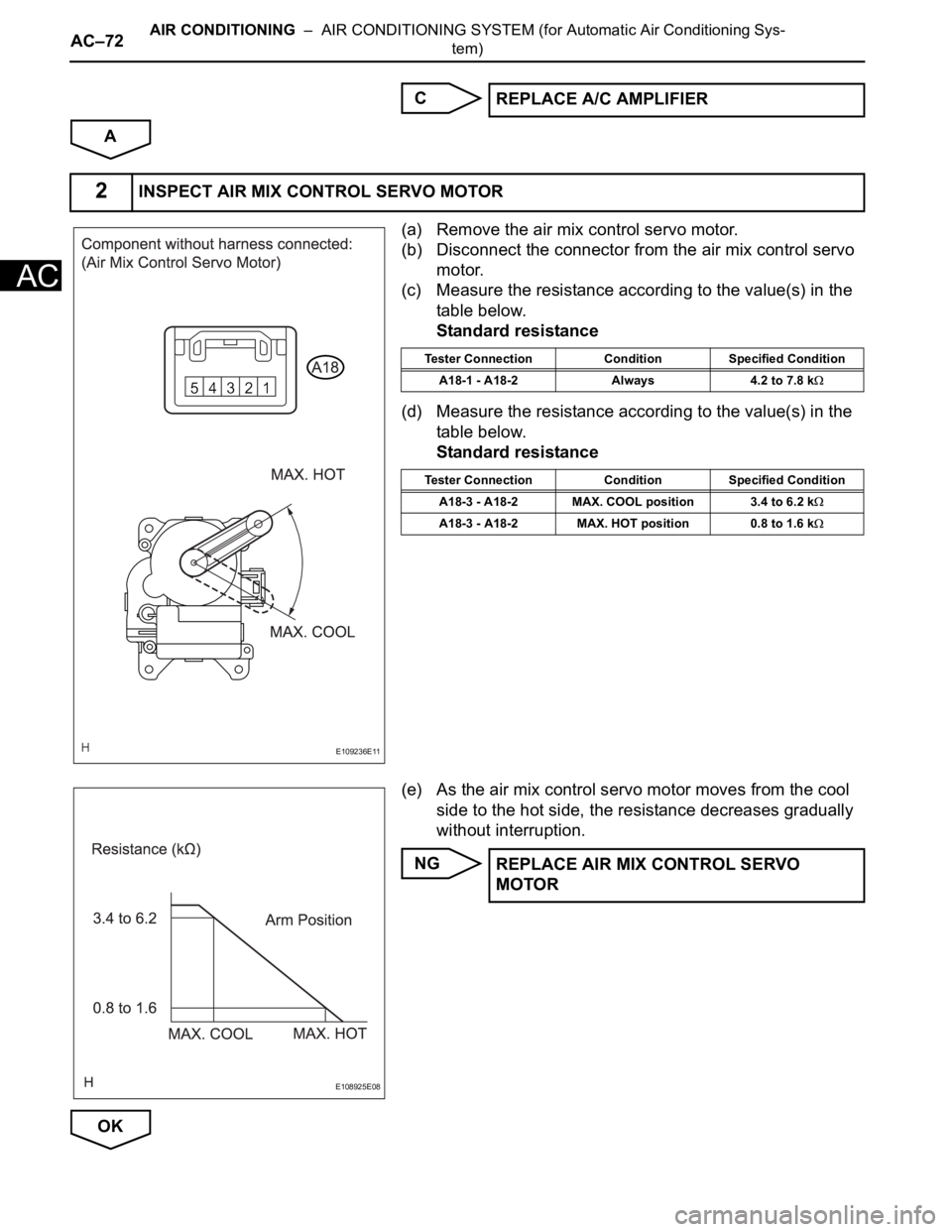

2INSPECT AIR MIX CONTROL SERVO MOTOR
E109236E11
Tester Connection Condition Specified Condition
A18-1 - A18-2 Always 4.2 to 7.8 k
Tester Connection Condition Specified Condition
A18-3 - A18-2 MAX. COOL position 3.4 to 6.2 k
A18-3 - A18-2 MAX. HOT position 0.8 to 1.6 k
E108925E08
REPLACE AIR MIX CONTROL SERVO
MOTOR
Page 2816 of 3000
AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–73
AC
(a) Disconnect the connector from the A/C amplifier.
(b) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK

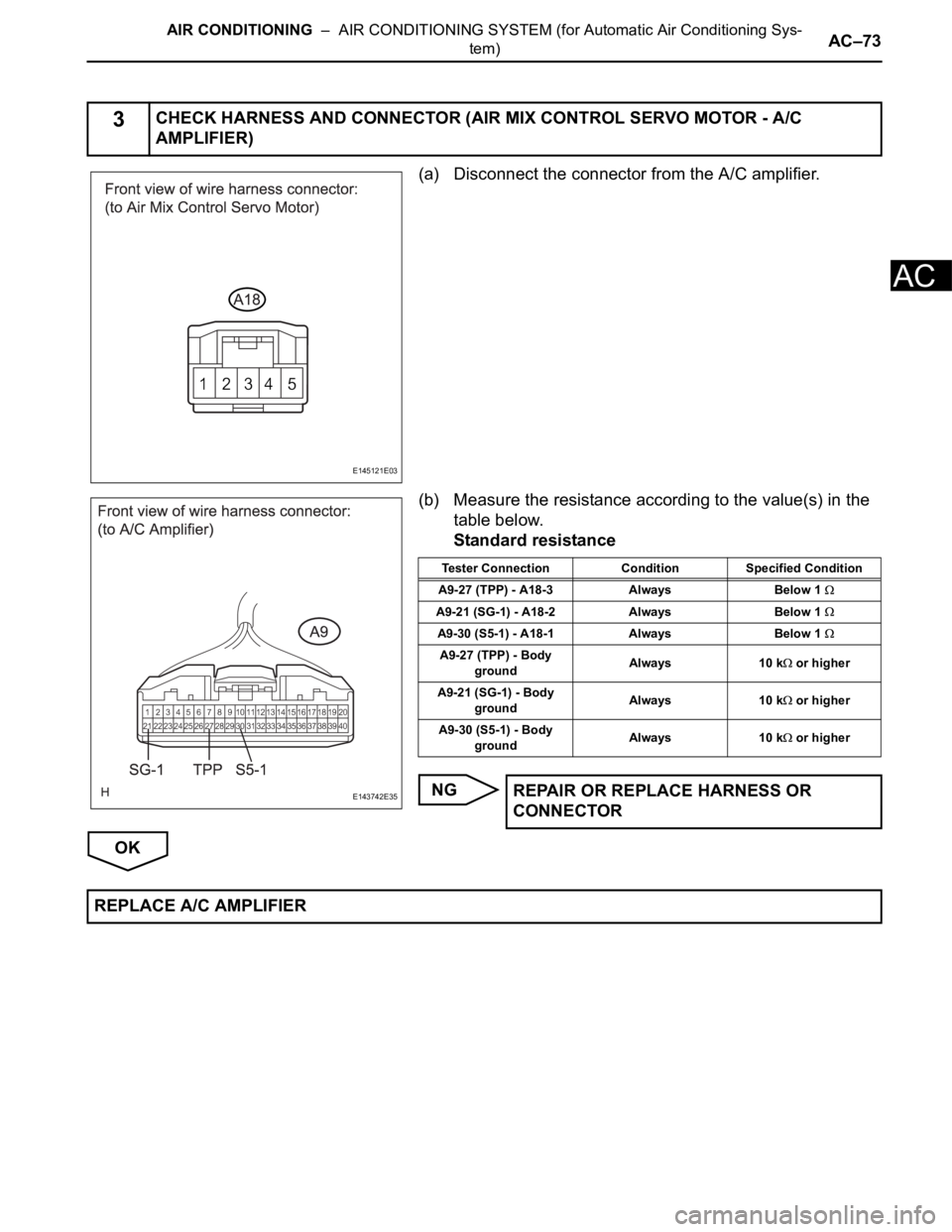

3CHECK HARNESS AND CONNECTOR (AIR MIX CONTROL SERVO MOTOR - A/C
AMPLIFIER)
E145121E03
E143742E35
Tester Connection Condition Specified Condition
A9-27 (TPP) - A18-3 Always Below 1
A9-21 (SG-1) - A18-2 Always Below 1
A9-30 (S5-1) - A18-1 Always Below 1
A9-27 (TPP) - Body
groundAlways 10 k or higher
A9-21 (SG-1) - Body
groundAlways 10 k
or higher
A9-30 (S5-1) - Body
groundAlways 10 k
or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR
REPLACE A/C AMPLIFIER
