TOYOTA SIENNA 2007 Service Repair Manual WS–6WINDSHIELD / WINDOWGLASS – POWER WINDOW CONTROL SYSTEM (w/ Jam Protec-
tion Function)
WS
CUSTOMIZE PARAMETERS
HINT:
The following item can be customized.
NOTICE:
• After confirming whether

Page 282 of 3000

TOYOTA SIENNA 2007 Service Repair Manual WINDSHIELD / WINDOWGLASS – POWER WINDOW CONTROL SYSTEM (w/ Jam Protec-
tion Function)WS–7
WS
INITIALIZATION
NOTICE:
• Resetting the power window motor (initializing the
pulse sensor) is neces

WINDSHIELD / WINDOWGLASS – POWER WINDOW CONTROL SYSTEM (w/ Jam Protec-
tion Function)WS–7
WS
INITIALIZATION
NOTICE:
• Resetting the power window motor (initializing the
pulse sensor) is necessary when the battery terminal
is disconnected; when the master switch, wire
harness, power window regulator and power window
motor are replaced or removed/installed; or when the
fuses are replaced. AUTO operation function, jam
protection function and remote operation function via
the power window master switch do not operate
without resetting.
• If the AUTO switch (driver side switch) of the master
switch has been continuously operated for a long
time, the power window motor will stop so that no
additional load can be applied to the motor.
Continuing to operate the switch even after the motor
has stopped will cause the switch to blink while
restricting the AUTO UP/DOWN function and the
remote UP/DOWN function. If this happens, reset the
motor again after several minutes have passed.
• Whenever disconnecting the battery terminal, reset all
the other systems besides the power window control
system.
1. RESET POWER WINDOW REGULATOR MOTOR
(DRIVER SIDE)
(a) Turn the ignition switch ON.
(b) Halfway open the power window by pressing the
power window switch.
(c) Fully pull up the switch until the power window is
fully closed and continue to hold the switch for
approx. 1 second after the power window is fully
closed.
(d) Check that the AUTO UP/DOWN function operates
normally.
If the AUTO UP/DOWN function operates normally,
reset operations have been completed at this time.
If not normal, follow steps below.
(1) Disconnect the negative battery terminal for 10
seconds.
(2) Connect the battery terminal.
(3) Perform the above steps (a) to (d) again.
HINT:
If operation is normal, reset operations have
been completed at this time. If not normal, follow
steps (4) to (7).
(4) Turn the ignition switch ON.
(5) Halfway open the power window by pressing the
power window switch.
(6) Fully pull up the switch until the power window is
fully closed and continue to hold the switch for
approx. 12 seconds after the power window is
fully closed.
(7) Check that the AUTO UP/DOWN function
operates normally.

Page 283 of 3000

TOYOTA SIENNA 2007 Service Repair Manual WS–66WINDSHIELD / WINDOWGLASS – WINDOW DEFOGGER SYSTEM
WS
PROBLEM SYMPTOMS TABLE
WINDOW DEFOGGER SYSTEM
ON-VEHICLE INSPECTION
1. INSPECT BACK WINDOW (DEFOGGER WIRE)
NOTICE:
• When cleaning the

Page 284 of 3000

TOYOTA SIENNA 2007 Service Repair Manual WINDSHIELD / WINDOWGLASS – WINDOW DEFOGGER SYSTEMWS–67
WS
(c) Inspect the voltage at the center of each defogger
wire, as shown in the illustration.
Standard voltage
HINT:
If there is approxima

Page 285 of 3000

TOYOTA SIENNA 2007 Service Repair Manual WS–68WINDSHIELD / WINDOWGLASS – WINDOW DEFOGGER SYSTEM
WS
(d) Using a fine tip brush, apply a small amount of the
agent to the wire.
(e) After a few minutes, remove the masking tape.
NOTICE:
Do

Page 286 of 3000

TOYOTA SIENNA 2007 Service Repair Manual MIRROR – POWER MIRROR CONTROL SYSTEM (w/ Memory)MI–3
MI
SYSTEM DIAGRAM

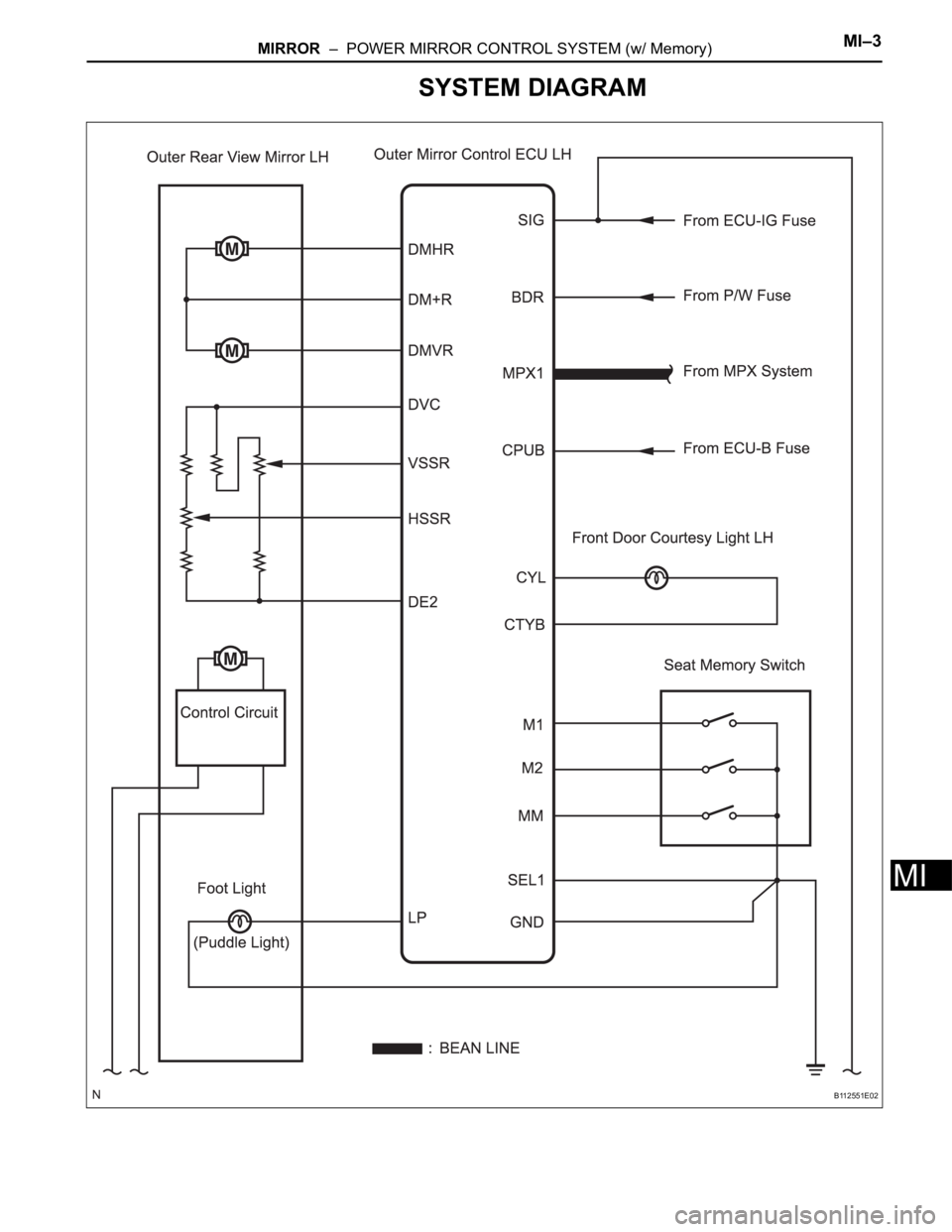

B112551E02

Page 287 of 3000

TOYOTA SIENNA 2007 Service Repair Manual MI–4MIRROR – POWER MIRROR CONTROL SYSTEM (w/ Memory)
MI

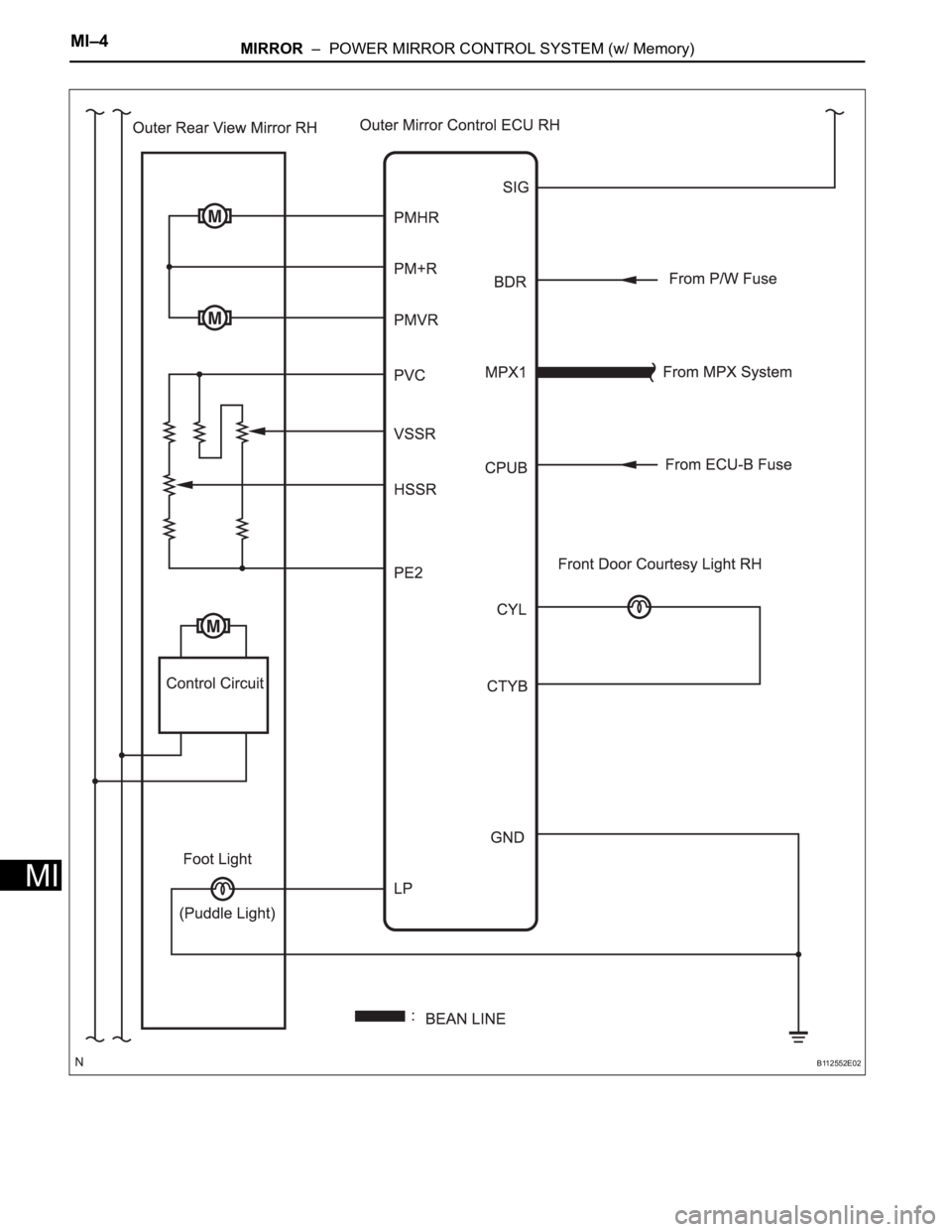

B112552E02

Page 288 of 3000

TOYOTA SIENNA 2007 Service Repair Manual MIRROR – POWER MIRROR CONTROL SYSTEM (w/ Memory)MI–5
MI

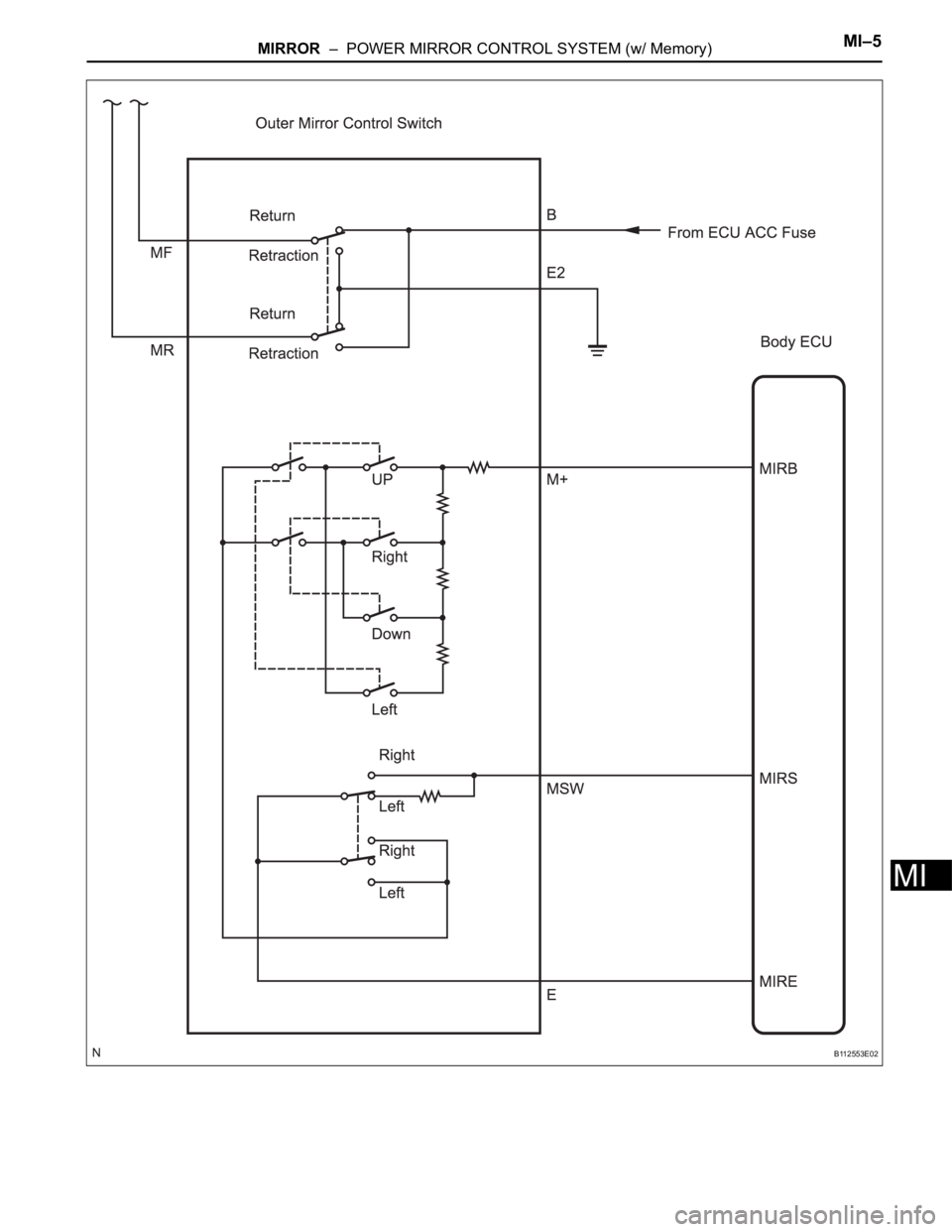

B112553E02
