Page 289 of 3000

TOYOTA SIENNA 2007 Service Repair Manual INSTRUMENT PANEL – INSTRUMENT PANEL SAFETY PADIP–5 IP REMOVAL 1. BOLT, SCREW AND NUT TABLE (a) The bolts, the screws and the nuts, which are necessary for installation and removal of the instr

Page 290 of 3000

TOYOTA SIENNA 2007 Service Repair Manual IP–6INSTRUMENT PANEL – INSTRUMENT PANEL SAFETY PAD IP 10. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (a) Remove the 2 clips. (b) Pull the instrument cluster finish panel sub- assembly

Page 291 of 3000

TOYOTA SIENNA 2007 Service Repair Manual INSTRUMENT PANEL – INSTRUMENT PANEL SAFETY PADIP–7 IP 18. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY (a) Disengage the claw, and remove the glove compartment door stopper sub-assembly.

Page 292 of 3000

TOYOTA SIENNA 2007 Service Repair Manual IP–8INSTRUMENT PANEL – INSTRUMENT PANEL SAFETY PAD IP 23. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO.1 (a) Disengage the claw and 4 clips, and then remove the instrument panel register assem

Page 293 of 3000

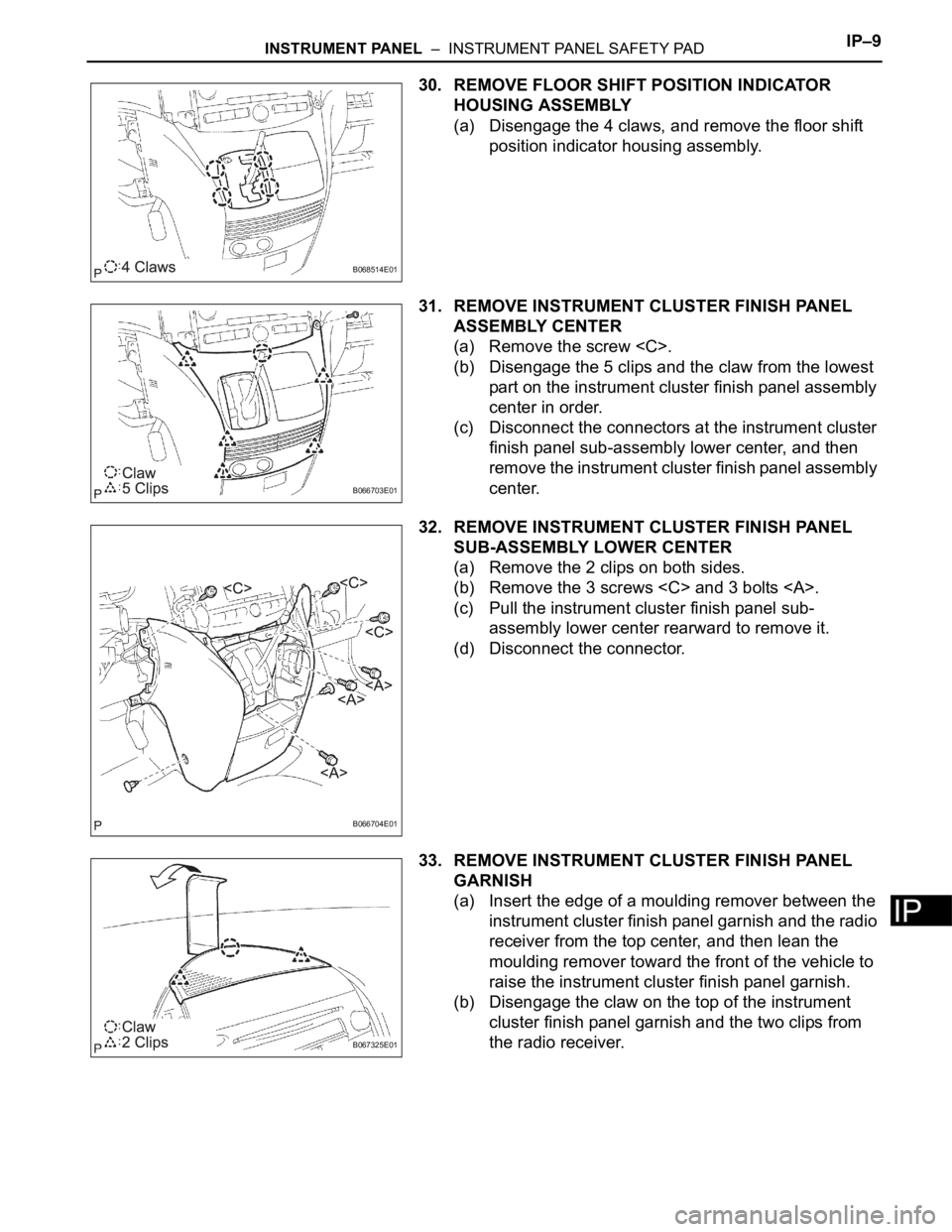

TOYOTA SIENNA 2007 Service Repair Manual INSTRUMENT PANEL – INSTRUMENT PANEL SAFETY PADIP–9 IP 30. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING ASSEMBLY (a) Disengage the 4 claws, and remove the floor shift position indicator housin

Page 294 of 3000

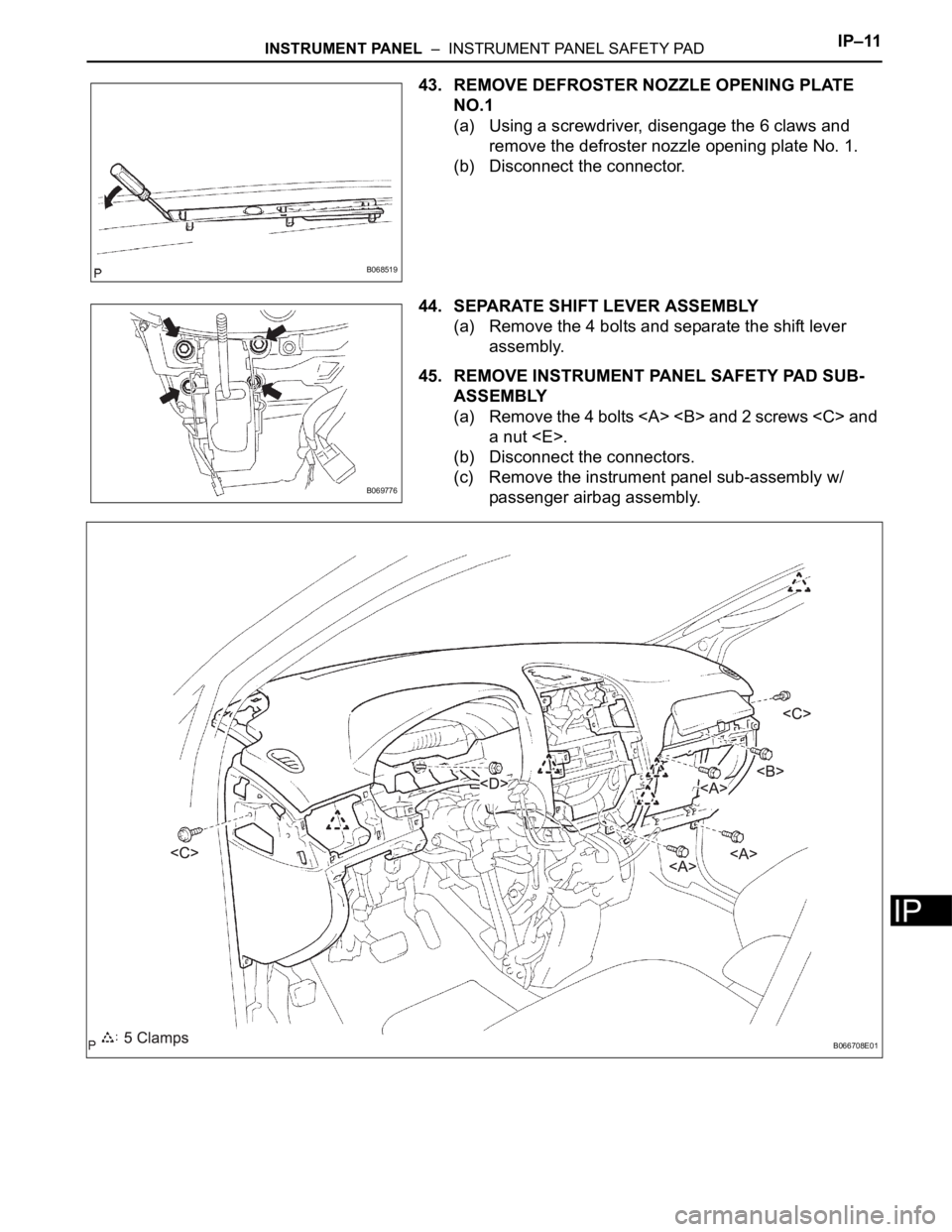

TOYOTA SIENNA 2007 Service Repair Manual IP–10INSTRUMENT PANEL – INSTRUMENT PANEL SAFETY PAD IP (c) Pull up the instrument cluster finish panel garnish to the front of the vehicle to disengage the 5 claws at the bottom of the instrum

Page 295 of 3000

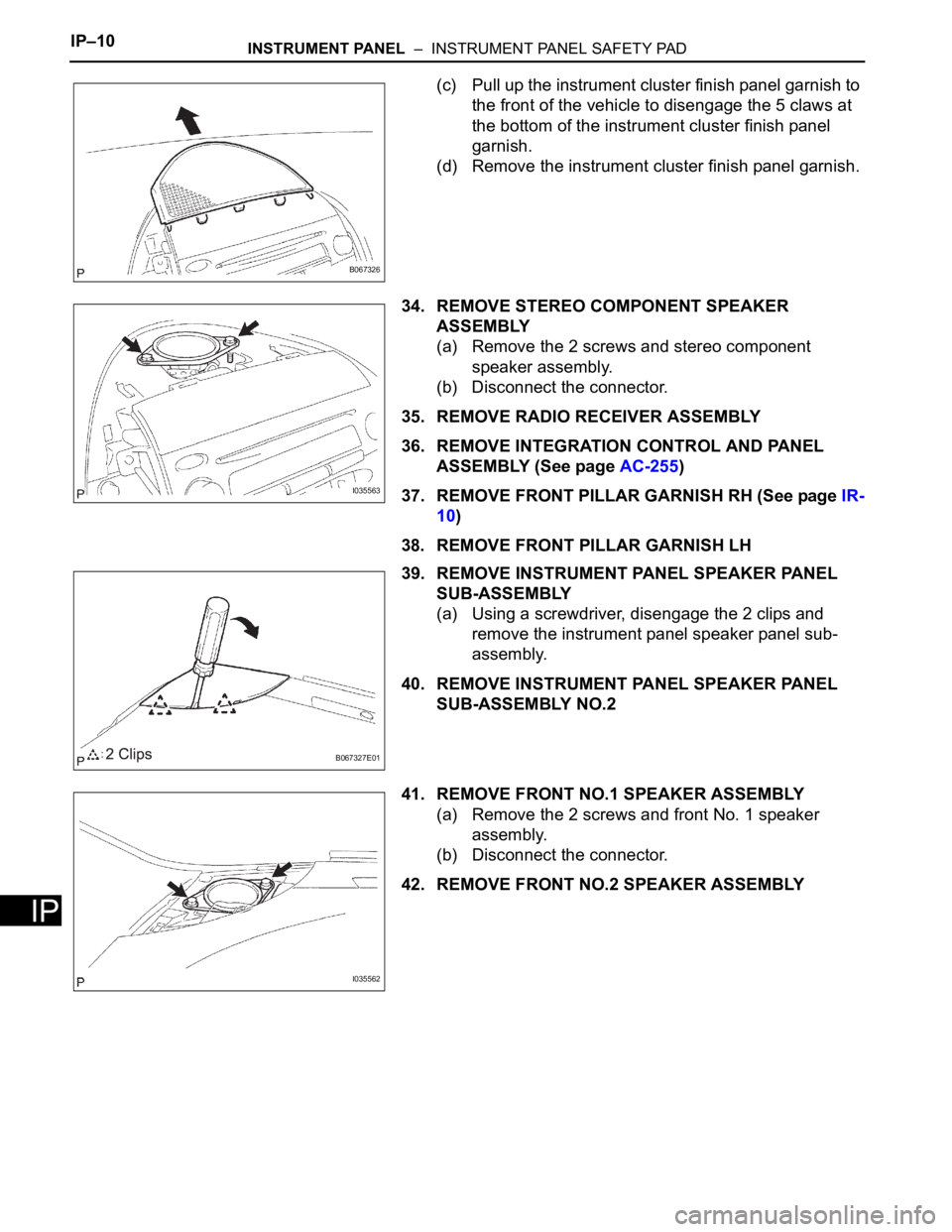

TOYOTA SIENNA 2007 Service Repair Manual INSTRUMENT PANEL – INSTRUMENT PANEL SAFETY PADIP–11 IP 43. REMOVE DEFROSTER NOZZLE OPENING PLATE NO.1 (a) Using a screwdriver, disengage the 6 claws and remove the defroster nozzle opening pla

Page 296 of 3000

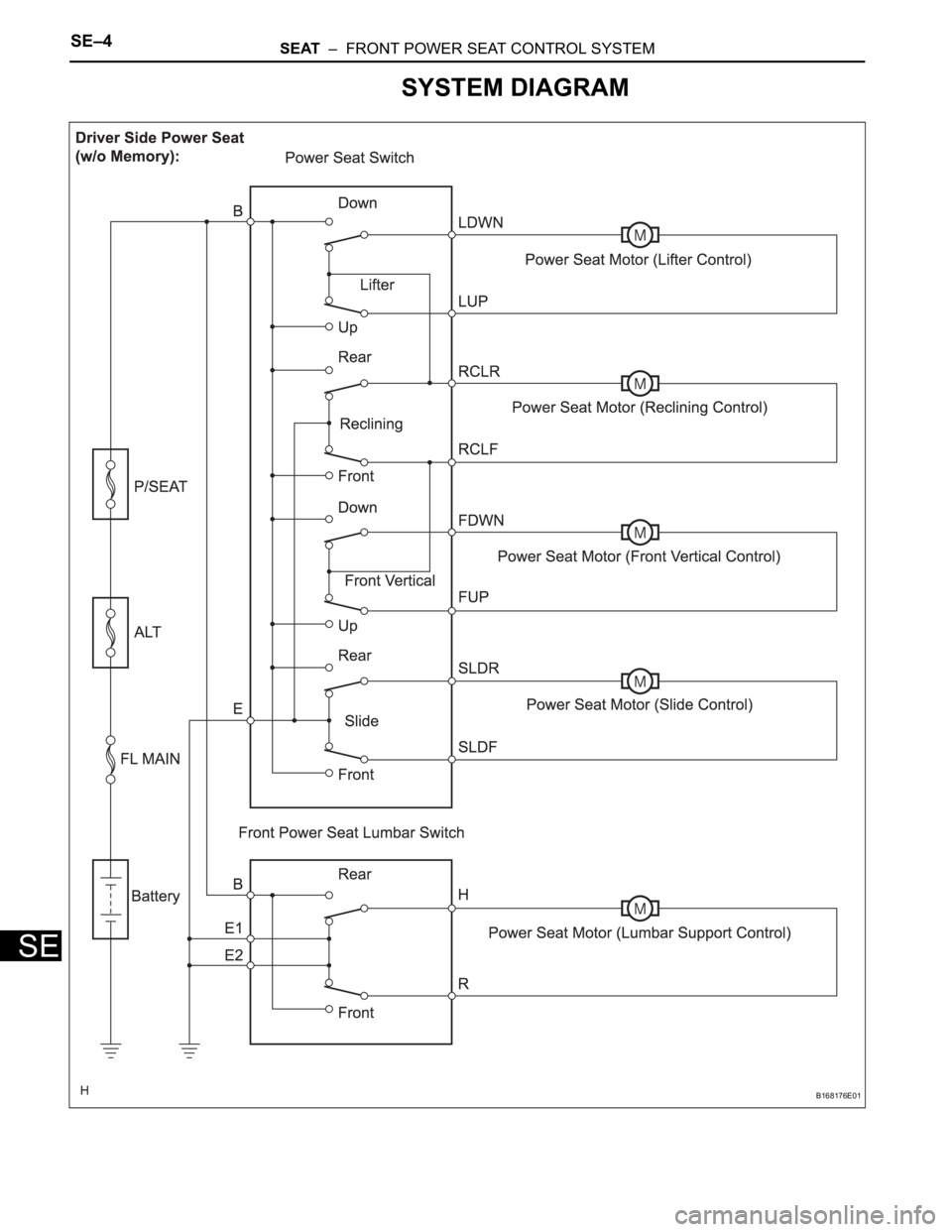

TOYOTA SIENNA 2007 Service Repair Manual SE–4SEAT – FRONT POWER SEAT CONTROL SYSTEM SE SYSTEM DIAGRAM B168176E01
