Page 2233 of 3000
SUSPENSION – REAR COIL SPRINGSP–39
SP

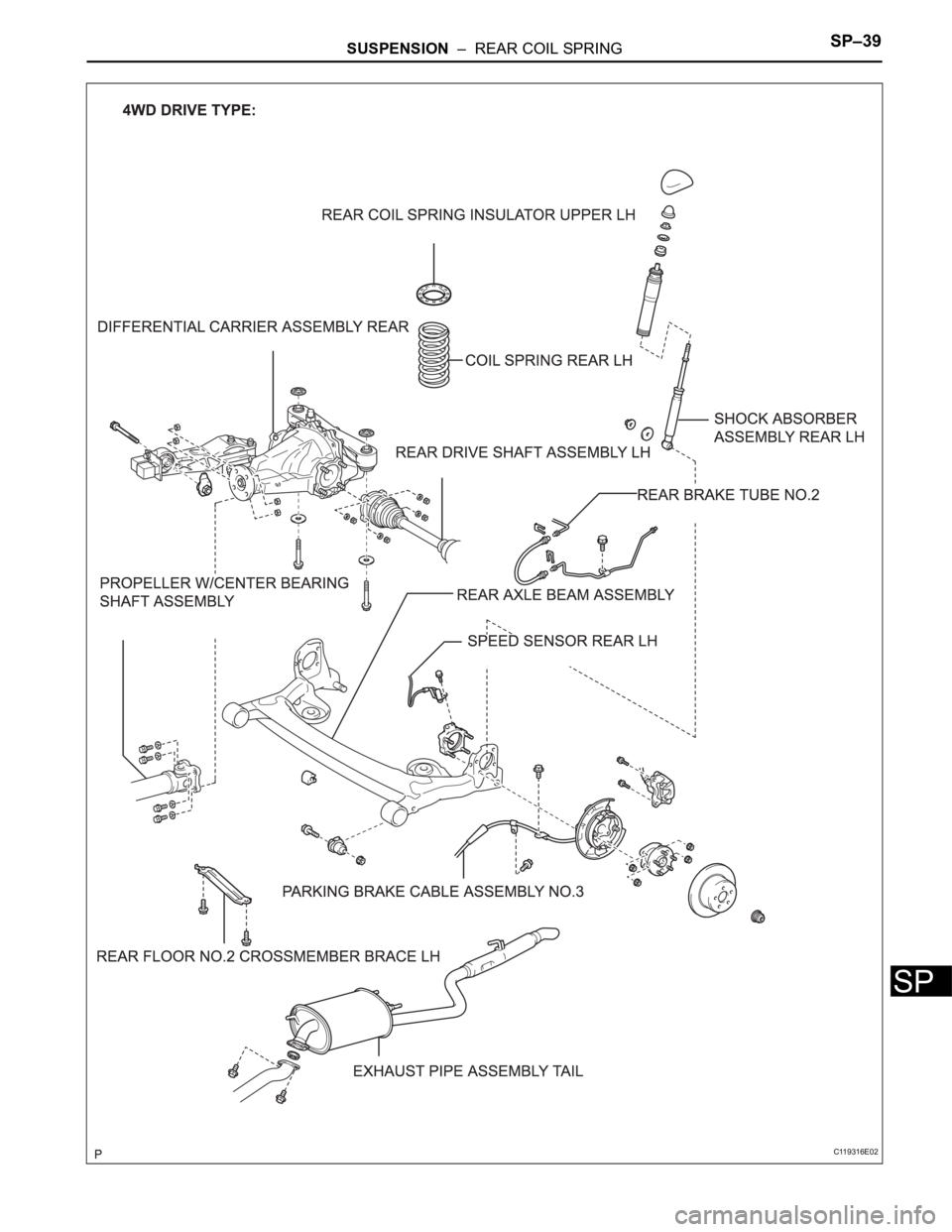

C119316E02
Page 2234 of 3000
SP–40SUSPENSION – REAR COIL SPRING
SP

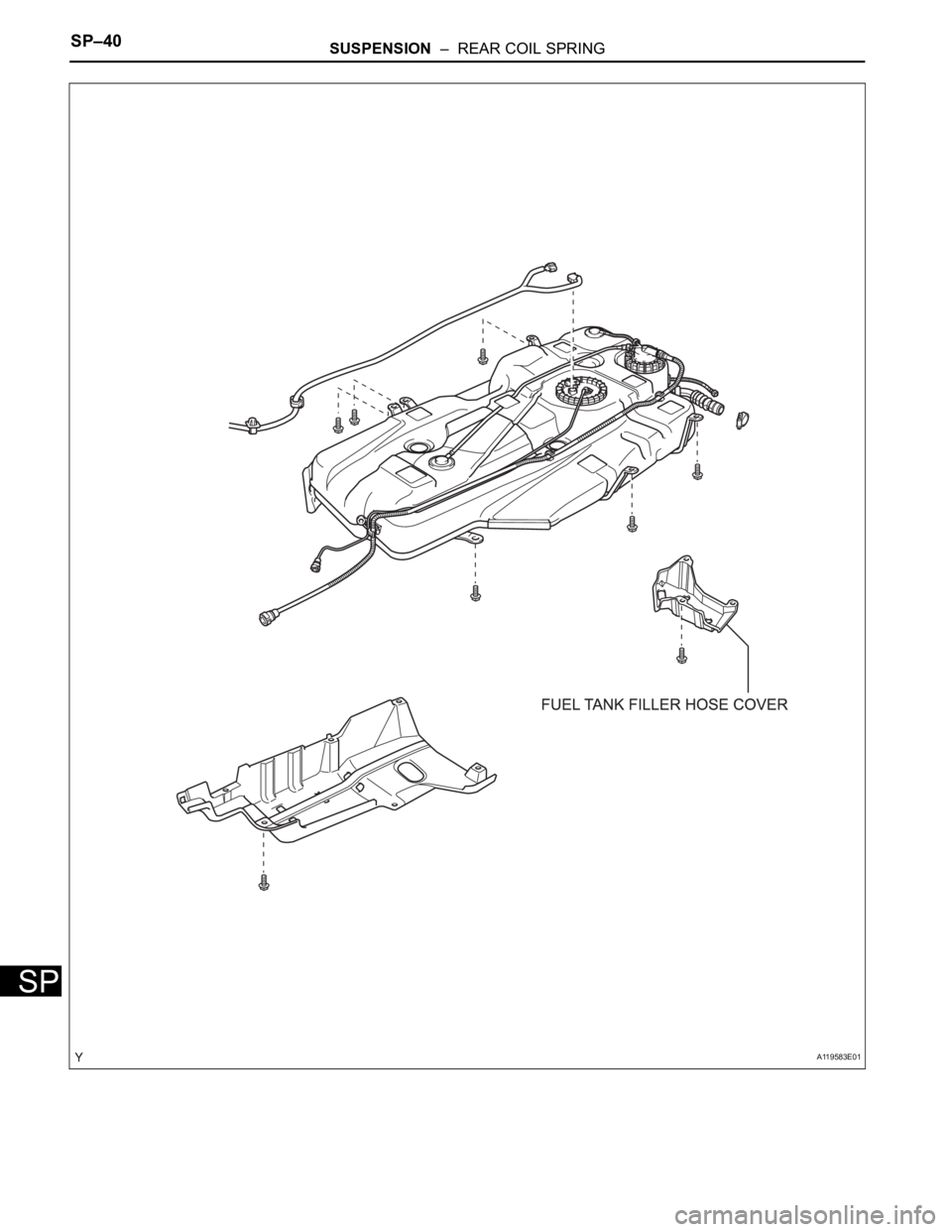

A119583E01
Page 2235 of 3000

SUSPENSION – REAR AXLE BEAMSP–57
SP
REMOVAL
1. REMOVE REAR WHEEL
2. REMOVE SKID CONTROL SENSOR WIRE (for 2WD)
HINT:
(See page SP-38)
HINT:
Disconnect the RH side by the same procedures as the
LH side.
3. SEPARATE SPEED SENSOR REAR LH (for 4WD)
HINT:
(See page SP-38)
4. SEPARATE SPEED SENSOR REAR RH (for 4WD)
HINT:
Separate the RH side by the same procedures as the LH
side.
5. REMOVE EXHAUST PIPE ASSEMBLY TAIL
HINT:
• 2WD DRIVE TYPE (See page EX-2)
• 4WD DRIVE TYPE (See page EX-8)
6. REMOVE PROPELLER W/CENTER BEARING SHAFT
ASSEMBLY (for 4WD)
HINT:
(See page PR-2)
7. REMOVE REAR AXLE SHAFT LH NUT (for 4WD)
HINT:
(See page AH-18)
8. REMOVE REAR AXLE SHAFT RH NUT (for 4WD)
HINT:
Remove the RH side by the same procedures as the LH
side.
9. REMOVE REAR DRIVE SHAFT ASSEMBLY LH (for
4WD)
HINT:
(See page AH-18)
10. REMOVE REAR DRIVE SHAFT ASSEMBLY RH (for
4WD)
HINT:
Remove the RH side by the same procedures as the LH
side.
11. REMOVE DIFFERENTIAL CARRIER ASSEMBLY
REAR (for 4WD)
HINT:
(See page DF-8)
12. SEPARATE PARKING BRAKE CABLE ASSEMBLY
NO.3
HINT:
(See page SP-38)
Page 2236 of 3000

SP–58SUSPENSION – REAR AXLE BEAM
SP
13. SEPARATE PARKING BRAKE CABLE ASSEMBLY
NO.2
HINT:
Separate the RH side by the same procedures as the LH
side.
14. SEPARATE REAR BRAKE TUBE NO.2
HINT:
(See page SP-38)
SST 09023-00101
15. SEPARATE REAR BRAKE TUBE NO.1
SST 09023-00101
HINT:
Separate the RH side by the same procedures as the LH
side.
16. REMOVE FUEL TANK FILLER HOSE COVER
HINT:
(See page SP-38)
17. REMOVE REAR FLOOR NO.2 CROSSMEMBER
BRACE LH
HINT:
(See page SP-38)
18. REMOVE REAR FLOOR NO.2 CROSSMEMBER
BRACE RH
HINT:
Remove the RH side by the same procedures as the LH
side.
19. LOOSEN REAR AXLE BEAM ASSEMBLY
HINT:
(See page SP-38)
20. SEPARATE REAR DISC BRAKE CALIPER
ASSEMBLY LH (for DISC REAR BRAKE)
(a) Remove the 2 bolts and separate the rear disc
brake caliper assembly LH.
21. SEPARATE REAR DISC BRAKE CALIPER
ASSEMBLY RH (for DISC REAR BRAKE)
HINT:
Separate the RH side by the same procedures as the LH
side.
22. REMOVE REAR DISC (for DISC REAR BRAKE)
23. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (for
DRUM REAR BRAKE)
24. REMOVE REAR AXLE HUB & BEARING ASSEMBLY
LH (for 2WD)
HINT:
(See page AH-15)
Page 2237 of 3000

SUSPENSION – REAR AXLE BEAMSP–59
SP
25. REMOVE REAR AXLE HUB & BEARING ASSEMBLY
RH (for 2WD)
HINT:
Remove the RH side by the same procedures as the LH
side.
26. REMOVE REAR AXLE HUB & BEARING ASSEMBLY
LH (for 4WD)
HINT:
(See page AH-18)
27. REMOVE REAR AXLE HUB & BEARING ASSEMBLY
RH (for 4WD)
HINT:
Remove the RH side by the same procedures as the LH
side.
28. REMOVE PARKING BRAKE PLATE SUB-ASSEMBLY
LH (for DISC REAR BRAKE)
(a) 2WD DRIVE TYPE: Remove the rear axle bearing
retainer inner LH and parking brake plate sub-
assembly LH.
(b) 4WD DRIVE TYPE: Remove the rear axle bearing
retainer outer and parking brake plate sub-assembly
LH.
29. REMOVE PARKING BRAKE PLATE SUB-ASSEMBLY
RH (for DISC REAR BRAKE)
HINT:
Remove the RH side by the same procedures as the LH
side.
30. REMOVE BRAKE BACKING PLATE SUB-ASSEMBLY
LH (DRUM REAR BRAKE)
(a) Remove the 2 rear axle bearing retainer inner LH
and parking brake plate sub-assembly LH.
31. REMOVE BRAKE BACKING PLATE SUB-ASSEMBLY
RH (for DRUM REAR BRAKE)
HINT:
Remove the RH side by the same procedures as the LH
side.
32. SEPARATE SHOCK ABSORBER ASSEMBLY REAR
LH
HINT:
(See page SP-38)
33. SEPARATE SHOCK ABSORBER ASSEMBLY REAR
RH
HINT:
Separate the RH side by the same procedures as the LH
side.
34. REMOVE COIL SPRING REAR LH
HINT:
(See page SP-38)
Page 2238 of 3000

SP–60SUSPENSION – REAR AXLE BEAM
SP
35. REMOVE COIL SPRING REAR RH
HINT:
Remove the RH side by the same procedures as the LH
side.
36. REMOVE REAR AXLE BEAM ASSEMBLY
(a) Support the rear axle beam assembly with a jack.
(b) Remove the 2 bolts and 2 nuts.
(c) Remove the rear axle beam assembly.
NOTICE:
When loosening the bolt, hold the nut not to
rotate.
37. REMOVE REAR BRAKE TUBE FLEXIBLE HOSE
(a) Using SST, separate the brake tube from the flexible
hose.
SST 09023-00101
(b) Remove the clip and flexible hose.
HINT:
Remove the RH side by the same procedures as
the LH side.
38. REMOVE REAR AXLE CARRIER BUSH LH
(a) Place matchmarks on the 2 notches of the bushing
and rear axle beam assembly.
(b) Using a chisel and hammer, bend the 2 portions of
the bushing rib.
HINT:
Bend the bushing rib until the claw of SST can be
hung.
(c) Using SST, remove the bushing from the rear axle
beam assembly.
SST 09950-40011 (09951-04020, 09952-04010,
09953-04030, 09954-04020, 09955-04051,
09957-04010, 09958-04011), 09950-60010
(09951-00630)
NOTICE:
If there is a scratch on the axle beam, paint it.
39. REMOVE REAR AXLE CARRIER BUSH RH
SST 09950-40011 (09951-04020, 09952-04010,
09953-04030, 09954-04020, 09955-04051,
09957-04010, 09958-04011), 09950-60010
(09951-00630)
HINT:
Remove the RH side by the same procedures as the LH
side.
40. REMOVE REAR AXLE BEAM DAMPER
(a) Remove the rear axle beam damper from the rear
axle beam assembly.
G025783
G025786E01
G025784E01
Page 2239 of 3000
SUSPENSION – REAR SHOCK ABSORBERSP–51
SP
REMOVAL
1. REMOVE REAR WHEEL
2. REMOVE REAR SHOCK ABSORBER CAP LH
(a) Remove the shock absorber head cover.
(b) Remove the shock absorber cap LH.
3. REMOVE SHOCK ABSORBER ASSEMBLY REAR LH
(a) Support the rear axle beam with a jack.
(b) Using a 6 mm hexagon wrench to hold the piston
rod, remove the lock nut.
(c) Remove the rear shock absorber LH cushion
retainer and rear shock absorber cushion No.1.
G023895
C088670
G023896
G023897
Page 2240 of 3000
SP–52SUSPENSION – REAR SHOCK ABSORBER
SP
(d) Remove the nut, cushion retainer and shock
absorber assembly rear LH.
(e) Remove the rear spring bumper No.1 LH from the
shock absorber assembly rear LH.
INSPECTION
1. INSPECT SHOCK ABSORBER ASSEMBLY REAR LH
(a) Push down and pull up the shock absorber rod, and
check that there is no unusual resistance or unusual
operation sound.
If there is any malfunction, replace the shock
absorber with a new one.
NOTICE:
When disposing of the shock absorber, see
DISPOSAL (See page SP-54).
INSTALLATION
1. INSTALL SHOCK ABSORBER ASSEMBLY REAR LH
(a) Install the rear spring bumper No.1 LH to the shock
absorber assembly LH.
(b) Support the rear axle beam assembly with a jack.
(c) Install the rear shock absorber assembly rear LH,
cushion retainer and nut to the rear axle beam.
C088671
C088672
C088673
C088672
C088670
