Page 121 of 3000

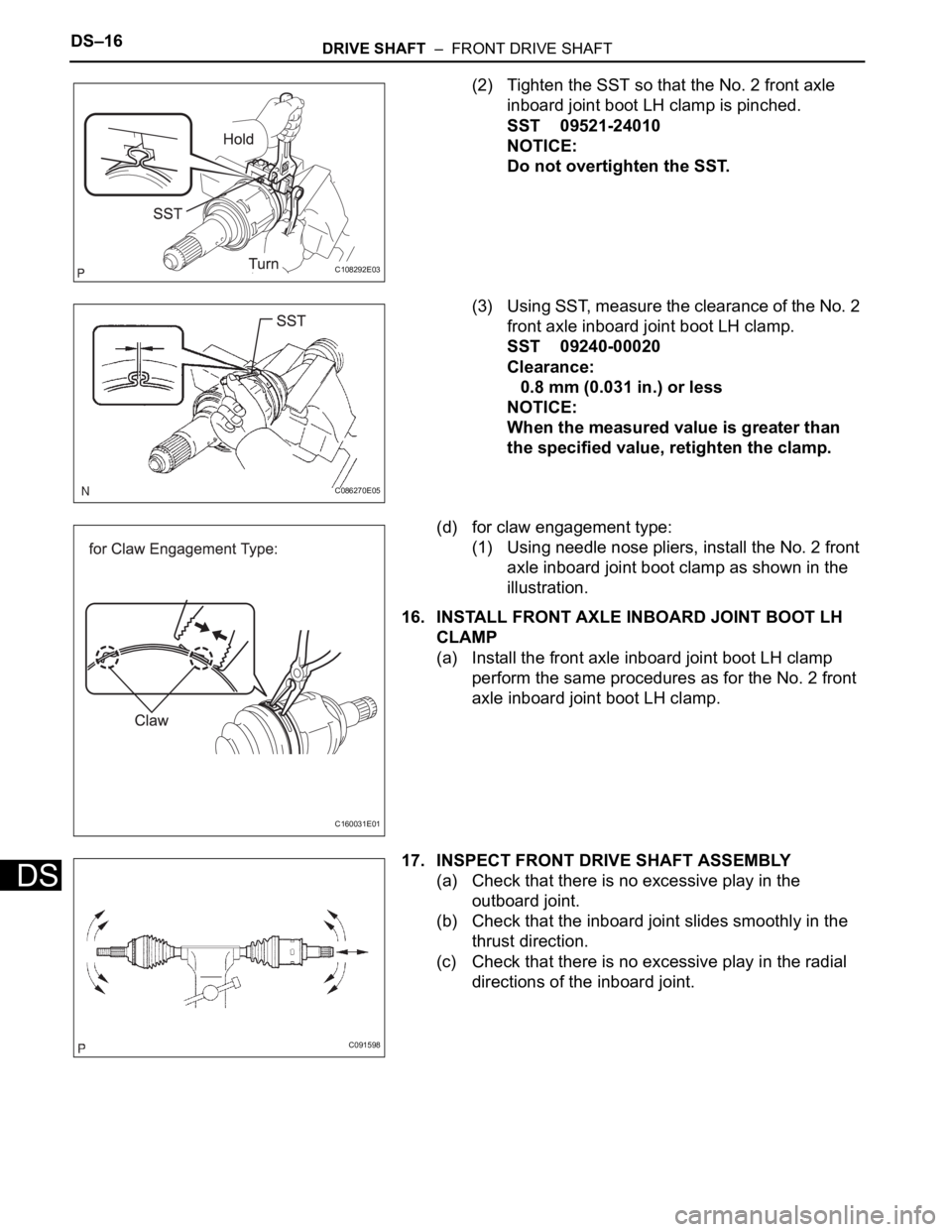

TOYOTA SIENNA 2007 Service Repair Manual DS–16DRIVE SHAFT – FRONT DRIVE SHAFT DS (2) Tighten the SST so that the No. 2 front axle inboard joint boot LH clamp is pinched. SST 09521-24010 NOTICE: Do not overtighten the SST. (3) Using SS

Page 122 of 3000

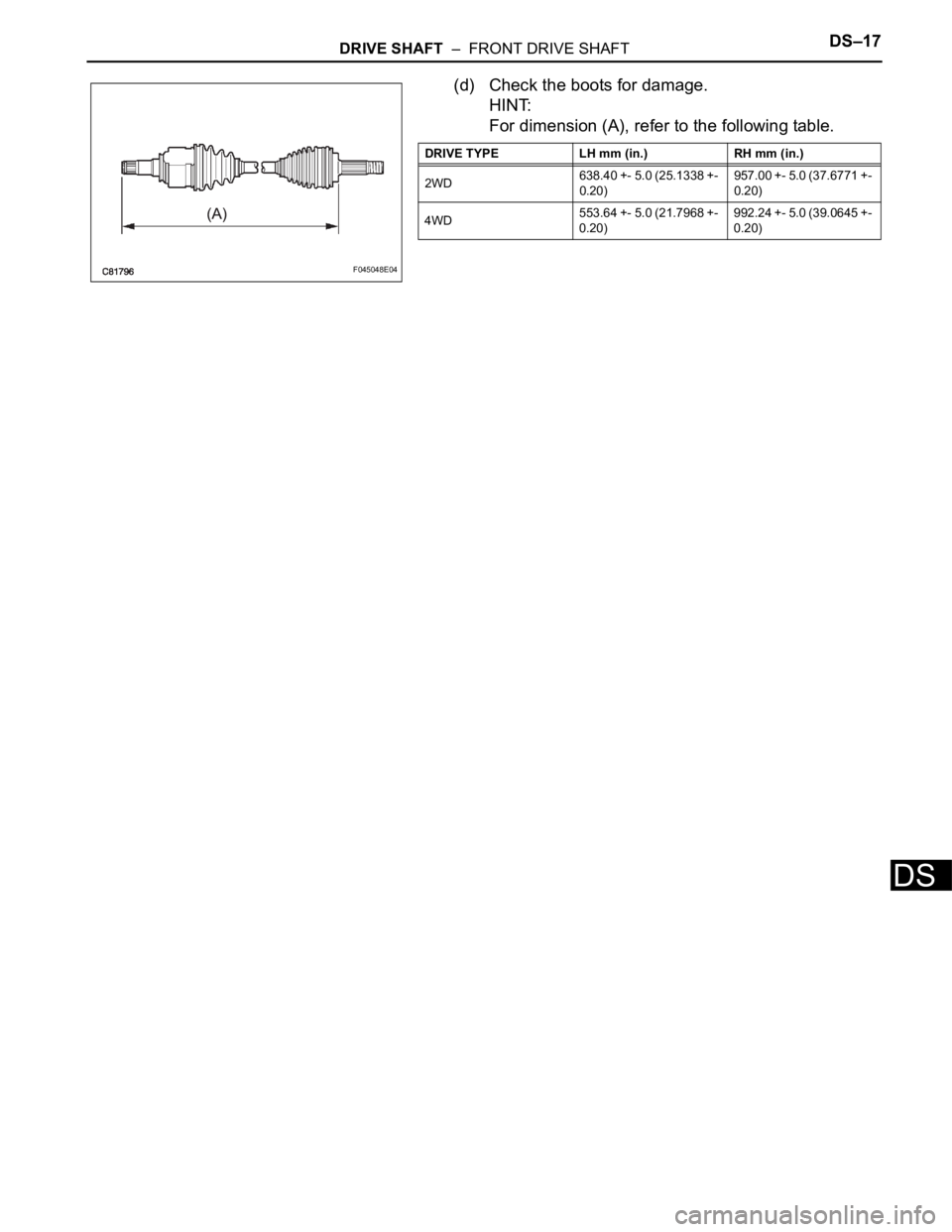

TOYOTA SIENNA 2007 Service Repair Manual DRIVE SHAFT – FRONT DRIVE SHAFTDS–17 DS (d) Check the boots for damage. HINT: For dimension (A), refer to the following table. F045048E04 DRIVE TYPE LH mm (in.) RH mm (in.) 2WD638.40 +- 5.0 (25.

Page 123 of 3000

TOYOTA SIENNA 2007 Service Repair Manual PREPARATION – 2GR-FE FUELPP–9 PP RECOMMENDED TOOLS 09082-00040 TOYOTA Electrical Tester

Page 124 of 3000

TOYOTA SIENNA 2007 Service Repair Manual PP–10PREPARATION – 2GR-FE FUEL PP EQUIPMENT Measuring Flask Ohmmeter Stopwatch To r q u e w r e n c h Vernier calipers Plastic bag

Page 125 of 3000

TOYOTA SIENNA 2007 Service Repair Manual PREPARATION – 2GR-FE EMISSION CONTROLPP–11 PP EQUIPMENT vacuum pump Ohmmeter Service Wire Harness Torque wrench Pressure gauge Vernier calipers

Page 126 of 3000

TOYOTA SIENNA 2007 Service Repair Manual PP–12PREPARATION – 2GR-FE EMISSION CONTROL PP SSM Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Page 127 of 3000

TOYOTA SIENNA 2007 Service Repair Manual PP–14PREPARATION – 2GR-FE COOLING PP EQUIPMENT Ohmmeter - Radiator cap tester - Thermometer - To r q u e w r e n c h - Slide calipers - Heater - Ammeter (A) -

Page 128 of 3000

TOYOTA SIENNA 2007 Service Repair Manual PREPARATION – 2GR-FE COOLINGPP–15 PP COOLANT Capacity Classification 11.3 liters (12.0 US qts, 10.0 Imp. qts) Use only "TOYOTA Super Long Life Coolant" or similar high quality ethylene
