TOYOTA SIENNA 2007 Service Repair Manual EM–262GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
REMOVAL
1. DISCHARGE FUEL SYSTEM PRESSURE (See page
FU-13)
2. DISCHARGE REFRIGERANT FROM
REFRIGERATION SYSTEM (See page AC-172)
3. REMOVE BAT

Page 986 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–27
EM
14. REMOVE WINDSHIELD WIPER ARM AND BLADE
ASSEMBLY LH (See page WW-4)
15. REMOVE COWL TOP VENTILATOR LOUVER SUB-
ASSEMBLY (See page WW-4)
16.

Page 987 of 3000

TOYOTA SIENNA 2007 Service Repair Manual EM–282GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
19. REMOVE V-BANK COVER SUB-ASSEMBLY
(a) Hold the front of the V-bank cover and raise it to
disengage the 2 clips on the front of the cover.

Page 988 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–29
EM

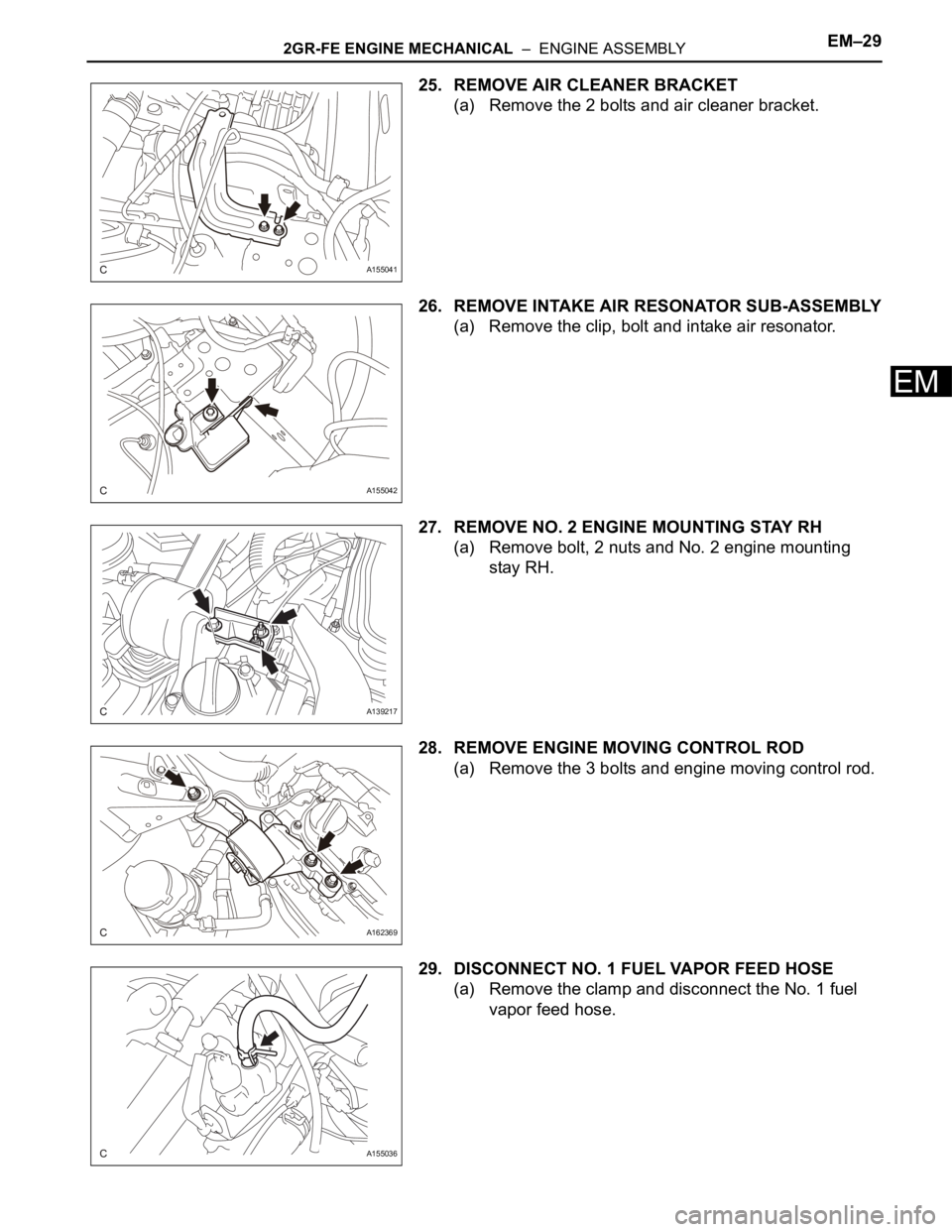

25. REMOVE AIR CLEANER BRACKET
(a) Remove the 2 bolts and air cleaner bracket.
26. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY
(a) Remove the clip

Page 989 of 3000

TOYOTA SIENNA 2007 Service Repair Manual EM–302GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
30. DISCONNECT RADIATOR INLET HOSE
(a) Using pliers, grip the claws of the clip and slide the
clip to disconnect radiator inlet hose from the

Page 990 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–31
EM

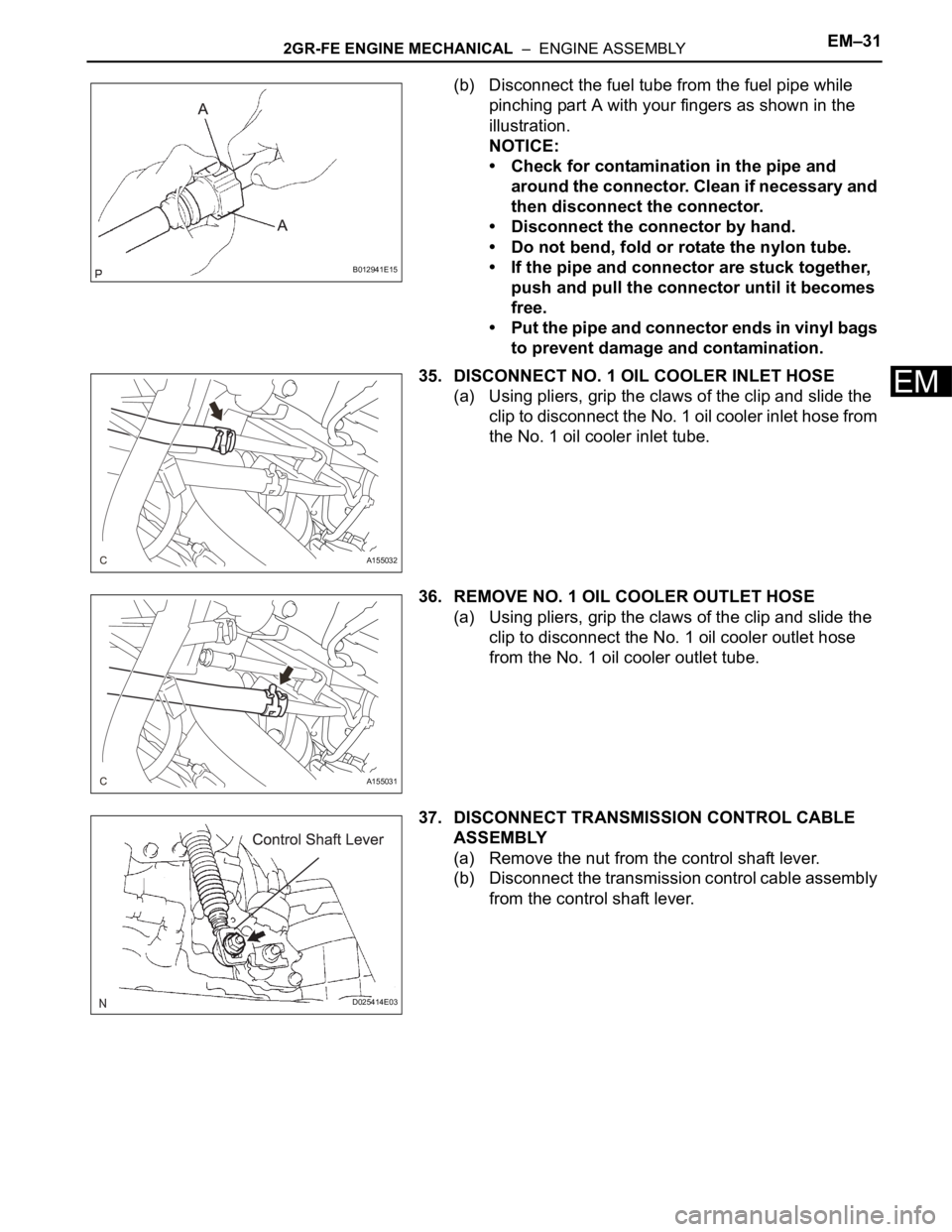

(b) Disconnect the fuel tube from the fuel pipe while
pinching part A with your fingers as shown in the
illustration.
NOTICE:
• Check for c

Page 991 of 3000

TOYOTA SIENNA 2007 Service Repair Manual EM–322GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
(c) Remove the clip and disconnect the transmission
control cable assembly from the control cable
bracket.
(d) Disconnect the control cable f

Page 992 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLYEM–33
EM

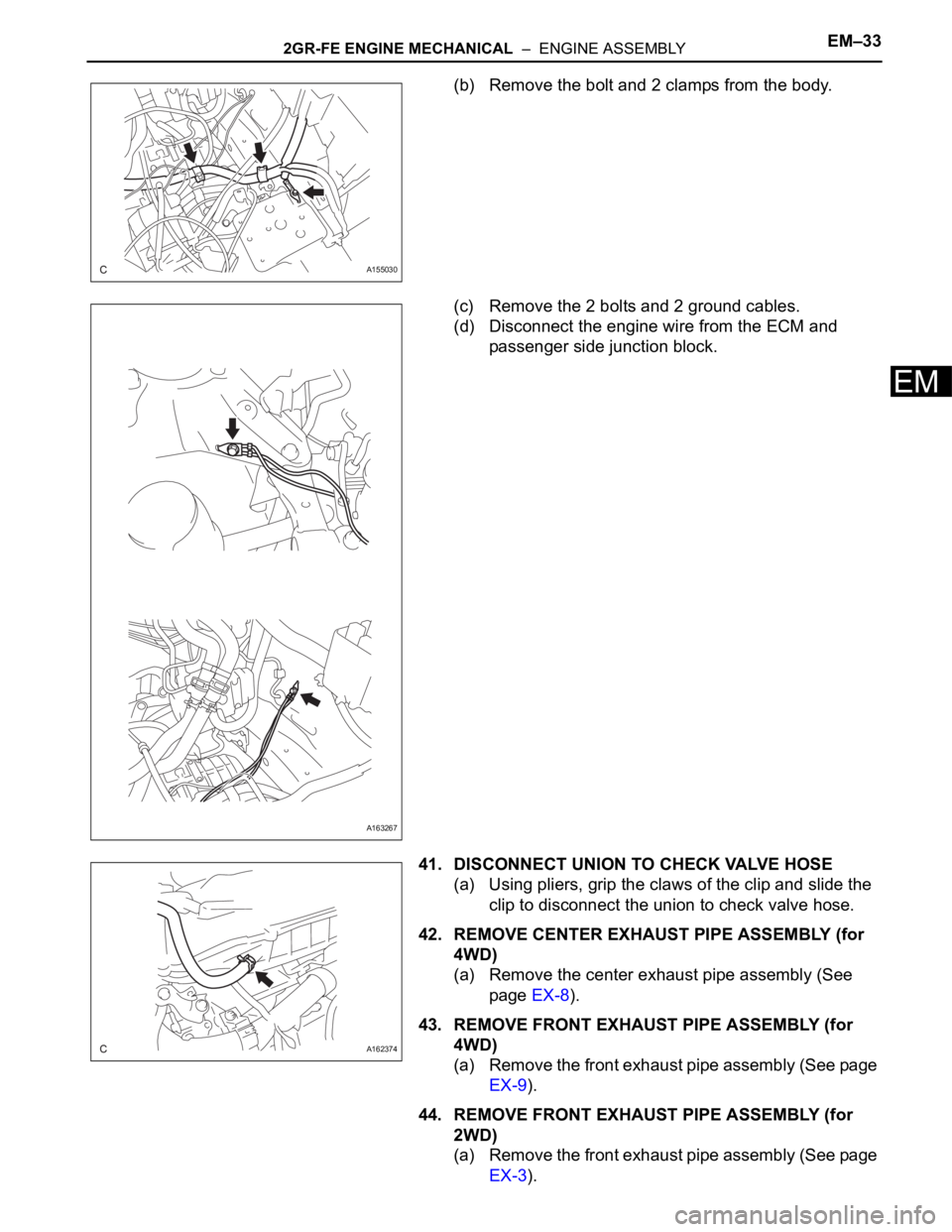

(b) Remove the bolt and 2 clamps from the body.
(c) Remove the 2 bolts and 2 ground cables.
(d) Disconnect the engine wire from the ECM and
pa
