B1433/33 Air Outlet Damper Position
Sensor Circuit1. Air outlet damper
position sensor (Air outlet
control servo motor)
2. A/C amplifier (A/C
control assembly)
3. Harness or connector
between air outlet damper
position sensor and A/C
amplifier (A/C control
assembly)Memorized
(1 min. or more)AC-77
B1436/36 Air Mix Damper Position
Sensor Circuit (Driver
Side)1. Air mix damper position
sensor (Air mix control
servo motor)
2. Harness or connector
between air mix damper
position sensor and A/C
amplifier (A/C control
assembly)
3. A/C amplifier (A/C
control assembly)Memorized
(1 min. or more)AC-81
B1437/37 Rear Air Mix Damper
Position Sensor Circuit1. Rear air mix damper
position sensor (Rear air
mix control servo motor)
2. A/C amplifier (A/C
control assembly)
3. Harness or connector
between rear air mix
damper position sensor
and A/C amplifier (A/C
control assembly)AC-85
B1439/39 Rear Air Outlet Damper
Position Sensor Circuit1. Rear air outlet damper
position sensor (Rear air
outlet control servo motor)
2. Harness or connector
between rear air outlet
damper position sensor
and A/C amplifier (A/C
control assembly)
3. A/C amplifier (A/C
control assembly)AC-89
B1441/41 Air Mix Damper Control
Servo Motor Circuit
(Passenger Side)1. Air mix control servo
motor
2. Harness or connector
between air mix control
servo motor and A/C
amplifier (A/C control
assembly)
3. A/C amplifier (A/C
control assembly)Memorized
(15 sec.)AC-93
B1442/42 Air Inlet Damper Control
Servo Motor Circuit1. Air inlet control servo
motor
2. Harness or connector
between air inlet control
servo motor and A/C
amplifier (A/C control
assembly)
3. A/C amplifier (A/C
control assembly)Memorized
(15 sec.)AC-98
B1443/43 Air Outlet Damper Control
Servo Motor Circuit1. Air outlet control servo
motor
2. Harness or connector
between air outlet control
servo motor and A/C
amplifier (A/C control
assembly)
3. A/C amplifier (A/C
control assembly)Memorized
(15 sec.)AC-103 DTC Code Detection Item Trouble Area Memory See page
Page 2770 of 3000

AC–24AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
HINT:
•
*1: If the cabin temperature is approximately -18.6C (-
3.7
F) or lower, DTC B1411/11 may be output even though
the system is normal.
•
*2: If the check is being performed in a dark place, DTC
B1421/21 or B1424/24 (solar sensor circuit abnormal)
could be displayed.
•
*3: Short in the circuit.
•
*4: Open in the circuit.

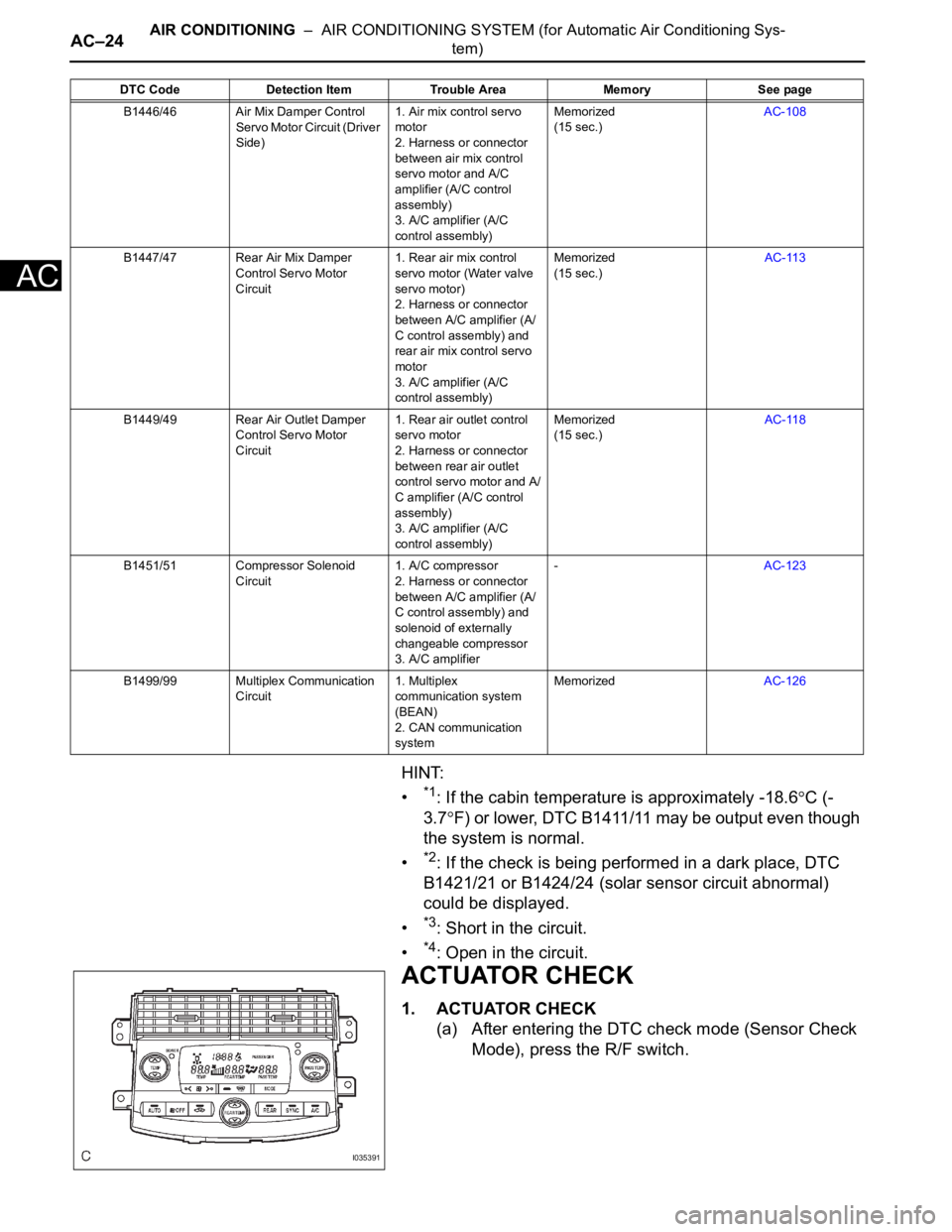

ACTUATOR CHECK
1. ACTUATOR CHECK
(a) After entering the DTC check mode (Sensor Check
Mode), press the R/F switch.
B1446/46 Air Mix Damper Control
Servo Motor Circuit (Driver
Side)1. Air mix control servo
motor
2. Harness or connector
between air mix control
servo motor and A/C
amplifier (A/C control
assembly)
3. A/C amplifier (A/C
control assembly)Memorized
(15 sec.)AC-108
B1447/47 Rear Air Mix Damper
Control Servo Motor
Circuit1. Rear air mix control
servo motor (Water valve
servo motor)
2. Harness or connector
between A/C amplifier (A/
C control assembly) and
rear air mix control servo
motor
3. A/C amplifier (A/C
control assembly)Memorized
(15 sec.)AC-113
B1449/49 Rear Air Outlet Damper
Control Servo Motor
Circuit1. Rear air outlet control
servo motor
2. Harness or connector
between rear air outlet
control servo motor and A/
C amplifier (A/C control
assembly)
3. A/C amplifier (A/C
control assembly)Memorized
(15 sec.)AC-118
B1451/51 Compressor Solenoid
Circuit1. A/C compressor
2. Harness or connector
between A/C amplifier (A/
C control assembly) and
solenoid of externally
changeable compressor
3. A/C amplifier-AC-123
B1499/99 Multiplex Communication
Circuit1. Multiplex
communication system
(BEAN)
2. CAN communication
systemMemorizedAC-126 DTC Code Detection Item Trouble Area Memory See page
I035391
Page 2771 of 3000

AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–25
AC
(b) As each damper, motor and relay automatically
operate actuator check at 1-second intervals from
step No. 1 to No. 10 continuously, check the
temperature and air flow visually and by hand.
If the slower display is desired, press the DEF
switch and change it to step operation. Each time
the DEF switch is pressed, the display changes by 1
step.
HINT:
• Codes are displayed from smaller to larger
numbers in order.
• To cancel the check mode, press the OFF switch.
Step No.Display
codeConditions
Fr. Blower
levelFr. Air flow
ventAir inlet
damperMagnetic
clutchFr. Driver,
passenger
side air
mix
damperRr. Blower
levelRr. Air flow
ventRr. Air mix
damper
1 0 0 FACE FRESH OFF"COOL"
side
(Full
closed)0 FACE1"COOL"
side
(Full
closed)
2 1 1 FACE FRESH OFF"COOL"
side
(Full
closed)1 FACE1"COOL"
side
(Full
closed)
3 2 16 FACE FRESH ON"COOL"
side
(Full
closed)10 FACE1"COOL" /
"HOT"
(40% open)
4316FACEFRESH /
RECIRCUL
AT I O NON"COOL"
side
(Full
closed)10 FACE2"COOL" /
"HOT"
(40% open)
5416FACERECIRCUL
AT I O NON"COOL" /
"HOT"
(50% open)10 B/L"COOL" /
"HOT"
(40% open)
6516B/LRECIRCUL
AT I O NON"COOL" /
"HOT"
(50% open)10 B/L"COOL" /
"HOT"
(60% open)
7616FOOTRECIRCUL
AT I O NON"HOT" side
(Full open)10 B/L"COOL" /
"HOT"
(60% open)
8716FOOTRECIRCUL
AT I O NON
"HOT" side
(Full open)10 FOOT"COOL" /
"HOT"
(60% open)
9816FOOT /
DEF.RECIRCUL
AT I O NON"HOT" side
(Full open)10 FOOT"COOL" /
"HOT"
(86.5%
open)
10931DEF.RECIRCUL
AT I O NON"HOT" side
(Full open)31 FOOT"COOL" /
"HOT"
(86.5%
open)
Page 2772 of 3000
AC–26AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
DESCRIPTION
This sensor detects the cabin temperature that is used as the basis for temperature control and sends a
signal to the A/C amplifier.

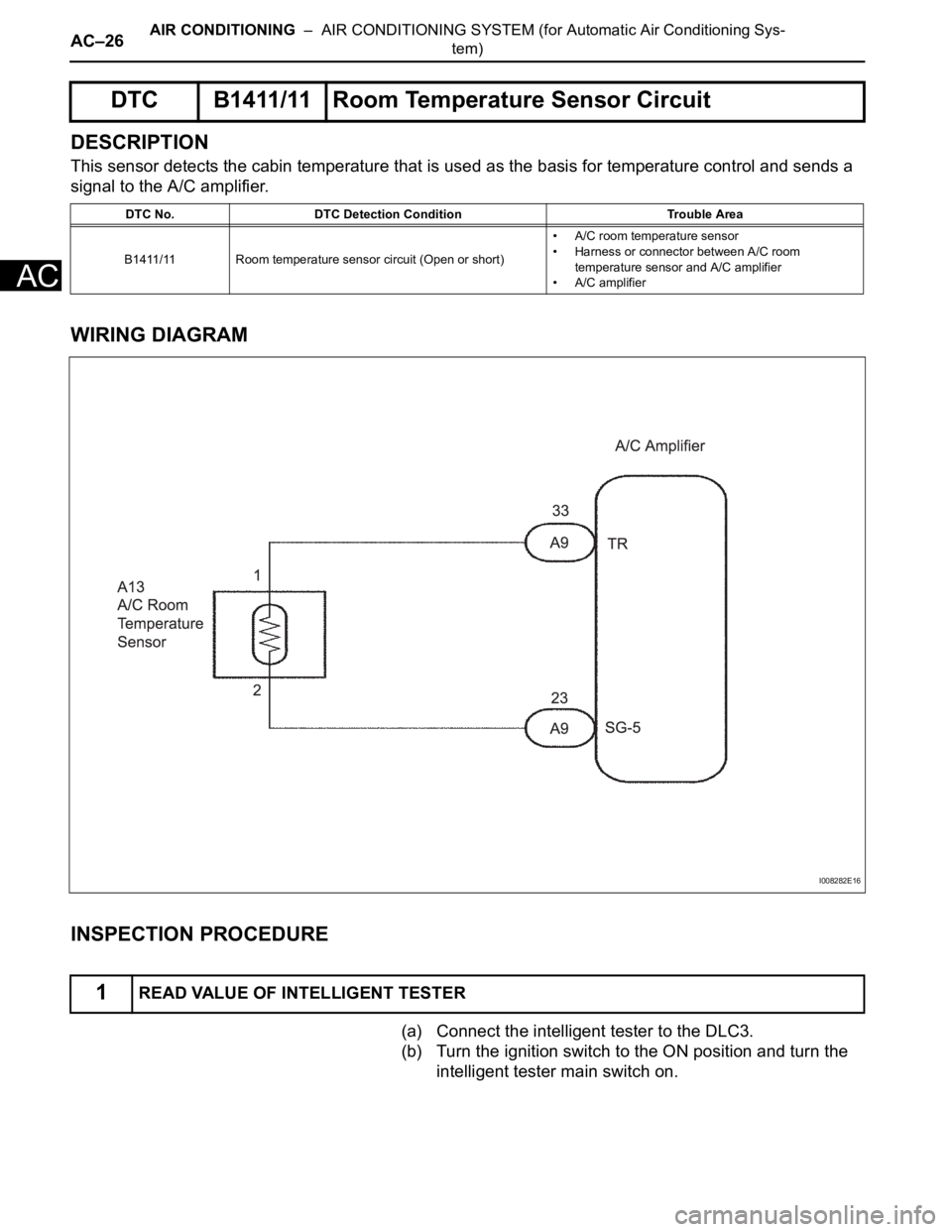

WIRING DIAGRAM
INSPECTION PROCEDURE
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the
intelligent tester main switch on.
DTC B1411/11 Room Temperature Sensor Circuit
DTC No. DTC Detection Condition Trouble Area
B1411/11 Room temperature sensor circuit (Open or short)• A/C room temperature sensor
• Harness or connector between A/C room
temperature sensor and A/C amplifier
• A/C amplifier
1READ VALUE OF INTELLIGENT TESTER
I008282E16
Page 2773 of 3000

AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–27
AC
(c) Select the item below in the DATA LIST, and read the
display on the intelligent tester.
DATA LIST / AIR CONDITIONER:
OK:
The display is as specified in the normal condition
column.
Result
B
C
A

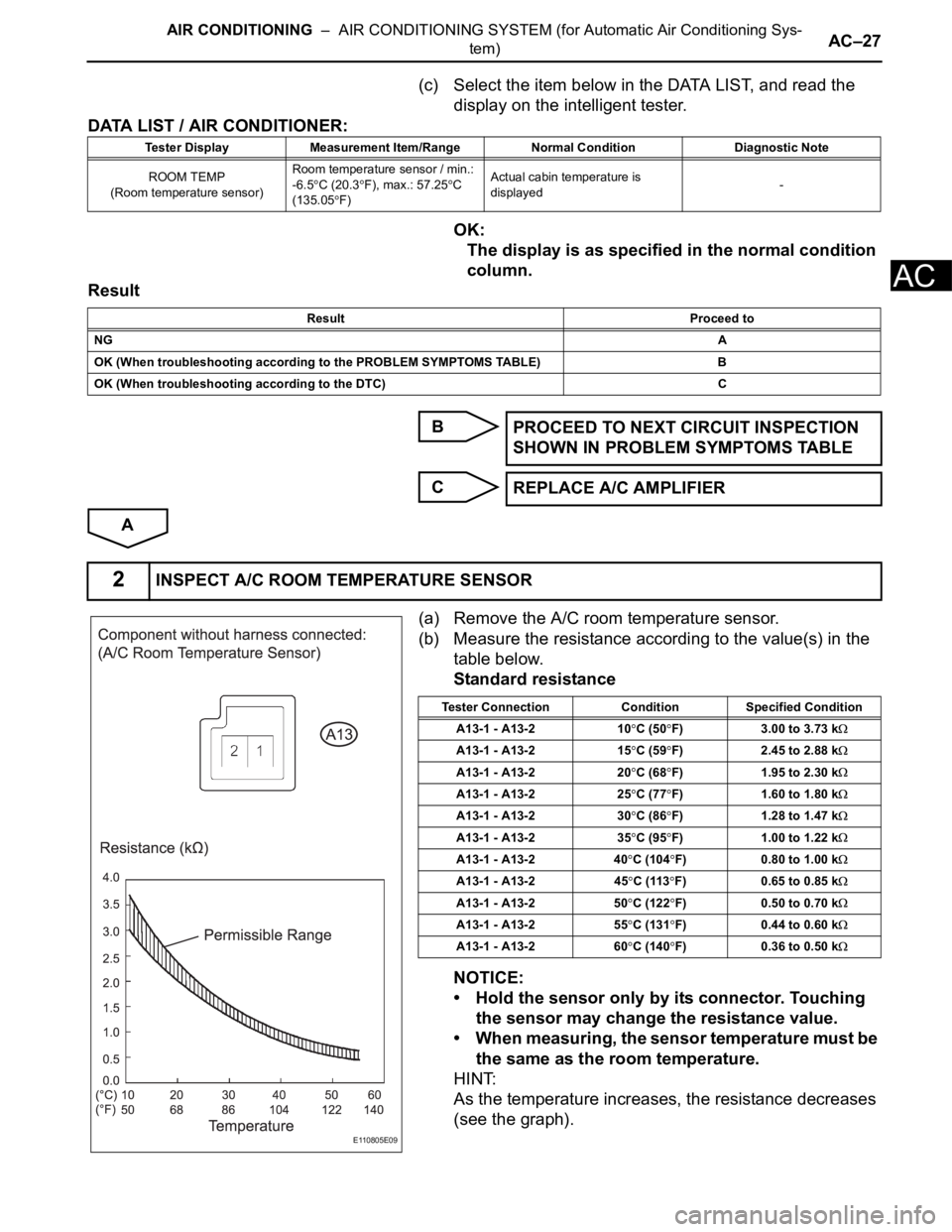

(a) Remove the A/C room temperature sensor.
(b) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NOTICE:
• Hold the sensor only by its connector. Touching
the sensor may change the resistance value.
• When measuring, the sensor temperature must be
the same as the room temperature.
HINT:
As the temperature increases, the resistance decreases
(see the graph).
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
ROOM TEMP
(Room temperature sensor)Room temperature sensor / min.:
-6.5
C (20.3F), max.: 57.25C
(135.05
F)Actual cabin temperature is
displayed-
Result Proceed to
NGA
OK (When troubleshooting according to the PROBLEM SYMPTOMS TABLE) B
OK (When troubleshooting according to the DTC) C
PROCEED TO NEXT CIRCUIT INSPECTION
SHOWN IN PROBLEM SYMPTOMS TABLE
REPLACE A/C AMPLIFIER
2INSPECT A/C ROOM TEMPERATURE SENSOR
E110805E09
Tester Connection Condition Specified Condition
A13-1 - A13-2 10
C (50F) 3.00 to 3.73 k
A13-1 - A13-2 15C (59F) 2.45 to 2.88 k
A13-1 - A13-2 20C (68F) 1.95 to 2.30 k
A13-1 - A13-2 25C (77F) 1.60 to 1.80 k
A13-1 - A13-2 30C (86F) 1.28 to 1.47 k
A13-1 - A13-2 35C (95F) 1.00 to 1.22 k
A13-1 - A13-2 40C (104F) 0.80 to 1.00 k
A13-1 - A13-2 45C (113F) 0.65 to 0.85 k
A13-1 - A13-2 50C (122F) 0.50 to 0.70 k
A13-1 - A13-2 55C (131F) 0.44 to 0.60 k
A13-1 - A13-2 60C (140F) 0.36 to 0.50 k
Page 2774 of 3000
AC–28AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
NG
OK
(a) Disconnect the connector from the A/C amplifier.
(b) Disconnect the connector from the A/C room
temperature sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OKREPLACE A/C ROOM TEMPERATURE
SENSOR

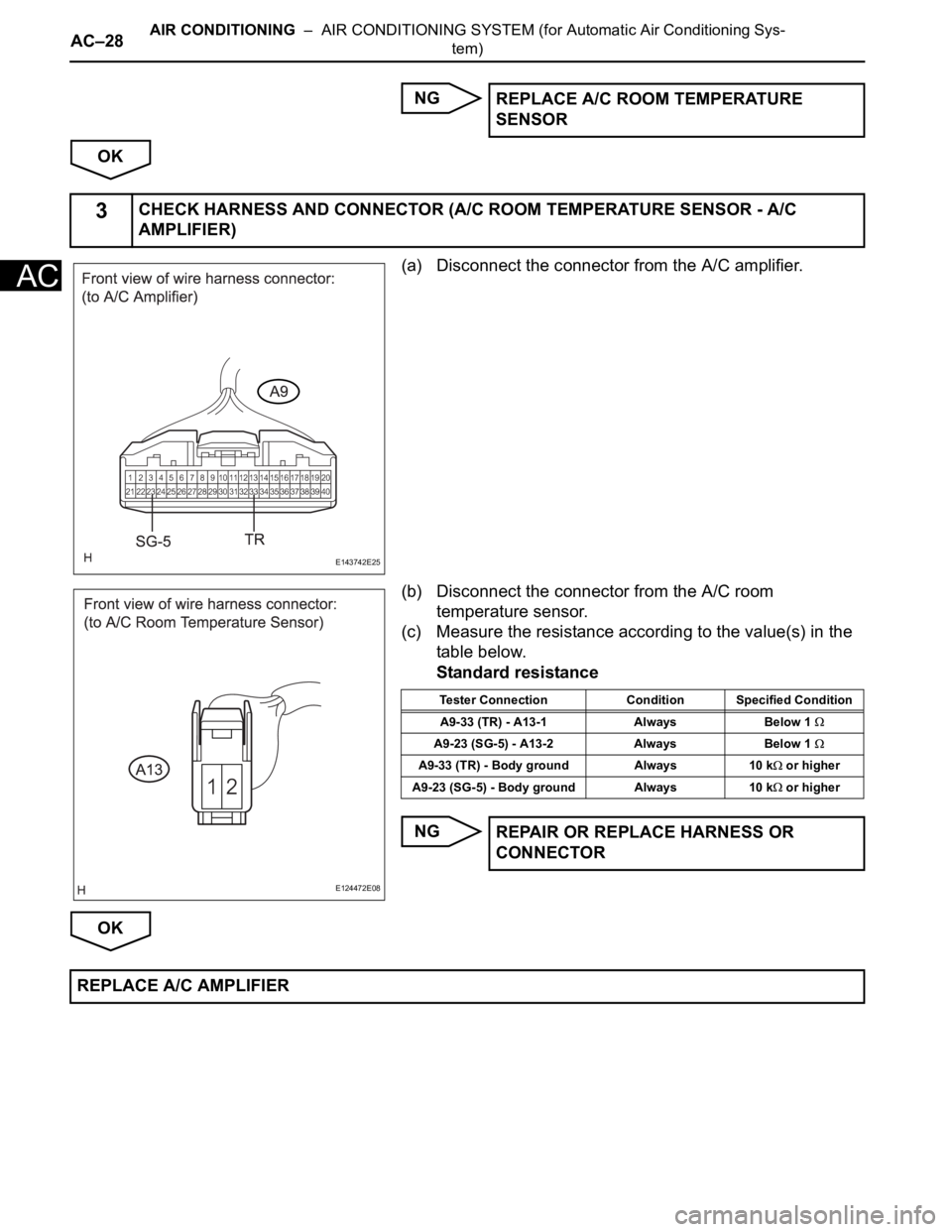

3CHECK HARNESS AND CONNECTOR (A/C ROOM TEMPERATURE SENSOR - A/C
AMPLIFIER)
E143742E25
E124472E08
Tester Connection Condition Specified Condition
A9-33 (TR) - A13-1 Always Below 1
A9-23 (SG-5) - A13-2 Always Below 1
A9-33 (TR) - Body ground Always 10 k or higher
A9-23 (SG-5) - Body ground Always 10 k
or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR
REPLACE A/C AMPLIFIER
Page 2775 of 3000

AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)AC–29
AC
DESCRIPTION
The ambient temperature sensor is installed in front of the condenser to detect the ambient temperature
which is used to control the air conditioner "AUTO" mode. This sensor is connected to the A/C amplifier
and detects fluctuations in the ambient temperature. This data is used for controlling the cabin
temperature. The sensor sends a signal to the A/C amplifier. The resistance of the ambient temperature
sensor changes in accordance with the ambient temperature. As the temperature decreases, the
resistance increases. As the temperature increases, the resistance decreases.
The A/C amplifier applies voltage (5 V) to the ambient temperature sensor and reads voltage changes as
the resistance of the ambient temperature sensor changes.

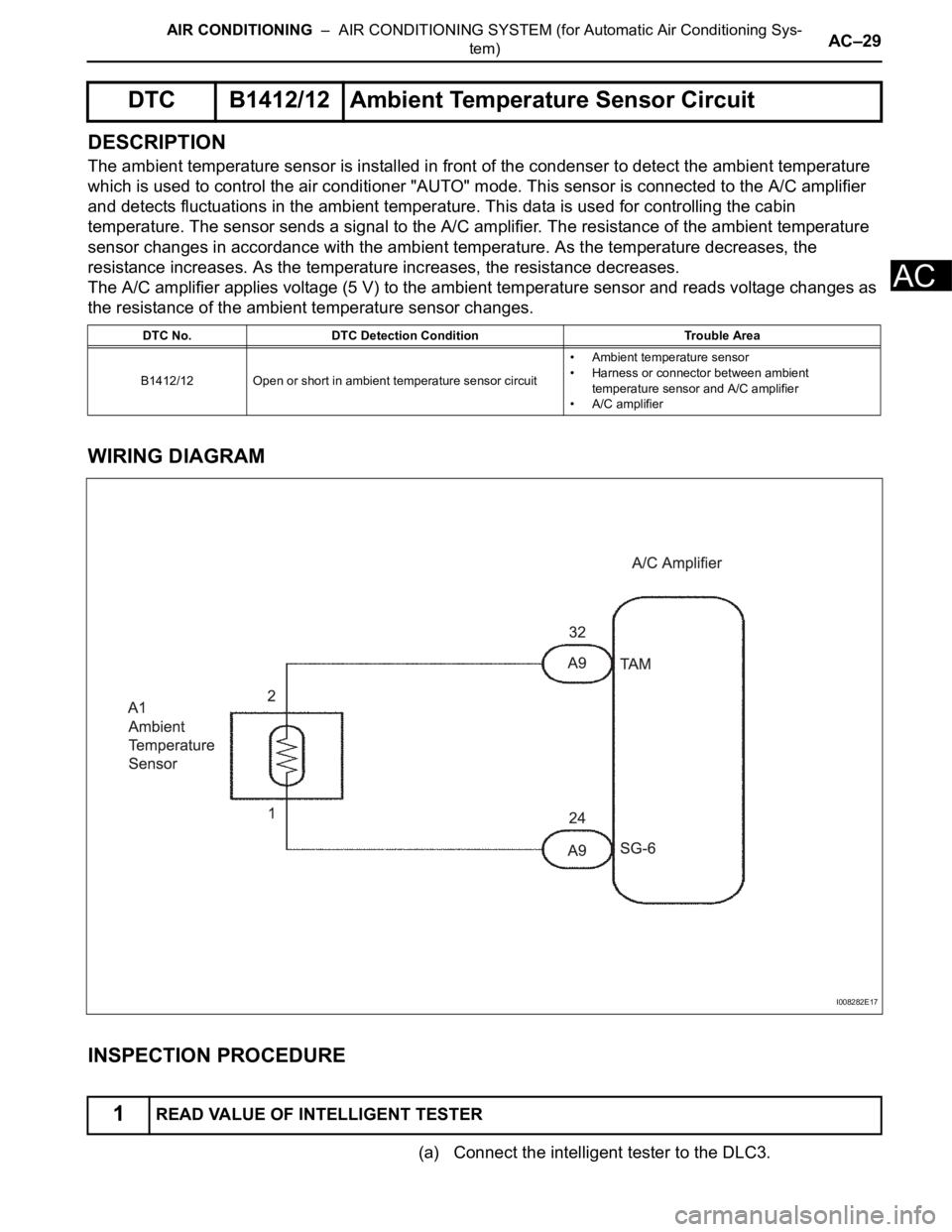

WIRING DIAGRAM
INSPECTION PROCEDURE
(a) Connect the intelligent tester to the DLC3.
DTC B1412/12 Ambient Temperature Sensor Circuit
DTC No. DTC Detection Condition Trouble Area
B1412/12 Open or short in ambient temperature sensor circuit• Ambient temperature sensor
• Harness or connector between ambient
temperature sensor and A/C amplifier
• A/C amplifier
1READ VALUE OF INTELLIGENT TESTER
I008282E17
Page 2776 of 3000
AC–30AIR CONDITIONING – AIR CONDITIONING SYSTEM (for Automatic Air Conditioning Sys-
tem)
AC
(b) Turn the ignition switch to the ON position and turn the
intelligent tester main switch on.
(c) Select the item below in the DATA LIST, and read the
display on the intelligent tester.
DATA LIST / AIR CONDITIONER:
OK:
The display is as specified in the normal condition
column.
Result
B
C
A
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
AMBI TEMP SENS
(Ambient temperature sensor)Ambient temperature sensor /
min: -30.8
C (-23.44F), max:
50.8C (123.44F)Actual ambient temperature is
displayed-
Result Proceed to
NGA
OK (When troubleshooting according to the PROBLEM SYMPTOMS TABLE) B
OK (When troubleshooting according to the DTC) C
PROCEED TO NEXT CIRCUIT INSPECTION
SHOWN IN PROBLEM SYMPTOMS TABLE
REPLACE A/C AMPLIFIER
