(b) Using SST, hold the control valve and remove the
nut.
SST 09616-00011
(c) Wind vinyl tape around the serrated part of the
control valve.
(d) Remove the dust cover from the control valve
housing.
(e) Remove the 2 bolts and the control valve w/ control
valve housing.
(f) Remove the gasket.
(g) To prevent oil seal lip damage, wind vinyl tape
around the serrated part of the control valve.
(h) Using a plastic hammer, remove the control valve w/
oil seal from the control valve housing.
(i) Remove the oil seal from the control valve.
(j) Using a screwdriver, remove the 4 control valve
rings.
NOTICE:
Be careful not to damage the grooves for the
control valve rings.
F041503E01
F041504E01
F045545
F041506E01
R011572E06
Page 2698 of 3000

PS–30POWER STEERING – RACK AND PINION POWER STEERING GEAR
PS
15. REMOVE POWER STEERING CONTROL VALVE
UPPER OIL SEAL
(a) Using SST and a press, remove the control valve
upper bearing and control valve upper oil seal from
the control valve housing.
SST 09950-70010 (09951-07150), 09950-60010
(09951-00250)
16. REMOVE CYLINDER END STOPPER
(a) Using a screwdriver and a hammer, turn the cylinder
end stopper clockwise until the wire end is visible
through the service hole.
(b) Using a screwdriver and a hammer, turn the cylinder
end stopper counterclockwise, and remove the wire
and cylinder end stopper.
17. REMOVE POWER STEERING RACK
18. REMOVE POWER STEERING RACK BUSH
(a) Remove the rack bush from the power steering
rack.
(b) Using SST, remove the rack bush oil seal.
SST 09527-21011, 09612-24014 (09613-22011)
(c) Using a screwdriver, remove the O-ring from the
rack bush.
19. REMOVE POWER STEERING CYLINDER TUBE OIL
SEAL
(a) Using SST and a press, remove the cylinder tube oil
seal.
SST 09950-70010 (09951-07360), 09950-60010
(09951-00290)
F040911E07
C083179E06
F040542E06
F040544E06
Page 2699 of 3000

POWER STEERING – RACK AND PINION POWER STEERING GEARPS–31
PS
20. REMOVE RACK STEERING PISTON RING
(a) Using a screwdriver, remove the rack steering
piston ring and O-ring.
NOTICE:
Be careful not to damage the grooves for rack
steering piston ring.
INSPECTION
1. INSPECT POWER STEERING RACK
(a) Using a dial indicator, check the power steering rack
for runout and for teeth wear and damage.
Maximum runout:
0.3 mm (0.012 in.)
If necessary, replace the rack & pinion power
steering gear assembly.
(b) Check the back surface for wear and damage.
If necessary, replace the rack & pinion power
steering gear assembly.
2. INSPECT TIE ROD ASSEMBLY LH
(a) Secure the tie rod assembly in a vise.
(b) Install the nut to the stud bolt.
(c) Flip the ball joint stud back and forth 5 times.
(d) Using a torque wrench, turn the nut continuously at
a rate of 3 to 5 seconds per turn and take the torque
reading on the 5th turn.
Torque: Turning torque
0.83 to 3.43 N*m (8.5 to 35.0 kgf*cm, 7.3
to 30.4 in.*lbf)
3. INSPECT TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure on the other side.
REASSEMBLY
1. INSTALL RACK STEERING PISTON RING
(a) Coat a new O-ring with power steering fluid and
install it onto the power steering rack.
(b) Expand a new rack steering piston ring with your
fingers.
NOTICE:
Be careful not to over expand the rack steering
piston ring.
(c) Coat a new rack steering piston ring with power
steering fluid.
R010955
ZX09355
ZK08184
C003629
Page 2700 of 3000
PS–32POWER STEERING – RACK AND PINION POWER STEERING GEAR
PS
(d) Install the rack steering piston ring onto the power
steering rack, and settle it down with your fingers.
2. INSTALL POWER STEERING CYLINDER TUBE OIL
SEAL
(a) Coat a new cylinder tube oil seal lip with power
steering fluid.
(b) Using SST and a press, install the cylinder tube oil
seal.
SST 09950-60010 (09951-00420, 09951-00250,
09952-06010), 09950-70010 (09951-07360)
NOTICE:
• Make sure that the cylinder tube oil seal is
installed facing in the correct direction.
• Take care so that the cylinder tube oil seal
will not be reversed as you install it.
3. INSTALL POWER STEERING RACK
(a) Install SST onto the power steering rack.
SST 09631-33010
HINT:
If necessary, scrape the burrs off the power steering
rack teeth end and burnish.
(b) Coat the SST with power steering fluid.
(c) Install the power steering rack into the rack housing.
(d) Remove the SST.
N000401
F040545E06
W002101E12
Page 2701 of 3000

POWER STEERING – RACK AND PINION POWER STEERING GEARPS–33
PS
4. INSTALL POWER STEERING RACK BUSH
(a) Using SST and a press, install the rack bush oil seal
onto the rack bush.
SST 09950-60010 (09951-00400), 09950-70010
(09951-07100)
NOTICE:
Make sure that the rack bush oil seal is installed
facing in the correct direction.
(b) Coat a new O-ring with power steering fluid and
install it onto the rack bush.
(c) To prevent rack bush oil seal lip damage, wind vinyl
tape around the rack end, and apply power steering
fluid.
(d) Install the rack bush onto the power steering rack.
5. INSTALL CYLINDER END STOPPER
(a) Align the installation hole for the wire of the cylinder
end stopper with the slot of the rack housing.
(b) Install a new wire into the cylinder end stopper.
(c) Using a screwdriver, turn the cylinder end stopper
counterclockwise by 450 +- 50
.
6. AIR TIGHTNESS TEST
(a) Install SST onto the rack housing.
SST 09631-12071 (09633-00010)
(b) Apply vacuum of 53 kPa (400 mmHg, 15.75 in.Hg)
for about 30 seconds.
(c) Check that there is no change in the vacuum.
If there is a change in the vacuum, check the
installation of the oil seals.
7. INSTALL POWER STEERING CONTROL VALVE
UPPER OIL SEAL
(a) Coat a control valve upper bearing and a new
control valve upper oil seal with power steering fluid.
(b) Using SST and a press, install the control valve
upper oil seal.
SST 09950-70010 (09951-07150), 09950-60010
(09951-00180, 09952-06010, 09951-00320)
F040543E06
F005730E07
F040546E07
F045546E01
F040912E08
Page 2702 of 3000

PS–34POWER STEERING – RACK AND PINION POWER STEERING GEAR
PS
(c) Using SST and a press, install the control valve
upper bearing.
SST 09950-70010 (09951-07150), 09950-60010
(09951-00180, 09952-06010, 09951-00340)
8. INSTALL POWER STEERING CONTROL VALVE
(a) Expand 4 new control valve rings with your fingers.
NOTICE:
Be careful not to over expand the control valve
rings.
(b) Coat the 4 control valve rings with power steering
fluid.
(c) Install the 4 control valve rings onto the control
valve, and settle them down with your fingers.
(d) Carefully slide the tapered end of SST over the
control valve rings until they fit to the control valve.
SST 09631-20081
NOTICE:
Be careful not to damage the control valve rings.
(e) To prevent control valve upper oil seal lip damage,
wind vinyl tape around the serrated part of the
control valve.
(f) Coat the control valve upper oil seal lip with power
steering fluid.
(g) Install the control valve onto the control valve
housing.
NOTICE:
Be careful not to damage the control valve ring
and control valve upper oil seal lip.
(h) Coat a new oil seal lip with power steering fluid.
(i) Using SST and a press, install the oil seal.
SST 09612-22011
NOTICE:
Make sure that the oil seal is installed facing in
the correct direction.
(j) Apply grease to the needle roller bearing.
(k) Install a new gasket onto the control valve housing.
(l) Wind vinyl tape around the serrated part of the
control valve.
F040913E09
C003629
R011573E06
F041508E01
F041509E01
Page 2703 of 3000
POWER STEERING – RACK AND PINION POWER STEERING GEARPS–35
PS

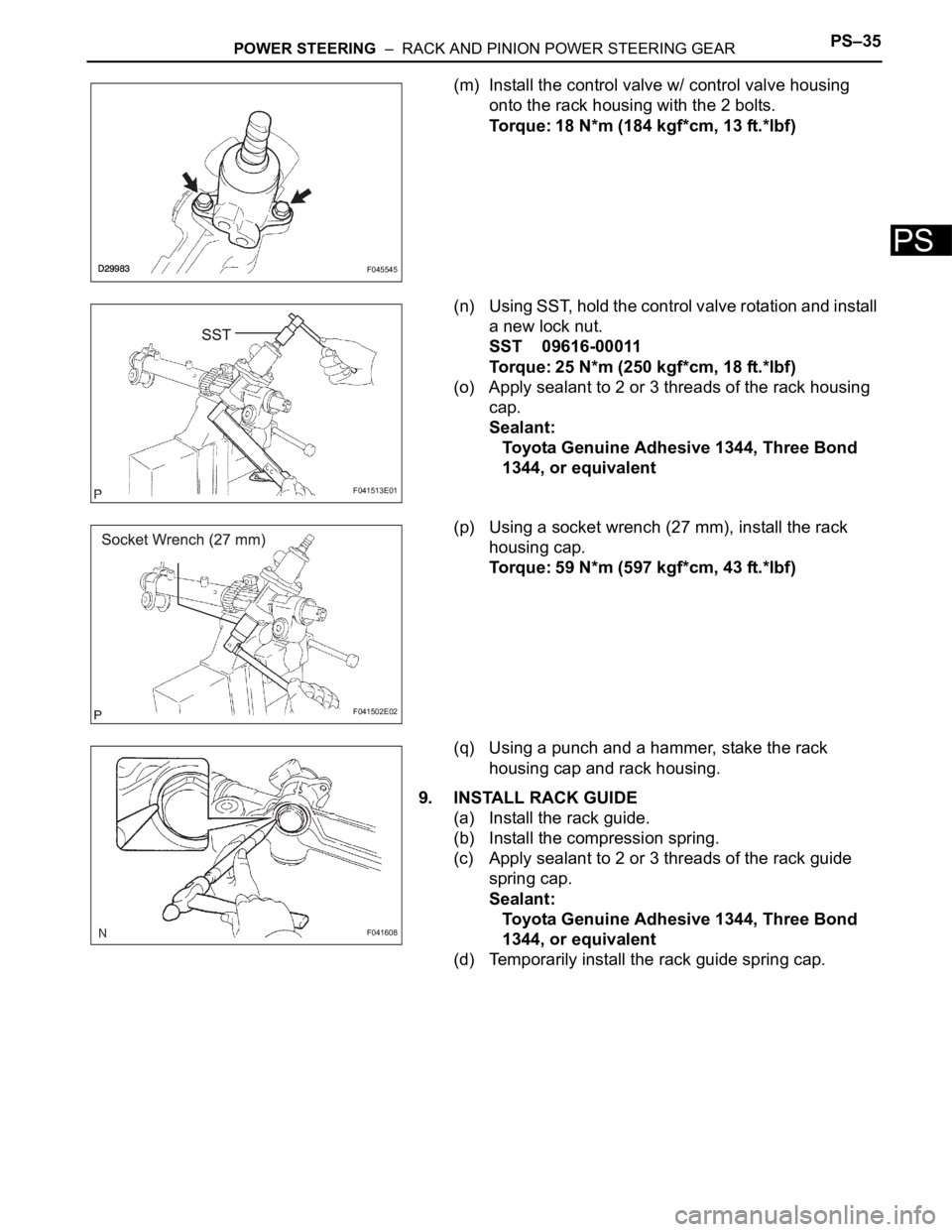

(m) Install the control valve w/ control valve housing
onto the rack housing with the 2 bolts.
Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
(n) Using SST, hold the control valve rotation and install
a new lock nut.
SST 09616-00011
Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)
(o) Apply sealant to 2 or 3 threads of the rack housing
cap.
Sealant:
Toyota Genuine Adhesive 1344, Three Bond
1344, or equivalent
(p) Using a socket wrench (27 mm), install the rack
housing cap.
Torque: 59 N*m (597 kgf*cm, 43 ft.*lbf)
(q) Using a punch and a hammer, stake the rack
housing cap and rack housing.
9. INSTALL RACK GUIDE
(a) Install the rack guide.
(b) Install the compression spring.
(c) Apply sealant to 2 or 3 threads of the rack guide
spring cap.
Sealant:
Toyota Genuine Adhesive 1344, Three Bond
1344, or equivalent
(d) Temporarily install the rack guide spring cap.
F045545
F041513E01
F041502E02
F041608
Page 2704 of 3000

PS–36POWER STEERING – RACK AND PINION POWER STEERING GEAR
PS

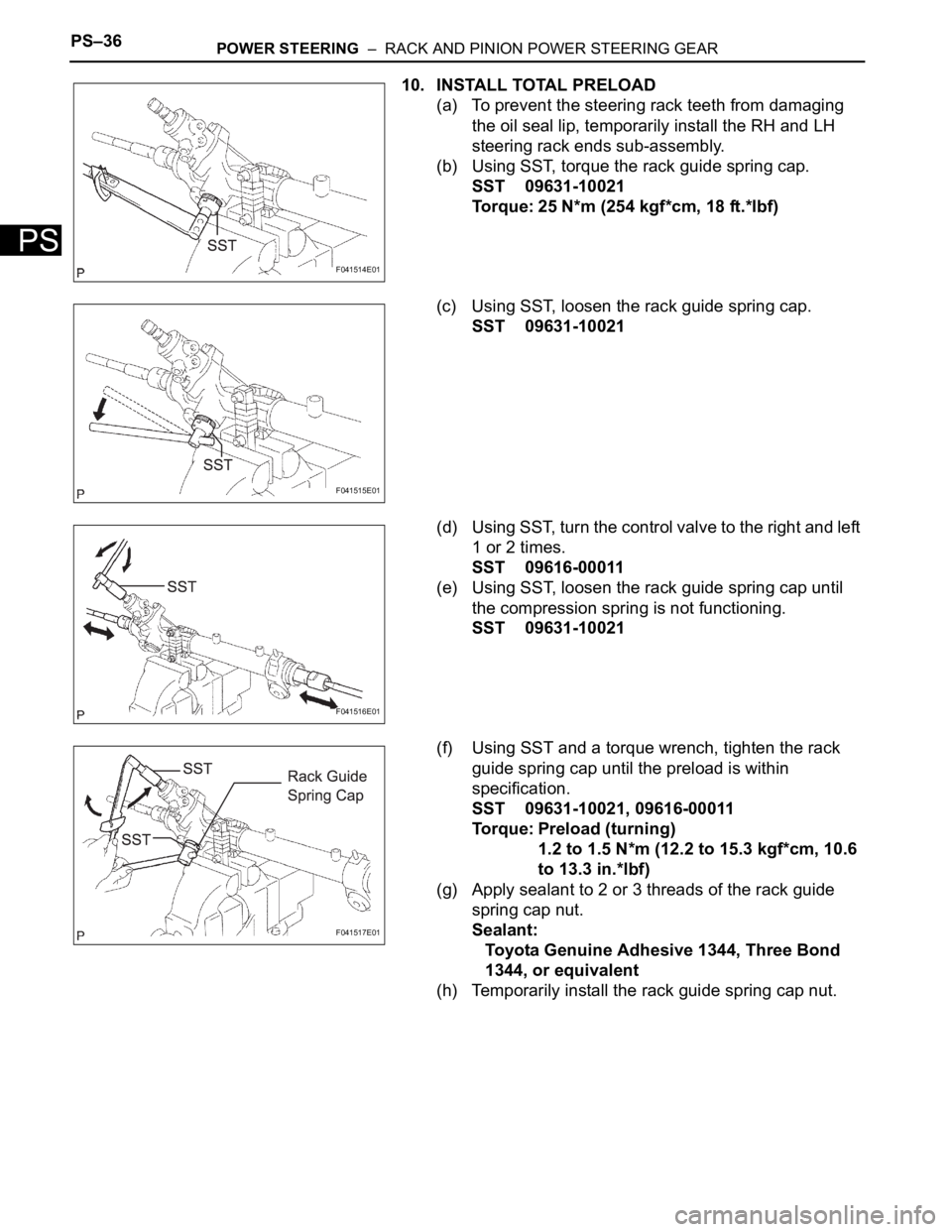

10. INSTALL TOTAL PRELOAD
(a) To prevent the steering rack teeth from damaging
the oil seal lip, temporarily install the RH and LH
steering rack ends sub-assembly.
(b) Using SST, torque the rack guide spring cap.
SST 09631-10021
Torque: 25 N*m (254 kgf*cm, 18 ft.*lbf)
(c) Using SST, loosen the rack guide spring cap.
SST 09631-10021
(d) Using SST, turn the control valve to the right and left
1 or 2 times.
SST 09616-00011
(e) Using SST, loosen the rack guide spring cap until
the compression spring is not functioning.
SST 09631-10021
(f) Using SST and a torque wrench, tighten the rack
guide spring cap until the preload is within
specification.
SST 09631-10021, 09616-00011
Torque: Preload (turning)
1.2 to 1.5 N*m (12.2 to 15.3 kgf*cm, 10.6
to 13.3 in.*lbf)
(g) Apply sealant to 2 or 3 threads of the rack guide
spring cap nut.
Sealant:
Toyota Genuine Adhesive 1344, Three Bond
1344, or equivalent
(h) Temporarily install the rack guide spring cap nut.
F041514E01
F041515E01
F041516E01
F041517E01
