Page 305 of 3000
SE–102SEAT – REAR NO. 2 SEAT ASSEMBLY (for Power Seat Type LH Side)
SE
12. REMOVE RECLINING REMOTE CONTROL LEVER
BEZEL
(a) Disengage the 4 claws and remove the reclining
remote control lever bezel.
13. REMOVE REAR POWER SEAT SWITCH
(a) Remove the 2 screws.
(b) Disconnect the connector and remove the rear
power seat switch.
14. REMOVE REAR NO. 2 SEAT LAP BELT ASSEMBLY
CENTER WITH INNER
(a) Remove the bolt, washer and rear No. 2 seat lap
belt assembly center with inner.
15. REMOVE REAR NO. 2 SEAT BELT ASSEMBLY INNER
(a) Remove the 2 hog rings.
B126852
B126853
B126854
B126855E01
Page 306 of 3000
SEAT – REAR NO. 2 SEAT ASSEMBLY (for Power Seat Type LH Side)SE–103
SE
(b) Remove the bolt and rear No. 2 seat belt assembly
inner.
16. REMOVE REAR SEAT BELT ASSEMBLY INNER
(a) Remove the bolt and rear seat belt assembly inner.
17. REMOVE REAR SEAT COVER
(a) Remove the 2 screws.
(b) Disengage the 2 claws and remove the rear seat
cover.
18. REMOVE NO. 2 SEAT CUSHION COVER SUB-
ASSEMBLY WITH PAD
(a) Raise the 5 rear seat cushion edge protectors.
(b) Disengage the hooks and remove the No. 2 seat
cushion cover sub-assembly with pad.
19. REMOVE NO. 2 SEAT CUSHION COVER SUB-
ASSEMBLY
(a) Remove the 10 hog rings and No. 2 seat cushion
cover sub-assembly.
20. REMOVE NO. 2 SEAT CUSHION PAD
B126856
B126857
B126858
B126859E01
B126860E01
Page 307 of 3000
SE–104SEAT – REAR NO. 2 SEAT ASSEMBLY (for Power Seat Type LH Side)
SE
21. REMOVE REAR SEAT WIRE
(a) Disconnect the connector.
(b) Disengage the 3 clamps and remove the rear seat
wire.
22. REMOVE NO. 2 SEAT CUSHION STOPPER
(a) Remove the 2 bolts and No. 2 seat cushion stopper.
HINT:
Use the same procedure to remove the other
stopper.
23. REMOVE NO. 2 SEAT CUSHION SPRING ASSEMBLY
(a) Remove the No. 2 seat cushion spring assembly.
24. REMOVE NO. 2 SEAT CUSHION FRAME SUB-
ASSEMBLY
25. REMOVE NO. 2 SEAT LEG SUB-ASSEMBLY
(a) Disengage the 3 clamps.
(b) Remove the 3 bolts, 2 nuts and No. 2 seat leg sub-
assembly.
B126861E01
B126862
B126863
B126840E01
Page 308 of 3000

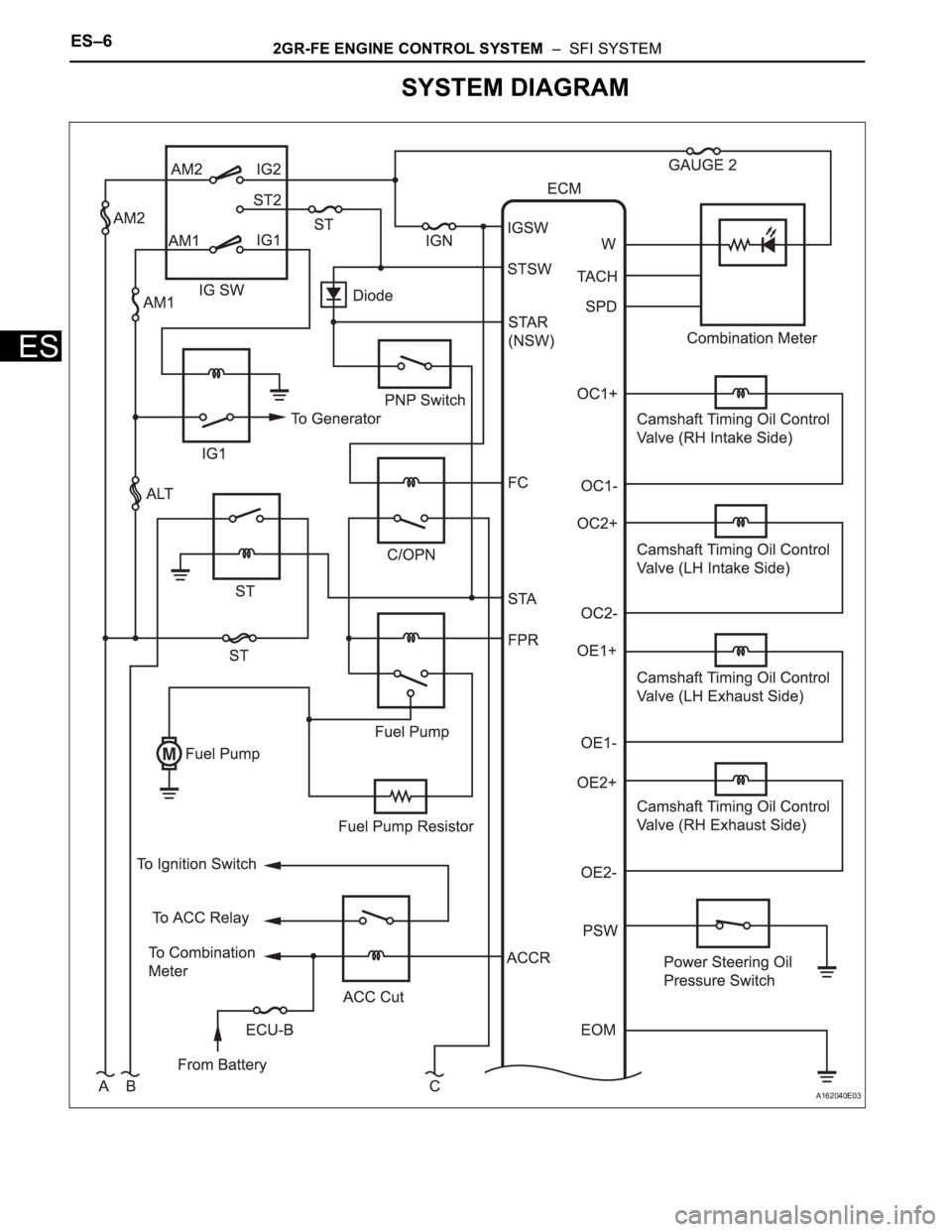

ES–62GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
SYSTEM DIAGRAM
A162040E03
Page 309 of 3000

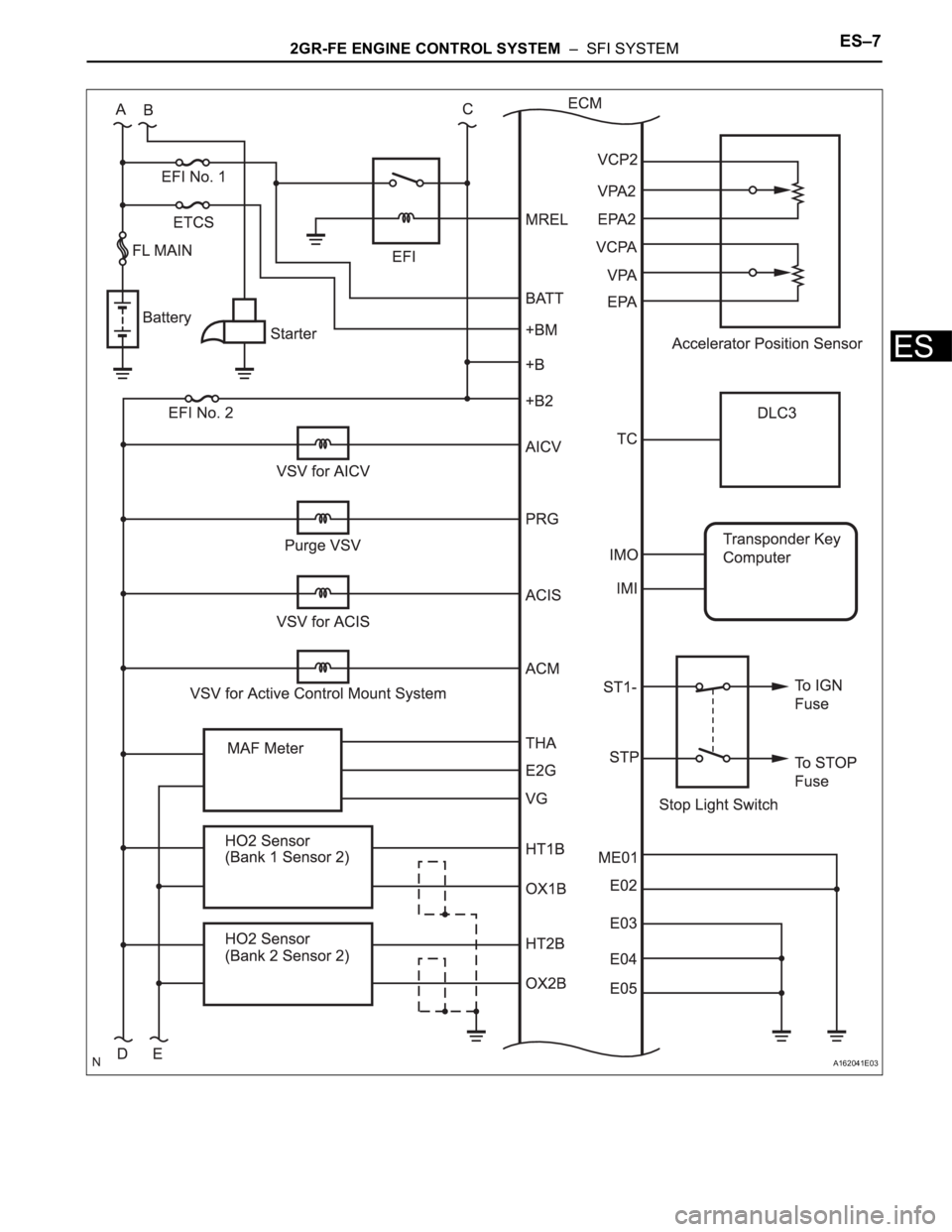

2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–7
ES
A162041E03
Page 310 of 3000

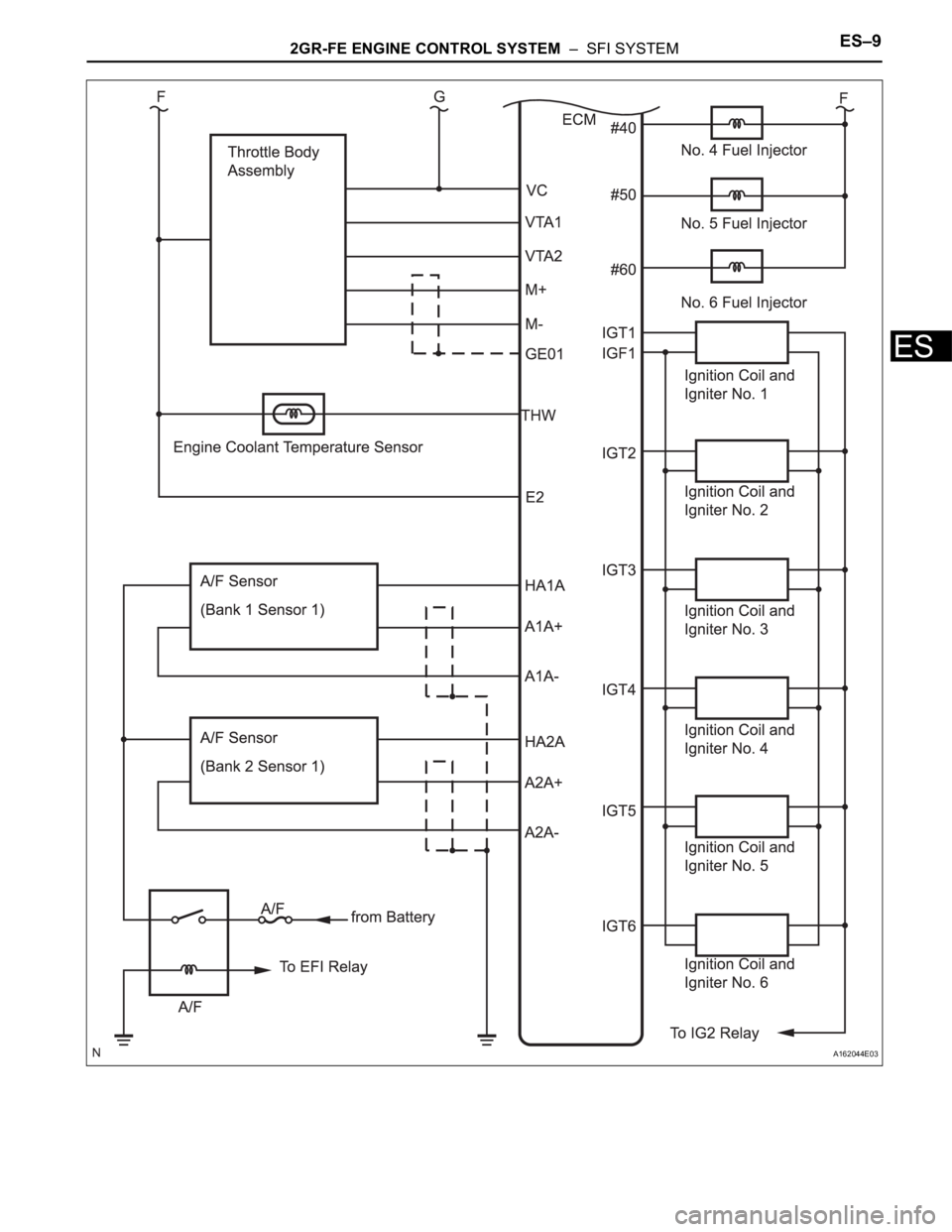

ES–82GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
A162042E03
Page 311 of 3000

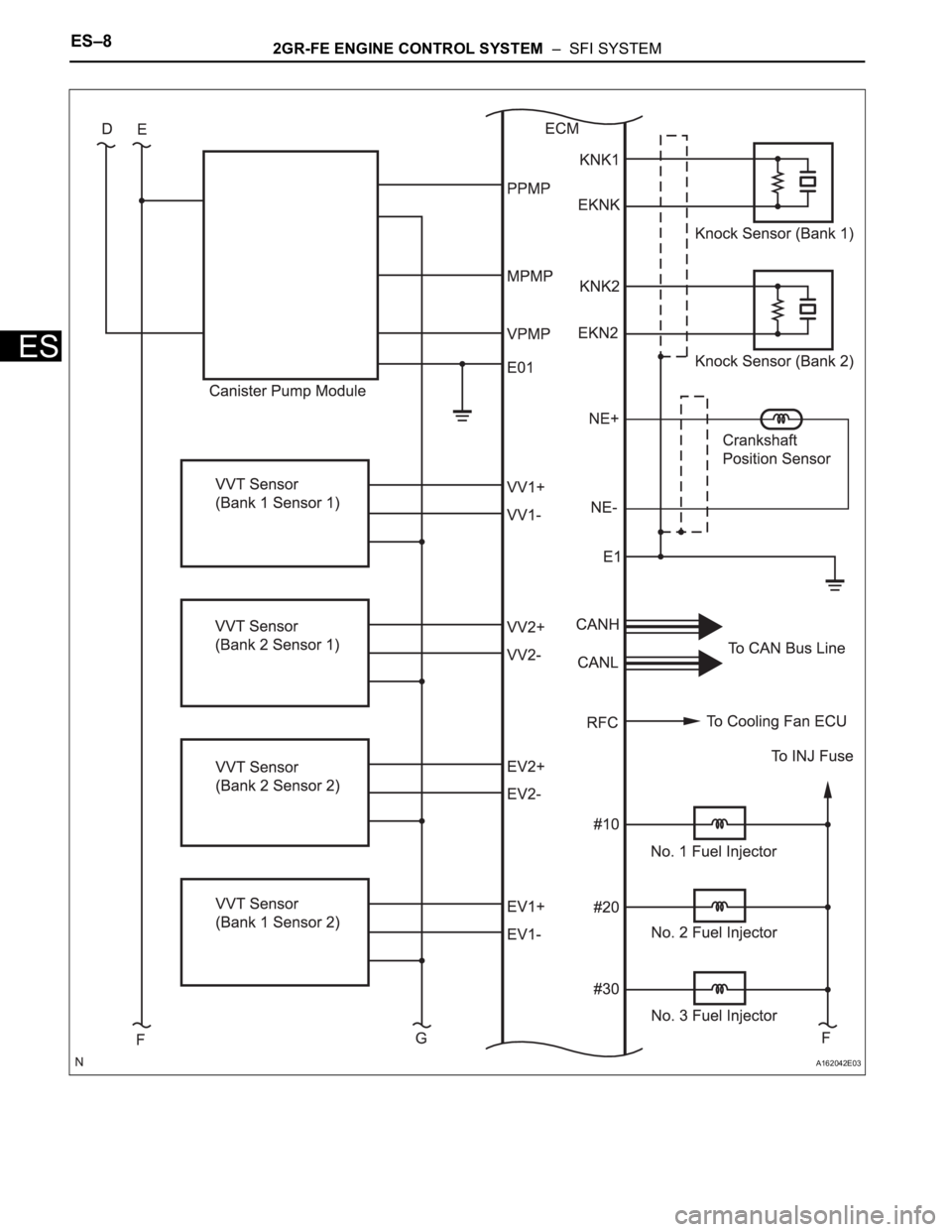

2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–9
ES
A162044E03
Page 312 of 3000

ENGINE HOOD / DOOR – POWER SLIDE DOOR SYSTEMED–5
ED
HOW TO PROCEED WITH
TROUBLESHOOTING
HINT:
Troubleshoot in accordance with the procedures on the
following pages.
NEXT
NEXT
(a) Use the intelligent tester to check for normal function of
the multiplex communication system.
(1) (ECU unconnected, communication line
malfunctioning) Without code outputs, proceed to A.
(2) (ECU unconnected, communication line
malfunctioning) With code outputs, proceed to B.
B
A
(a) Check for a diagnostic trouble code.
(1) Without code outputs, proceed to A.
(2) With code outputs, proceed to B.
B
A
(a) When problem is not listed on problem symptoms table,
proceed to A.
(b) When problem is listed on problem symptoms table,
proceed to B.
B
A
1VEHICLE BROUGHT TO WORKSHOP
2CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK
3INSPECT COMMUNICATION FUNCTION OF LARGE-SCALE MULTIPLEX
COMMUNICATION SYSTEM (BEAN)
Go To MULTIPLEX COMMUNICATION
SECTION
4DTC CHECK
Go to step 6
5PROBLEM SYMPTOMS TABLE
Go to step 7
