Page 1625 of 3000

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–181
AX

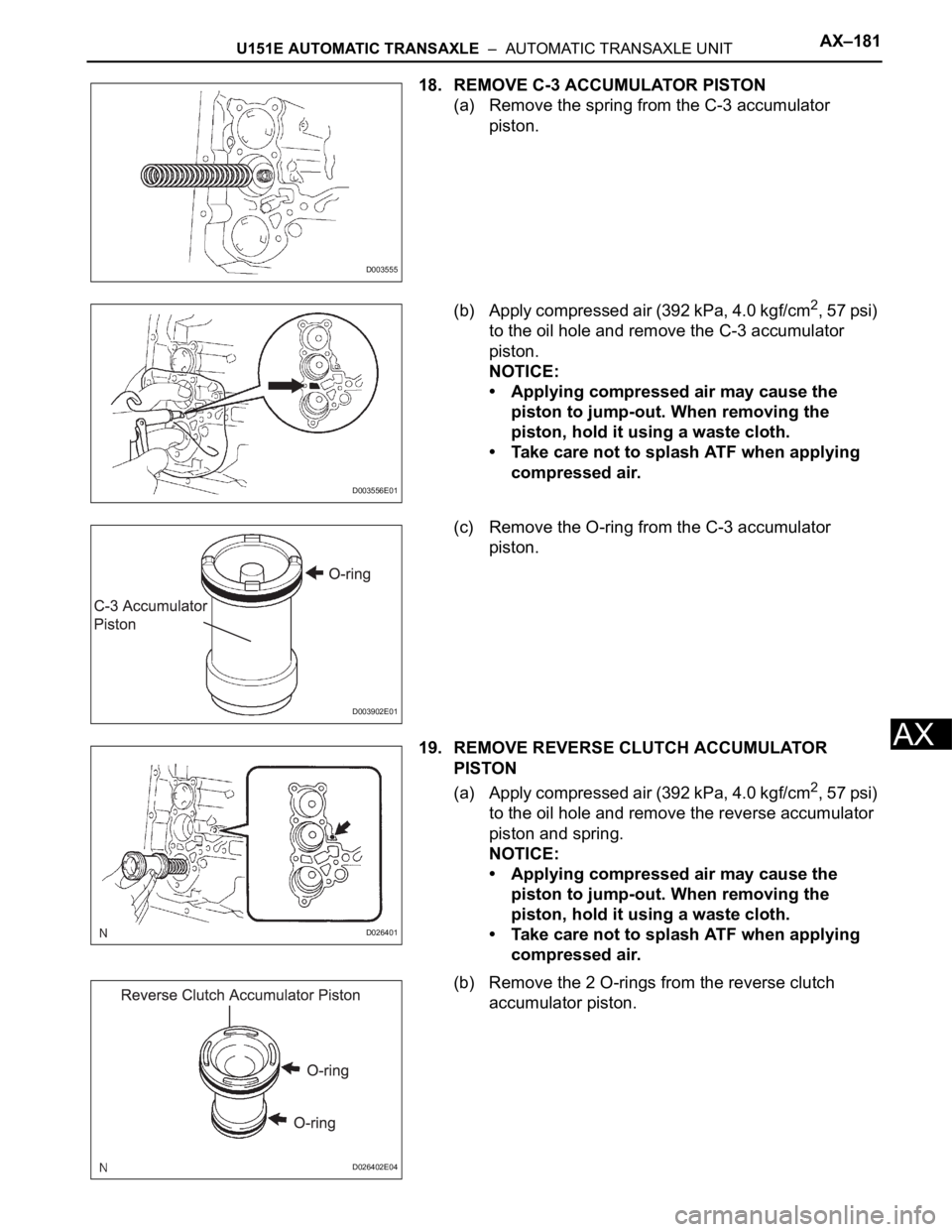

18. REMOVE C-3 ACCUMULATOR PISTON
(a) Remove the spring from the C-3 accumulator
piston.
(b) Apply compressed air (392 kPa, 4.0 kgf

Page 1626 of 3000

TOYOTA SIENNA 2007 Service Repair Manual AX–182U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
20. REMOVE B-3 ACCUMULATOR PISTON
(a) Apply compressed air (392 kPa, 4.0 kgf/cm
2, 57 psi)
to the oil hole and remove the B-3 accum

Page 1627 of 3000

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–183
AX
24. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
(a) Using a chisel and hammer, cut off and remove the
spacer.
(b) Using a pin punch (
35

Page 1628 of 3000

TOYOTA SIENNA 2007 Service Repair Manual AX–184U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
28. INSPECT INPUT SHAFT ENDPLAY
HINT:
(See page AX-200)
29. REMOVE TRANSAXLE HOUSING
(a) Remove the 16 bolts.
(b) Tap on the circumf

Page 1629 of 3000

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–185
AX
33. REMOVE DIFFERENTIAL GEAR ASSEMBLY
(a) Remove the differential gear assembly from the
transaxle case.
34. REMOVE OVERDRIVE BRAKE

Page 1630 of 3000

TOYOTA SIENNA 2007 Service Repair Manual AX–186U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
38. REMOVE UNDERDRIVE PLANETARY GEAR
ASSEMBLY
(a) Remove the bolt and pawl shaft clamp.
(b) Remove the parking lock pawl shaft.
(c)

Page 1631 of 3000

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–187
AX
40. REMOVE UNDERDRIVE CLUTCH ASSEMBLY
(a) Remove the underdrive clutch assembly, thrust
bearing and bearing race from the transaxle

Page 1632 of 3000

TOYOTA SIENNA 2007 Service Repair Manual AX–188U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
(b) Remove the flange, 4 discs and 4 plates from the
transaxle case.
43. INSPECT UNDERDRIVE CLUTCH DISC NO.2
HINT:
(See page AX-197

Load next 8 pages
