Page 81 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE IGNITION – IGNITION COIL AND SPARK PLUGIG–7 IG (3) Check the spark plug (See page EM-1). Result (4) Check the power supply to the ignition coil. 1. Turn the ignition switch to the ON posi

Page 82 of 3000

TOYOTA SIENNA 2007 Service Repair Manual IG–82GR-FE IGNITION – IGNITION COIL AND SPARK PLUG IG (2) Remove the spark plugs. (3) Visually check the spark plug. If the electrode is dry, the spark plug is functioning properly. If the elec

Page 83 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE STARTING – STARTERST–5 ST REMOVAL 1. REMOVE BATTERY (See page EM-26) 2. REMOVE NO. 2 AIR CLEANER INLET (See page EM- 28) 3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (See page FU-13) 4. REMOVE

Page 84 of 3000

TOYOTA SIENNA 2007 Service Repair Manual ST–62GR-FE STARTING – STARTER ST (c) Remove the 2 bolts and the starter. DISASSEMBLY 1. REMOVE REPAIR SERVICE STARTER KIT (a) Remove the nut and disconnect the lead wire from the repair service

Page 85 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE STARTING – STARTERST–7 ST 3. REMOVE STARTER ARMATURE PLATE (a) Remove the starter armature plate from the starter yoke. 4. REMOVE DRIVE HOUSING STARTER BEARING COVER (a) Using a screw

Page 86 of 3000

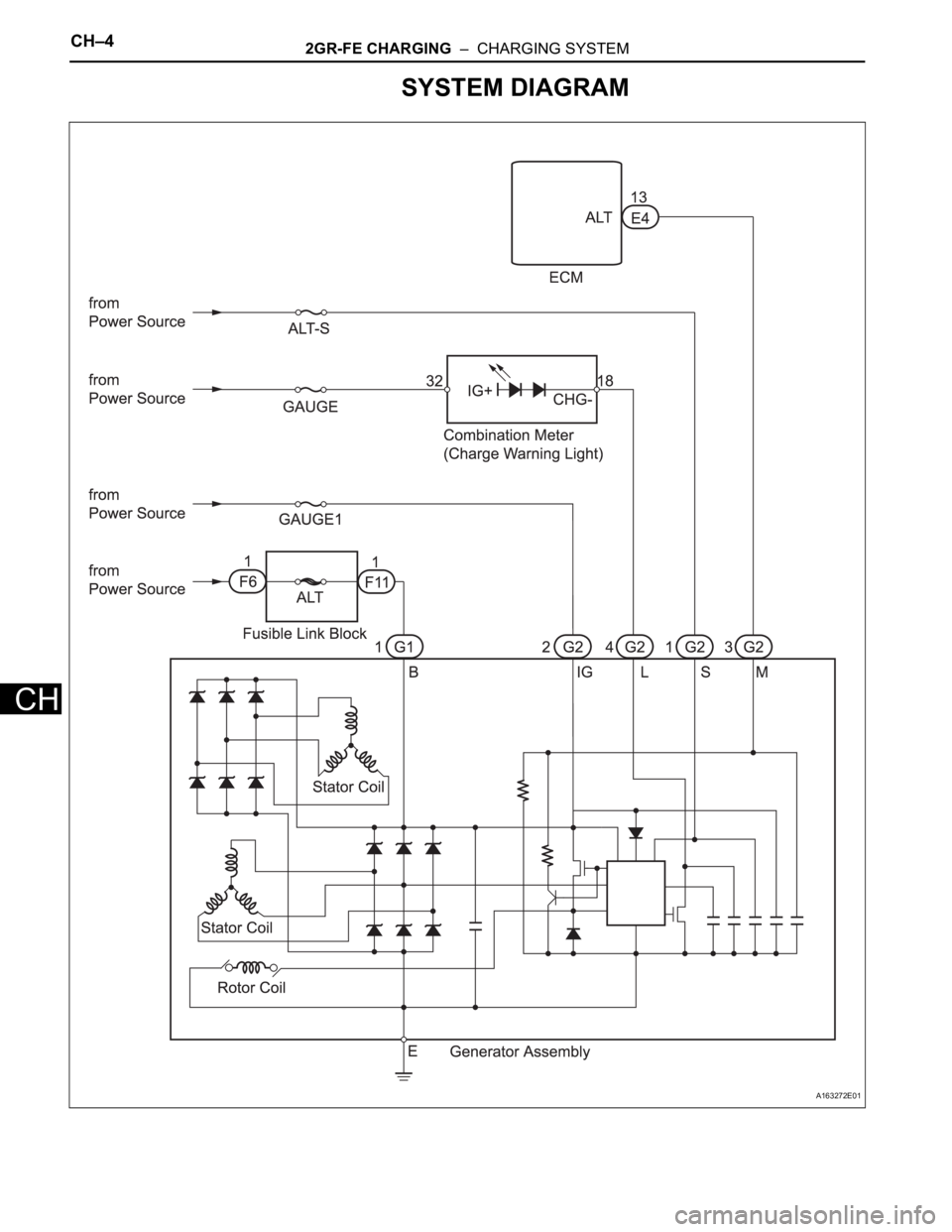

TOYOTA SIENNA 2007 Service Repair Manual CH–42GR-FE CHARGING – CHARGING SYSTEM CH SYSTEM DIAGRAM A163272E01

Page 87 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE CHARGING – CHARGING SYSTEMCH–5 CH PROBLEM SYMPTOMS TABLE Result Symptom Suspected Area See page Charge Warning Light Comes ON while DrivingClutch pulley CH-8 Generator assembly Noise Occu

Page 88 of 3000

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE SYSTEMAX–3 AX DEFINITION OF TERMS Te r m D e f i n i t i o n Monitor description Description of what the ECM monitors and how it detects malfuncti
