Page 1561 of 3000

TOYOTA SIENNA 2007 Service Repair Manual AX–182U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX 20. REMOVE B-3 ACCUMULATOR PISTON (a) Apply compressed air (392 kPa, 4.0 kgf/cm 2, 57 psi) to the oil hole and remove the B-3 accum

Page 1562 of 3000

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–183 AX 24. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY (a) Using a chisel and hammer, cut off and remove the spacer. (b) Using a pin punch ( 35

Page 1563 of 3000

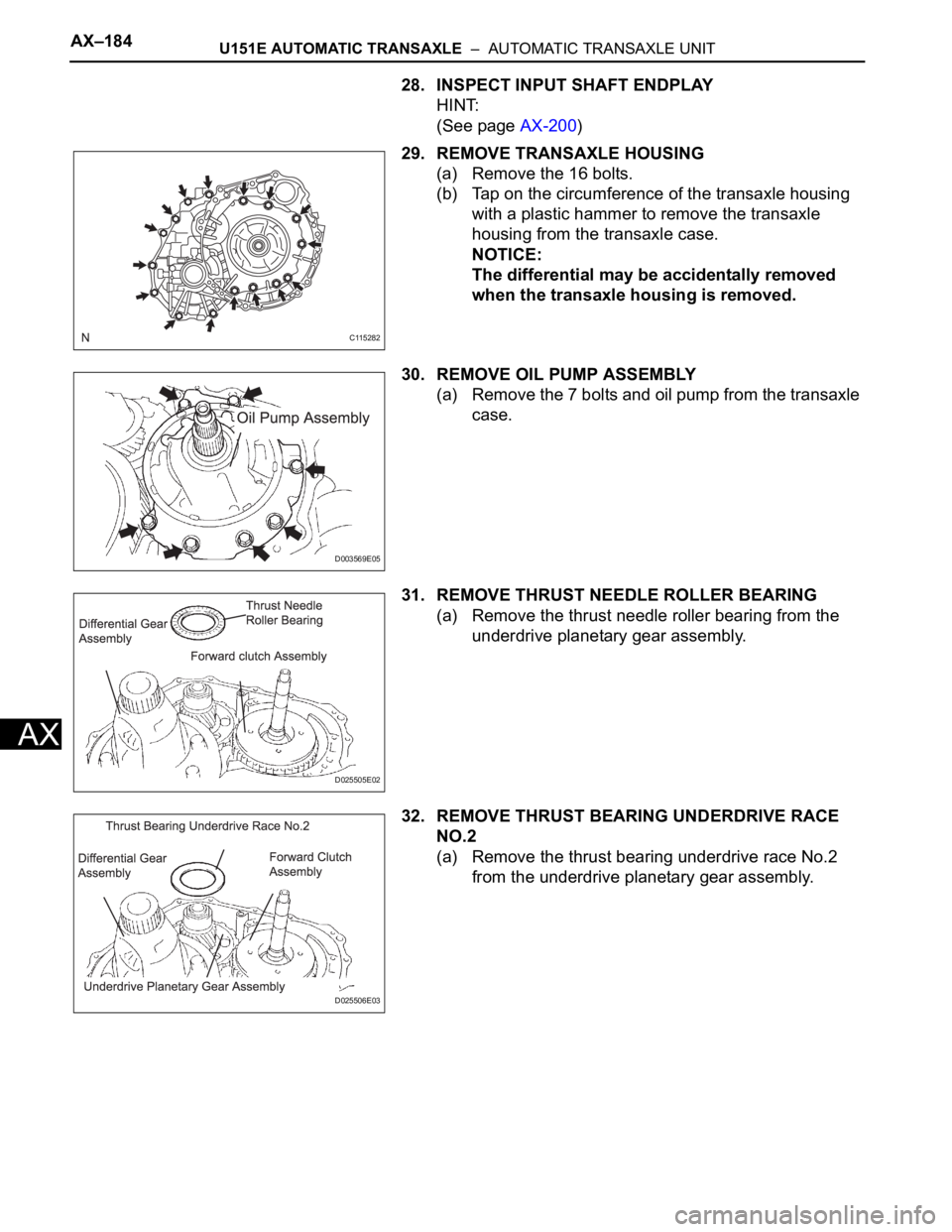

TOYOTA SIENNA 2007 Service Repair Manual AX–184U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX 28. INSPECT INPUT SHAFT ENDPLAY HINT: (See page AX-200) 29. REMOVE TRANSAXLE HOUSING (a) Remove the 16 bolts. (b) Tap on the circumf

Page 1564 of 3000

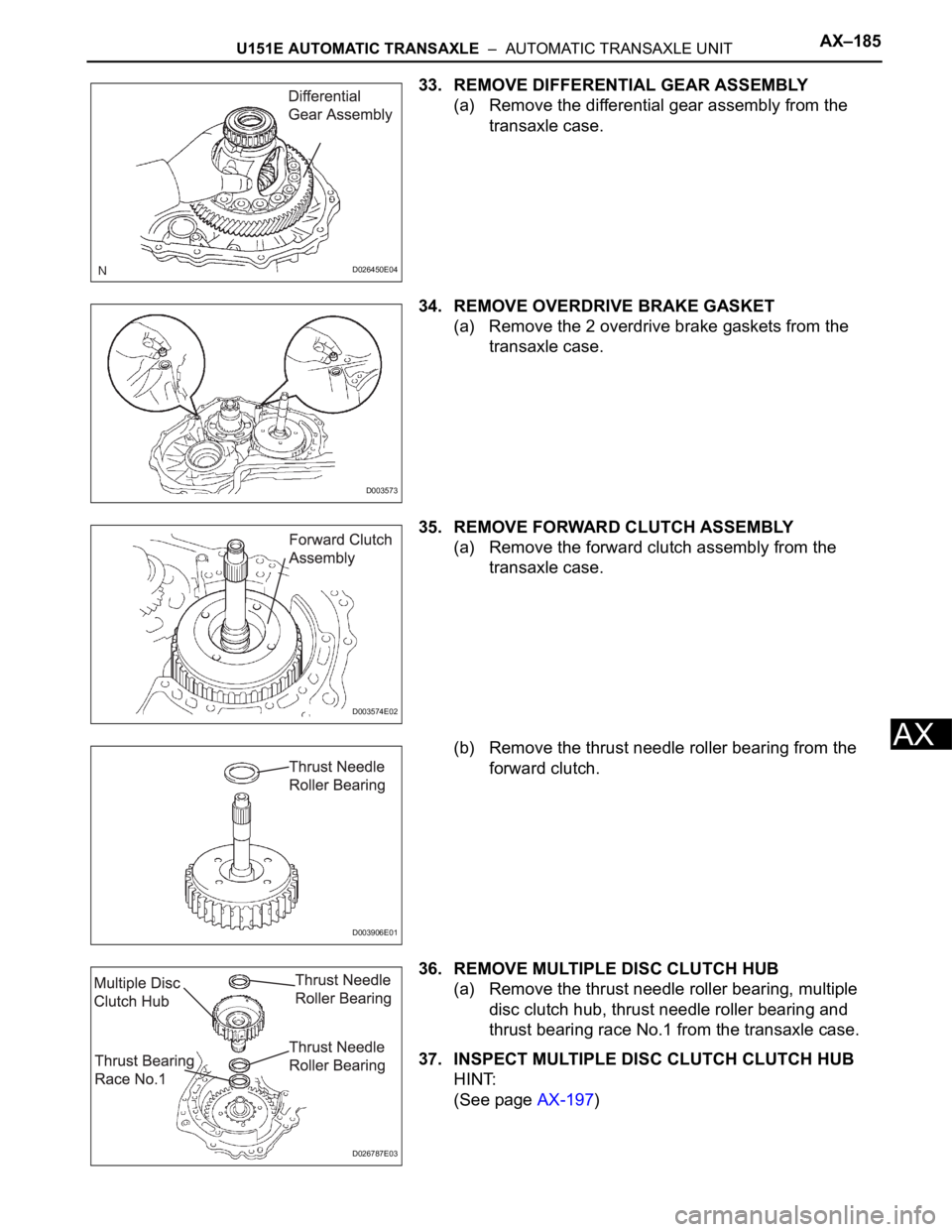

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–185 AX 33. REMOVE DIFFERENTIAL GEAR ASSEMBLY (a) Remove the differential gear assembly from the transaxle case. 34. REMOVE OVERDRIVE BRAKE

Page 1565 of 3000

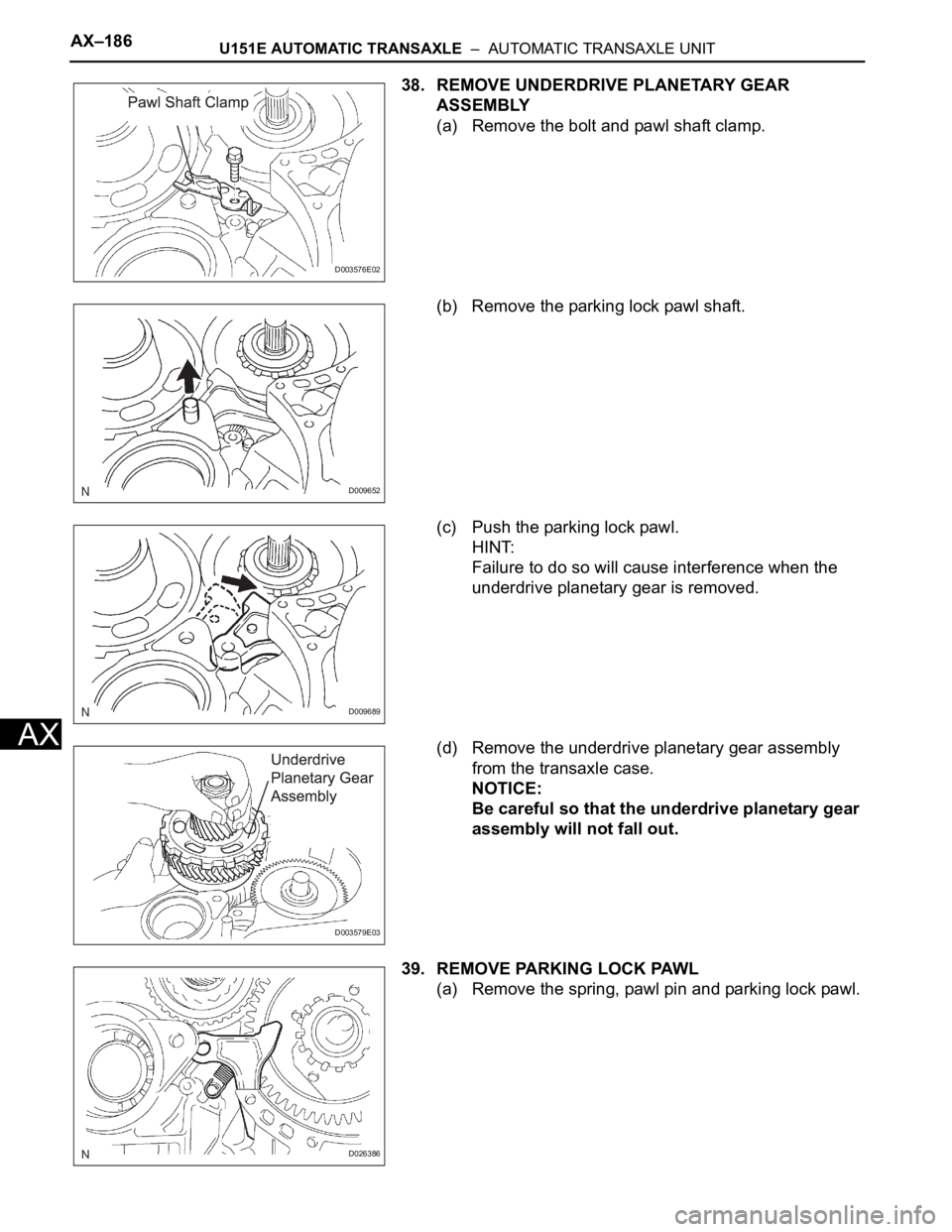

TOYOTA SIENNA 2007 Service Repair Manual AX–186U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX 38. REMOVE UNDERDRIVE PLANETARY GEAR ASSEMBLY (a) Remove the bolt and pawl shaft clamp. (b) Remove the parking lock pawl shaft. (c)

Page 1566 of 3000

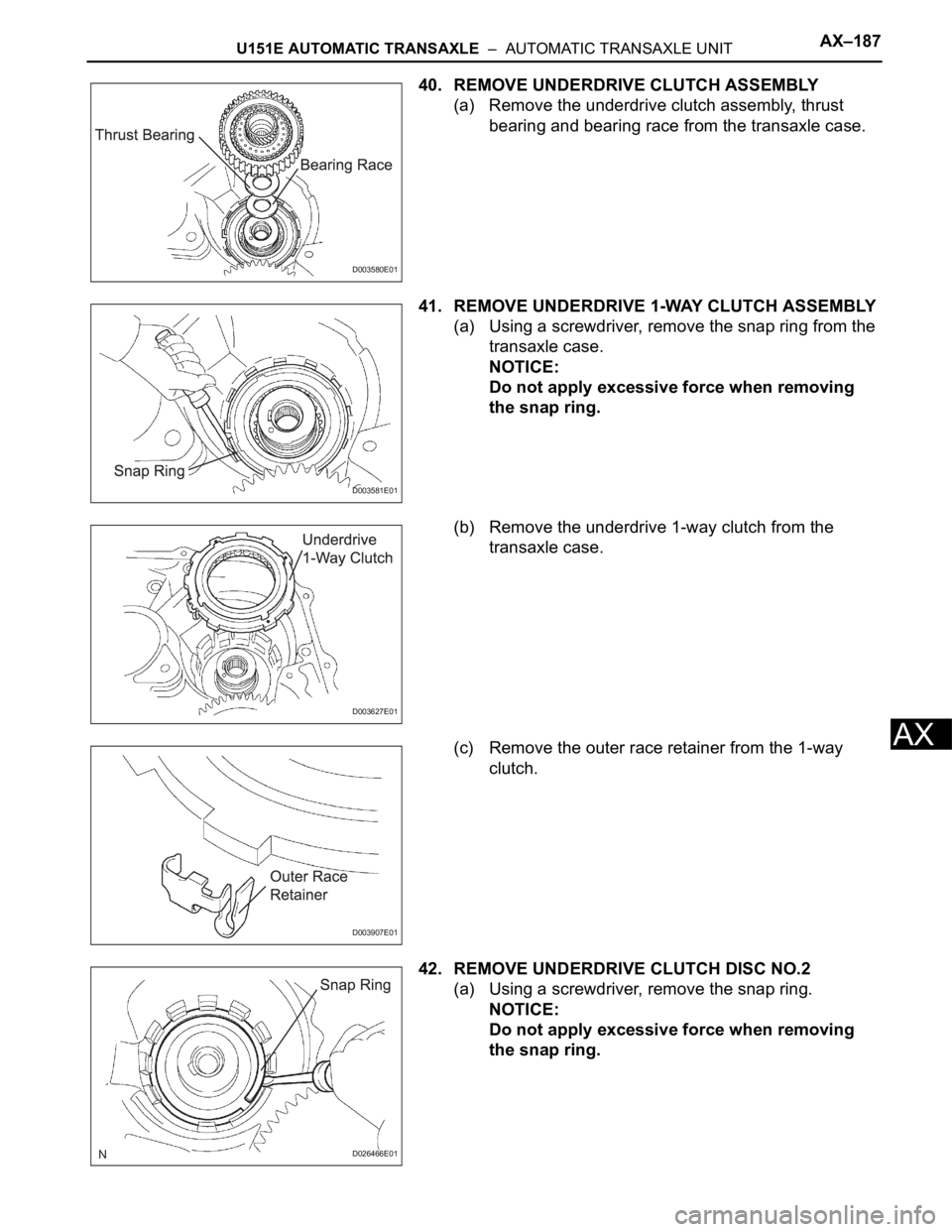

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–187 AX 40. REMOVE UNDERDRIVE CLUTCH ASSEMBLY (a) Remove the underdrive clutch assembly, thrust bearing and bearing race from the transaxle

Page 1567 of 3000

TOYOTA SIENNA 2007 Service Repair Manual AX–188U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT AX (b) Remove the flange, 4 discs and 4 plates from the transaxle case. 43. INSPECT UNDERDRIVE CLUTCH DISC NO.2 HINT: (See page AX-197

Page 1568 of 3000

TOYOTA SIENNA 2007 Service Repair Manual U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–189 AX 48. REMOVE GOVERNOR APPLY GASKET NO.1 (a) Using a screwdriver, remove the 3 apply gaskets. 49. REMOVE BRAKE APPLY TUBE (a) Remove th
