Page 2705 of 3000
POWER STEERING – RACK AND PINION POWER STEERING GEARPS–37
PS
(i) Using SST, hold the rack guide spring cap and using
another SST, torque the rack guide spring cap nut.
SST 09616-00011, 09922-10010
Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)
NOTICE:
Use SST 09922-10010 in the direction shown in
the illustration.
HINT:
Use a torque wrench with a fulcrum length of 345
mm (13.58 in.).
(j) Precheck the total preload.
Torque: Preload (turning)
1.2 to 1.5 N*m (12.2 to 15.3 kgf*cm, 10.6
to 13.3 in.*lbf)
(k) Remove the RH and LH steering rack ends sub-
assembly.
(l) Apply MP grease to the control valve, as shown in
the illustration.
(m) Wind vinyl tape around the serrated part of the
control valve.
(n) Install the dust cover onto the control valve housing.
F041518E01
F040555E08
F040538E10
Page 2706 of 3000

PS–38POWER STEERING – RACK AND PINION POWER STEERING GEAR
PS

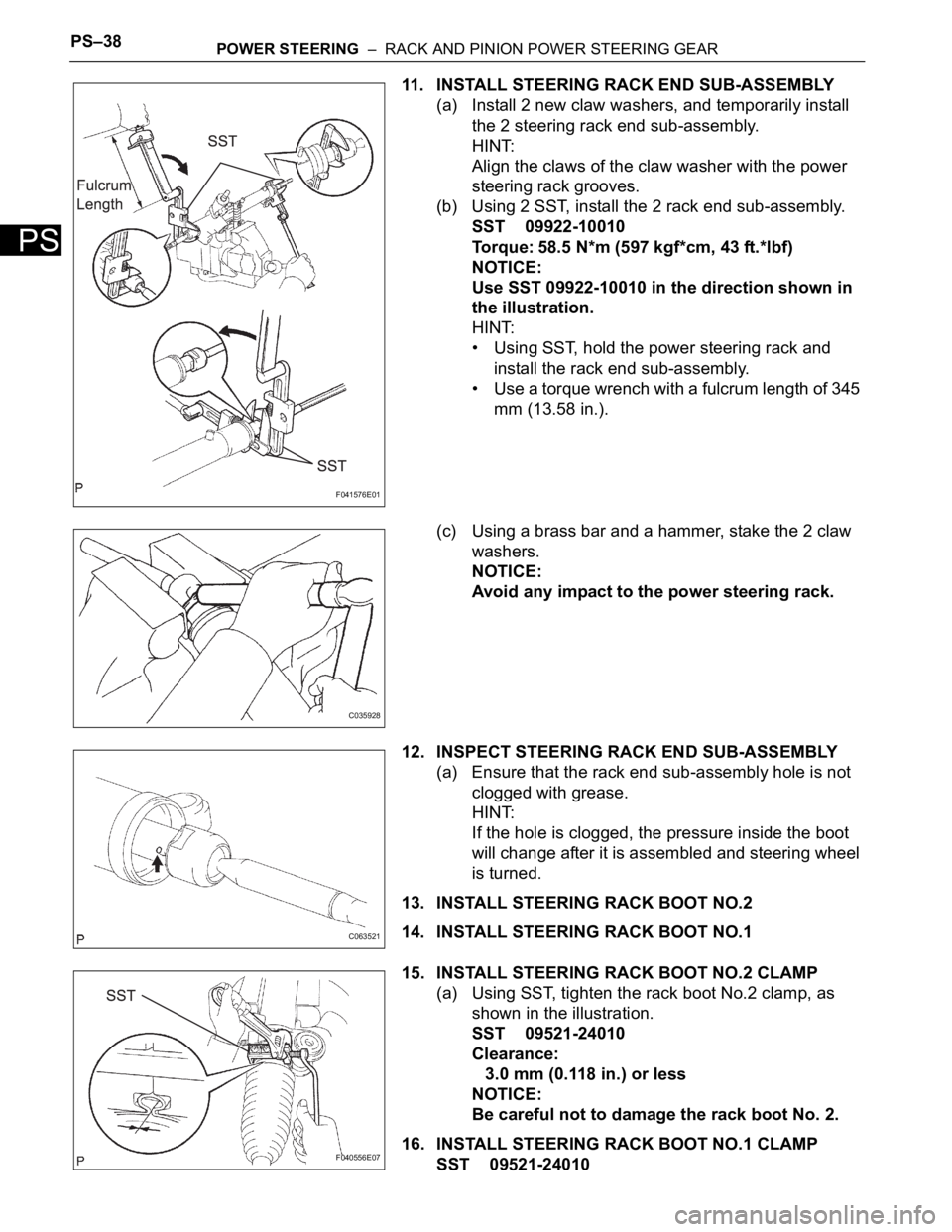

11. INSTALL STEERING RACK END SUB-ASSEMBLY
(a) Install 2 new claw washers, and temporarily install
the 2 steering rack end sub-assembly.
HINT:
Align the claws of the claw washer with the power
steering rack grooves.
(b) Using 2 SST, install the 2 rack end sub-assembly.
SST 09922-10010
Torque: 58.5 N*m (597 kgf*cm, 43 ft.*lbf)
NOTICE:
Use SST 09922-10010 in the direction shown in
the illustration.
HINT:
• Using SST, hold the power steering rack and
install the rack end sub-assembly.
• Use a torque wrench with a fulcrum length of 345
mm (13.58 in.).
(c) Using a brass bar and a hammer, stake the 2 claw
washers.
NOTICE:
Avoid any impact to the power steering rack.
12. INSPECT STEERING RACK END SUB-ASSEMBLY
(a) Ensure that the rack end sub-assembly hole is not
clogged with grease.
HINT:
If the hole is clogged, the pressure inside the boot
will change after it is assembled and steering wheel
is turned.
13. INSTALL STEERING RACK BOOT NO.2
14. INSTALL STEERING RACK BOOT NO.1
15. INSTALL STEERING RACK BOOT NO.2 CLAMP
(a) Using SST, tighten the rack boot No.2 clamp, as
shown in the illustration.
SST 09521-24010
Clearance:
3.0 mm (0.118 in.) or less
NOTICE:
Be careful not to damage the rack boot No. 2.
16. INSTALL STEERING RACK BOOT NO.1 CLAMP
SST 09521-24010
F041576E01
C035928
C063521
F040556E07
Page 2707 of 3000

POWER STEERING – RACK AND PINION POWER STEERING GEARPS–39
PS

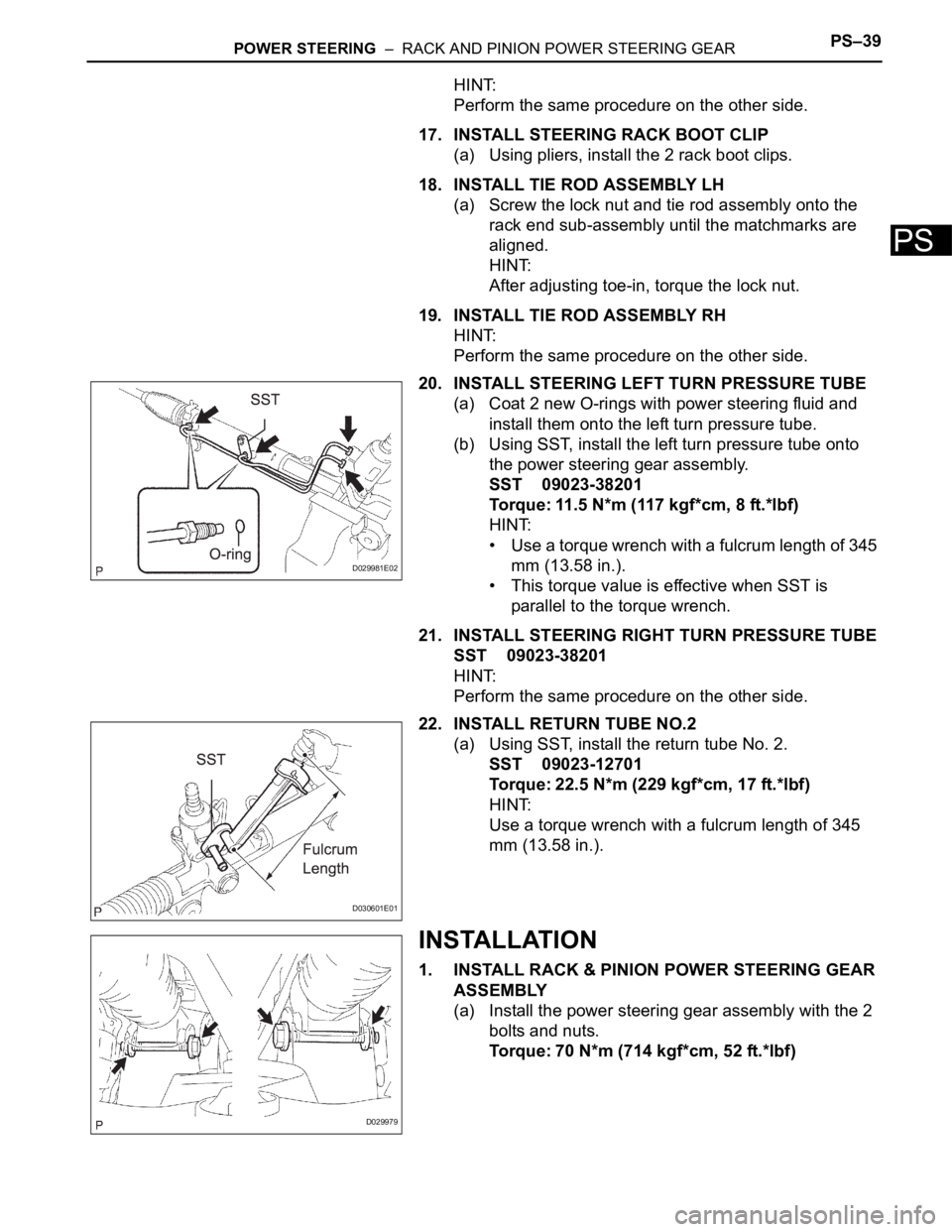

HINT:
Perform the same procedure on the other side.
17. INSTALL STEERING RACK BOOT CLIP
(a) Using pliers, install the 2 rack boot clips.
18. INSTALL TIE ROD ASSEMBLY LH
(a) Screw the lock nut and tie rod assembly onto the
rack end sub-assembly until the matchmarks are
aligned.
HINT:
After adjusting toe-in, torque the lock nut.
19. INSTALL TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure on the other side.
20. INSTALL STEERING LEFT TURN PRESSURE TUBE
(a) Coat 2 new O-rings with power steering fluid and
install them onto the left turn pressure tube.
(b) Using SST, install the left turn pressure tube onto
the power steering gear assembly.
SST 09023-38201
Torque: 11.5 N*m (117 kgf*cm, 8 ft.*lbf)
HINT:
• Use a torque wrench with a fulcrum length of 345
mm (13.58 in.).
• This torque value is effective when SST is
parallel to the torque wrench.
21. INSTALL STEERING RIGHT TURN PRESSURE TUBE
SST 09023-38201
HINT:
Perform the same procedure on the other side.
22. INSTALL RETURN TUBE NO.2
(a) Using SST, install the return tube No. 2.
SST 09023-12701
Torque: 22.5 N*m (229 kgf*cm, 17 ft.*lbf)
HINT:
Use a torque wrench with a fulcrum length of 345
mm (13.58 in.).
INSTALLATION
1. INSTALL RACK & PINION POWER STEERING GEAR
ASSEMBLY
(a) Install the power steering gear assembly with the 2
bolts and nuts.
Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)
D029981E02
D030601E01
D029979
Page 2708 of 3000
PS–40POWER STEERING – RACK AND PINION POWER STEERING GEAR
PS

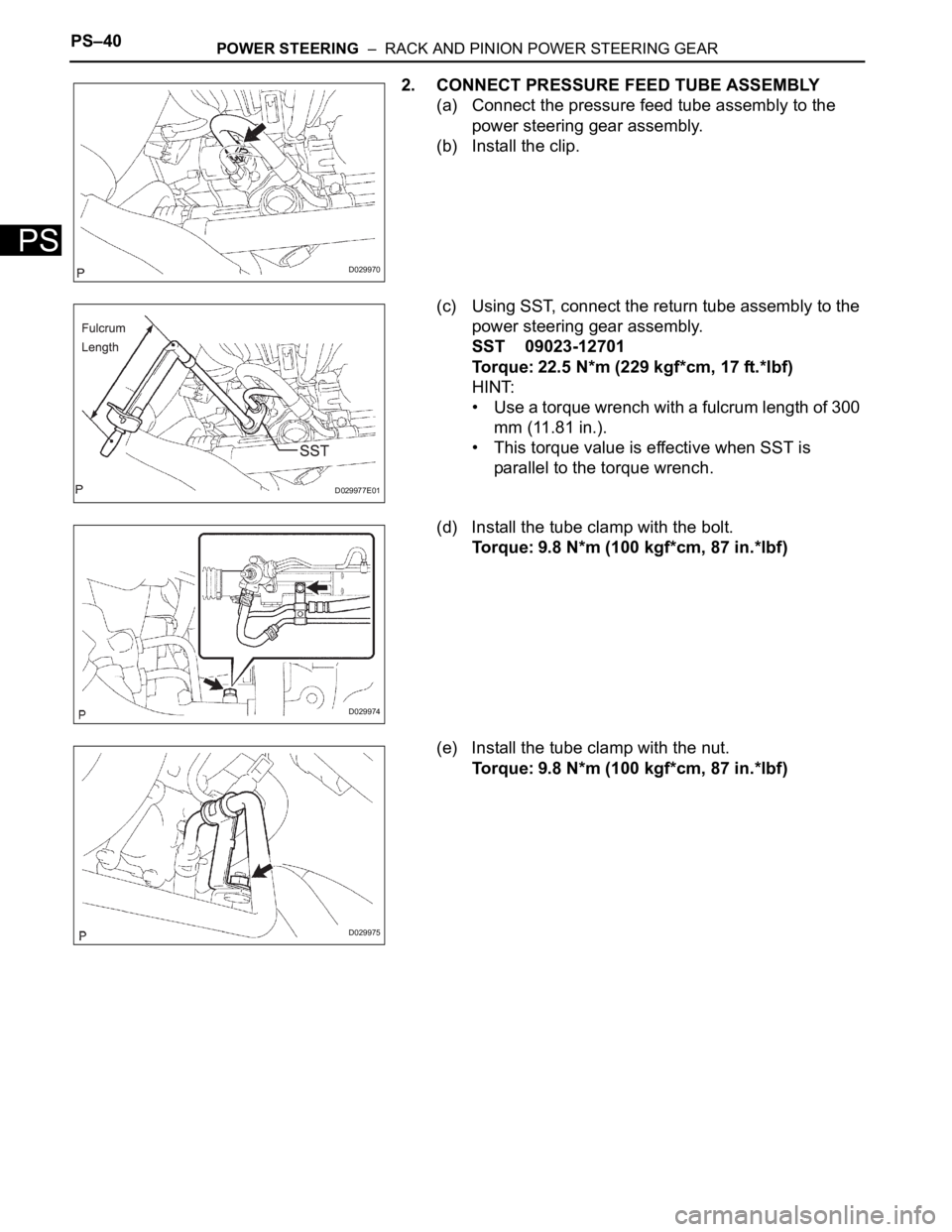

2. CONNECT PRESSURE FEED TUBE ASSEMBLY
(a) Connect the pressure feed tube assembly to the
power steering gear assembly.
(b) Install the clip.
(c) Using SST, connect the return tube assembly to the
power steering gear assembly.
SST 09023-12701
Torque: 22.5 N*m (229 kgf*cm, 17 ft.*lbf)
HINT:
• Use a torque wrench with a fulcrum length of 300
mm (11.81 in.).
• This torque value is effective when SST is
parallel to the torque wrench.
(d) Install the tube clamp with the bolt.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
(e) Install the tube clamp with the nut.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
D029970
D029977E01
D029974
D029975
Page 2709 of 3000

POWER STEERING – RACK AND PINION POWER STEERING GEARPS–41
PS

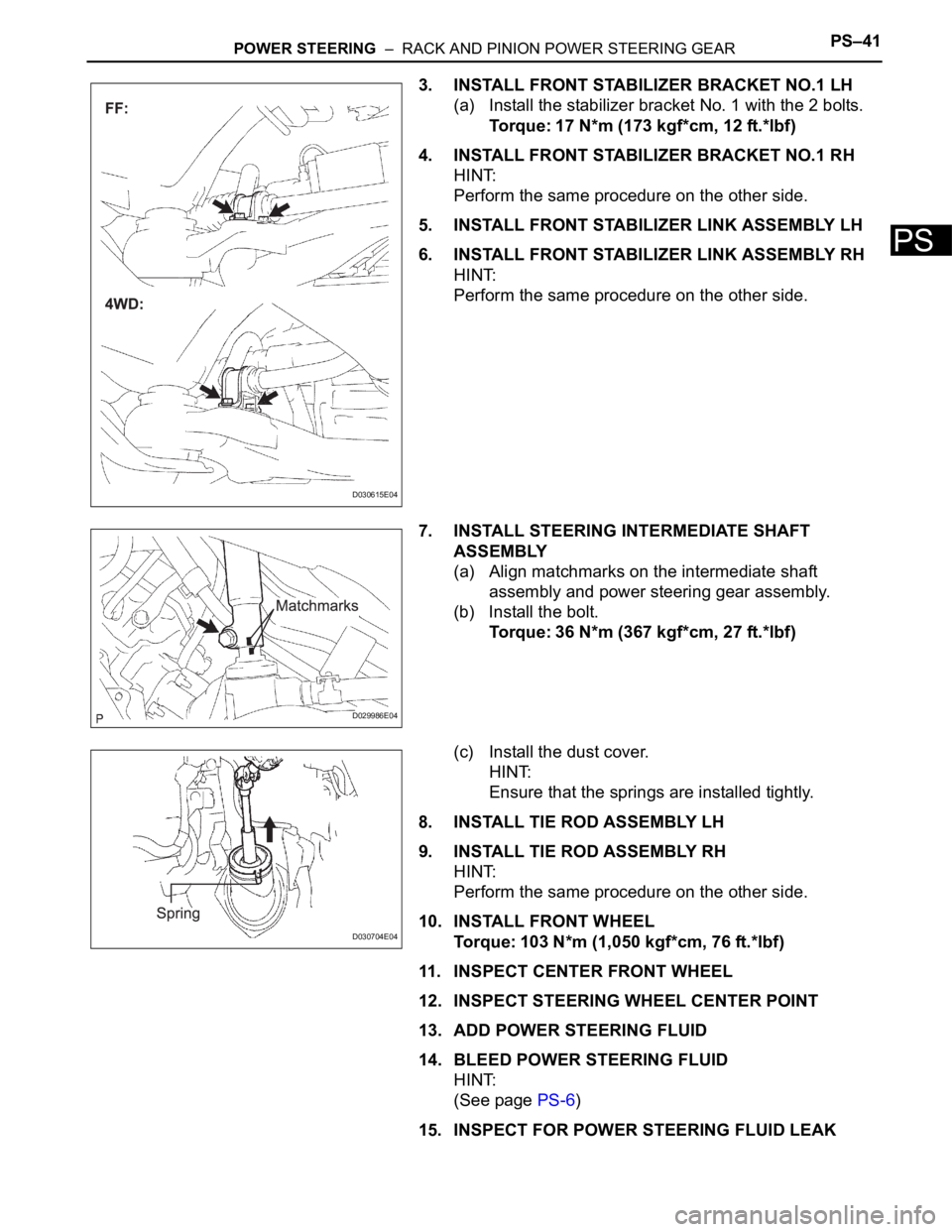

3. INSTALL FRONT STABILIZER BRACKET NO.1 LH
(a) Install the stabilizer bracket No. 1 with the 2 bolts.
Torque: 17 N*m (173 kgf*cm, 12 ft.*lbf)
4. INSTALL FRONT STABILIZER BRACKET NO.1 RH
HINT:
Perform the same procedure on the other side.
5. INSTALL FRONT STABILIZER LINK ASSEMBLY LH
6. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT:
Perform the same procedure on the other side.
7. INSTALL STEERING INTERMEDIATE SHAFT
ASSEMBLY
(a) Align matchmarks on the intermediate shaft
assembly and power steering gear assembly.
(b) Install the bolt.
Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)
(c) Install the dust cover.
HINT:
Ensure that the springs are installed tightly.
8. INSTALL TIE ROD ASSEMBLY LH
9. INSTALL TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure on the other side.
10. INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
11. INSPECT CENTER FRONT WHEEL
12. INSPECT STEERING WHEEL CENTER POINT
13. ADD POWER STEERING FLUID
14. BLEED POWER STEERING FLUID
HINT:
(See page PS-6)
15. INSPECT FOR POWER STEERING FLUID LEAK
D030615E04
D029986E04
D030704E04
Page 2710 of 3000
PS–42POWER STEERING – RACK AND PINION POWER STEERING GEAR
PS
16. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
HINT:
(See page SP-4)
Page 2711 of 3000
POWER STEERING – POWER STEERING SYSTEMPS–1
PS
POWER STEERING SYSTEM
PRECAUTION
1. HANDLING PRECAUTIONS ON STEERING SYSTEM
(a) Care must be taken when replacing parts. Incorrect
replacement could affect the performance of the
steering system and result in a driving hazard.
2. HANDLING PRECAUTIONS ON SRS AIRBAG
SYSTEM
(a) The vehicle is equipped with SRS (Supplemental
Restraint System) such as the driver airbag and
front passenger airbag. Failure to carry out service
operation in correct sequence could cause the SRS
to unexpectedly deploy during servicing, possibly
leading to a serious accident. Before servicing
(including removal or installation of parts, inspection
or replacement), be sure to read the precautionary
notice for the supplemental restraint system (See
page RS-1).
Page 2712 of 3000

PS–2POWER STEERING – POWER STEERING SYSTEM
PS

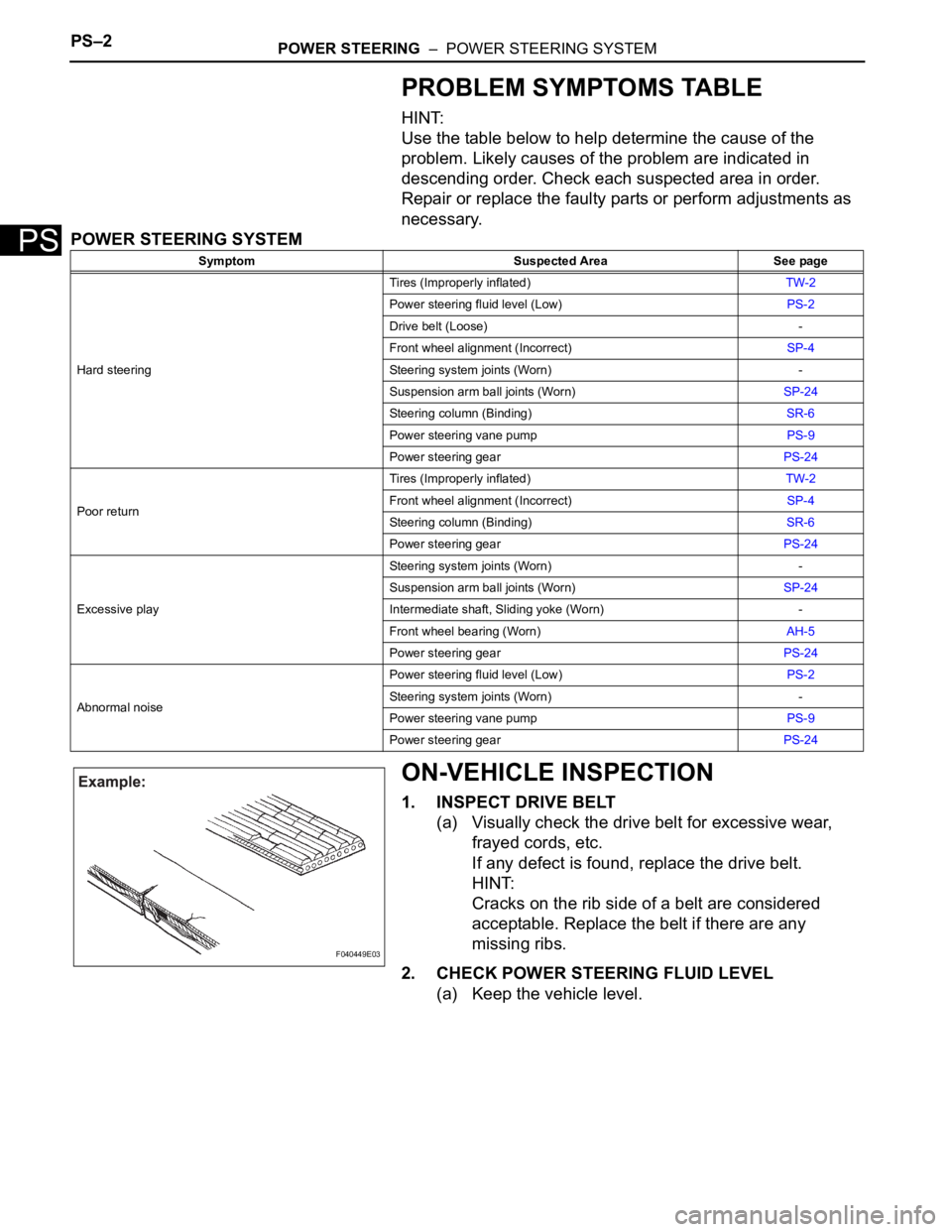

PROBLEM SYMPTOMS TABLE
HINT:
Use the table below to help determine the cause of the
problem. Likely causes of the problem are indicated in
descending order. Check each suspected area in order.
Repair or replace the faulty parts or perform adjustments as
necessary.
POWER STEERING SYSTEM
ON-VEHICLE INSPECTION
1. INSPECT DRIVE BELT
(a) Visually check the drive belt for excessive wear,
frayed cords, etc.
If any defect is found, replace the drive belt.
HINT:
Cracks on the rib side of a belt are considered
acceptable. Replace the belt if there are any
missing ribs.
2. CHECK POWER STEERING FLUID LEVEL
(a) Keep the vehicle level.
Symptom Suspected Area See page
Hard steeringTires (Improperly inflated)TW-2
Power steering fluid level (Low)PS-2
Drive belt (Loose) -
Front wheel alignment (Incorrect)SP-4
Steering system joints (Worn) -
Suspension arm ball joints (Worn)SP-24
Steering column (Binding)SR-6
Power steering vane pumpPS-9
Power steering gearPS-24
Poor returnTires (Improperly inflated)TW-2
Front wheel alignment (Incorrect)SP-4
Steering column (Binding)SR-6
Power steering gearPS-24
Excessive playSteering system joints (Worn) -
Suspension arm ball joints (Worn)SP-24
Intermediate shaft, Sliding yoke (Worn) -
Front wheel bearing (Worn)AH-5
Power steering gearPS-24
Abnormal noisePower steering fluid level (Low)PS-2
Steering system joints (Worn) -
Power steering vane pumpPS-9
Power steering gearPS-24
F040449E03
