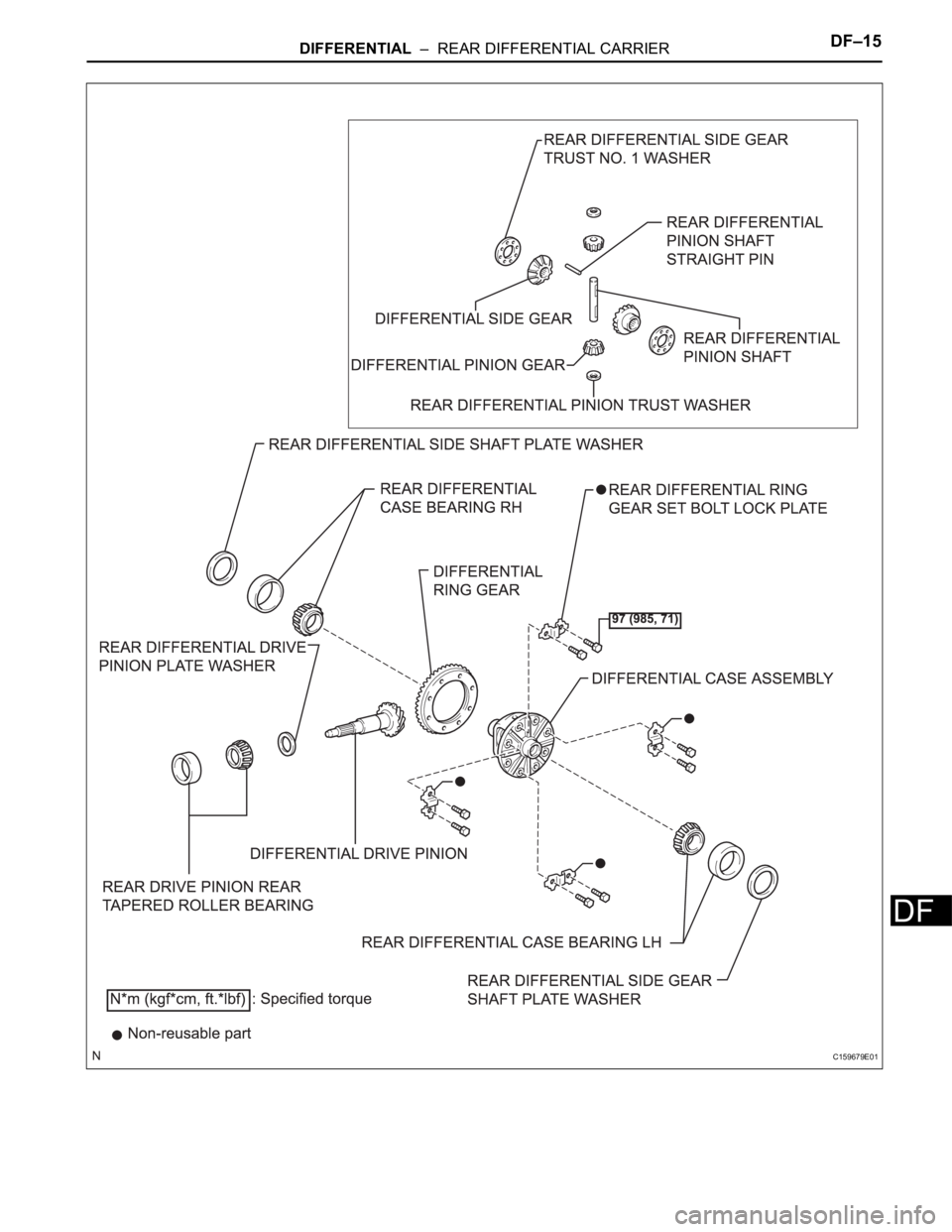

Page 2137 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DIFFERENTIAL – REAR DIFFERENTIAL CARRIERDF–15
DF
C159679E01

Page 2138 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DF–16DIFFERENTIAL – REAR DIFFERENTIAL CARRIER
DF
DISASSEMBLY
1. REMOVE REAR DIFFERENTIAL CARRIER COVER
(a) Remove the 8 bolts from the carrier cover.
(b) Using a brass bar and a hammer, separate

Page 2139 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DIFFERENTIAL – REAR DIFFERENTIAL CARRIERDF–17
DF
HINT:
Measure the backlash of the side gear with the side
gear shaft installed.
7. INSPECT RUNOUT OF REAR DRIVE PINION
COMPANION FLANGE SUB-ASS

Page 2140 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DF–18DIFFERENTIAL – REAR DIFFERENTIAL CARRIER
DF
11. REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT
DUST COVER
(a) Using a screwdriver and a hammer, remove the side
gear shaft dust cover.
12. REMOVE

Page 2141 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DIFFERENTIAL – REAR DIFFERENTIAL CARRIERDF–19
DF
15. REMOVE REAR DIFFERENTIAL DUST DEFLECTOR
(a) Using SST and a press, remove the dust deflector.
SST 09950-60010 (09951-00360), 09950-70010
(09

Page 2142 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DF–20DIFFERENTIAL – REAR DIFFERENTIAL CARRIER
DF
(d) Remove the differential case assembly and the 2
bearing outer races from the differential carrier.
HINT:
Tag the 2 bearing outer races races

Page 2143 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DIFFERENTIAL – REAR DIFFERENTIAL CARRIERDF–21
DF
26. INSPECT DIFFERENTIAL CASE ASSEMBLY
(a) Install the differential case to the differential carrier.
(b) Install the right and left bearing caps

Page 2144 of 3000

TOYOTA SIENNA 2007 Service Repair Manual DF–22DIFFERENTIAL – REAR DIFFERENTIAL CARRIER
DF
INSPECTION
1. INSPECT RUNOUT OF DIFFERENTIAL RING GEAR
(a) Using a dial gauge , check the runout of the ring
gear.
Maximum runout:
0.07 mm (0.00

Load next 8 pages
