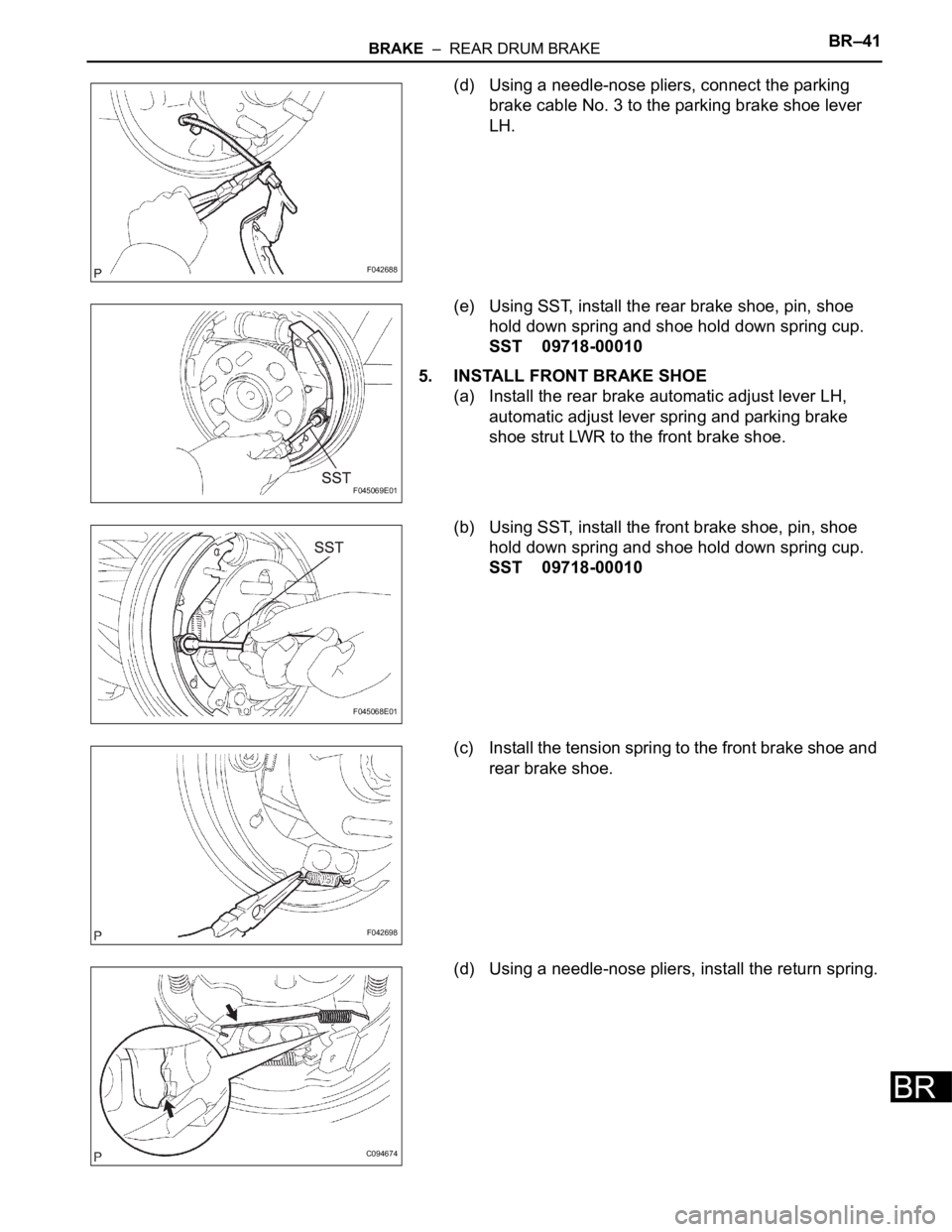

TOYOTA SIENNA 2007 Service Repair Manual BRAKE – REAR DRUM BRAKEBR–41
BR
(d) Using a needle-nose pliers, connect the parking
brake cable No. 3 to the parking brake shoe lever
LH.
(e) Using SST, install the rear brake shoe, pin, shoe

Page 2642 of 3000

TOYOTA SIENNA 2007 Service Repair Manual BR–42BRAKE – REAR DRUM BRAKE
BR
(e) Using SST, install the shoe return spring to the front
brake shoe.
SST 09921-00010
6. CHECK REAR DRUM BRAKE INSTALLATION
(a) Check that each part is installe

Page 2643 of 3000

TOYOTA SIENNA 2007 Service Repair Manual BRAKE – REAR DRUM BRAKEBR–43
BR
(c) Using a screwdriver, back off the adjuster 15
notches.
(d) Install the hole plug.
9. FILL RESERVOIR WITH BRAKE FLUID (See page BR-
3)
10. BLEED BRAKE MASTER

Page 2644 of 3000

TOYOTA SIENNA 2007 Service Repair Manual BRAKE – REAR DRUM BRAKEBR–39
BR
INSPECTION
1. INSPECT BRAKE DRUM INSIDE DIAMETER
(a) Using a brake drum gauge or equivalent, measure
the inside diameter of the drum.
Standard inside diameter:
2

Page 2645 of 3000

TOYOTA SIENNA 2007 Service Repair Manual BR–40BRAKE – REAR DRUM BRAKE
BR
REASSEMBLY
1. INSTALL REAR WHEEL CYLINDER CUP KIT
(a) Temporarily tighten the bleeder plug to the wheel
cylinder, and install the bleeder plug cap.
(b) Apply lit

Page 2646 of 3000

TOYOTA SIENNA 2007 Service Repair Manual BRAKE – REAR DRUM BRAKEBR–41
BR
(d) Using a needle-nose pliers, connect the parking
brake cable No. 3 to the parking brake shoe lever
LH.
(e) Using SST, install the rear brake shoe, pin, shoe

Page 2647 of 3000

TOYOTA SIENNA 2007 Service Repair Manual BR–42BRAKE – REAR DRUM BRAKE
BR
(e) Using SST, install the shoe return spring to the front
brake shoe.
SST 09921-00010
6. CHECK REAR DRUM BRAKE INSTALLATION
(a) Check that each part is installe

Page 2648 of 3000

TOYOTA SIENNA 2007 Service Repair Manual BRAKE – REAR DRUM BRAKEBR–43
BR
(c) Using a screwdriver, back off the adjuster 15
notches.
(d) Install the hole plug.
9. FILL RESERVOIR WITH BRAKE FLUID (See page BR-
3)
10. BLEED BRAKE MASTER
