(b) Using SST and a press, press-fit the front planetary
gear assembly.
SST 09950-60010 (09951-00500), 09950-70010
(09951-07100)
NOTICE:
• Do not apply excessive pressure to the
planetary gear assembly.
• Press the inner race of LH tapered roller
bearing, counter gear and front planetary
gear assembly to the position where no pre-
load should be applied to one pair of tapered
roller bearings (left and right).
(c) Install a new washer as shown in the illustration.
(d) Using SST, install the nut.
SST 09387-00030, 09387-00080
Torque: 280 N*m (3,355 kgf*cm, 207 ft.*lbf)
NOTICE:
Assemble the washer after pressing each part,
then tighten the nut to the minimum tightening
torque.
(e) Using SST and a torque wrench, measure the
turning torque of the bearing while rotating SST at
60 rpm. When the measured value is not as
specified, gradually tighten the nut until it reaches
the specified value.
SST 09387-00080
Standard:
Turning torque at 60 rpm
Bearing:
New Bearing:
D003916E01
D003917
D003596E01
D003918E01
Page 1594 of 3000

AX–208U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
0.51 to 1.02 N*m (5.1 to 10.0 kgf*cm, 4.4 to 8.7
in.*lbf)
Used Bearing:
0.26 to 0.51 N*m (2.7 to 5.2 kgf*cm, 2.3 to 4.5
in.*lbf)
HINT:
Use a torque wrench with a fulcrum length of 160
mm (6.3 in.).
(f) Tighten the nut gradually until the specified turning
torque of tapered roller bearing is measured.
Torque: 350 N*m (3,569 kgf*cm, 258 ft.*lbf)
(g) Using a chisel and hammer, stake the front lock
washer.
17. INSTALL INPUT SUN GEAR
(a) Coat the 2 thrust bearings with ATF.
(b) Install the 2 thrust bearings, the bearing race and
the input sun gear to the front planetary gear
assembly.
NOTICE:
• Install the bearing race on the side of the
front planetary carrier. Be careful about the
direction of the race.
• Installing thrust bearing and front sun gears,
be careful about the direction of the parts.
• Install the bearing race on the side of the
front sun gear. Be careful about the direction
of the race.
• Install the thrust bearing and the race after
holding the parts on the input sun gear by
applying grease. Make sure that the
assembling order is correct.
Thrust bearing and bearing race diameter: mm
(in.)
D008074E01
C089123E02
Inside Outside
Thrust Bearing, A 32.5 (1.28) 56.5 (2.224)
Bearing Race, B 40.2 (1.583) 59.3 (2.335)
Thrust Bearing, C 38.6 (1.520) 59.7 (2.35)
Bearing Race, D 38.6 (1.520) 59.3 (2.335)
Page 1595 of 3000

U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–209
AX
18. INSTALL REAR PLANETARY GEAR ASSEMBLY
(a) Install the rear planetary gear assembly to the rear
planetary ring gear.
(b) Using a screwdriver, install the snap ring.
NOTICE:
Confirm that the snap ring is fixed in the groove
of the 1st and reverse brake hub correctly.
19. INSTALL 1ST AND REVERSE BRAKE CLUTCH DISC
(a) Coat the 6 discs with ATF.
(b) Install the 7 plates and 6 discs.
NOTICE:
Make sure that the plates, discs, and flange are
installed as shown in the illustration.
20. INSPECT PACK CLEARANCE OF FIRST AND
REVERSE BRAKE
(a) Using vernier calipers, measure the distance
between the disc surface and the contact surface of
the 2nd brake cylinder and transaxle case
(Dimension A).
(b) Select an appropriate flange so that the pack
clearance will meet the specified value.
Pack clearance:
1.16 to 1.35 mm (0.0457 to 0.0531 in.)
HINT:
Piston stroke = Dimension A - Flange thickness
Flange thickness: mm (in.)
D026591E02
D003616E01
D026413E01
D026452E01
Mark Thickness Mark Thickness
1 1.8 (0.071) 5 2.2 (0.087)
2 1.9 (0.075) 6 2.3 (0.091)
3 2.0 (0.079) 7 2.4 (0.094)
4 2.1 (0.083) 8 2.5 (0.098)
Page 1596 of 3000
AX–210U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
(c) Install the flange.
21. INSTALL SECOND BRAKE PISTON ASSEMBLY
(a) Install the second brake piston assembly to the
transaxle case.
(b) Install the snap ring and measure the inside
diameter.
Inside diameter:
Greater than 167 mm (6.57 in.)
NOTICE:
• Make sure that the taper snap ring is installed
in the correct direction.
• When the diameter does not meet the
specified value, replace the snap ring with a
new one.
• After installing, confirm that there is no
clearance between the 2nd brake cylinder
and the fitting surface of the cylinder in the
transaxle case.
22. INSTALL 1-WAY CLUTCH SLEEVE OUTER
(a) Install the 1-way clutch sleeve outer to the 2nd
brake cylinder assembly.
NOTICE:
Make sure that the outer sleeve is installed in
the correct direction.
D003815
D026396E03
D008058E01
C092977E01
Page 1597 of 3000

U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–211
AX
23. INSTALL 1-WAY CLUTCH ASSEMBLY
(a) Install the 1-way clutch inner race to the 1-way
clutch.
NOTICE:
• Make sure that the inner race is installed in
the correct direction.
• Confirm that the discrimination mark is
visible.
(b) Check the rotating direction of 1-way clutch for the
lock or free operation as shown in the illustration.
(c) Install the 1-way clutch and thrust needle roller
bearing to the 1-way clutch sleeve outer.
Bearing diameter: mm (in.)
NOTICE:
Install the thrust bearing properly so that no-
colored race will be visible.
24. INSTALL PLANETARY CARRIER THRUST WASHER
NO.1
(a) Coat the planetary carrier thrust washer No.1 with
yellow petrolatum, and install the washer onto the
planetary sun gear assembly.
NOTICE:
After installing, confirm that the projection
should be fixed firmly in the hole of the
planetary sun gear assembly.
25. REMOVE REAR PLANETARY SUN GEAR ASSEMBLY
(a) Coat the planetary carrier thrust washer No.2 with
yellow petrolatum, and install the washer onto the
rear planetary sun gear.
D003909E01
D009638E01
D003588E01
Inside Outside
Bearing 53.6 (2.110) 69.4 (2.732)
D026394E02
D026393E01
Page 1598 of 3000

AX–212U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
(b) Coat the bearing with yellow petrolatum, and install
the bearing onto the rear planetary sun gear.
Bearing diameter: mm (in.)
(c) Install the rear planetary sun gear assembly to the
rear planetary gear.
NOTICE:
Installing the rear planetary sun gear assembly,
make sure that the B1 discs are engaged.
26. INSTALL 2ND BRAKE CLUTCH DISC
(a) Coat the 4 discs with ATF.
(b) Install the 4 discs and 5 plates to the transaxle case.
(c) Temporarily install the snap ring.
27. INSPECT PACK CLEARANCE OF 2ND BRAKE
(a) Using a vernier calipers, measure the distance
between the disc surface and snap ring surface
(Dimension B).
(b) Select an appropriate flange so that the pack
clearance will meet the specified value.
Clearance:
0.62 to 0.91 mm (0.0244 to 0.0358 in.)
HINT:
Piston stroke = Dimension B - Flange thickness -
Snap ring thickness 1.6 mm (0.063 in.)
Flange thickness: mm (in.)
D026404E04
Inside Outside
Race, A 33.0 (1.299) 45.4 (1.787)
Bearing, B 31.85 (1.254) 45.2 (1.78)
D026714E02
D026412E01
D026453E01
Mark Thickness Mark Thickness
1 3.0 (0.118) 5 3.4 (0.134)
2 3.1 (0.122) 6 3.5 (0.138)
3 3.2 (0.126) 7 3.6 (0.142)
4 3.3 (0.130) 8 -
Page 1599 of 3000

U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNITAX–213
AX
(c) Temporarily remove the snap ring, attach the
selected flange and reinstall the snap ring.
NOTICE:
Secure the snap ring so that the ends visible
through the groove of the transaxle case.

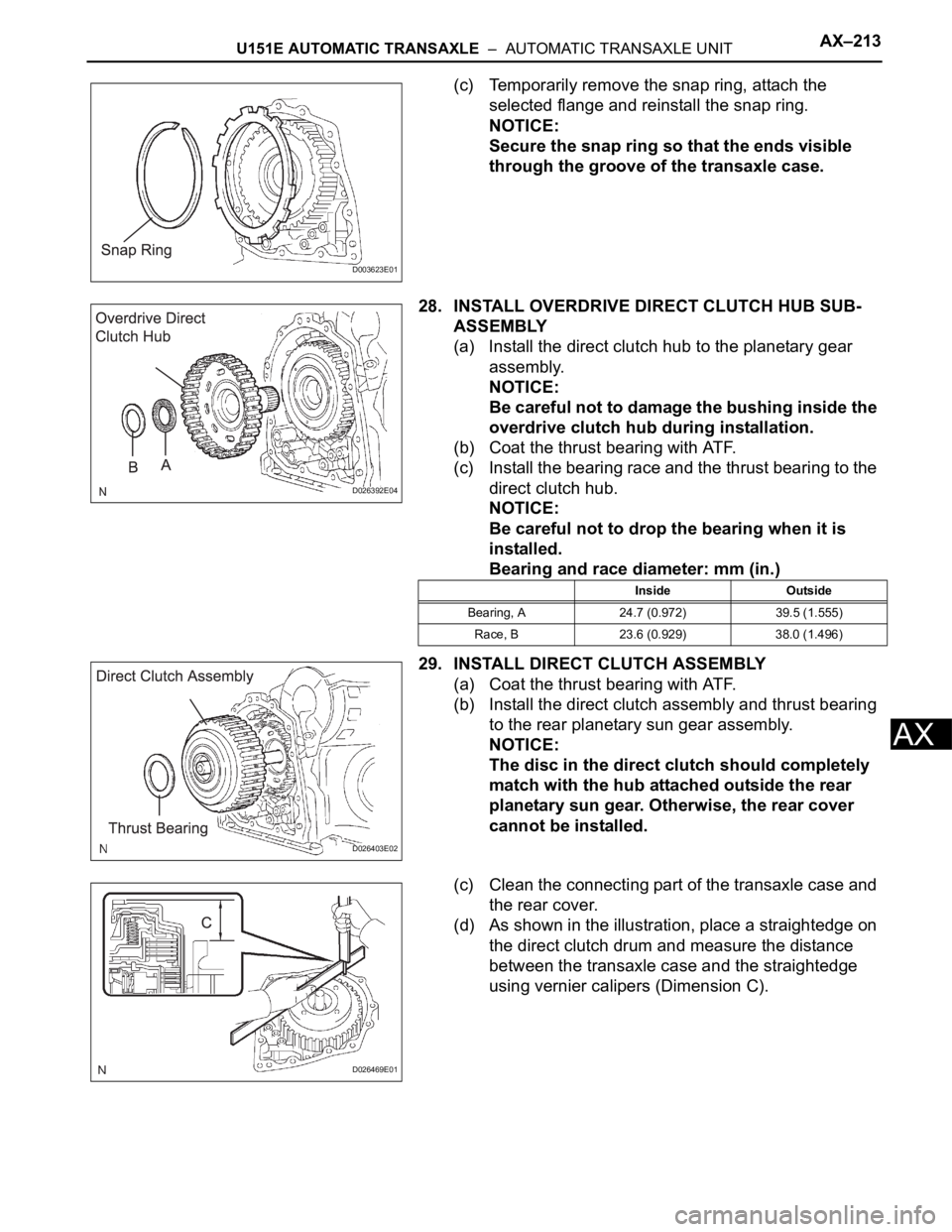

28. INSTALL OVERDRIVE DIRECT CLUTCH HUB SUB-
ASSEMBLY
(a) Install the direct clutch hub to the planetary gear
assembly.
NOTICE:
Be careful not to damage the bushing inside the
overdrive clutch hub during installation.
(b) Coat the thrust bearing with ATF.
(c) Install the bearing race and the thrust bearing to the
direct clutch hub.
NOTICE:
Be careful not to drop the bearing when it is
installed.
Bearing and race diameter: mm (in.)
29. INSTALL DIRECT CLUTCH ASSEMBLY
(a) Coat the thrust bearing with ATF.
(b) Install the direct clutch assembly and thrust bearing
to the rear planetary sun gear assembly.
NOTICE:
The disc in the direct clutch should completely
match with the hub attached outside the rear
planetary sun gear. Otherwise, the rear cover
cannot be installed.
(c) Clean the connecting part of the transaxle case and
the rear cover.
(d) As shown in the illustration, place a straightedge on
the direct clutch drum and measure the distance
between the transaxle case and the straightedge
using vernier calipers (Dimension C).
D003623E01
D026392E04
Inside Outside
Bearing, A 24.7 (0.972) 39.5 (1.555)
Race, B 23.6 (0.929) 38.0 (1.496)
D026403E02
D026469E01
Page 1600 of 3000

AX–214U151E AUTOMATIC TRANSAXLE – AUTOMATIC TRANSAXLE UNIT
AX
(e) Using vernier calipers and a straightedge, measure
the dimension shown in the illustration.
(f) Calculate the end play value using the following
formula. Select a thrust bearing which satisfies the
end play value and install the selected bearing.
End play:
0.244 to 0.901 mm (0.0096 to 0.0355 in.)
NOTICE:
Make sure that the no-colored race side is facing
the direct clutch assembly.
HINT:
End play = Dimension D - Dimension C
Bearing thickness and diameter : mm (in.)

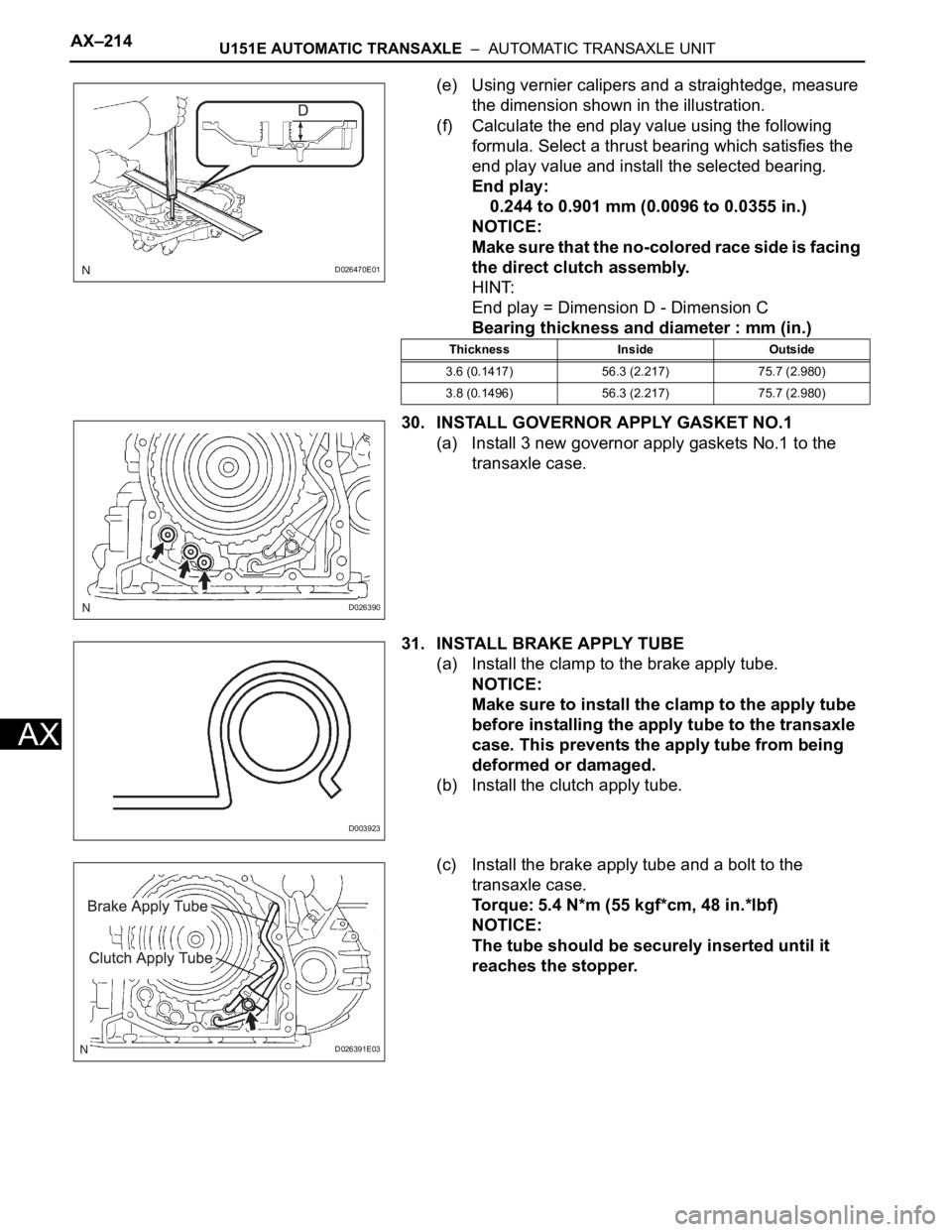

30. INSTALL GOVERNOR APPLY GASKET NO.1
(a) Install 3 new governor apply gaskets No.1 to the
transaxle case.
31. INSTALL BRAKE APPLY TUBE
(a) Install the clamp to the brake apply tube.
NOTICE:
Make sure to install the clamp to the apply tube
before installing the apply tube to the transaxle
case. This prevents the apply tube from being
deformed or damaged.
(b) Install the clutch apply tube.
(c) Install the brake apply tube and a bolt to the
transaxle case.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
NOTICE:
The tube should be securely inserted until it
reaches the stopper.
D026470E01
Thickness Inside Outside
3.6 (0.1417) 56.3 (2.217) 75.7 (2.980)
3.8 (0.1496) 56.3 (2.217) 75.7 (2.980)
D026390
D003923
D026391E03
