TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE COOLING – WATER PUMPCO–11 CO REMOVAL 1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: See page EM-26 2. SECURE ENGINE (See page EM-37) 3. REMOVE GENERATOR ASSEMBLY (See page CH-17) 4. REMOV

Page 1266 of 3000

TOYOTA SIENNA 2007 Service Repair Manual CO–122GR-FE COOLING – WATER PUMP CO 8. REMOVE WATER PUMP PULLEY (a) Using SST, hold the water pump pulley. SST 09960-10010 (09962-01000, 09963-00700) (b) Remove the 4 bolts and water pump pulley

Page 1267 of 3000

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE COOLING – WATER PUMPCO–13 CO INSTALLATION 1. INSTALL WATER PUMP ASSEMBLY (a) Install a new water pump gasket and the water pump assembly with the 16 bolts. Torque: Bolt A 21 N*m (214 kgf

Page 1268 of 3000

TOYOTA SIENNA 2007 Service Repair Manual CO–142GR-FE COOLING – WATER PUMP CO 4. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY (a) Install the V-ribbed belt tensioner assembly with the 5 bolts. Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf) 5. INS

Page 1269 of 3000

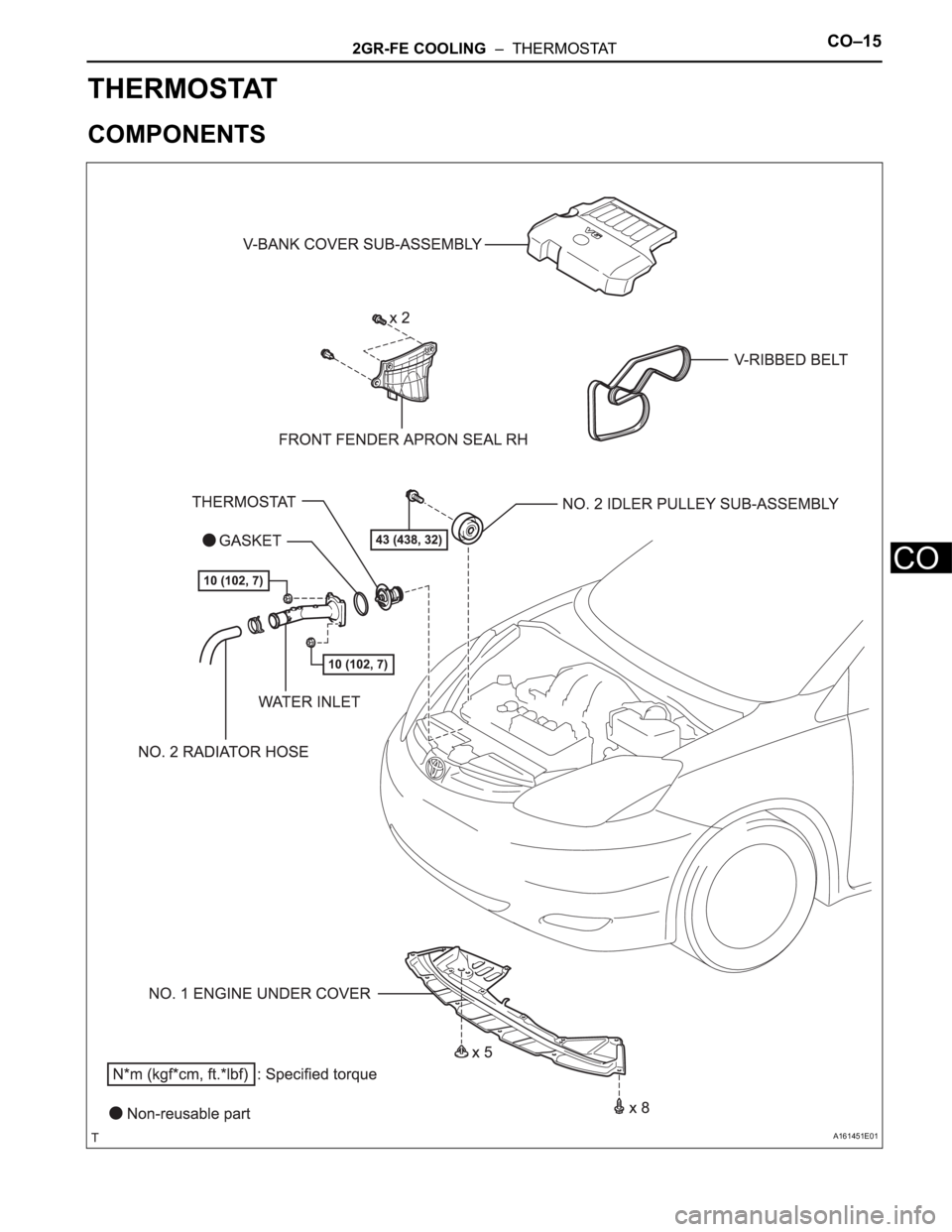

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE COOLING – THERMOSTATCO–15 CO ENGINE 2GR-FE COOLING THERMOSTAT COMPONENTS A161451E01

Page 1270 of 3000

TOYOTA SIENNA 2007 Service Repair Manual CO–162GR-FE COOLING – THERMOSTAT CO REMOVAL 1. REMOVE V-BANK COVER SUB-ASSEMBLY (See page EM-28) 2. REMOVE NO. 1 ENGINE UNDER COVER (See page EM-26) 3. DRAIN ENGINE COOLANT (See page CO-6) 4.

Page 1271 of 3000

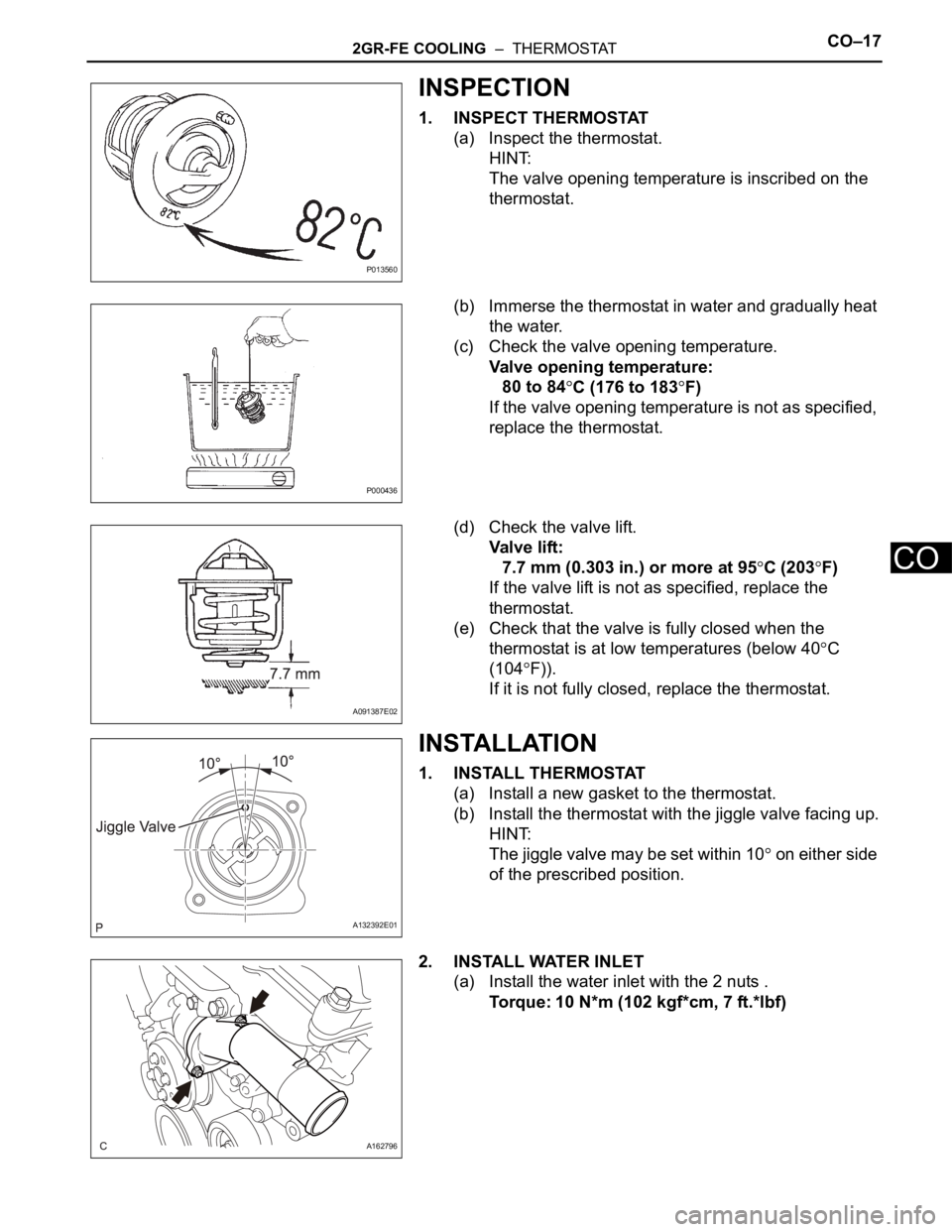

TOYOTA SIENNA 2007 Service Repair Manual 2GR-FE COOLING – THERMOSTATCO–17 CO INSPECTION 1. INSPECT THERMOSTAT (a) Inspect the thermostat. HINT: The valve opening temperature is inscribed on the thermostat. (b) Immerse the thermostat i

Page 1272 of 3000

TOYOTA SIENNA 2007 Service Repair Manual CO–182GR-FE COOLING – THERMOSTAT CO 3. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY (a) Install the idler pulley cover plate and idler pulley sub-assembly with the bolt. Torque: 43 N*m (438 kgf*cm,
