2GR-FE COOLING – RADIATORCO–39
CO

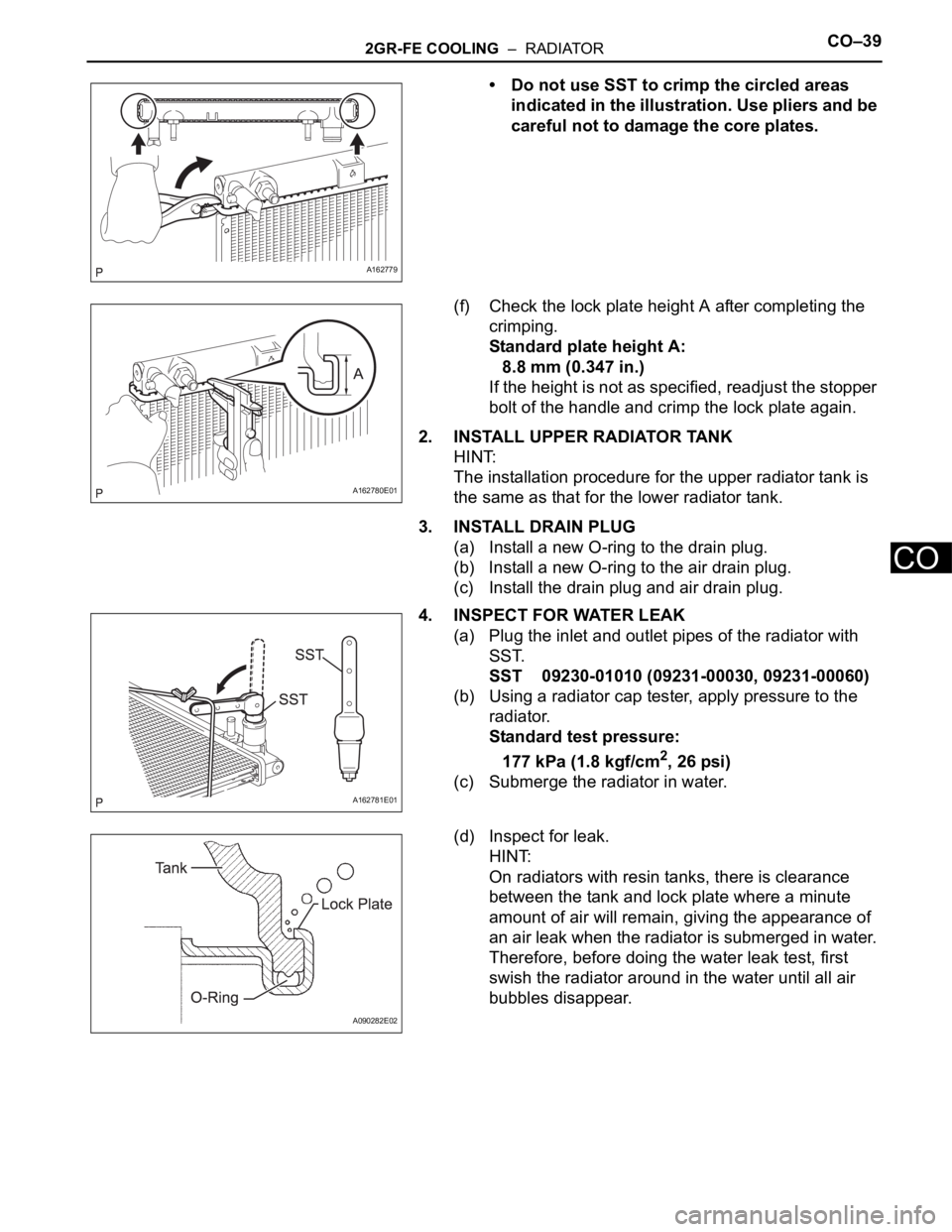

• Do not use SST to crimp the circled areas
indicated in the illustration. Use pliers and be
careful not to damage the core plates.
(f) Check the lock plate height A after completing the
crimping.
Standard plate height A:
8.8 mm (0.347 in.)
If the height is not as specified, readjust the stopper
bolt of the handle and crimp the lock plate again.
2. INSTALL UPPER RADIATOR TANK
HINT:
The installation procedure for the upper radiator tank is
the same as that for the lower radiator tank.
3. INSTALL DRAIN PLUG
(a) Install a new O-ring to the drain plug.
(b) Install a new O-ring to the air drain plug.
(c) Install the drain plug and air drain plug.
4. INSPECT FOR WATER LEAK
(a) Plug the inlet and outlet pipes of the radiator with
SST.
SST 09230-01010 (09231-00030, 09231-00060)
(b) Using a radiator cap tester, apply pressure to the
radiator.
Standard test pressure:
177 kPa (1.8 kgf/cm
2, 26 psi)
(c) Submerge the radiator in water.
(d) Inspect for leak.
HINT:
On radiators with resin tanks, there is clearance
between the tank and lock plate where a minute
amount of air will remain, giving the appearance of
an air leak when the radiator is submerged in water.
Therefore, before doing the water leak test, first
swish the radiator around in the water until all air
bubbles disappear.
A162779
A162780E01
A162781E01
A090282E02
Page 1258 of 3000
CO–402GR-FE COOLING – RADIATOR
CO

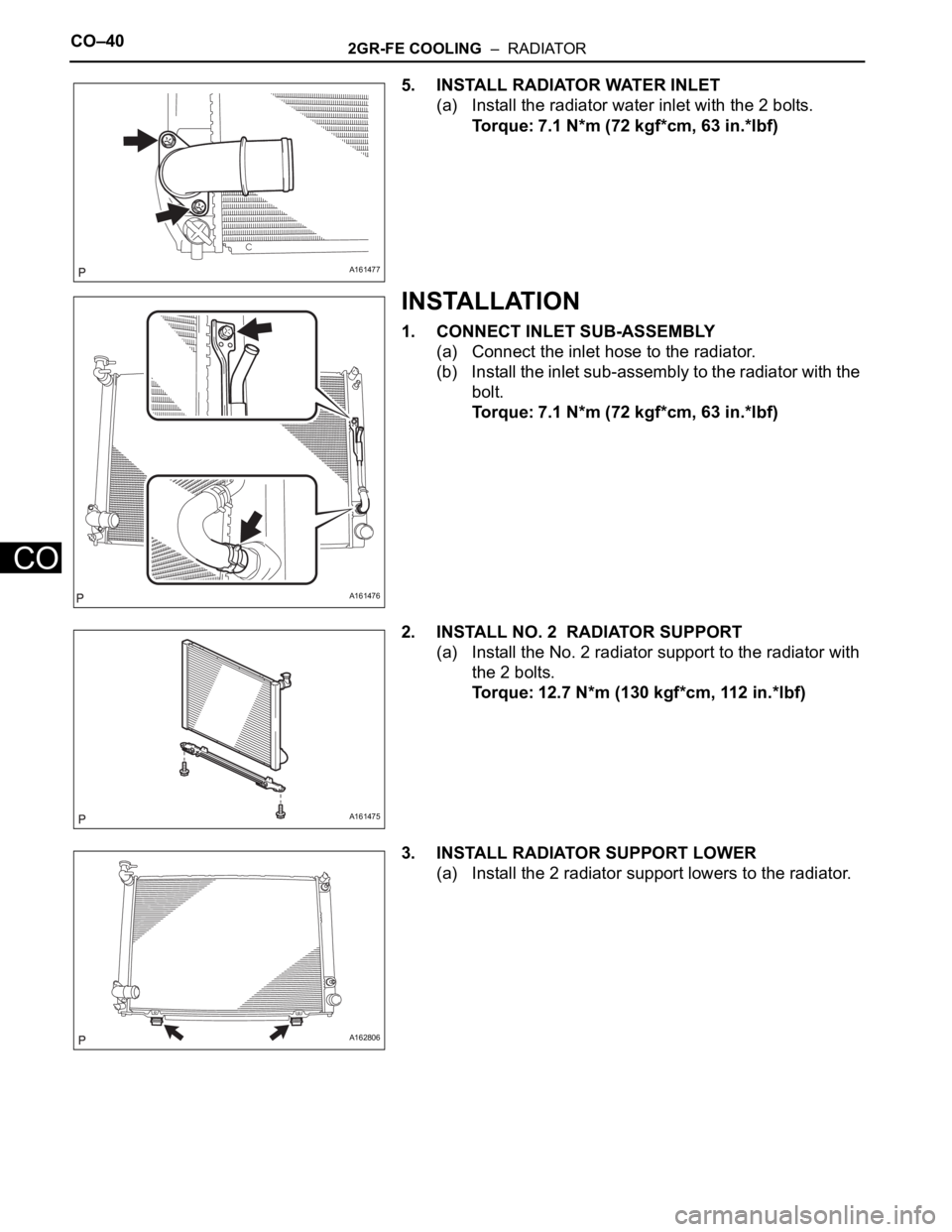

5. INSTALL RADIATOR WATER INLET
(a) Install the radiator water inlet with the 2 bolts.
Torque: 7.1 N*m (72 kgf*cm, 63 in.*lbf)
INSTALLATION
1. CONNECT INLET SUB-ASSEMBLY
(a) Connect the inlet hose to the radiator.
(b) Install the inlet sub-assembly to the radiator with the
bolt.
Torque: 7.1 N*m (72 kgf*cm, 63 in.*lbf)
2. INSTALL NO. 2 RADIATOR SUPPORT
(a) Install the No. 2 radiator support to the radiator with
the 2 bolts.
Torque: 12.7 N*m (130 kgf*cm, 112 in.*lbf)
3. INSTALL RADIATOR SUPPORT LOWER
(a) Install the 2 radiator support lowers to the radiator.
A161477
A161476
A161475
A162806
Page 1259 of 3000
2GR-FE COOLING – RADIATORCO–41
CO

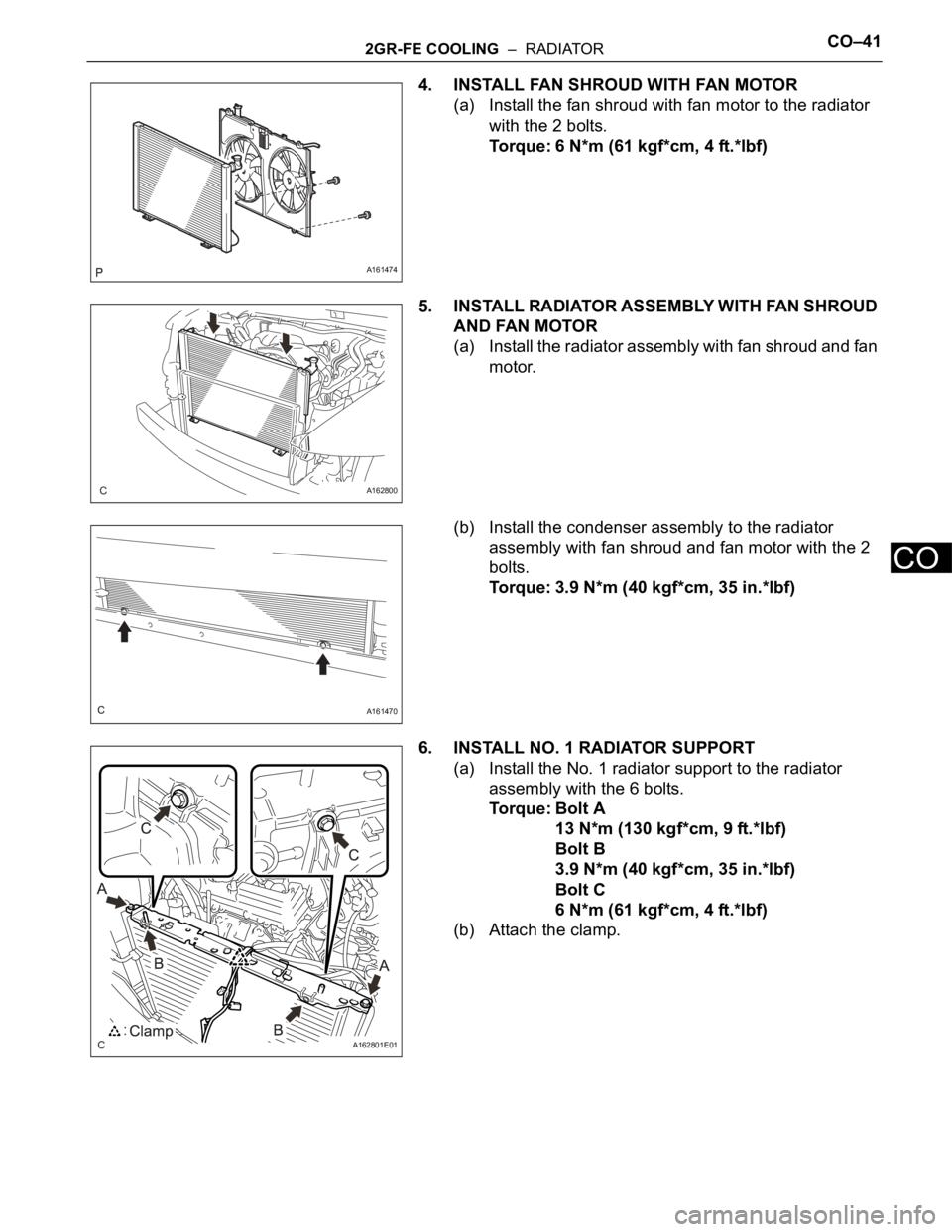

4. INSTALL FAN SHROUD WITH FAN MOTOR
(a) Install the fan shroud with fan motor to the radiator
with the 2 bolts.
Torque: 6 N*m (61 kgf*cm, 4 ft.*lbf)
5. INSTALL RADIATOR ASSEMBLY WITH FAN SHROUD
AND FAN MOTOR
(a) Install the radiator assembly with fan shroud and fan
motor.
(b) Install the condenser assembly to the radiator
assembly with fan shroud and fan motor with the 2
bolts.
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
6. INSTALL NO. 1 RADIATOR SUPPORT
(a) Install the No. 1 radiator support to the radiator
assembly with the 6 bolts.
Torque: Bolt A
13 N*m (130 kgf*cm, 9 ft.*lbf)
Bolt B
3.9 N*m (40 kgf*cm, 35 in.*lbf)
Bolt C
6 N*m (61 kgf*cm, 4 ft.*lbf)
(b) Attach the clamp.
A161474
A162800
A161470
A162801E01
Page 1260 of 3000
CO–422GR-FE COOLING – RADIATOR
CO
7. INSTALL RADIATOR SUPPORT CUSHION
(a) Install the 2 radiator support cushions to the No. 1
radiator support.
8. INSTALL PRESSURE FEED TUBE ASSEMBLY
(a) Install the 2 bolts.
Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)
9. INSTALL HEADLIGHT BRACKET RH
(a) Install the headlight bracket RH with the 3 nuts.
10. INSTALL RADIATOR SIDE DEFLECTOR RH
(a) Engage the 3 claws to install the radiator side
deflector RH.
11. INSTALL HEADLIGHT ASSEMBLY RH
(a) The installation procedure of the RH side is the
same as the LH side.
HINT:
See page LI-78
12. CONNECT NO. 2 OIL COOLER OUTLET TUBE SUB-
ASSEMBLY
(a) Install the No. 2 oil cooler outlet tube sub-assembly
with the 2 bolts.
Torque: 6 N*m (61 kgf*cm, 4 ft.*lbf)
A162805
A161466
A161465
A161464
Page 1261 of 3000
2GR-FE COOLING – RADIATORCO–43
CO

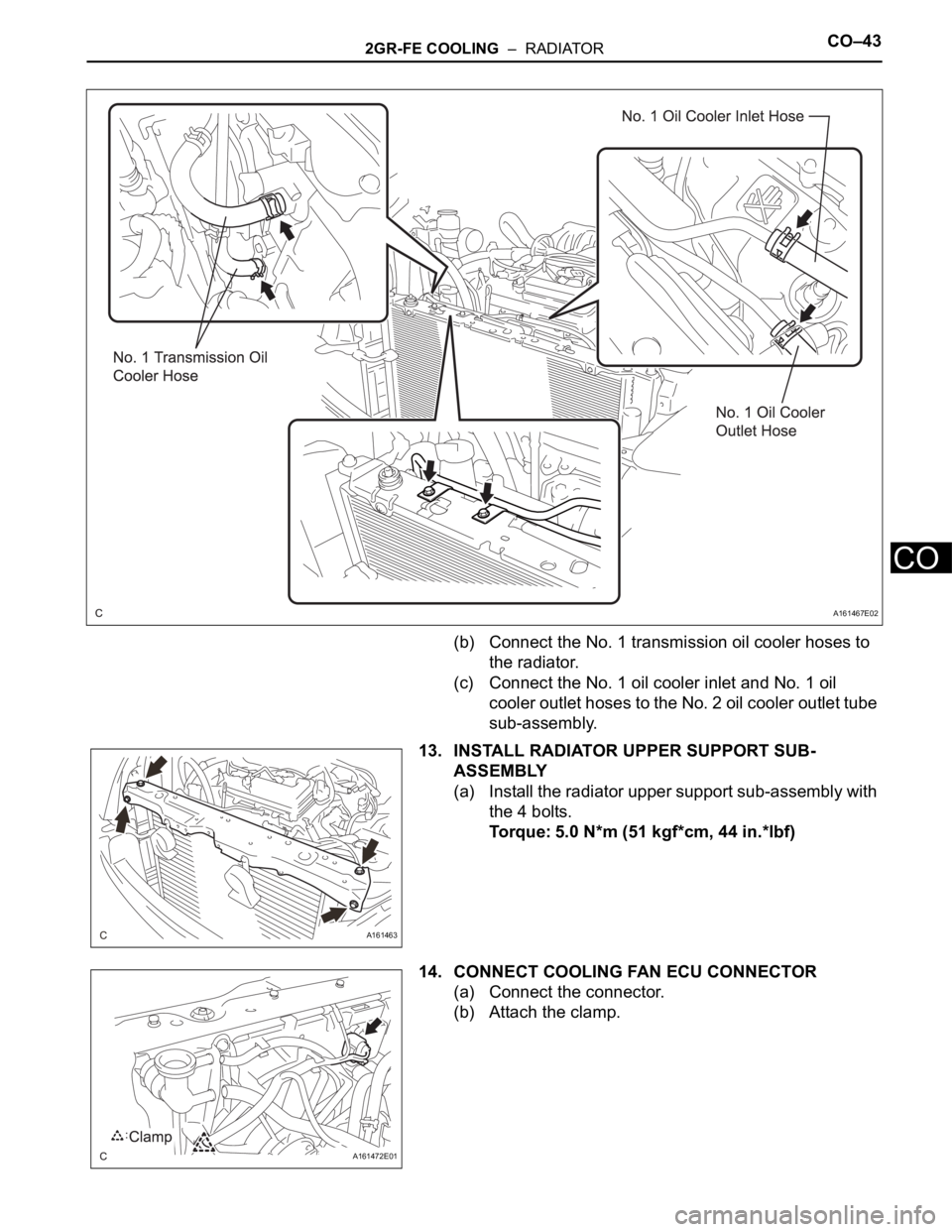

(b) Connect the No. 1 transmission oil cooler hoses to
the radiator.
(c) Connect the No. 1 oil cooler inlet and No. 1 oil
cooler outlet hoses to the No. 2 oil cooler outlet tube
sub-assembly.
13. INSTALL RADIATOR UPPER SUPPORT SUB-
ASSEMBLY
(a) Install the radiator upper support sub-assembly with
the 4 bolts.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
14. CONNECT COOLING FAN ECU CONNECTOR
(a) Connect the connector.
(b) Attach the clamp.
A161467E02
A161463
A161472E01
Page 1262 of 3000
CO–442GR-FE COOLING – RADIATOR
CO

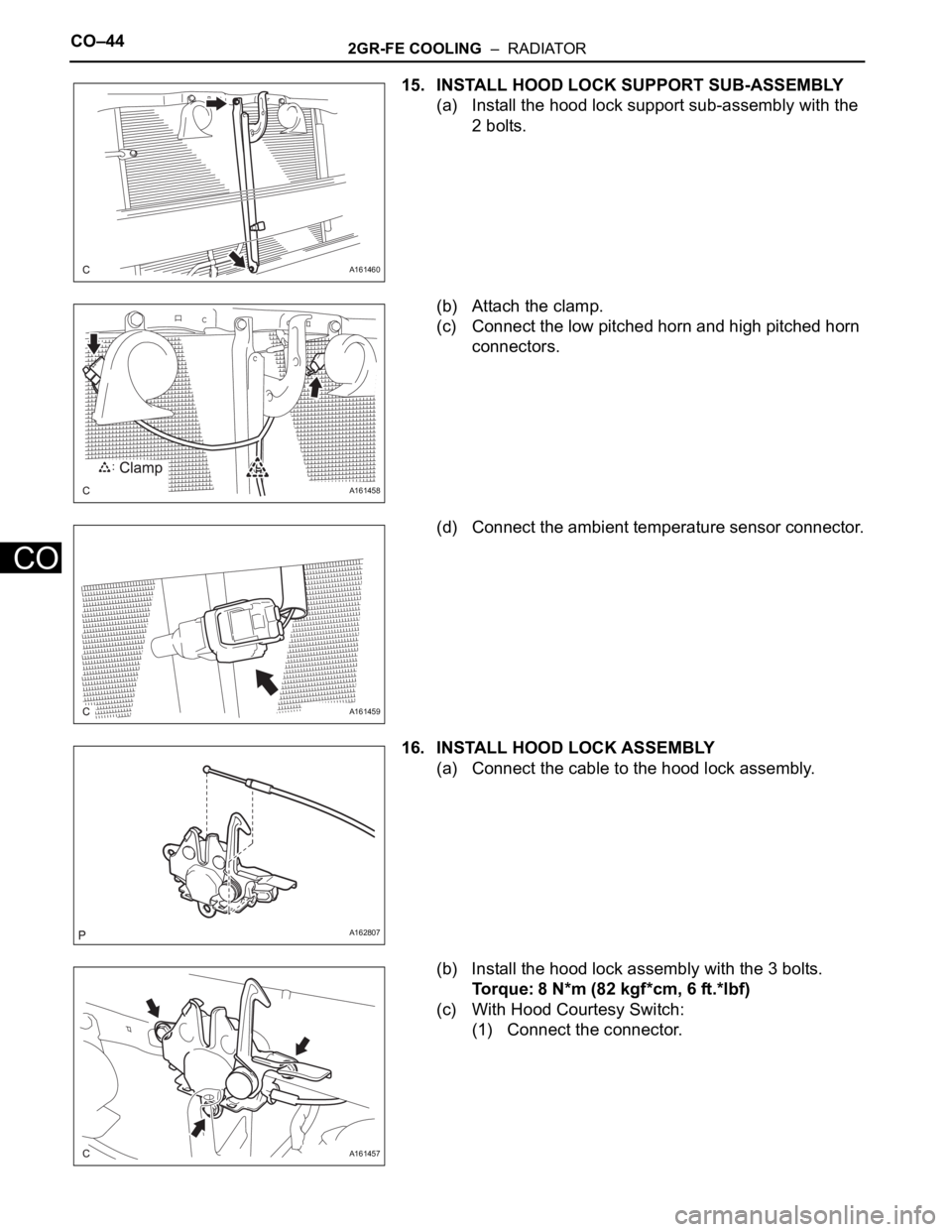

15. INSTALL HOOD LOCK SUPPORT SUB-ASSEMBLY
(a) Install the hood lock support sub-assembly with the
2 bolts.
(b) Attach the clamp.
(c) Connect the low pitched horn and high pitched horn
connectors.
(d) Connect the ambient temperature sensor connector.
16. INSTALL HOOD LOCK ASSEMBLY
(a) Connect the cable to the hood lock assembly.
(b) Install the hood lock assembly with the 3 bolts.
Torque: 8 N*m (82 kgf*cm, 6 ft.*lbf)
(c) With Hood Courtesy Switch:
(1) Connect the connector.
A161460
A161458
A161459
A162807
A161457
Page 1263 of 3000
2GR-FE COOLING – RADIATORCO–45
CO
17. INSTALL HOOD LOCK RELEASE LEVER
PROTECTOR
(a) Engage the 4 claws to install the hood lock release
lever protector.
18. CONNECT NO. 2 RADIATOR HOSE
(a) Connect the No. 2 radiator hose to the radiator.
19. CONNECT NO. 1 RADIATOR HOSE
(a) Connect the No. 1 radiator hose to the radiator.
20. CONNECT RADIATOR RESERVE TANK HOSE OR
PIPE
(a) Connect the radiator reserve tank hose or pipe to
the radiator.
21. INSTALL NO. 1 AIR CLEANER INLET (See page EM-
59)
22. INSTALL FRONT BUMPER ENERGY ABSORBER
23. INSTALL FRONT BUMPER ASSEMBLY (See page ET-
9)
A161456
A161461
A162804E01
A161455
Page 1264 of 3000

CO–462GR-FE COOLING – RADIATOR
CO
24. INSTALL BATTERY (See page EM-59)
25. INSTALL NO. 2 AIR CLEANER INLET (See page EM-
60)
26. ADD ENGINE COOLANT (See page CO-7)
27. INSPECT FOR COOLANT LEAK (See page CO-1)
28. ADD AUTOMATIC TRANSAXLE FLUID
29. CHECK AUTOMATIC TRANSAXLE FLUID (See page
AX-123)
30. INSTALL NO. 1 ENGINE UNDER COVER (See page
EM-63)
31. INSTALL V-BANK COVER SUB-ASSEMBLY (See
page EM-63)
32. VEHICLE PREPARATION FOR HEADLIGHT AIM
ADJUSTMENT (See page LI-71)
33. PREPARATION FOR HEADLIGHT AIMING (Using a
tester) (See page LI-71)
34. PREPARATION FOR HEADLIGHT AIMING (Using a
screen) (See page LI-72)
35. HEADLIGHT AIMING INSPECTION (See page LI-74)
36. HEADLIGHT AIMING ADJUSTMENT (See page LI-75)
37. VEHICLE PREPARATION FOR FOG LIGHT AIM
ADJUSTMENT (w/ Fog Light) (See page LI-82)
38. PREPARATION FOR FOG LIGHT AIMING (Using a
screen) (w/ Fog Light) (See page LI-83)
39. FOG LIGHT AIMING INSPECTION (w/ Fog Light) (See
page LI-84)
40. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light)
(See page LI-85)
