Page 545 of 3000
2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–239
ES
NG
OK
(a) Replace the VVT sensor (See page ES-509).
NEXT
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Turn the intelligent tester on.
(d) Clear the DTCs.
(e) Select the following menu items: DIAGNOSIS /
ENHANCED OBD II / DTC / INFO / PENDING CODES.
(f) Read the DTCs.
Result
HINT:
If the engine does not start, replace the ECM.
B
AREPLACE CAMSHAFT TIMING GEAR
ASSEMBLY
5REPLACE VVT SENSOR
6CHECK WHETHER DTC OUTPUT RECURS
Display (DTC Output) Proceed to
No output A
P0340, P0342, P0343, P0345, P0347 or P0348 B
REPLACE ECM (See page ES-498)
END
Page 546 of 3000
ES–2402GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
(a) Disconnect the C18 or C19 VVT sensor connector.
(b) Disconnect the E9 ECM connector.
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance :
Check for open
Check for short
(d) Reconnect the VVT sensor connector.
(e) Reconnect the ECM connector.
NG
OK

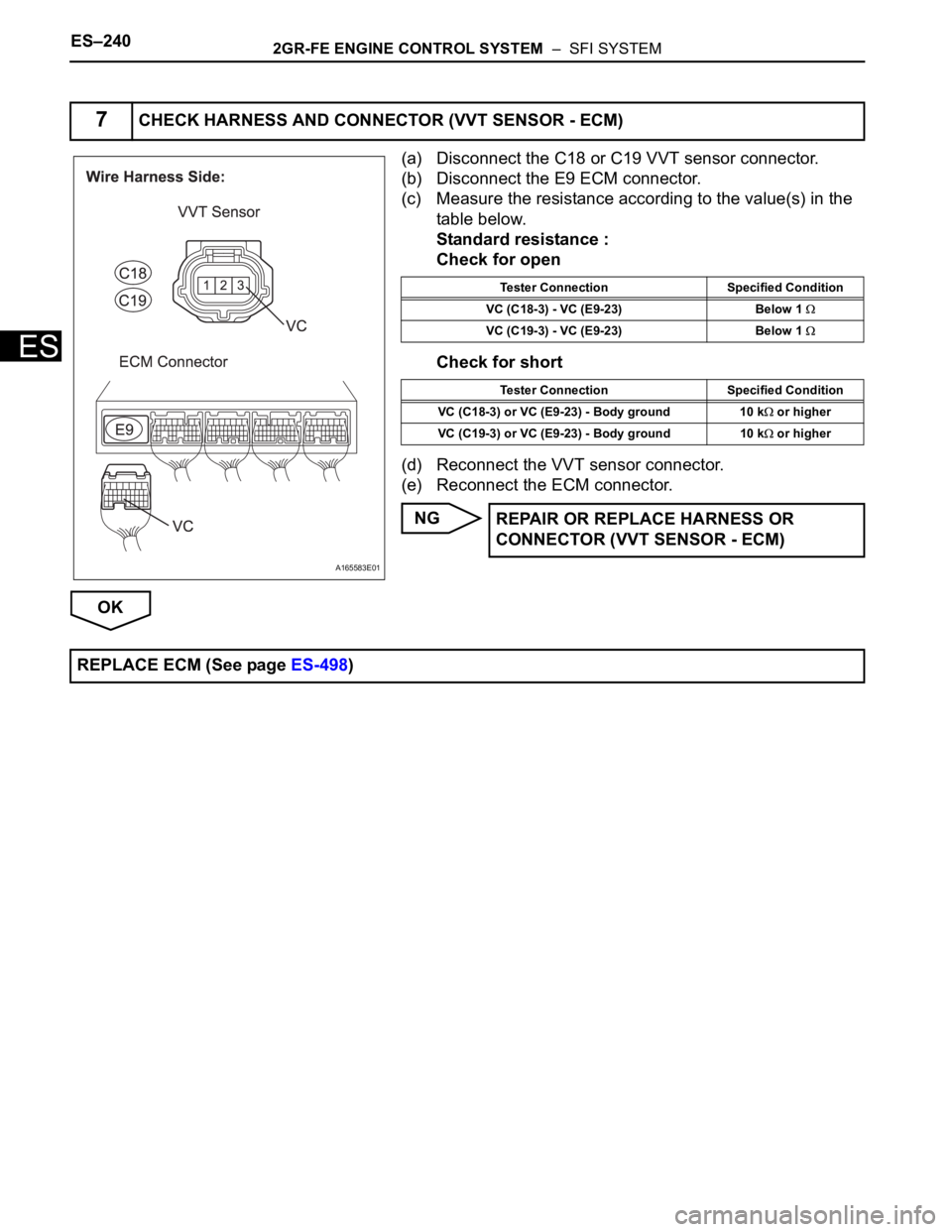

7CHECK HARNESS AND CONNECTOR (VVT SENSOR - ECM)
A165583E01
Tester Connection Specified Condition
VC (C18-3) - VC (E9-23) Below 1
VC (C19-3) - VC (E9-23) Below 1
Tester Connection Specified Condition
VC (C18-3) or VC (E9-23) - Body ground 10 k
or higher
VC (C19-3) or VC (E9-23) - Body ground 10 k
or higher
REPAIR OR REPLACE HARNESS OR
CONNECTOR (VVT SENSOR - ECM)
REPLACE ECM (See page ES-498)
Page 547 of 3000

2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–241
ES
HINT:
• These DTCs indicate malfunctions relating to the primary circuit.
• If DTC P0351 is set, check the No. 1 ignition coil with igniter circuit.
• If DTC P0352 is set, check the No. 2 ignition coil with igniter circuit.
• If DTC P0353 is set, check the No. 3 ignition coil with igniter circuit.
• If DTC P0354 is set, check the No. 4 ignition coil with igniter circuit.
• If DTC P0355 is set, check the No. 5 ignition coil with igniter circuit.
• If DTC P0356 is set, check the No. 6 ignition coil with igniter circuit.

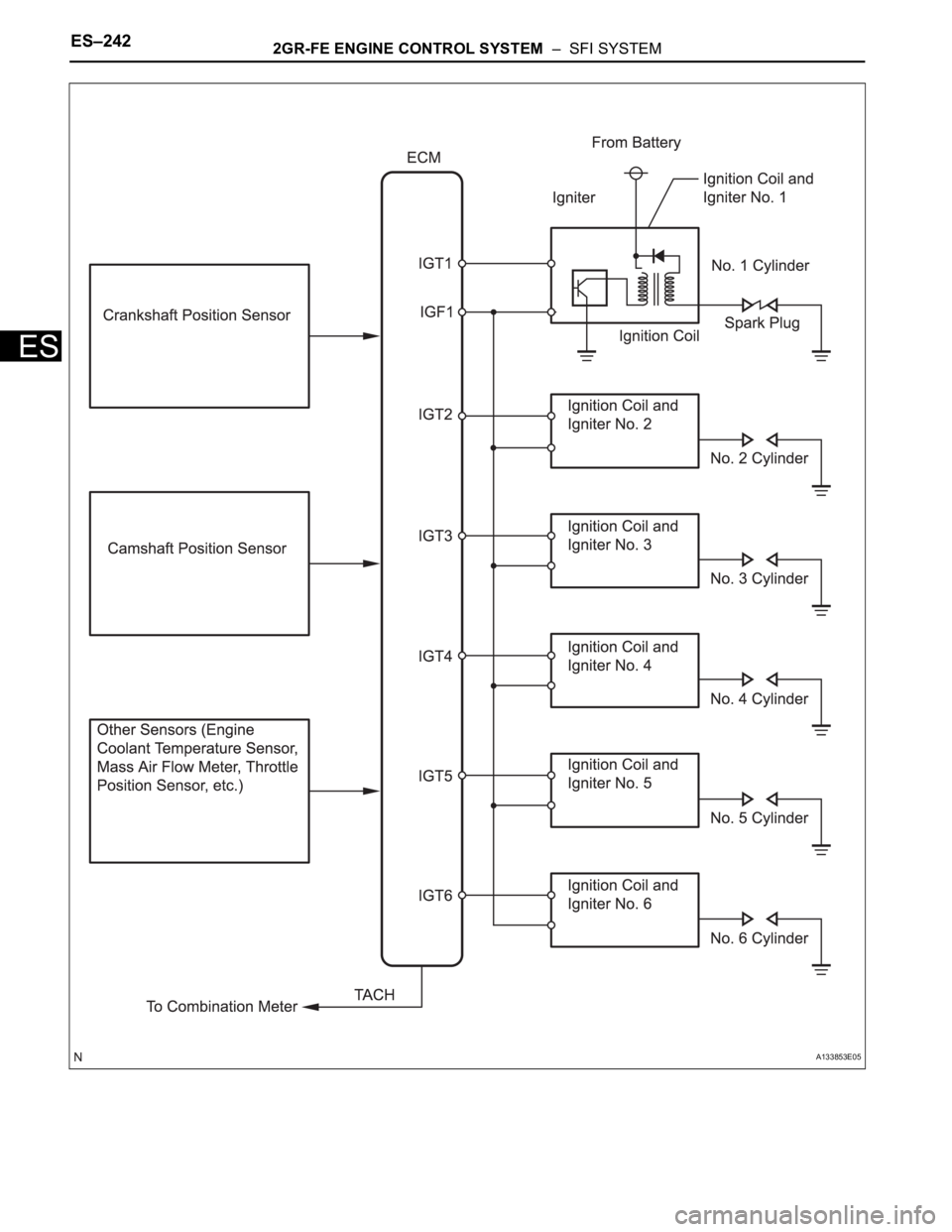

DESCRIPTION
A Direct Ignition System (DIS) is used on this vehicle.
The DIS is a 1-cylinder ignition system in which each cylinder is ignited by one ignition coil and one spark
plug is connected to the end of each secondary wiring. High-voltage is generated in the secondary wiring
and then applied directly to each spark plug. The sparks of the spark plugs pass from the center
electrodes to the ground electrodes.
The ECM determines the ignition timing and transmits the ignition (IGT) signals to each cylinder. Using the
IGT signal, the ECM turns the power transistor inside the igniter on and off. The power transistor, in turn,
switches on and off the current to the primary coil. When the current to the primary coil is cut off, high-
voltage is generated in the secondary coil. This voltage is applied to the spark plugs, causing them to
spark inside the cylinders. As the ECM cuts the current to the primary coil off, the igniter sends back an
ignition confirmation (IGF) signal to the ECM, for each cylinder ignition.
DTC P0351 Ignition Coil "A" Primary / Secondary Circuit
DTC P0352 Ignition Coil "B" Primary / Secondary Circuit
DTC P0353 Ignition Coil "C" Primary / Secondary Circuit
DTC P0354 Ignition Coil "D" Primary / Secondary Circuit
DTC P0355 Ignition Coil "E" Primary / Secondary Circuit
DTC P0356 Ignition Coil "F" Primary / Secondary Circuit
Page 548 of 3000
ES–2422GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
A133853E05
Page 549 of 3000
2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–243
ES

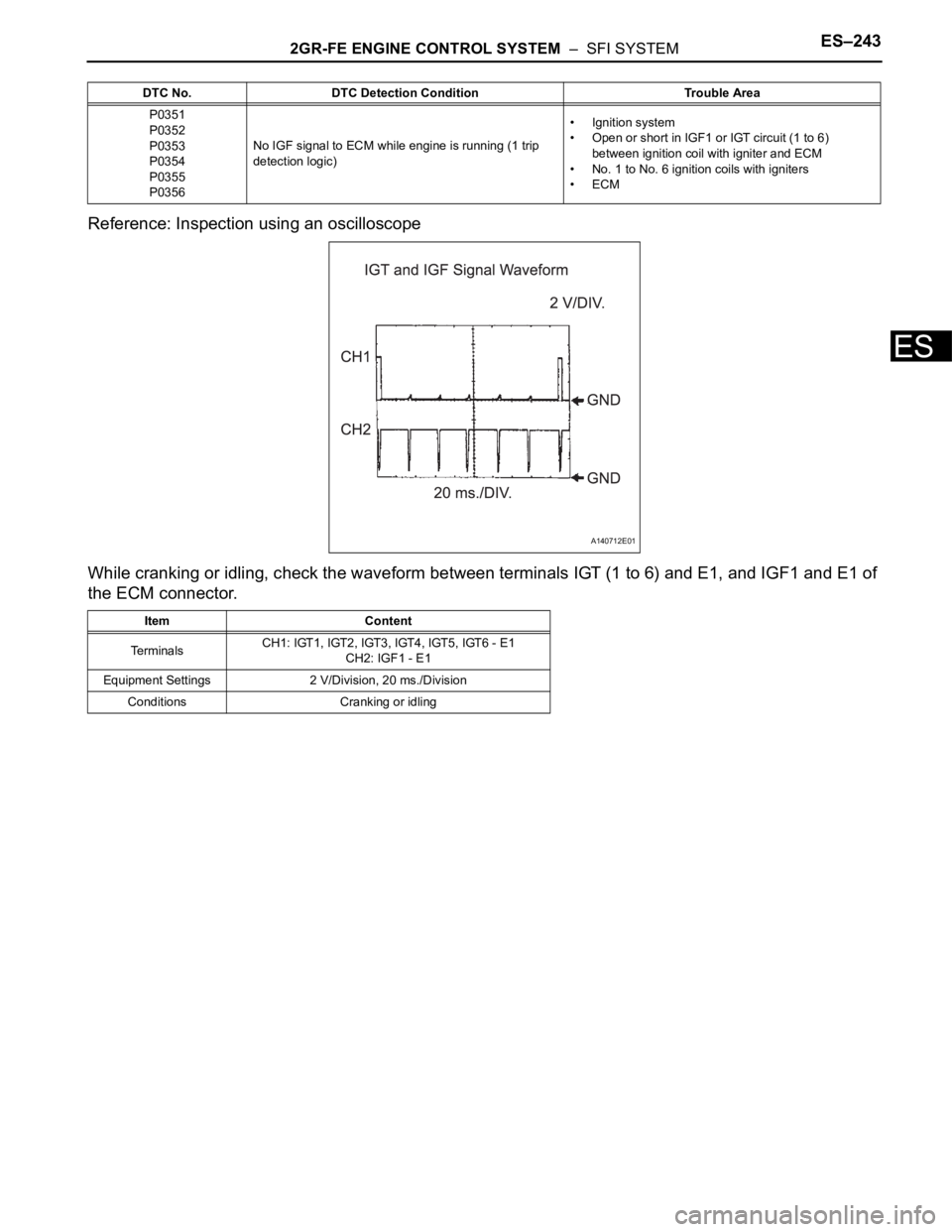

Reference: Inspection using an oscilloscope
While cranking or idling, check the waveform between terminals IGT (1 to 6) and E1, and IGF1 and E1 of
the ECM connector.
DTC No. DTC Detection Condition Trouble Area
P0351
P0352
P0353
P0354
P0355
P0356No IGF signal to ECM while engine is running (1 trip
detection logic)• Ignition system
• Open or short in IGF1 or IGT circuit (1 to 6)
between ignition coil with igniter and ECM
• No. 1 to No. 6 ignition coils with igniters
•ECM
Item Content
TerminalsCH1: IGT1, IGT2, IGT3, IGT4, IGT5, IGT6 - E1
CH2: IGF1 - E1
Equipment Settings 2 V/Division, 20 ms./Division
Conditions Cranking or idling
A140712E01
Page 550 of 3000

ES–2442GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES

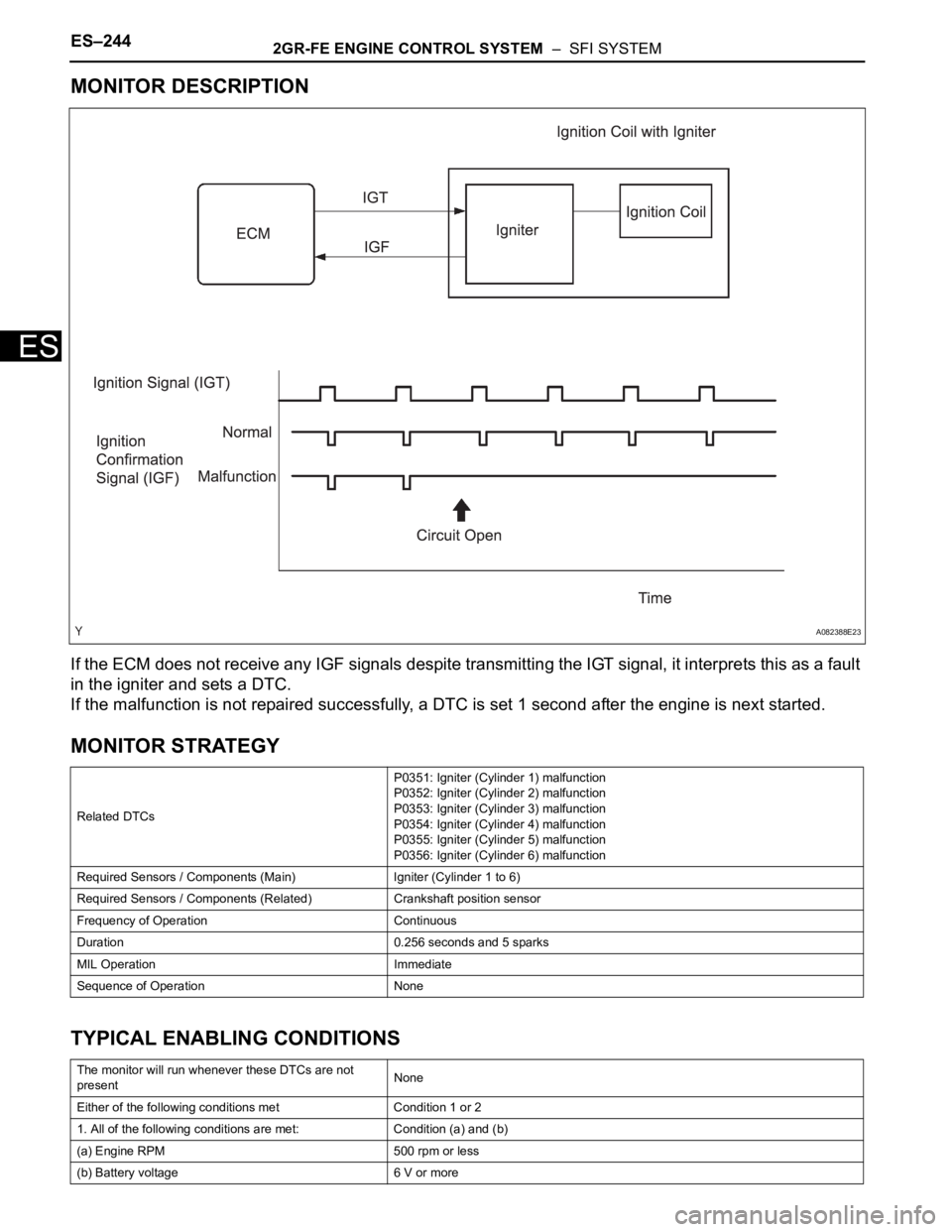

MONITOR DESCRIPTION
If the ECM does not receive any IGF signals despite transmitting the IGT signal, it interprets this as a fault
in the igniter and sets a DTC.
If the malfunction is not repaired successfully, a DTC is set 1 second after the engine is next started.
MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
Related DTCsP0351: Igniter (Cylinder 1) malfunction
P0352: Igniter (Cylinder 2) malfunction
P0353: Igniter (Cylinder 3) malfunction
P0354: Igniter (Cylinder 4) malfunction
P0355: Igniter (Cylinder 5) malfunction
P0356: Igniter (Cylinder 6) malfunction
Required Sensors / Components (Main) Igniter (Cylinder 1 to 6)
Required Sensors / Components (Related) Crankshaft position sensor
Frequency of Operation Continuous
Duration 0.256 seconds and 5 sparks
MIL Operation Immediate
Sequence of Operation None
The monitor will run whenever these DTCs are not
presentNone
Either of the following conditions met Condition 1 or 2
1. All of the following conditions are met: Condition (a) and (b)
(a) Engine RPM 500 rpm or less
(b) Battery voltage 6 V or more
A082388E23
Page 551 of 3000
2GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEMES–245
ES
TYPICAL MALFUNCTION THRESHOLDS
COMPONENT OPERATING RANGE
2. All of the following conditions are met: Condition (c) and (d)
(c) Engine RPM More than 500 rpm
(d) Battery voltage 10 V or more
Ignition signal fail count More than 2 times
Ignition signal fail count is on the right No ignition confirmation signal from igniter.
IGF signal Igniter transmits IGF signal when it receives IGT signal from ECM
Page 552 of 3000
ES–2462GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM
ES
WIRING DIAGRAM
A140713E03
