2GR-FE EMISSION CONTROL – HEATED OXYGEN SENSOR (for 4WD)EC–41
EC
3. INSTALL HEATED OXYGEN SENSOR (for Bank 1
Sensor 2)
(a) Using SST, install the heated oxygen sensor.
SST 09224-00010
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf) for use
with SST
44 N*m (449 kgf*cm, 32 ft.*lbf) for use
without SST
(b) Connect the heated oxygen sensor (for Bank 1
Sensor 2) connector.
HINT:
• Use a torque wrench with a fulcrum length of 30
cm (11.81 in.).
• Make sure that SST and a wrench are connected
in a straight line.
4. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
5. INSPECT FOR EXHAUST GAS LEAK
A163385E01
Page 1210 of 3000
EC–422GR-FE EMISSION CONTROL – FUEL TANK CAP
EC
FUEL TANK CAP
INSPECTION
1. INSPECT FUEL TANK CAP ASSEMBLY
(a) Visually check that the cap and gasket are not
deformed or damaged.
If the result is not as specified, replace the cap
assembly or gasket.
A121447E02
Page 1211 of 3000
IT–102GR-FE INTAKE – VACUUM SWITCHING VALVE
IT
INSTALLATION
1. INSTALL VACUUM SWITCHING VALVE ASSEMBLY
(a) Install the vacuum switching valve with the screw.
(b) Install the 2 vacuum hoses and vacuum switching
valve connector.
A161856
Page 1212 of 3000
2GR-FE INTAKE – INTAKE SYSTEMIT–1
IT
ENGINE
2GR-FE INTAKE
INTAKE SYSTEM
PARTS LOCATION
A162728E01
Page 1213 of 3000
IT–22GR-FE INTAKE – INTAKE SYSTEM
IT
SYSTEM DIAGRAM
A162720E01
Page 1214 of 3000
2GR-FE INTAKE – INTAKE AIR CONTROL VALVEIT–5
IT
REMOVAL

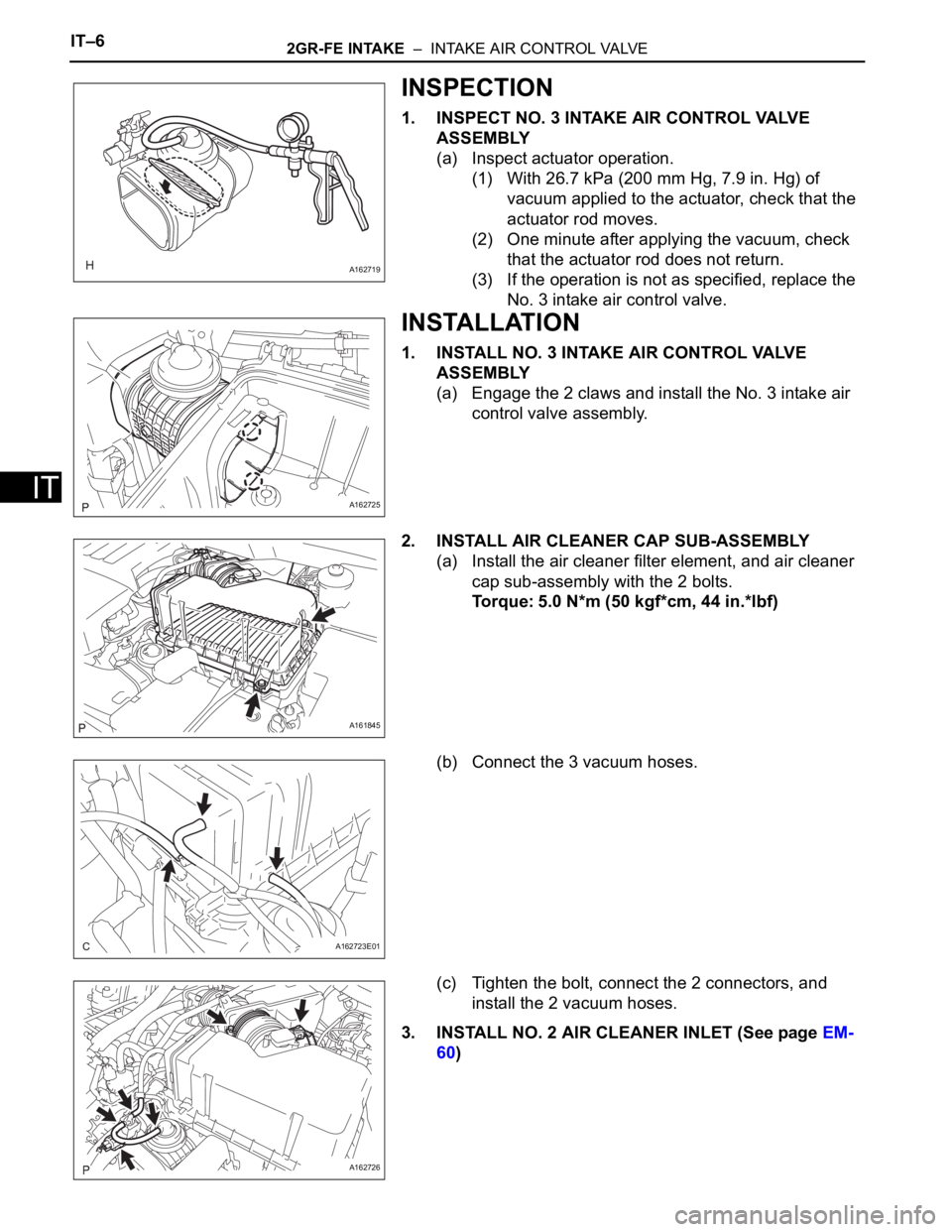

1. REMOVE NO. 2 AIR CLEANER INLET (See page EM-
28)
2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
(a) Disconnect the 3 vacuum hoses.
(b) Loosen the bolt, disconnect the 2 connectors, and
remove the 2 vacuum hoses.
(c) Remove the 2 bolts, air cleaner cap sub-assembly,
and air cleaner filter element.
3. REMOVE NO. 3 INTAKE AIR CONTROL VALVE
ASSEMBLY
(a) Disengage the 2 claws and remove the No. 3 intake
air control valve assembly.
A162723E01
A162726
A161845
A162725
Page 1215 of 3000
IT–62GR-FE INTAKE – INTAKE AIR CONTROL VALVE
IT
INSPECTION
1. INSPECT NO. 3 INTAKE AIR CONTROL VALVE
ASSEMBLY
(a) Inspect actuator operation.
(1) With 26.7 kPa (200 mm Hg, 7.9 in. Hg) of
vacuum applied to the actuator, check that the
actuator rod moves.
(2) One minute after applying the vacuum, check
that the actuator rod does not return.
(3) If the operation is not as specified, replace the
No. 3 intake air control valve.
INSTALLATION
1. INSTALL NO. 3 INTAKE AIR CONTROL VALVE
ASSEMBLY

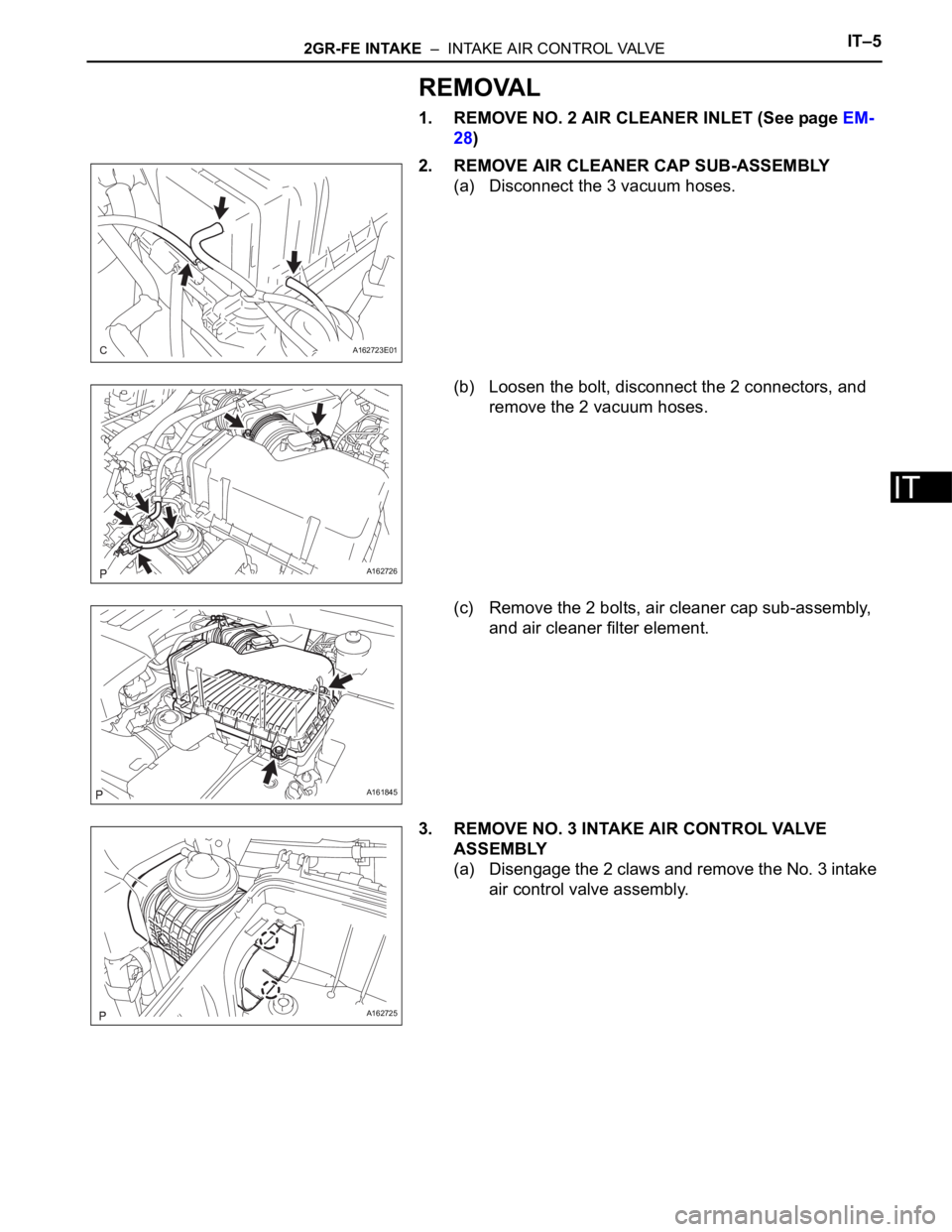

(a) Engage the 2 claws and install the No. 3 intake air
control valve assembly.
2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
(a) Install the air cleaner filter element, and air cleaner
cap sub-assembly with the 2 bolts.
Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)
(b) Connect the 3 vacuum hoses.
(c) Tighten the bolt, connect the 2 connectors, and
install the 2 vacuum hoses.
3. INSTALL NO. 2 AIR CLEANER INLET (See page EM-
60)
A162719
A162725
A161845
A162723E01
A162726
Page 1216 of 3000
IT–62GR-FE INTAKE – VACUUM TANK
IT
VACUUM TANK
ON-VEHICLE INSPECTION

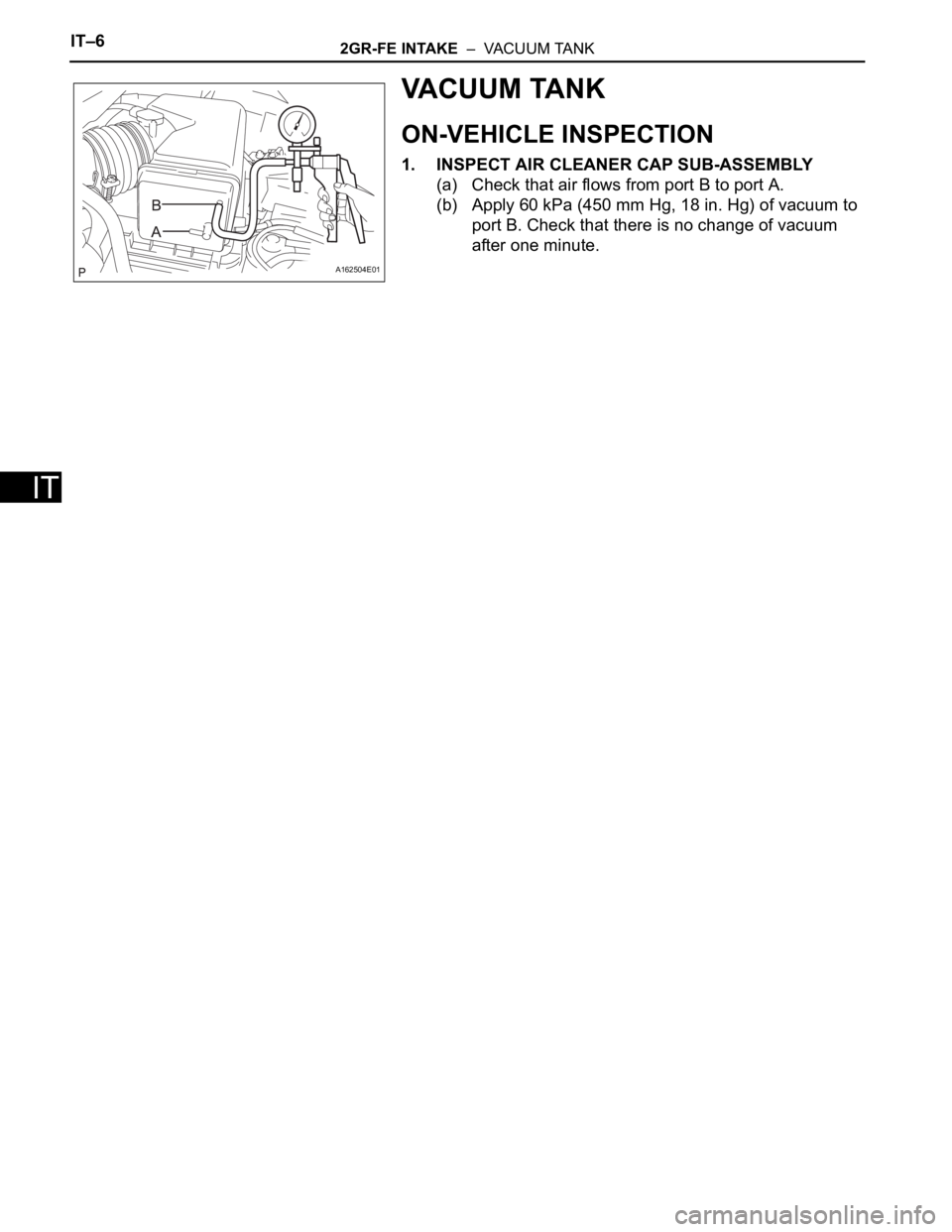

1. INSPECT AIR CLEANER CAP SUB-ASSEMBLY
(a) Check that air flows from port B to port A.
(b) Apply 60 kPa (450 mm Hg, 18 in. Hg) of vacuum to
port B. Check that there is no change of vacuum
after one minute.
A162504E01
