NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP AIMING CONTROL (MANUAL)
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AIMING CONTROL (MANUAL)PFP:25190
Wiring Diagram — H/AIM —EKS003BF
TKWA1525E

Page 4058 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-62
HEADLAMP AIMING CONTROL (MANUAL)

Removal and InstallationEKS003CA
1. Remove the Instrument lower driver panel. Refer to IP-11,
"Removal and Installation" in “INSTRUMENT PANEL ASSEM-
BLY (IP

Page 4059 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP AIMING CONTROL (AUTO)
LT-63
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AIMING CONTROL (AUTO)PFP:53821
Component Parts and Harness Connector LocationEKS00N5W
System DescriptionEKS00N5X
With the ligh

Page 4060 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-64
HEADLAMP AIMING CONTROL (AUTO)

through grounds E24 and E50.
HEADLAMP AIMING CONTROL OPERATION
The height sensor is located on the right side of the rear suspension member and detects vehicle

LT-64
HEADLAMP AIMING CONTROL (AUTO)

through grounds E24 and E50.
HEADLAMP AIMING CONTROL OPERATION
The height sensor is located on the right side of the rear suspension member and detects vehicle height
change by sensing the displacement of the suspension arm.
When the ignition switch is turned to the ON position, power is supplied
through 10A fuse [No. 5 located in fuse block (J/B)]
to height sensor terminal 1, and
to headlamp aiming motor RH and LH terminal 1.
At the same time, the vehicle height signal (voltage signal that corresponds to the vehicle height) is applied
through height sensor terminal 3
to headlamp aiming motor RH and LH terminal 2.
Ground is supplied
to headlamp aiming motor RH and LH terminal 3
through grounds E24 and E50,
to height sensor terminal 5
through grounds B107 and B119.
And the voltage level of this signal is maintained.
When the lighting switch is placed in the 1ST or 2ND position, power is supplied (without daytime light system)
through lighting switch terminal 12
to height sensor terminal 8.
When the lighting switch is placed in the 1ST or 2ND position, power is supplied (with daytime light system)
through lighting switch terminal 12
to daytime light control unit terminal 11
through daytime light control unit terminal 10
to height sensor terminal 8.
Ground is supplied
to height sensor terminal 5
through grounds B107 and B119.
The height sensor starts the aiming control.
When the stopped vehicle changes the height and keeps it for more than 10 seconds, the height sensor out-
puts a headlamp aiming motor drive signal. And height sensor keeps signal voltage to headlamp aiming motor.
(Voltage depends on the vehicle height.)
Upon reception of the headlamp aiming motor drive signal, both headlamp aiming motors cause the low beam
reflectors to move to the position commanded by the signal.
When the vehicle is running (excluded when accelerating/decelerating), the height sensor transmits headlamp
aiming motor drive signal to headlamp aiming motors at the predetermined intervals. The voltage level of
every signal input is maintained unchanged until the next signal is input.
Upon reception of the headlamp aiming motor drive signal, both headlamp aiming motors cause the low beam
reflectors to move to the position commanded by the signal.
When the vehicle is accelerating or decelerating, the height sensor keeps the same headlamp aiming motor
drive signal voltage level rather than changing it, so that the low beam reflectors of both headlamps do not
operate.
When the lighting switch is turned OFF, the height sensor retains the headlamp aiming motor drive signal level
at that moment and stops transmitting the signal.
Height Sensor Control Operation
*1 Included when running at to 4 km/h (2.48 MPH) or less, but exclude when accelerating/decelerating.
*2 Included when running at more than 4 km/h (2.48 MPH), but exclude when accelerating/decelerating.height sensor
operating
control interval Vehicle is stopped *1 Headlamp aiming motor starts after vehicle is stopped for approx. 10 seconds.
Vehicle is running *2Up to 31 seconds, and
every 10 seconds
after starting running
with a constant speedAbout 41
secondsAbout 82
secondsAbout 161
secondsAbout 323
secondsAfter 323 seconds
or more, every 323
seconds

Page 4061 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP AIMING CONTROL (AUTO)
LT-65
C
D
E
F
G
H
I
J
L
MA
B
LT

SchematicEKS00N5Y
TKWB1130E

Page 4062 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-66
HEADLAMP AIMING CONTROL (AUTO)

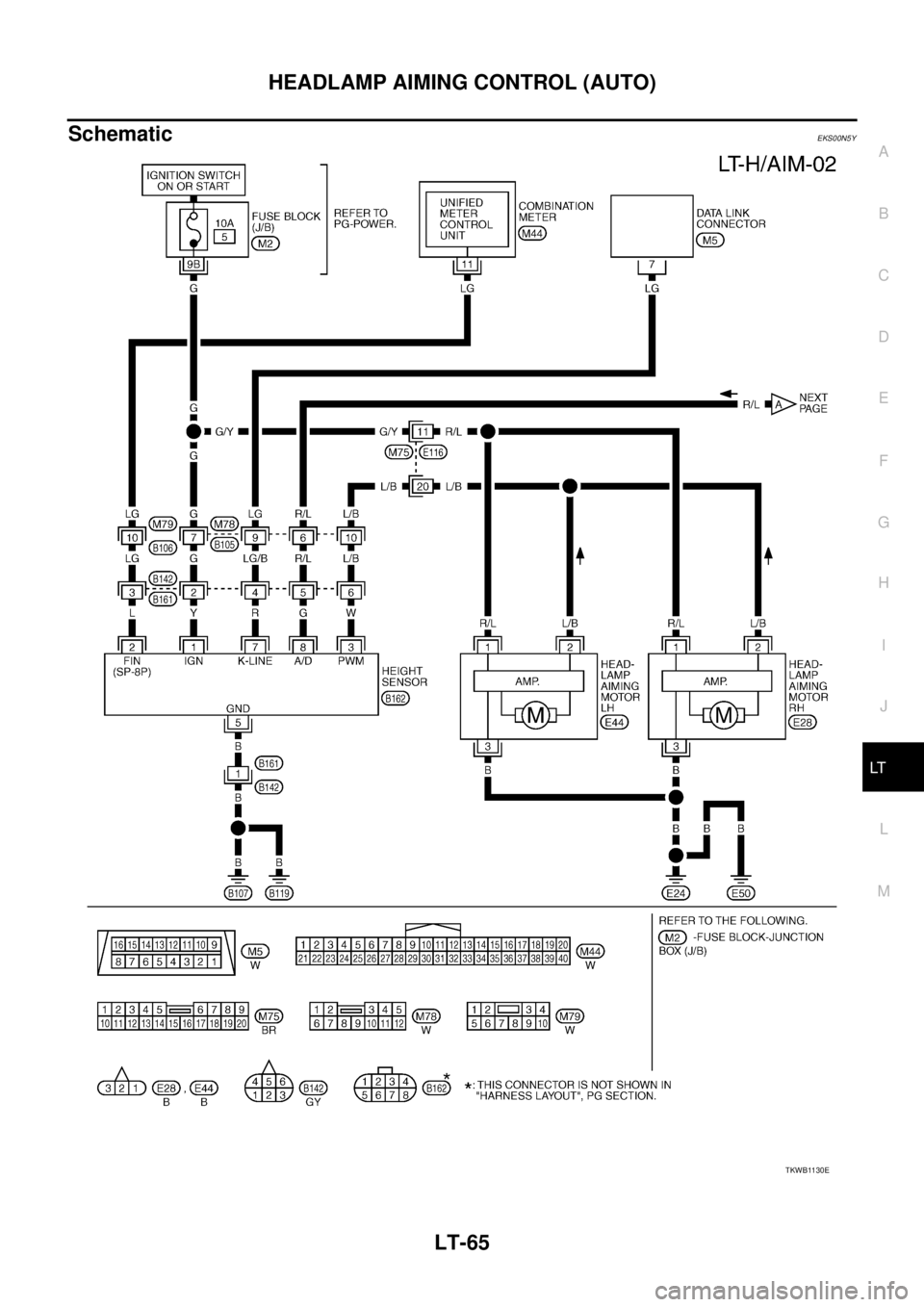

Wiring Diagram — H/AIM —EKS00N5Z
LHD MODELS
TKWB1131E

Page 4063 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP AIMING CONTROL (AUTO)
LT-67
C
D
E
F
G
H
I
J
L
MA
B
LT

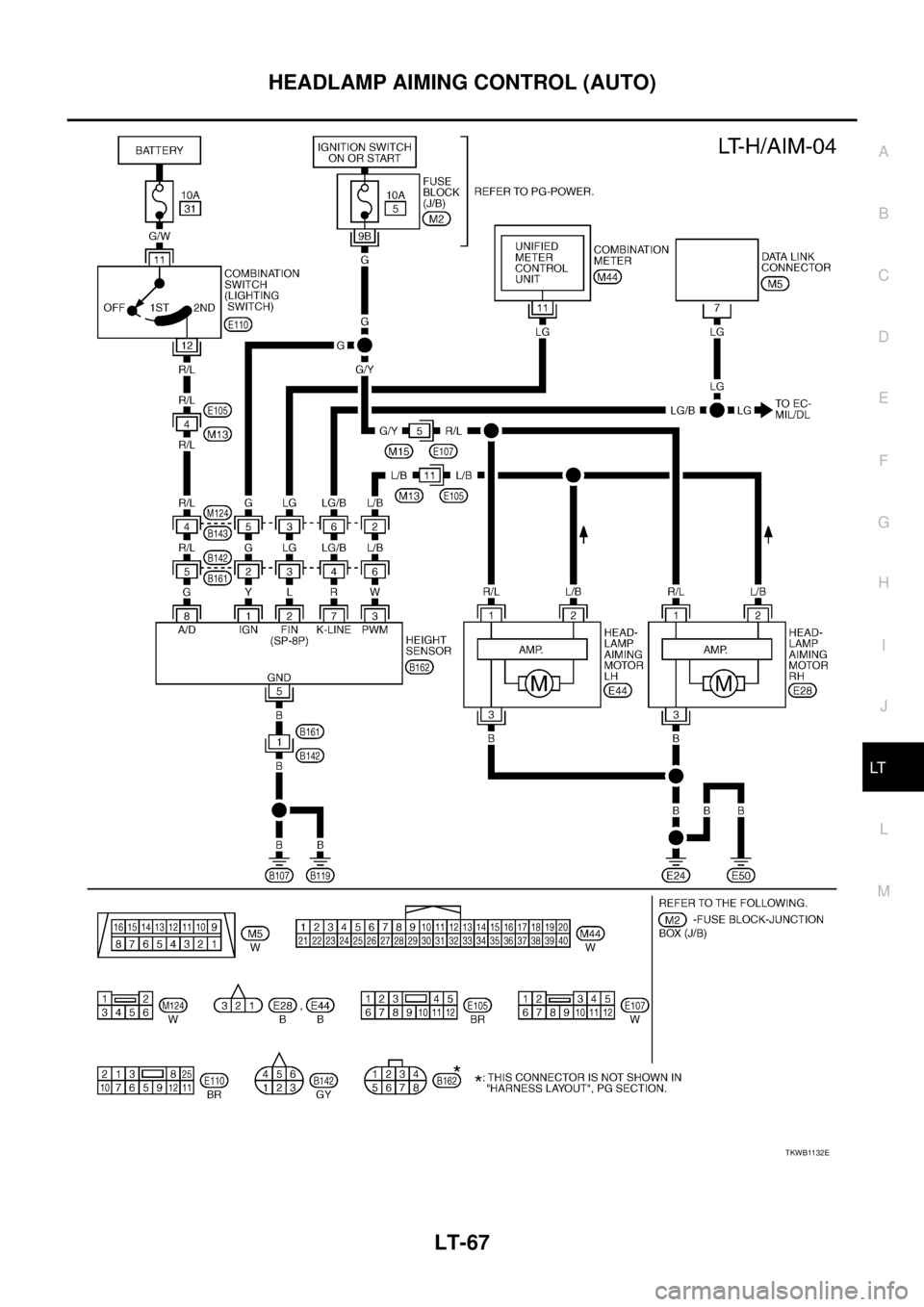

TKWB1132E

Page 4064 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-68
HEADLAMP AIMING CONTROL (AUTO)

Terminals and Reference Values of Daytime Light Control UnitEKS00N60
*: Daytime light operating : Lighting switch in OFF position with engine running.
Terminals
