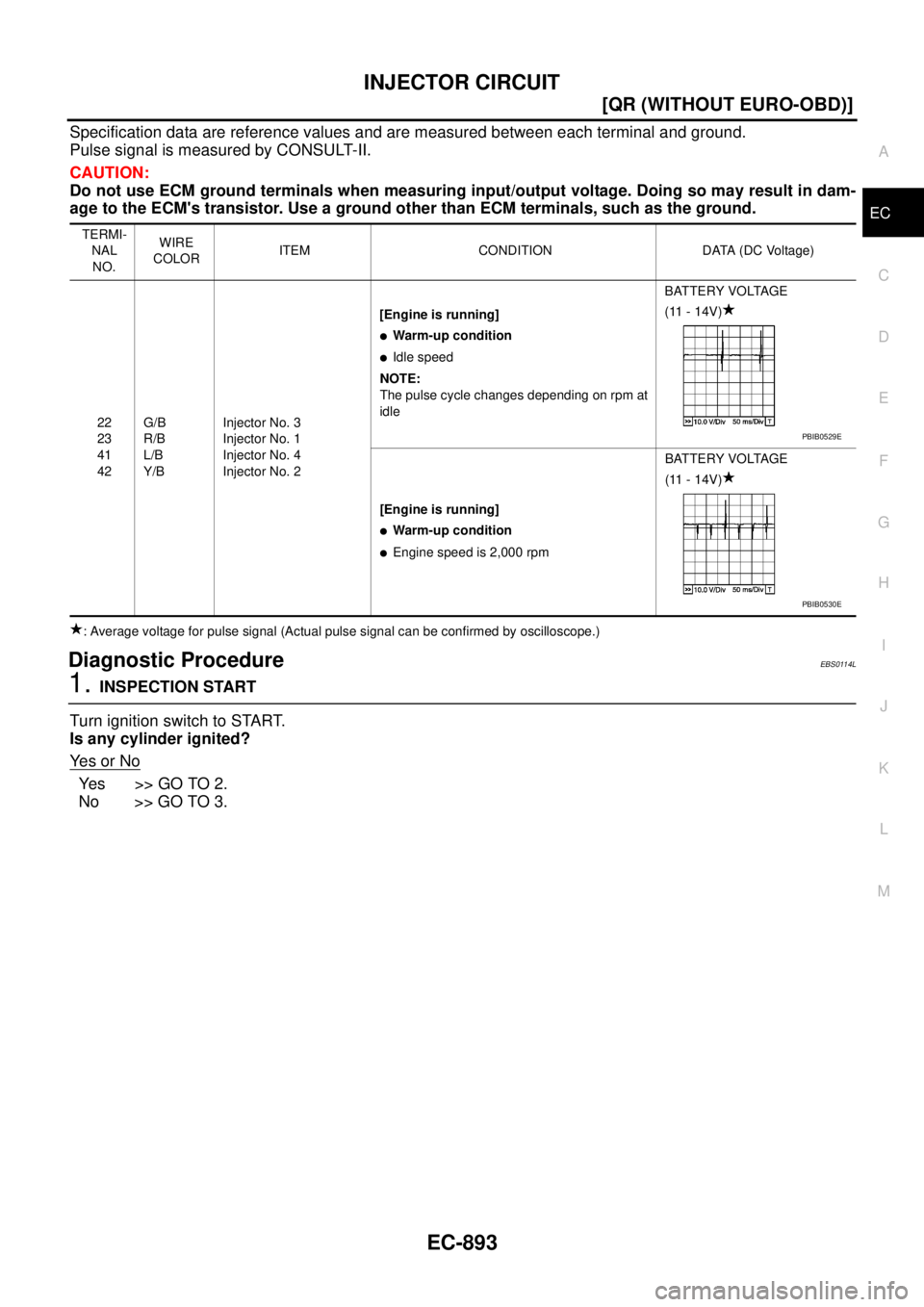

NISSAN X-TRAIL 2005 Service Repair Manual INJECTOR CIRCUIT EC-893 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSU

Page 1298 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-894 [QR (WITHOUT EURO-OBD)] INJECTOR CIRCUIT 2. CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II. 3. Make sure tha

Page 1299 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual INJECTOR CIRCUIT EC-895 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 4. DETECT MALFUNCTIONING PART Check the following. Harness connectors M61, F41 Harness connectors F1, F101 Fuse block (J/

Page 1300 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-896 [QR (WITHOUT EURO-OBD)] INJECTOR CIRCUIT Component InspectionEBS0114M INJECTOR 1. Disconnect injector harness connector. 2. Check resistance between terminals as shown in the figure. Removal

Page 1301 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual VIAS EC-897 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC VIASPFP:14956 DescriptionEBS011I0 SYSTEM DESCRIPTION *: The ECM determines the start signal status by the signals of engine speed and ba

Page 1302 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-898 [QR (WITHOUT EURO-OBD)] VIAS VIAS Control Solenoid Valve The VIAS control solenoid valve cuts the intake manifold vacuum signal for power valve control. It responds to ON/OFF signals from the

Page 1303 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual VIAS EC-899 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS011I3 TBWA0651E

Page 1304 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-900 [QR (WITHOUT EURO-OBD)] VIAS Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output vo
