Page 4097 of 4555
BACK-UP LAMP
LT-101
C
D
E
F
G
H
I
J
L
MA
B
LT
DIESEL ENGINE
TKWA1531E
Page 4098 of 4555
LT-102
BACK-UP LAMP
Bulb Replacement EKS003C4
Refer to LT- 11 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
Removal and Installation EKS003C5
Refer to LT- 11 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.
Page 4099 of 4555
PARKING, LICENSE PLATE AND TAIL LAMPS
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550
Wiring Diagram — TAIL/L — EKS003C0
LHD MODELS
TKWA1532E

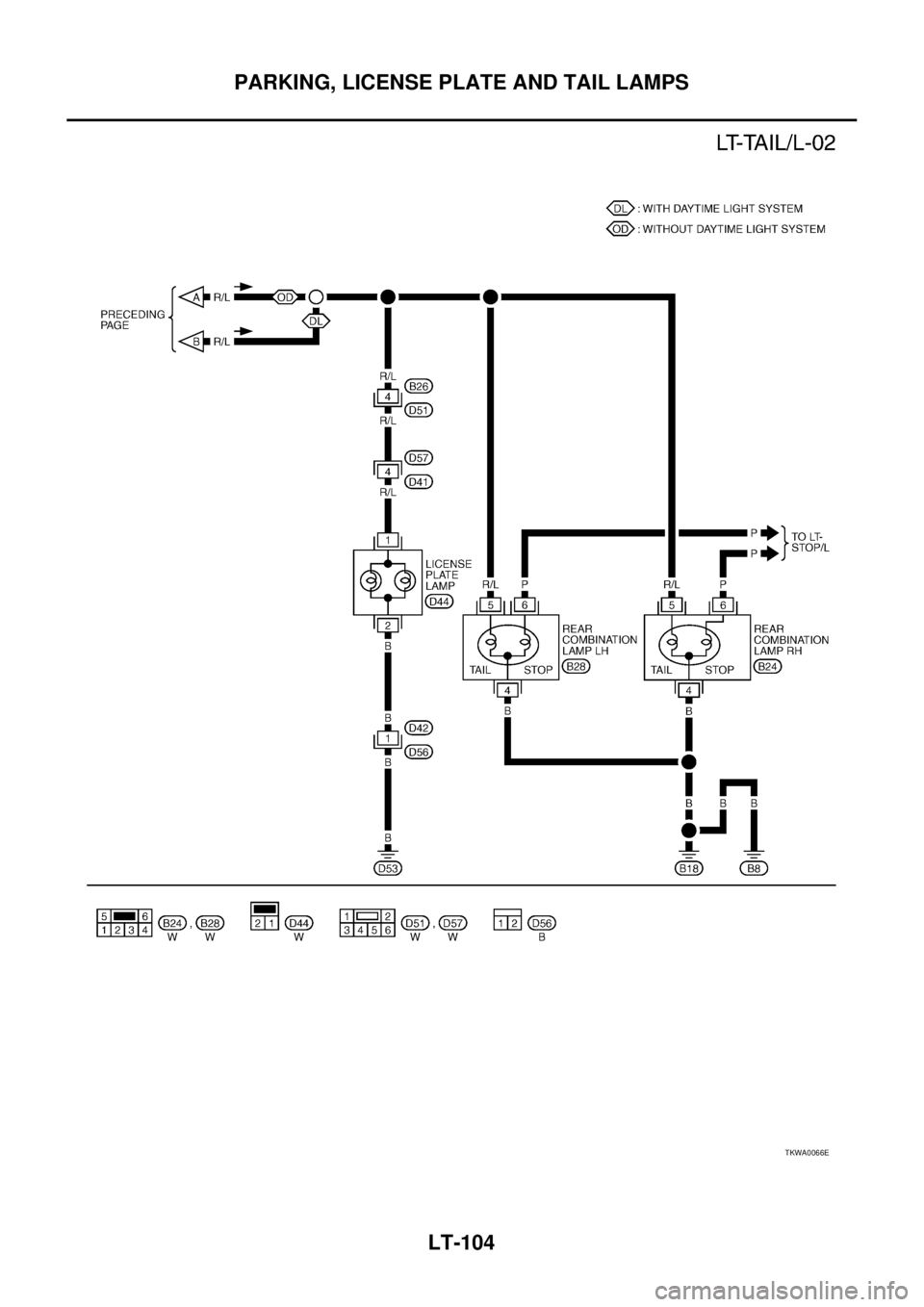

Page 4100 of 4555
LT-104
PARKING, LICENSE PLATE AND TAIL LAMPS
TKWA0066E
Page 4101 of 4555
PARKING, LICENSE PLATE AND TAIL LAMPS
LT-105
C
D
E
F
G
H
I
J
L
MA
B
LT

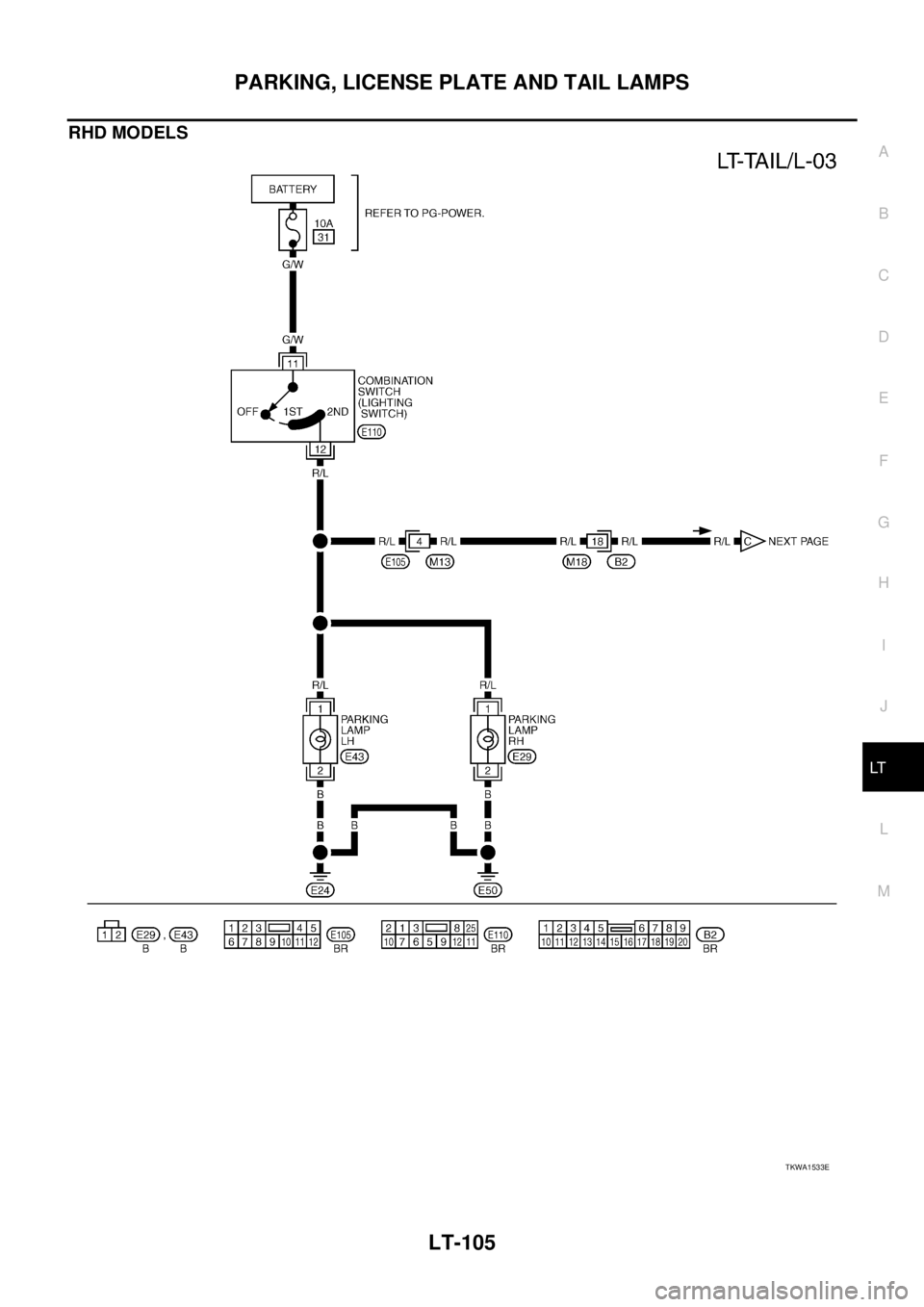

RHD MODELS
TKWA1533E

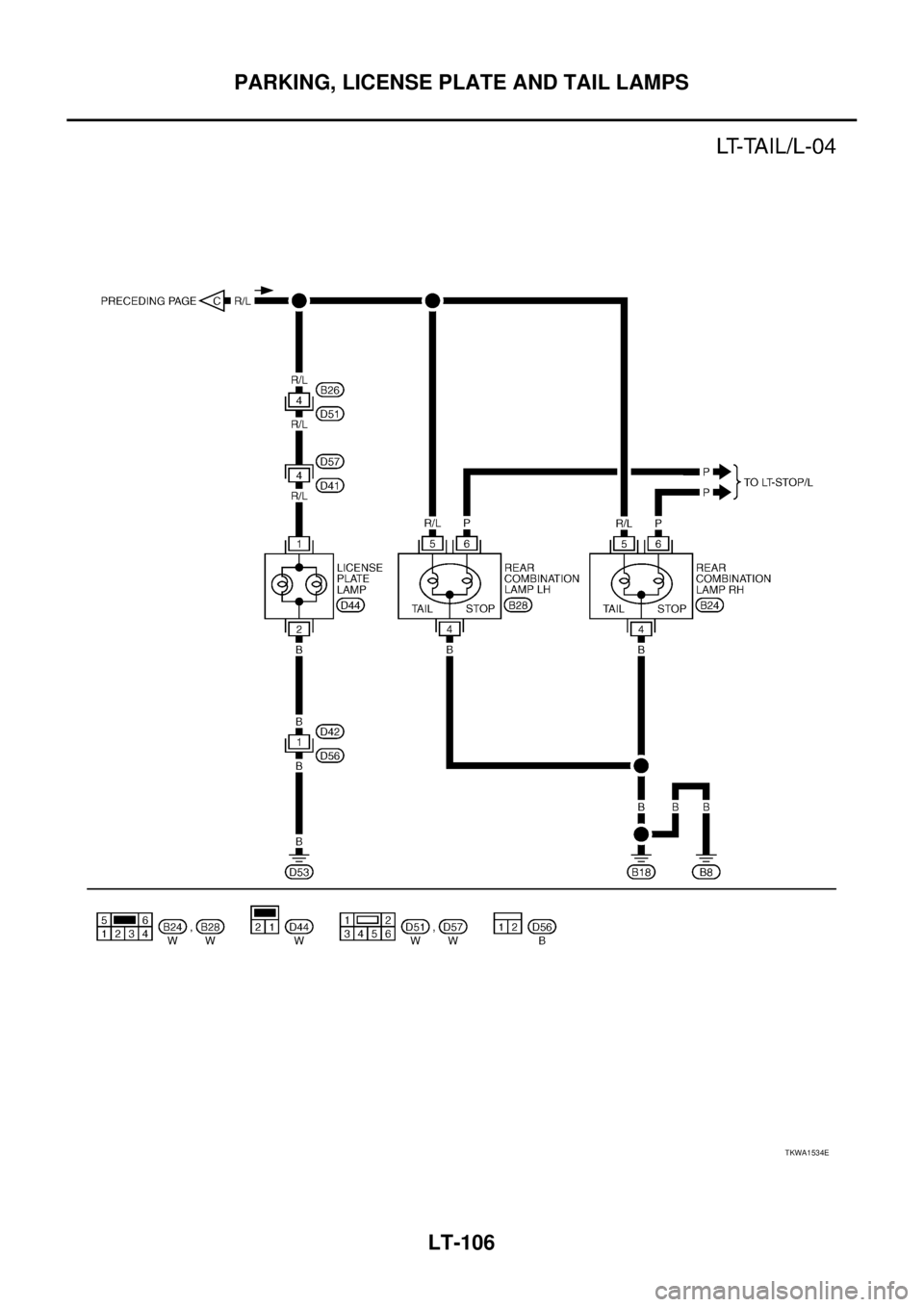

Page 4102 of 4555
LT-106
PARKING, LICENSE PLATE AND TAIL LAMPS
TKWA1534E
Page 4103 of 4555

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-107
C
D
E
F
G
H
I
J
L
MA
B
LT

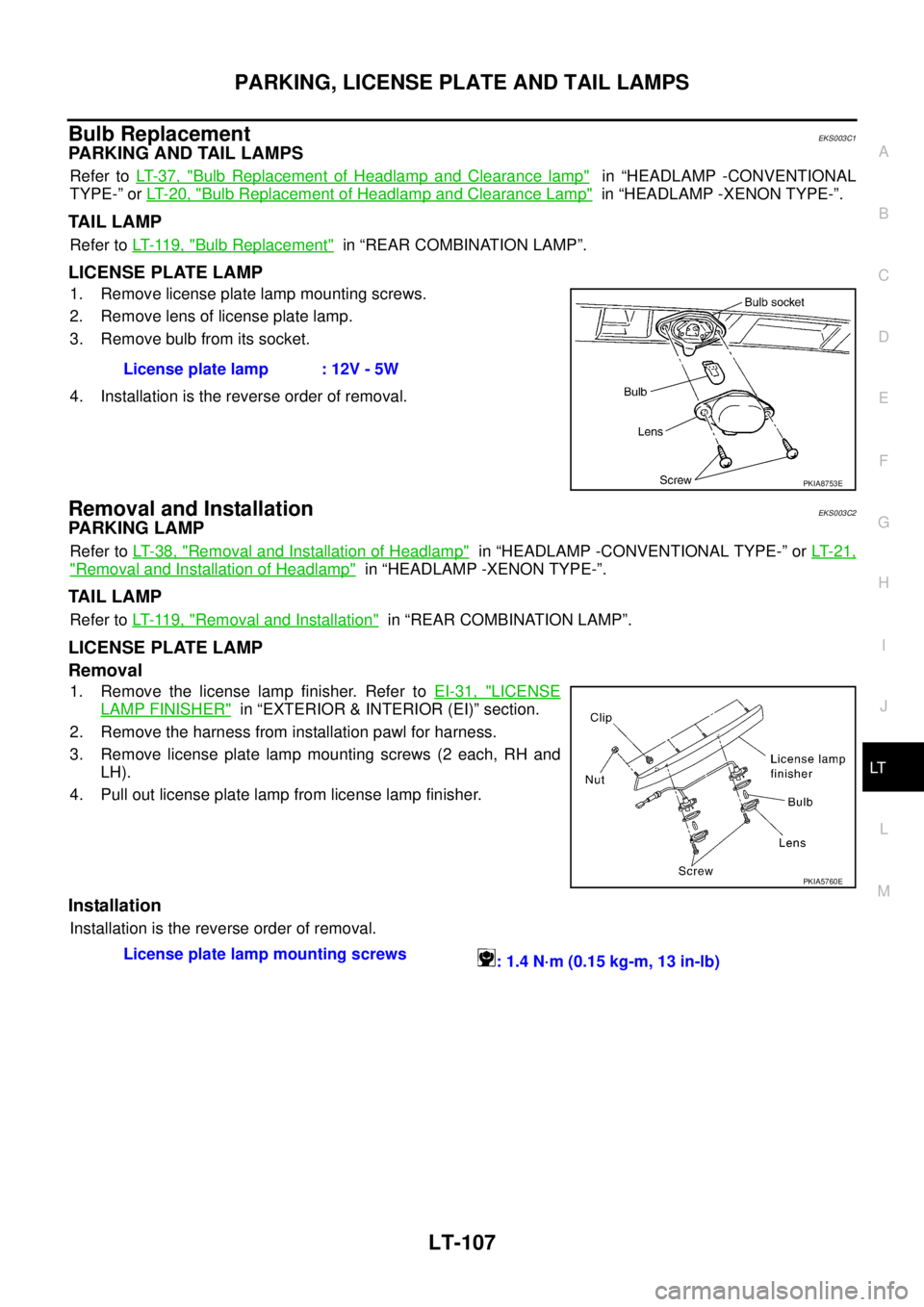

Bulb Replacement EKS003C1
PARKING AND TAIL LAMPS
Refer to LT- 3 7 , "Bulb Replacement of Headlamp and Clearance lamp" in “HEADLAMP -CONVENTIONAL
TYPE-” or LT- 2 0 , "
Bulb Replacement of Headlamp and Clearance Lamp" in “HEADLAMP -XENON TYPE-”.
TAIL LAMP
Refer to LT- 11 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
LICENSE PLATE LAMP
1. Remove license plate lamp mounting screws.
2. Remove lens of license plate lamp.
3. Remove bulb from its socket.
4. Installation is the reverse order of removal.
Removal and Installation EKS003C2
PARKING LAMP
Refer to LT- 3 8 , "Removal and Installation of Headlamp" in “HEADLAMP -CONVENTIONAL TYPE-” or LT- 2 1 ,
"Removal and Installation of Headlamp" in “HEADLAMP -XENON TYPE-”.
TAIL LAMP
Refer to LT- 11 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.
LICENSE PLATE LAMP
Removal
1. Remove the license lamp finisher. Refer to EI-31, "LICENSE
LAMP FINISHER" in “EXTERIOR & INTERIOR (EI)” section.
2. Remove the harness from installation pawl for harness.
3. Remove license plate lamp mounting screws (2 each, RH and
LH).
4. Pull out license plate lamp from license lamp finisher.
Installation
Installation is the reverse order of removal.License plate lamp : 12V - 5W
PKIA8753E
PKIA5760E
License plate lamp mounting screws
: 1.4 N·m (0.15 kg-m, 13 in-lb)
Page 4104 of 4555

LT-108
FRONT FOG LAMP
FRONT FOG LAMP PFP:00011
System Description EKS003DF
DESCRIPTION
Power is supplied at all times
through 10A fuse (No. 31, located in fuse and fusible link box)
to lighting switch terminal 11,
through 15A fuse (No. 42, located in fuse and fusible link box)
to front fog lamp relay terminal 3.
With the lighting switch in the 2ND position, power is supplied
through lighting switch terminal 12
to fog lamp switch terminal 32.
FOG LAMP OPERATION
The fog lamp switch is built into the combination switch. The lighting switch must be in the 1ST or 2ND position
for front fog lamp operation.
With the fog lamp switch in the FRONT FOG ON position or FRONT & REAR FOG ON position, power is sup-
plied
through fog lamp switch terminal 31
to front fog lamp relay terminal 2.
Ground is supplied
to front fog lamp relay terminal 1
through grounds E24 and E50.
The front fog lamp relay is energized and power is supplied
through front fog lamp relay terminal 5
to front fog lamp LH and RH terminal 1, and
to combination meter terminal 15.
Ground is supplied
to front fog lamp LH and RH terminal 2
through grounds E24 and E50,
to combination meter terminal 64
through grounds M27 and M70.
With power and ground supplied, the front fog lamps and FRONT FOG indicator illuminate.
