Page 3505 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HYDRAULIC LINE
PS-43
C
D
E
F
H
I
J
K
L
MA
B
PS

REMOVAL AND INSTALLATION
Insert hose securely until contacts tube spool.
CAUTION:
Do not apply fluid.
Install eye-bolt with eye-joint (assembled to h

Page 3506 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PS-44
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Steering WheelEGS0004P
Steering AngleEGS0004Q
Steering ColumnEGS0004R
Steering Outer Socket and Inner Socke

Page 3507 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PS-45
C
D
E
F
H
I
J
K
L
MA
B
PS

Steering GearEGS0004T
Oil PumpEGS0004U
Steering FluidEGS0004V
Steering gear model PR24AD
Rack neutral position, dimension “L�

Page 3508 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PS-46
SERVICE DATA AND SPECIFICATIONS (SDS)

Page 3509 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION SB
A
B
SB

SEAT BELTS
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restrain

SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION SB
A
B
SB

SEAT BELTS
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precaution for Seat Belt Service .............................. 2
AFTER A COLLISION ........................................... 2
SEAT BELTS .............................................................. 3
Removal and Installation of Front Seat Belt ............. 3
REMOVAL ............................................................. 3
INSTALLATION ..................................................... 3
Removal and Installation of Rear Seat Belt ............. 4
REMOVAL/WITH 2-POINT TYPE REAR CEN-
TER SEAT BELT ................................................... 4
INSTALLATION/WITH 2-POINT TYPE REAR
CENTER SEAT BELT ........................................... 4
REMOVAL/WITH 3-POINT TYPE REAR CEN-
TER SEAT BELT ................................................... 4
INSTALLATION /WITH 3-POINT TYPE REAR
CENTER SEAT BELT ........................................... 5
SEAT BELT WARNING SYSTEM ............................... 6
Component Parts and Harness Connector Location ..... 6System Description ................................................... 6
SEAT BELT OPERATION ...................................... 6
SEAT BELT WARNING CHIME AND SEAT BELT
WARNING LAMP .................................................. 7
Time Chart for Seat Belt Warning Lamp and Chime ..... 7
Schematic ................................................................. 8
Wiring Diagram —S/WARN—/For LHD models ....... 9
Wiring Diagram —S/WARN—/For RHD models ..... 12
Terminal and Reference Value for Time Control Unit ... 15
Work Flow ............................................................... 16
Trouble Diagnosis Chart by Symptom .................... 16
Time Control Unit Power Supply and Ground Circuit
Check ..................................................................... 16
Seat Belt Warning Lamp Power Supply Check ...... 17
Seat Belt Warning Lamp Check (Driver side) ......... 17
Seat belt Warning Lamp Check (Passenger Side) ... 19
Seat Belt Buckle Switch Check .............................. 20
Seat Belt Buckle Switch and Seat Pressure Switch
Check ..................................................................... 22
Vehicle Speed Signal Inspection ............................ 24

Page 3510 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual SB-2
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS000MW
The Supplemental Restraint System such as “AIR B

SB-2
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS000MW
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precaution for Seat Belt ServiceEHS000BE
CAUTION:
Before removing the seat belt pre-tensioner assembly, turn the ignition switch off, disconnect
both battery cables and wait at least 3 minutes.
Do not use electrical test equipment for seat belt pre-tensioner connector.
After replacing or reinstalling seat belt pre-tensioner assembly, or reconnecting seat belt pre-ten-
sioner connector, check the system function. Refer to SRS-17, "
SRS Operation Check" .
Do not use disassemble buckle or seat belt assembly.
Replace anchor bolts if they are deformed or worn out.
Never oil tongue and buckle.
If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.
If webbing is cut, frayed, or damaged, replace seat belt assembly.
When replacing seat belt assembly, use a genuine seat belt assembly.
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioner
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:
The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).
The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.
Anchor bolts are deformed or worn out.
The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in
which the air bags are deployed.

Page 3511 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual SEAT BELTS
SB-3
C
D
E
F
G
I
J
K
L
MA
B
SB

SEAT BELTSPFP:86884

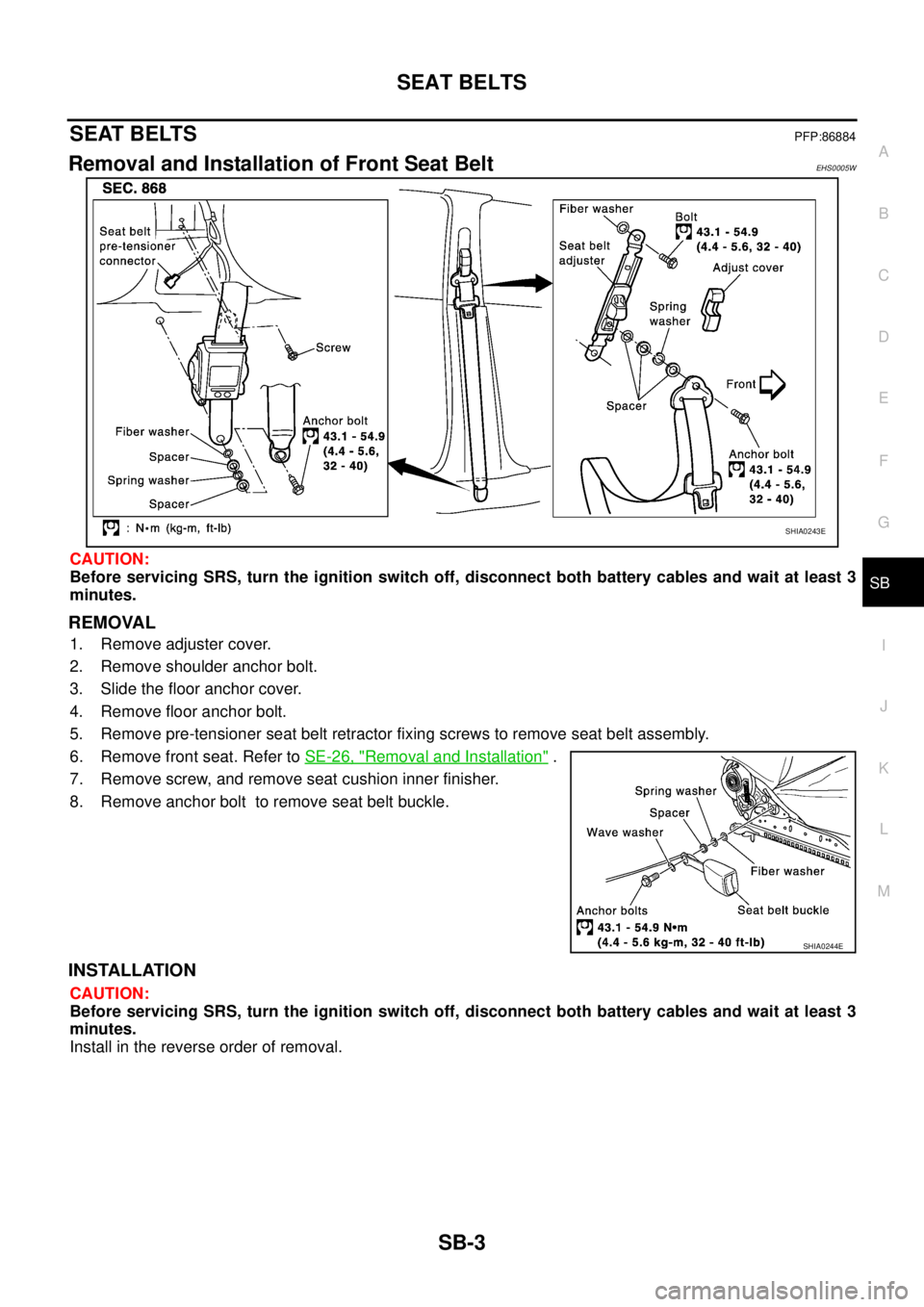

Removal and Installation of Front Seat BeltEHS0005W
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery

Page 3512 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual SB-4
SEAT BELTS

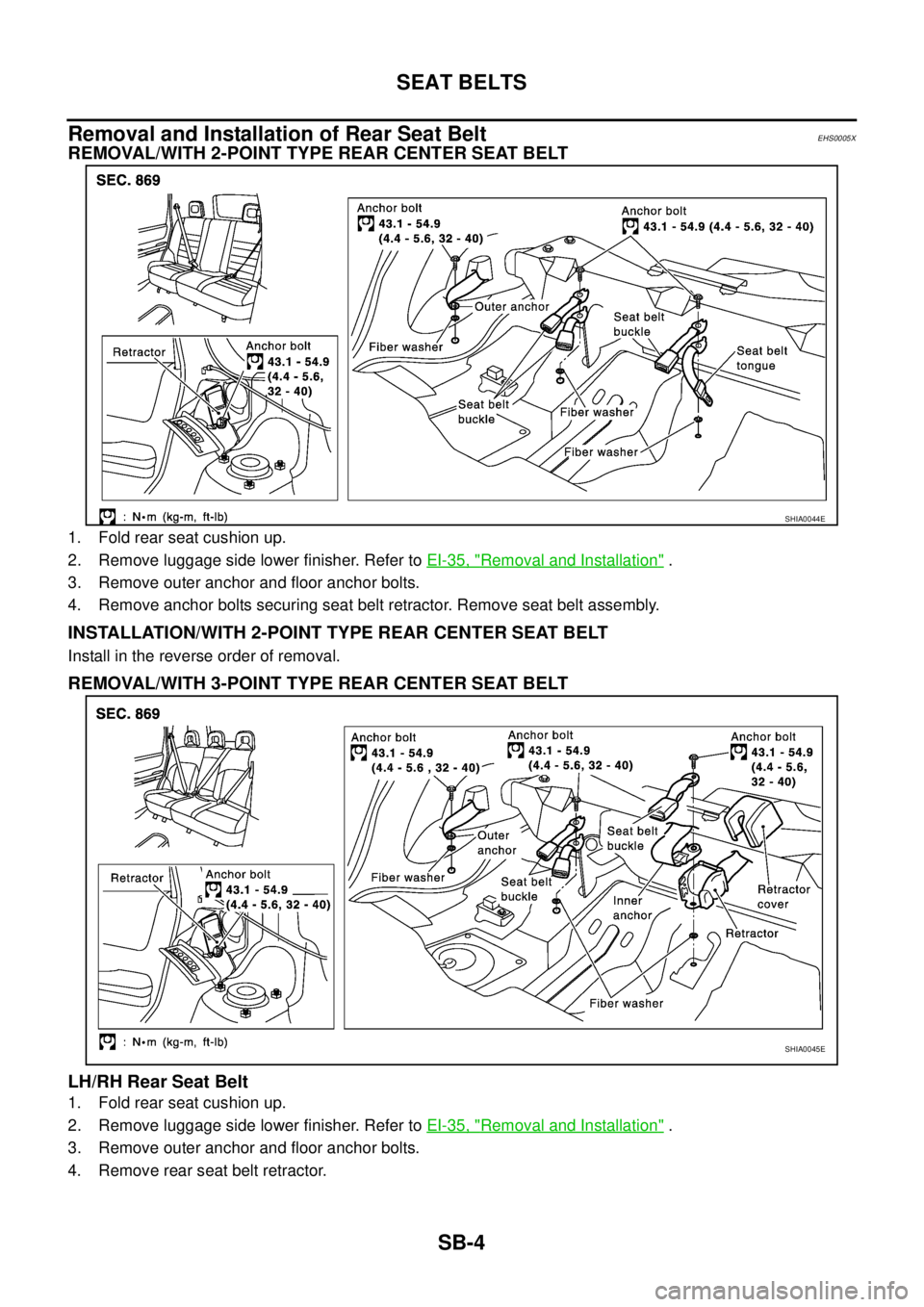

Removal and Installation of Rear Seat BeltEHS0005X
REMOVAL/WITH 2-POINT TYPE REAR CENTER SEAT BELT
1. Fold rear seat cushion up.
2. Remove luggage side lower finisher. Refer to EI-3
