NISSAN X-TRAIL 2005 Service Repair Manual FRONT SUSPENSION ASSEMBLY
FSU-5
C
D
F
G
H
I
J
K
L
MA
B
FSU

FRONT SUSPENSION ASSEMBLYPFP:54010

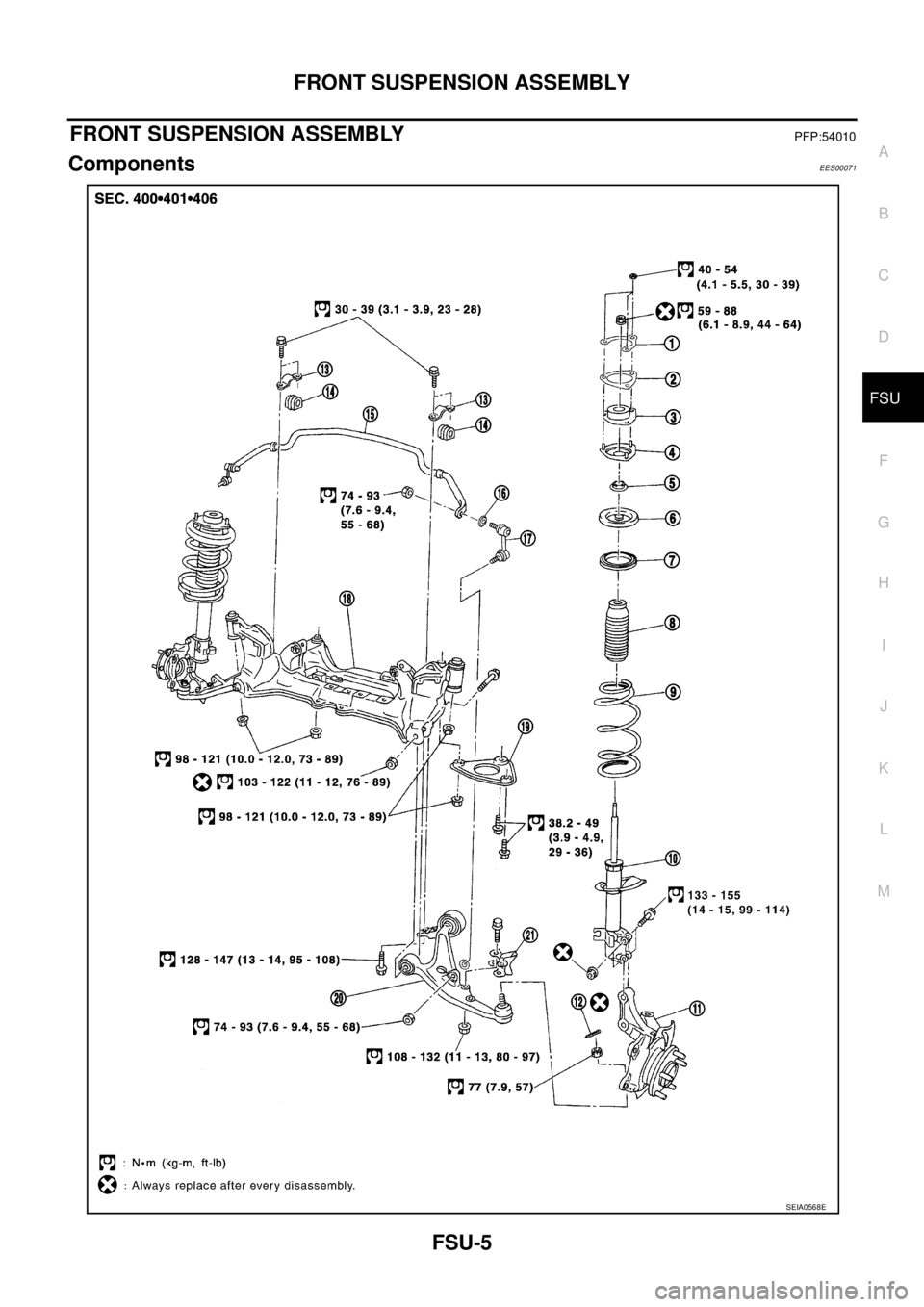

ComponentsEES00071
SEIA0568E

Page 2970 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual FSU-6
FRONT SUSPENSION ASSEMBLY

On-Vehicle Inspection and ServiceEES00072
LOOSENESS, BACKLASH AND DAMAGE OF MOUNTING PARTS AND CONNECTIONS
Lift vehicle and inspect the following:
Check mounting poi

FSU-6
FRONT SUSPENSION ASSEMBLY

On-Vehicle Inspection and ServiceEES00072
LOOSENESS, BACKLASH AND DAMAGE OF MOUNTING PARTS AND CONNECTIONS
Lift vehicle and inspect the following:
Check mounting point of each component for looseness, backlash and damage.
Check lower ball joint end play.
1. Attach a dial gauge so that the contact rests on the brake caliper.
2. Set front wheels in a straight-ahead position. Do not depress brake pedal.
3. Measure axial end play by placing an iron pry bar or something similar between transverse link and steer-
ing knuckle.
CAUTION:
Be careful not to damage ball joint boot.
4. If axial end play is outside the standard, remove transverse link and check lower ball joint.
Wheel AlignmentEES00073
DESCRIPTION
Measure wheel alignment under unladen conditions. “Unladen conditions” means that fuel, coolant, and
lubricant are full. However, spare tyre, jack, and hand tools should be unloaded.
PRELIMINARY INSPECTION
1. Check the tyre for improper air pressure and wear.
2. Check road wheels for runout.
3. Check wheel bearing axial endplay.
4. Check lower ball joint axial endplay.
5. Check strut operation.
6. Check each mounting point of axle and suspension for looseness and deformation.
7. Check each link and arm for cracks, deformation, and other damage.
8. Check the vehicle posture.
INSPECTION OF CAMBER, CASTER, AND KINGPIN INCLINATION ANGLES
Camber, caster, and kingpin inclination angles cannot be adjusted.
Before inspection, mount front wheels onto turning radius gauge. Mount rear wheels onto a stand that has
same height so the vehicle will remain horizontal.
1. Measure camber, caster and kingpin inclination of both right and
left wheels with a suitable alignment gauge.
2. If camber, caster or kingpin inclination is not within specification,
inspect front suspension parts. Replace dam-aged or worn out
parts.
1. Upper mounting plate 2. Strut spacer 3. Strut mounting insulator
4. Strut mounting insulator bracket 5. Thrust bearing 6. Spring upper seat
7. Upper rubber seat 8. Bound bumper 9. Coil spring
10. Strut 11. Axle assembly 12. Cotter pin
13. Clamp 14. Bushing 15. Stabilizer bar
16. Washer 17. Connecting rod 18. Suspension member
19. Member pin stay 20. Transverse link 21. Steering stopper bracket
Axial endplay : 0 mm (0 in)
Camber, caster and kingpin inclination:
FSU-13, "
SERVICE DATA AND SPECIFICATIONS
(SDS)"
SRA096A

Page 2971 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual FRONT SUSPENSION ASSEMBLY
FSU-7
C
D
F
G
H
I
J
K
L
MA
B
FSU

To e - i n
Measure toe-in using the following procedure.
WARNING:
Always perform the following procedure on a flat surface.
Make sure tha

Page 2972 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual FSU-8
COIL SPRING AND SHOCK ABSORBER

COIL SPRING AND SHOCK ABSORBERPFP:54302
Removal and InstallationEES00074
REMOVAL
1. Remove tyre. Remove brake caliper and hung it aside.
CAUTION:
Avoid depressin

FSU-8
COIL SPRING AND SHOCK ABSORBER

COIL SPRING AND SHOCK ABSORBERPFP:54302
Removal and InstallationEES00074
REMOVAL
1. Remove tyre. Remove brake caliper and hung it aside.
CAUTION:
Avoid depressing brake pedal with brake caliper removed.
2. Remove electrical wires of wheel sensor from strut.
3. Remove brake hose lock plate.
4. Remove mounting bolts and nuts securing steering knuckle to strut.
5. Remove mounting nuts on upper mounting plate and remove upper mounting plate and strut from vehicle.
INSTALLATION
Refer to FSU-5, "Components" in “Front Suspension Assembly” for tightening torque. Tighten in the
reverse order of removal.
Be sure arrows on strut mount insulator and spring upper seat
are positioned as shown. Also be sure notch in strut spacer is
positioned as shown. Then install strut.
Assemble upper mounting plate with its notch facing toward the
outside.
Disassembly and AssemblyEES00075
DISASSEMBLY
1. Install strut attachment (SST) to strut and fix it in a vise.
CAUTION:
When installing strut attachment (SST), wrap a shop cloth
around strut to protect it from damage.
2. Slightly loosen piston rod lock nut.
WARNING:
Do not remove piston rod lock nut completely. If it is
removed completely, coil spring jumps out and may cause
serious damage or injury.
3. Compress coil spring using a spring compressor.
WARNING:
Make sure that the pawls of the two spring compressors are firmly hooked on the spring. The
spring compressors must be tightened alternately so as not to tilt the spring.
4. After making sure coil spring is free between upper and lower seats after Step 3. Remove piston rod lock
nut.
5. Remove small parts on strut.
Remove strut spacer, strut mount insulator, strut mounting insulator bracket thrust bearing, spring upper
seat, and upper rubber seat. Then remove coil spring.
6. Remove bound bumper from spring upper seat.
7. Gradually release spring compressor (commercial service tool), and remove coil spring.
INSPECTION AFTER DISASSEMBLY
Strut
Check strut for deformation, cracks, and damage, and replace if necessary.
Check piston rod for damage, uneven wear, and distortion, and replace if necessary.
Check welded and sealed areas for oil leakage, and replace if necessary.
SEIA0123E
SEIA0124E

Page 2973 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual COIL SPRING AND SHOCK ABSORBER
FSU-9
C
D
F
G
H
I
J
K
L
MA
B
FSU

Insulator and Rubber Parts
Check strut mount insulator for cracks and rubber parts for wear. Replace them if necessary.
Coil Spring
Ch

Page 2974 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual FSU-10
TRANSVERSE LINK

TRANSVERSE LINK PFP:54500
Removal and InstallationEES00076
REMOVAL
1. Remove steering knuckle from transverse link. Refer to FAX-7, "REMOVAL" .
2. Remove mounting nuts and was

Page 2975 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual STABILIZER BAR
FSU-11
C
D
F
G
H
I
J
K
L
MA
B
FSU

STABILIZER BARPFP:54611
Removal and InstallationEES000HH
REMOVAL
1. Remove mounting nuts on upper portion of stabilizer connecting rod.
2. Remove sta

Page 2976 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual FSU-12
FRONT SUSPENSION MEMBER

FRONT SUSPENSION MEMBERPFP:54401
Removal and InstallationEES00078
REMOVAL
1. Remove tyre. Raise vehicle.
2. Remove mounting nut on lower portion of stabilizer connecti
