Page 233 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ROCKER COVER EM-179 [YD22DDTi] C D E F G H I J K L MA EM Loosen holding bolts in reverse order of that shown in the fig- ure and remove. 6. Remove rocker cover gasket. INSTALLATION 1. Apply 3.0 mm

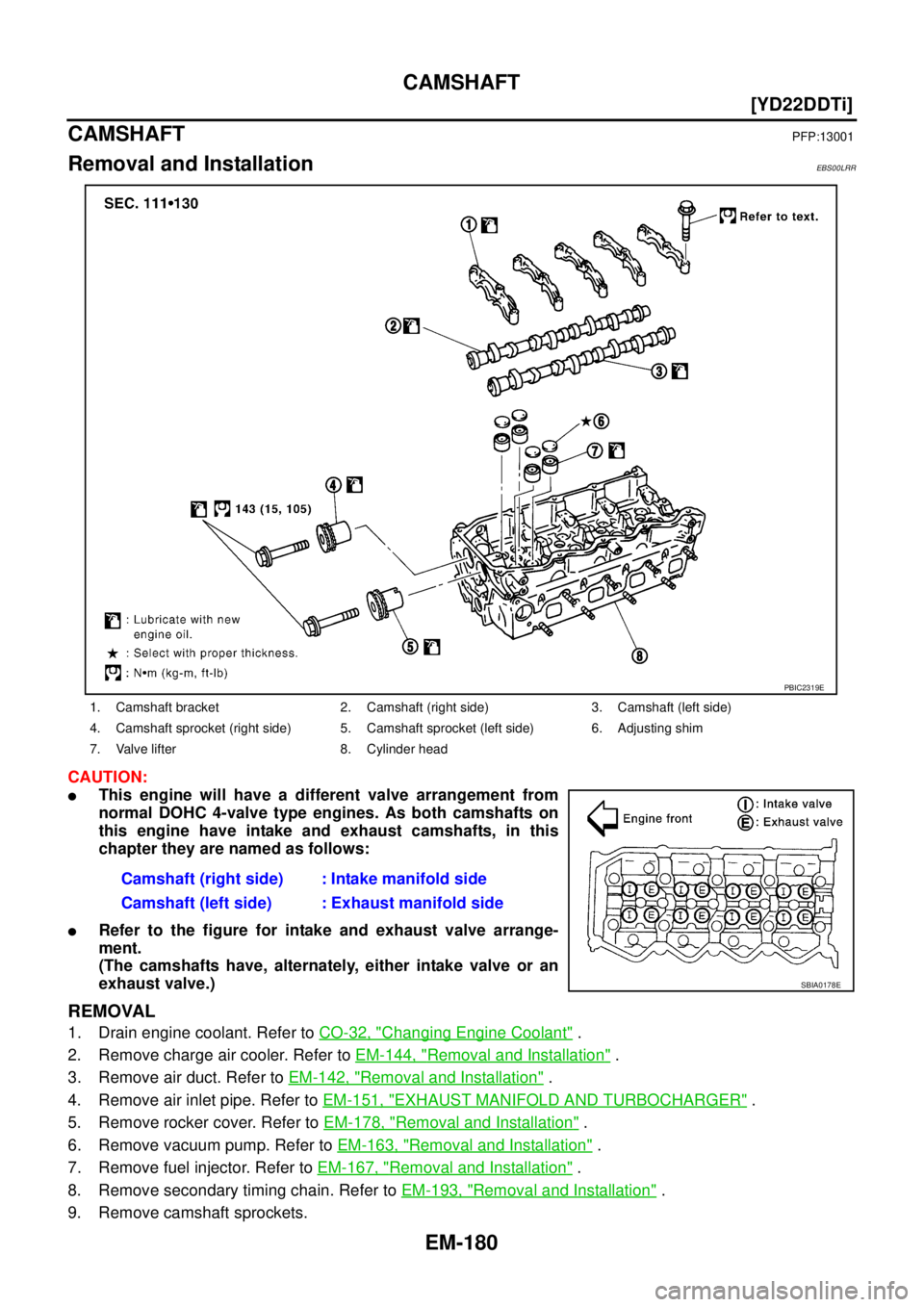

Page 234 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-180 [YD22DDTi] CAMSHAFT CAMSHAFTPFP:13001 Removal and InstallationEBS00LRR CAUTION: This engine will have a different valve arrangement from normal DOHC 4-valve type engines. As both camshafts o

Page 235 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAMSHAFT EM-181 [YD22DDTi] C D E F G H I J K L MA EM Loosen the camshaft sprocket mounting bolt by fixing the hex- agonal portion of camshaft. 10.11. Remove camshaft as follows: a. Loosen and remov

Page 236 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-182 [YD22DDTi] CAMSHAFT Camshaft Journal Oil Clearance CAMSHAFT JOURNAL DIAMETER Measure outer diameter of camshaft journal with micrometer. CAMSHAFT BRACKET INNER DIAMETER Install camshaft bra

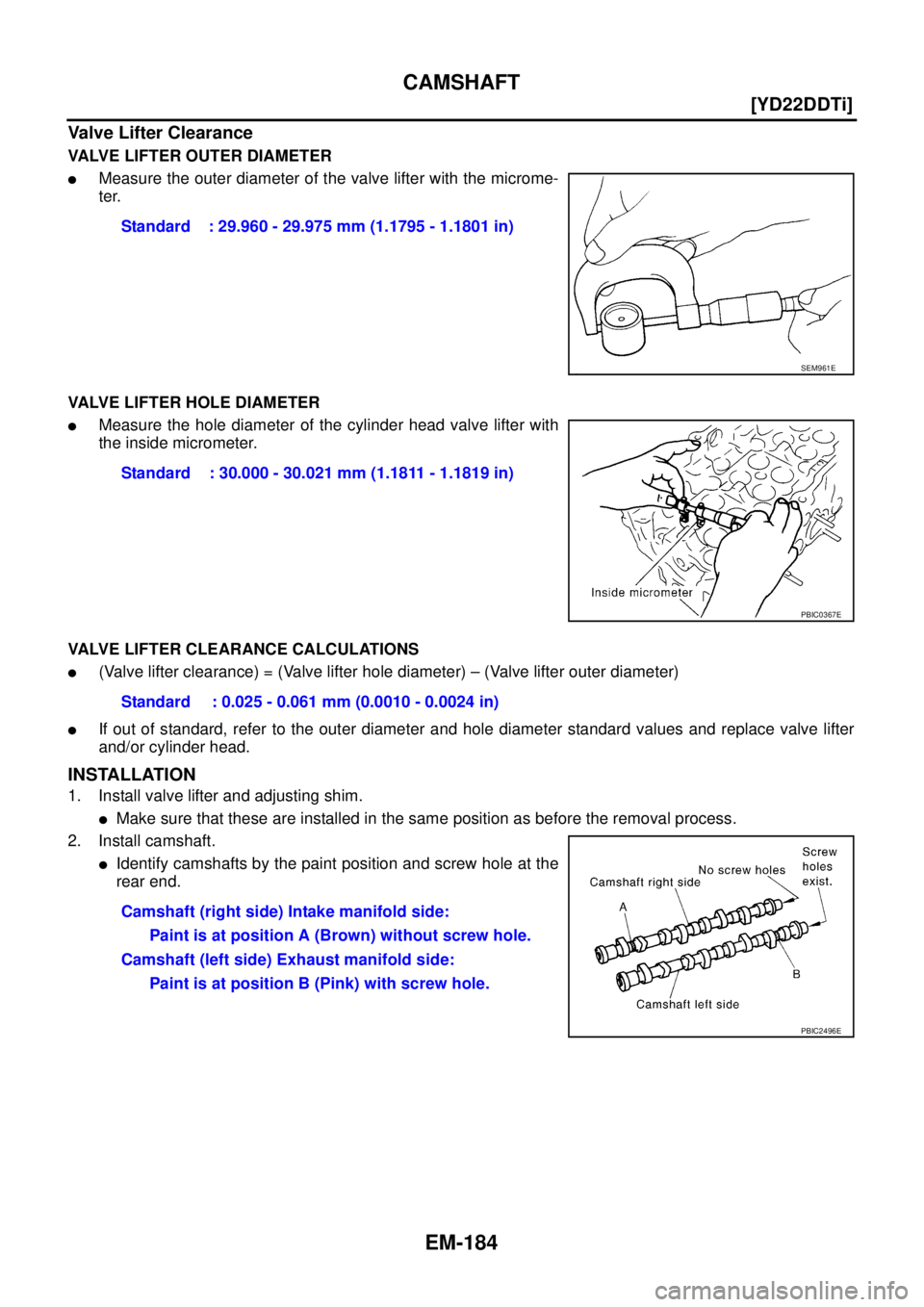

Page 237 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAMSHAFT EM-183 [YD22DDTi] C D E F G H I J K L MA EM Measure the following parts if out of the standard. –Dimension “A” for camshaft –Dimension “B” for cylinder head Refer to the stand

Page 238 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-184 [YD22DDTi] CAMSHAFT Valve Lifter Clearance VALVE LIFTER OUTER DIAMETER Measure the outer diameter of the valve lifter with the microme- ter. VALVE LIFTER HOLE DIAMETER Measure the hole diam

Page 239 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAMSHAFT EM-185 [YD22DDTi] C D E F G H I J K L MA EM Install so that knock pins are positioned in the directions shown in the figure. NOTE: Though camshaft does not stop at the location as shown in

Page 240 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-186 [YD22DDTi] CAMSHAFT Be careful of the intake and exhaust valve arrangement. The valve arrangement is different from that in a normal engine. NOTE: The camshafts have, alternately, either in
