Page 4233 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP WASHER WW-21 C D E F G H I J L MA B WW Wiring Diagram —HLC—EKS0036I TKWB1139E

Page 4234 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual WW-22 HEADLAMP WASHER TKWB1140E

Page 4235 of 4555

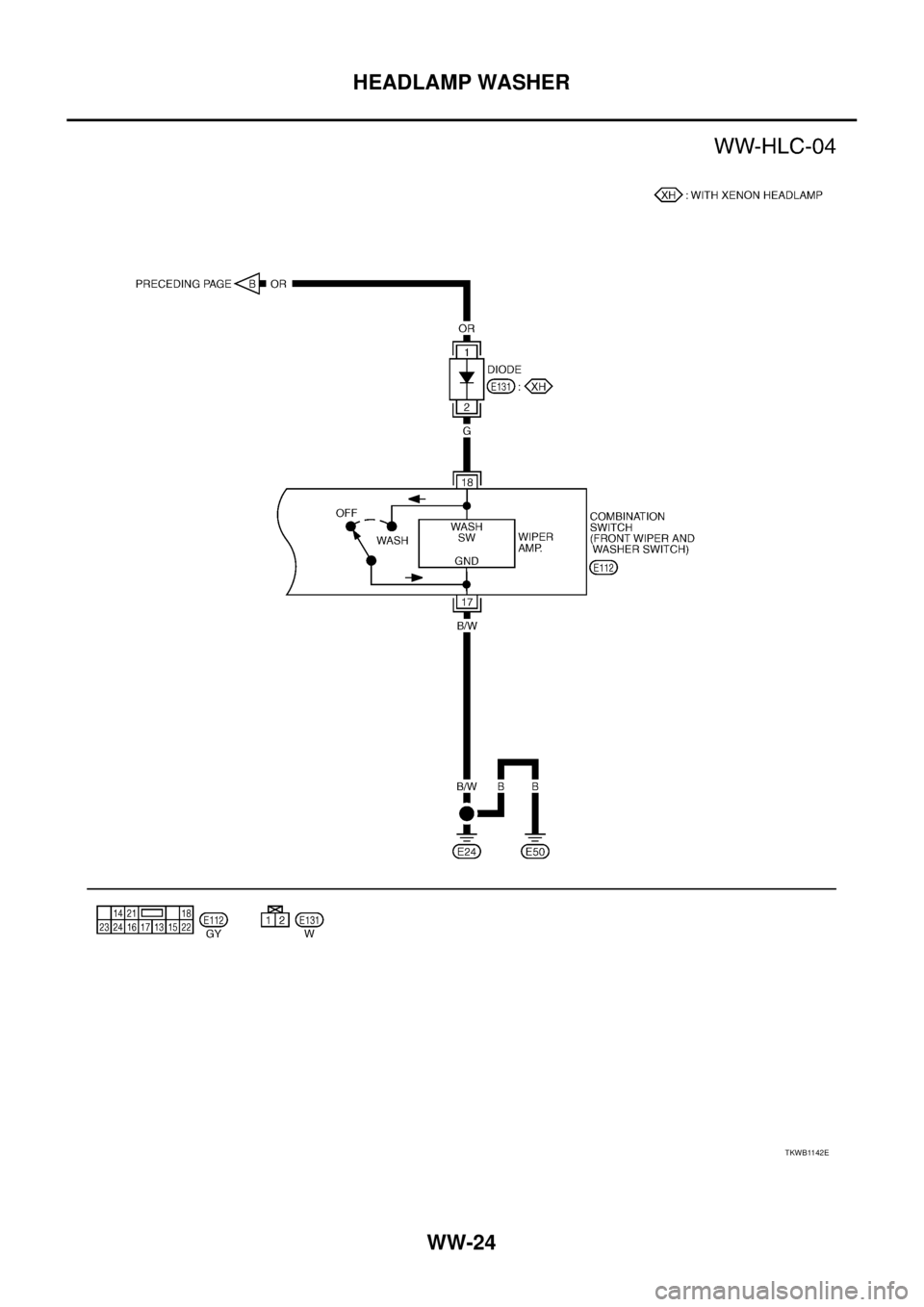

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP WASHER WW-23 C D E F G H I J L MA B WW Wiring Diagram —HLC—/RHD modelsEKS00ES9 TKWB1141E

Page 4236 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual WW-24 HEADLAMP WASHER TKWB1142E

Page 4237 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP WASHER WW-25 C D E F G H I J L MA B WW Removal and Installation of Headlamp Washer NozzleEKS0036J REMOVAL 1. Remove front bumper. Refer to EI-14, "FRONT BUMPER" 2. Remove hose clip and meta

Page 4238 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual WW-26 HEADLAMP WASHER Washer Tube LayoutEKS0036N PKIC1040E

Page 4239 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HORN WW-27 C D E F G H I J L MA B WW HORNPFP:25610 Wiring Diagram — HORN —EKS0033A TKWA1560E

Page 4240 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual WW-28 HORN Removal and InstallationEKS0033B REMOVAL 1. Remove the front grille. Refer to EI-19, "FRONT GRILLE" 2. Disconnect horn connector. 3. Remove horn. INSTALLATION Installation is the reverse
