NISSAN X-TRAIL 2005 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-505 [ALL] D E F G H I J K L MA B AT Bearings Make sure bearings roll freely and are free from noise, cracks, pitting or wear. When replacing taper roller bearing, rep

Page 2770 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-506 [ALL] REPAIR FOR COMPONENT PARTS b. Move side gear up and down to measure dial indicator deflec- tion. Always measure indicator deflection on both side gears. c. If not within specification,

Page 2771 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ASSEMBLY AT-507 [ALL] D E F G H I J K L MA B AT ASSEMBLYPFP:00000 Assembly (1)ECS004MD 1. Install differential side oil seals on transaxle case and converter housing. CAUTION: Do not reuse differen

Page 2772 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-508 [ALL] ASSEMBLY Adjustment (1)ECS004ME DIFFERENTIAL SIDE BEARING PRELOAD 1. Install differential side bearing outer race without differential side bearing adjusting shim on transaxle case. CAU

Page 2773 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ASSEMBLY AT-509 [ALL] D E F G H I J K L MA B AT 9. Remove converter housing from transaxle case. 10. Remove final drive assembly from transaxle case. 11. Remove differential side bearing outer race

Page 2774 of 4555

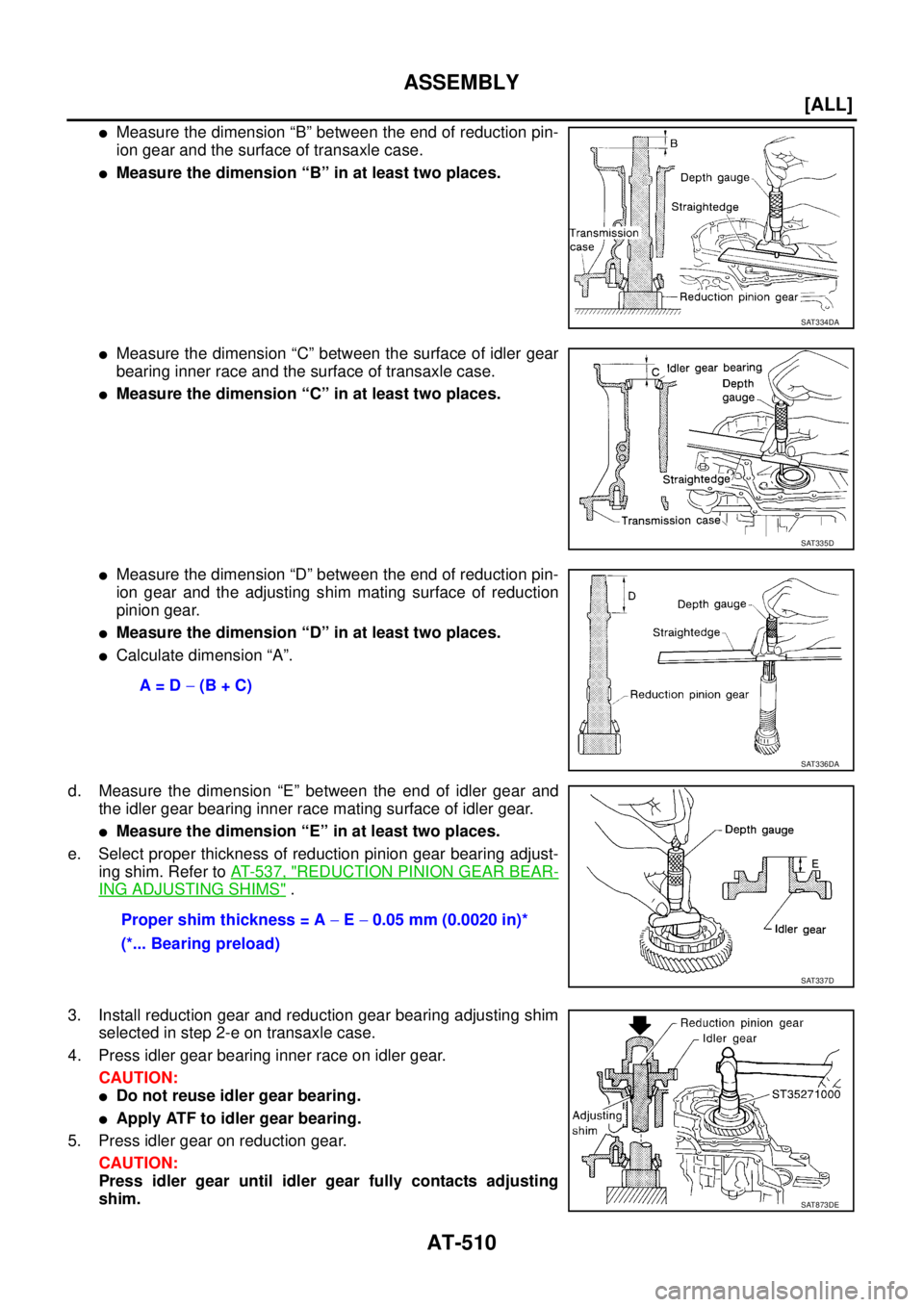

NISSAN X-TRAIL 2005 Service Repair Manual AT-510 [ALL] ASSEMBLY Measure the dimension “B” between the end of reduction pin- ion gear and the surface of transaxle case. Measure the dimension “B” in at least two places. Measure the

Page 2775 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ASSEMBLY AT-511 [ALL] D E F G H I J K L MA B AT 6. Set manual shaft to “P” position to fix idler gear. 7. Tighten idler gear lock nut to the specified torque. Refer to AT- 416, "Components" . CA

Page 2776 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-512 [ALL] ASSEMBLY 1. Install bearing retainer for output shaft. Refer to AT- 4 1 6 , "Com- ponents" . 2. Install needle bearing on bearing retainer. CAUTION: Apply petroleum jelly to needle be
