NISSAN X-TRAIL 2005 Service Repair Manual DTC P0335 CKP SENSOR
EC-1517
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Comp

Page 1922 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1518
[YD (WITHOUT EURO-OBD)]
DTC P0336 CKP SENSOR

DTC P0336 CKP SENSORPFP:23731
DescriptionEBS0121C
The crankshaft position sensor monitors engine speed by means of
signals from the sensing plate

EC-1518
[YD (WITHOUT EURO-OBD)]
DTC P0336 CKP SENSOR

DTC P0336 CKP SENSORPFP:23731
DescriptionEBS0121C
The crankshaft position sensor monitors engine speed by means of
signals from the sensing plate (with 56 protrusions) installed to the
fly wheel. The datum signal output is detected 6° signal and sent to
the ECM. The sensor signal is used for fuel injection control and fuel
injection timing control.
CONSULT-II Reference Value in Data Monitor ModeEBS0121D
Specification data are reference values.
On Board Diagnosis LogicEBS0121F
NOTE:
If DTC P0336 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1579, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS0121G
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
If engine could not start, keep ignition switch at START position
for 5 seconds.
4. If DTC is detected, go to EC-1522, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 5 seconds.
If engine could not start, keep ignition switch at START position for 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
MBIB0619E
MONITOR ITEM CONDITION SPECIFICATION
CKPS·RPM (TDC)
Run engine and compare CONSULT-II value with the tachometer indi-
cation.Almost the same speed as the
tachometer indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0336
0336Crankshaft position sen-
sor circuit range/perfor-
manceCrankshaft position sensor signal is not in the
normal pattern when engine is running.
Harness or connectors
(The sensor circuit is open or
shorted.)
Crankshaft position sensor
Signal plate
SEF817Y

Page 1923 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0336 CKP SENSOR
EC-1519
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. If DTC is detected, go to EC-1522, "Diagnostic Procedure" .

Page 1924 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1520
[YD (WITHOUT EURO-OBD)]
DTC P0336 CKP SENSOR

Wiring DiagramEBS0121H
TBWA0570E

Page 1925 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0336 CKP SENSOR
EC-1521
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by

Page 1926 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1522
[YD (WITHOUT EURO-OBD)]
DTC P0336 CKP SENSOR

Diagnostic ProcedureEBS0121I
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.

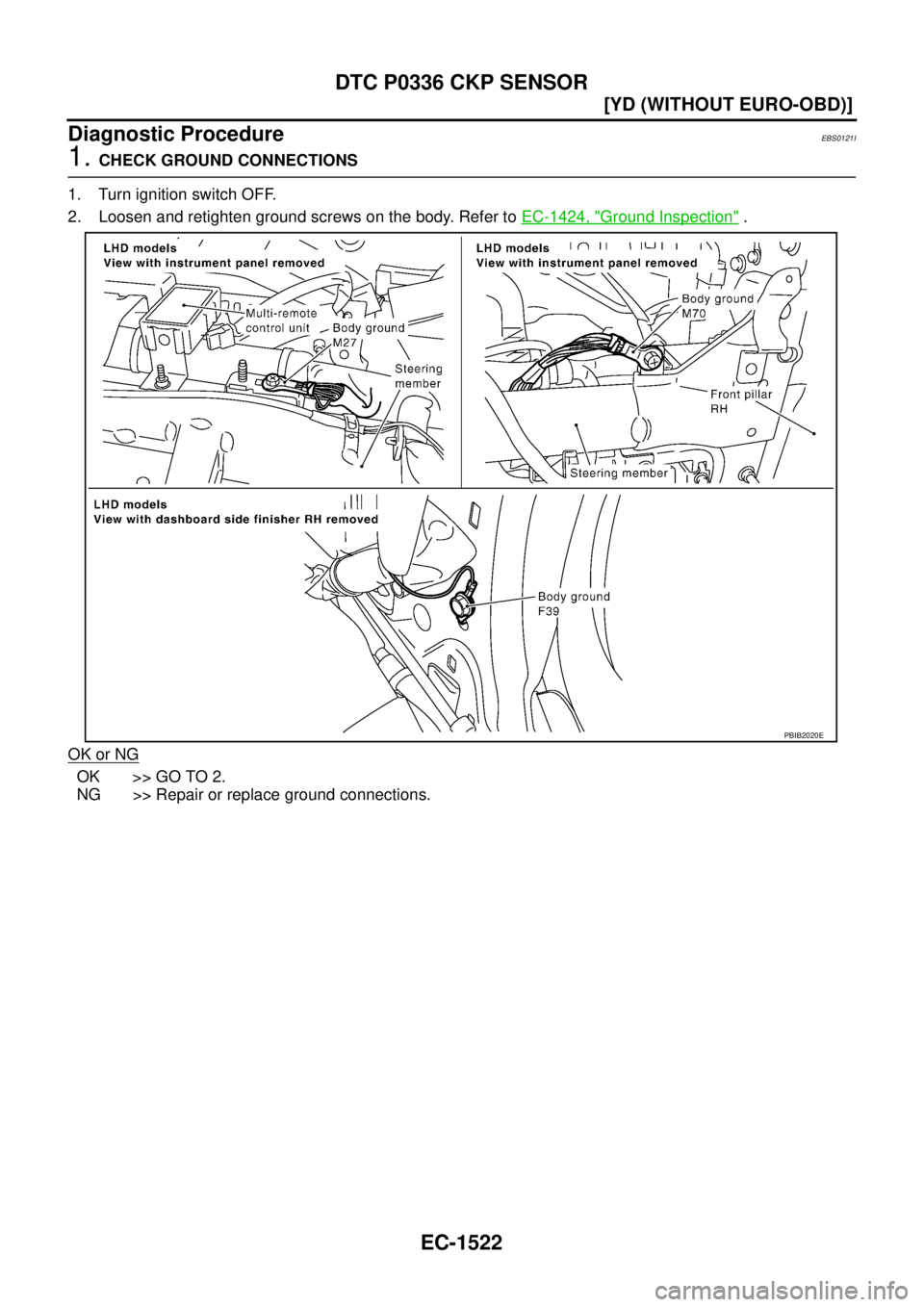

2. Loosen and retighten ground screws on the body. Refer to

Page 1927 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0336 CKP SENSOR
EC-1523
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor harness connec-
tor.
2. Turn ig

Page 1928 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1524
[YD (WITHOUT EURO-OBD)]
DTC P0336 CKP SENSOR

6. CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
OK or NG
OK >> GO TO 7.
NG >> Replace the signal plate.
7. CHECK INTERMI
