NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
EC-109
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
VIAS S/V*
[ON/OFF]
The control condition of the VIAS control sole-
noid valve (determined by ECM according to
the input signa

TROUBLE DIAGNOSIS
EC-109
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
VIAS S/V*
[ON/OFF]
The control condition of the VIAS control sole-
noid valve (determined by ECM according to
the input signals) is indicated.
ON: VIAS control solenoid valve is operating.
OFF: VIAS control solenoid valve is not oper-
ating.
AIR COND RLY
[ON/OFF]×
The air conditioner relay control condition
(determined by ECM according to the input
signals) is indicated.
FUEL PUMP RLY
[ON/OFF]×
Indicates the fuel pump relay control condition
determined by ECM according to the input sig-
nals.
THRTL RELAY [ON/
OFF]×
Indicates the throttle control motor relay con-
trol condition determined by the ECM accord-
ing to the input signals.
COOLING FAN
[HI/LOW/OFF]
Indicates the condition of the cooling fan
(determined by ECM according to the input
signals).
HI: High speed operation
LOW: Low speed operation
OFF: Stop
HO2S1 HTR (B1)
[ON/OFF]
Indicates [ON/OFF] condition of heated oxy-
gen sensor 1 heater determined by ECM
according to the input signals.
HO2S2 HTR (B1)
[ON/OFF]
Indicates [ON/OFF] condition of heated oxy-
gen sensor 2 heater determined by ECM
according to the input signals.
IDL A/V LEARN
[YET/CMPLT]
Display the condition of idle air volume learn-
ing
YET: Idle Air Volume Learning has not been
performed yet.
CMPLT: Idle Air Volume Learning has already
been performed successfully.
TRVL AFTER MIL
[km] or [mile]
Distance traveled while MI is activated.
AC PRESS SEN [V]×
The signal voltage from the refrigerant pres-
sure sensor is displayed.
VHCL SPEED SE*
[km/h] or [mph]
The vehicle speed computed from the vehicle
speed signal sent from TCM is displayed.
SET VHCL SPD*
[km/h] or [mph]
The preset vehicle speed is displayed.
MAIN SW*
[ON/OFF]
Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW*
[ON/OFF]
Indicates [ON/OFF] condition from CANCEL
switch signal.
RESUME/ACC SW*
[ON/OFF]
Indicates [ON/OFF] condition from RESUME/
ACCELERATE switch signal.
SET SW*
[ON/OFF]
Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1*
[ON/OFF]
Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2*
[ON/OFF]
Indicates [ON/OFF] condition of stop lamp
switch signal. Monitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks

Page 514 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-110
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

*: For QR25DE engine models
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MON

EC-110
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

*: For QR25DE engine models
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MONITOR (SPEC) MODE
Monitored Item
VHCL SPD CUT*
[NON/CUT]
Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed increased to excessively
high compared with the ASCD set speed, and
ASCD operation is cut off.
LO SPEED CUT*
[NON/CUT]
Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed decreased to excessively
low compared with the ASCD set speed, and
ASCD operation is cut off.
AT OD MONITOR
[ON/OFF]
Indicates [ON/OFF] condition of A/T O/D
according to the input signal from the TCM.For M/T models, always “OFF” is
displayed.
AT OD CANCEL
[ON/OFF]
Indicates [ON/OFF] condition of A/T O/D can-
cel signal sent from the TCM.For M/T models, always “OFF” is
displayed.
CRUISE LAMP*
[ON/OFF]
Indicates [ON/OFF] condition of CRUISE lamp
determined by the ECM according to the input
signals.
SET LAMP*
[ON/OFF]
Indicates [ON/OFF] condition of SET lamp
determined by the ECM according to the input
signals.
Voltage [V]
Voltage, frequency, duty cycle or pulse width
measured by the probe.
Only “#” is displayed if item is
unable to be measured.
Figures with “#”s are temporary
ones. They are the same figures
as an actual piece of data which
was just previously measured. Frequency
[msec], [Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOWMonitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks
Monitored item [Unit]ECM
input
signalsMain
signalsDescription Remarks
ENG SPEED [rpm]×
Indicates the engine speed computed
from the signals of the crankshaft posi-
tion sensor (POS) and camshaft position
sensor (PHASE).
MAS A/F SE-B1 [V]××
The signal voltage of the mass air flow
sensor specification is displayed.When engine is running specification
range is indicated.
B/FUEL SCHDL
[msec]
“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
When engine is running specification
range is indicated.
A/F ALPHA-B1 [%]×
The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.When engine is running specification
range is indicated.
This data also includes the data for the
air-fuel ratio learning control.

Page 515 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
EC-111
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TES

TROUBLE DIAGNOSIS
EC-111
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
*1:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-56, "SYSTEM READINESS TEST (SRT) CODE" .
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJECTION
Engine: Return to the original
trouble condition
Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.
Harness and connectors
Fuel injector
Heated oxygen sensor 1
IGNITION TIMING
Engine: Return to the original
trouble condition
Timing light: Set
Retard the ignition timing using
CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.
Perform Idle Air Volume Learning.
POWER BALANCE
Engine: After warming up, idle
the engine.
Air conditioner switch: OFF
Shift lever: N (A/T), Neutral (M/T)
Cut off each injector signal one at
a time using CONSULT-II.Engine runs rough or dies.
Harness and connectors
Compression
Fuel injector
Power transistor
Spark plug
Ignition coil
COOLING FAN*
1
Ignition switch: ON
Turn the cooling fan LOW, HI,
OFF with CONSULT-II.Cooling fan moves and stops.
Harness and connectors
Cooling fan relay
Cooling fan motor
ENG COOLANT
TEMP
Engine: Return to the original
trouble condition
Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.
Harness and connectors
Engine coolant temperature sen-
sor
Fuel injector
FUEL PUMP RELAY
Ignition switch: ON (Engine
stopped)
Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the oper-
ating sound.Harness and connectors
Fuel pump relay
VIAS SOL VALVE*
2
Ignition switch: ON
Turn solenoid valve ON and OFF
with CONSULT-II and listen for
operating sound.Solenoid valve makes an operat-
ing sound.Harness and connectors
Solenoid valve
PURG VOL CONT/V
Engine: After warming up, run
engine at 1,500 rpm.
Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according
to the opening percent.Harness and connectors
Solenoid valve
V/T ASSIGN ANGLE
Engine: Return to the original
trouble condition
Change intake valve timing using
CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.
Harness and connectors
Intake valve timing control sole-
noid valve

Page 516 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-112
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

DTC WORK SUPPORT Mode
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of triggers and they can be

EC-112
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

DTC WORK SUPPORT Mode
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description

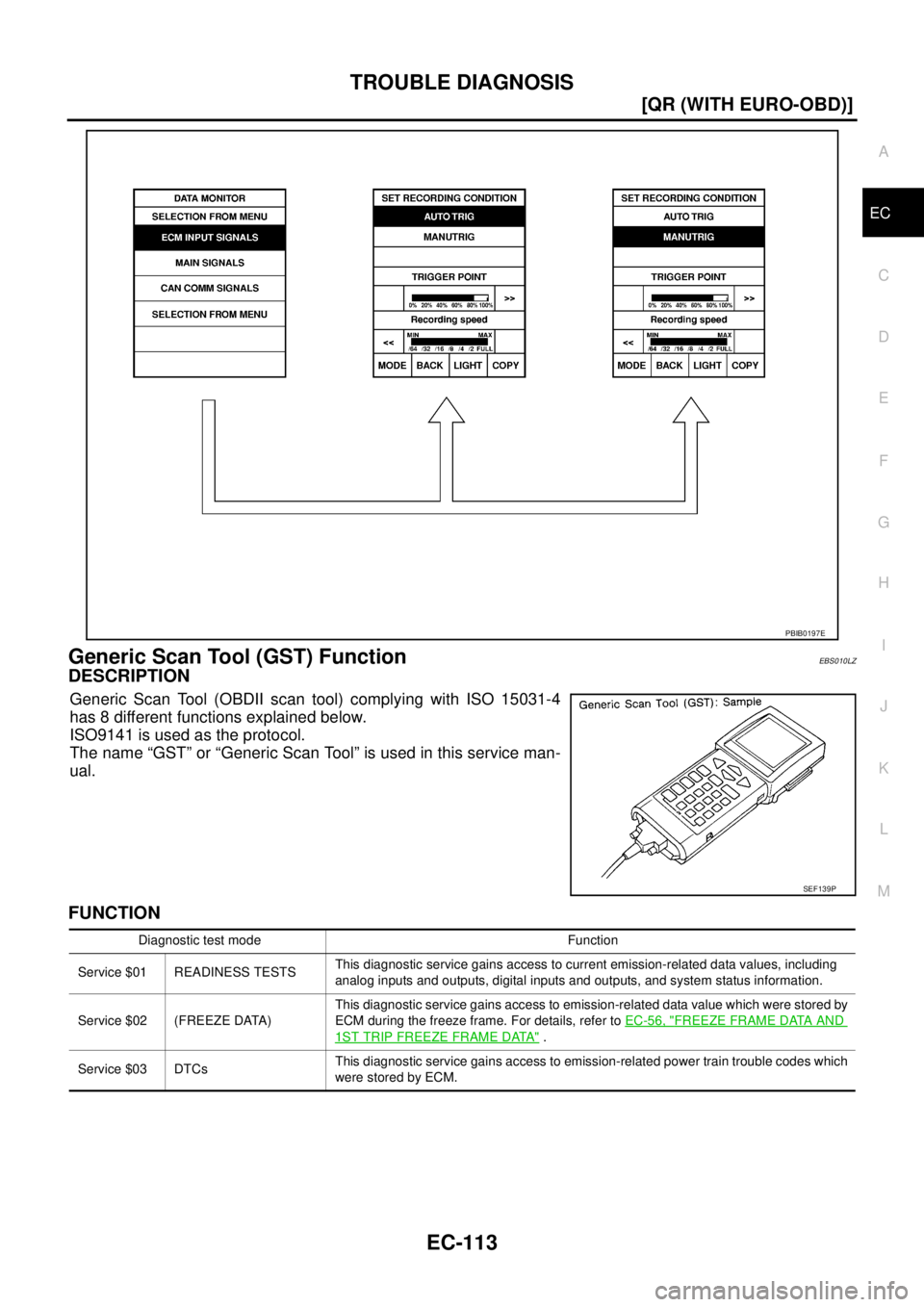

CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
The malfunction will be identified on the CONSULT-II screen
in real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONI-
TOR” in “DATA MONITOR” screen is changed to “Recording
Data ... xx%” as shown at right, and the data after the mal-
function detection is recorded. Then when the percentage
reached 100%, “REAL-TIME DIAG” screen is displayed. If
“STOP” is touched on the screen during “Recording Data ...
xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the
recording speed can be changed by “TRIGGER POINT” and
“Recording Speed”. Refer to CONSULT-II Operation Manual.
2. “MANU TRIG” (Manual trigger):
DTC/1st trip DTC and malfunction item will not be displayed
automatically on CONSULT-II screen even though a malfunc-
tion is detected by ECM.
DATA MONITOR can be performed continuously even though
a malfunction is detected.
Operation
1. “AUTO TRIG”
While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure, be sure to
select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.
While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the “DTC Confirmation Procedure”, the moment a malfunction is found the DTC/
1st trip DTC will be displayed. (Refer to “Incident Simulation Tests” in GI-23, "
How to Perform Efficient
Diagnosis for an Electrical Incident" .)
2. “MANU TRIG”
If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for fur-
ther diagnosis, such as a comparison with the value for the normal operating condition.
Test mode Test item Condition Reference page
HO2S1HO2S1 (B1) P0133
Refer to corresponding
trouble diagnosis for
DTC.EC-186
HO2S1 (B1) P0134EC-196
HO2S1 (B1) P1143EC-322
HO2S1 (B1) P1144EC-328
H02S2HO2S2 (B1) P0139EC-211HO2S2 (B1) P1146EC-334
HO2S2 (B1) P1147EC-342
SEF705Y
SEF707X

Page 517 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
EC-113
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Generic Scan Tool (GST) FunctionEBS010LZ
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with ISO 15031-4
has 8 diff

Page 518 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-114
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “GST” to data link connector, which is located under
driver side dash panel near the fu

Page 519 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
EC-115
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

CONSULT-II Reference Value in Data Monitor ModeEBS010M0
Remarks:
Specification data are reference values.
Specification da

TROUBLE DIAGNOSIS
EC-115
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

CONSULT-II Reference Value in Data Monitor ModeEBS010M0
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indica-
tion.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-120, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-120, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1 See EC-120, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)
Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S2 (B1)
Engine: After warming up
Keeping the engine speed
between 3,800 and 4,000 rpm
for 1 minute and at idle for 1
minute under no load.Revving engine from idle to 3,000 rpm
quickly.0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)
Engine: After warming upMaintaining engine speed at 2,000
rpmLEAN ←→ RICH
Changes more than 5 times
during 10 seconds.
HO2S2 MNTR (B1)
Engine: After warming up
Keeping the engine speed
between 3,800 and 4,000 rpm
for 1 minute and at idle for 1
minute under no load.Revving engine from idle to 3,000 rpm
quickly.LEAN ←→ RICH
VEH SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication.
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.7V
ACCEL SEN 2*
1Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN 1
THRTL SEN 2*
1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
Shift lever: D (A/T), 1st (M/T) Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW
Ignition switch: ONShift lever: P or N (A/T), Neutral (M/T) ON
Shift lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engineSteering wheel is not turned. OFF
Steering wheel is turned. ON

Page 520 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-116
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

LOAD SIGNALIgnition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd (placed
in LOW position for models with
Xenon headl

Load next 8 pages

Page: < prev 1-10 ... 481-488 489-496 497-504 505-512 513-520 521-528 529-536 537-544 545-552 ... 4560 next >

center console fuel type lumbar support wheel bolts check engine oil capacities
