Page 3313 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AIR MIX DOOR MOTOR ATC-135 C D E F G H I K L MA B AT C AIR MIX DOOR MOTOR PFP:27732 Removal and InstallationEJS004GK REMOVAL 1. Set the temperature control dial at 18°C. 2. Disconnect the battery n

Page 3314 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ATC-136 HEATER CORE HEATER COREPFP:27140 Removal and InstallationEJS004GJ REMOVAL 1. Remove heater & cooling unit. Refer to ATC-131, "HEATER & COOLING UNIT ASSEMBLY" . 2. Remove heater pipe support.

Page 3315 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DUCTS AND GRILLES ATC-137 C D E F G H I K L MA B AT C DUCTS AND GRILLESPFP:27860 Removal and InstallationEJS004GM REMOVAL NOTE: This illustration is for RHD models. The layout for LHD models is symm

Page 3316 of 4555

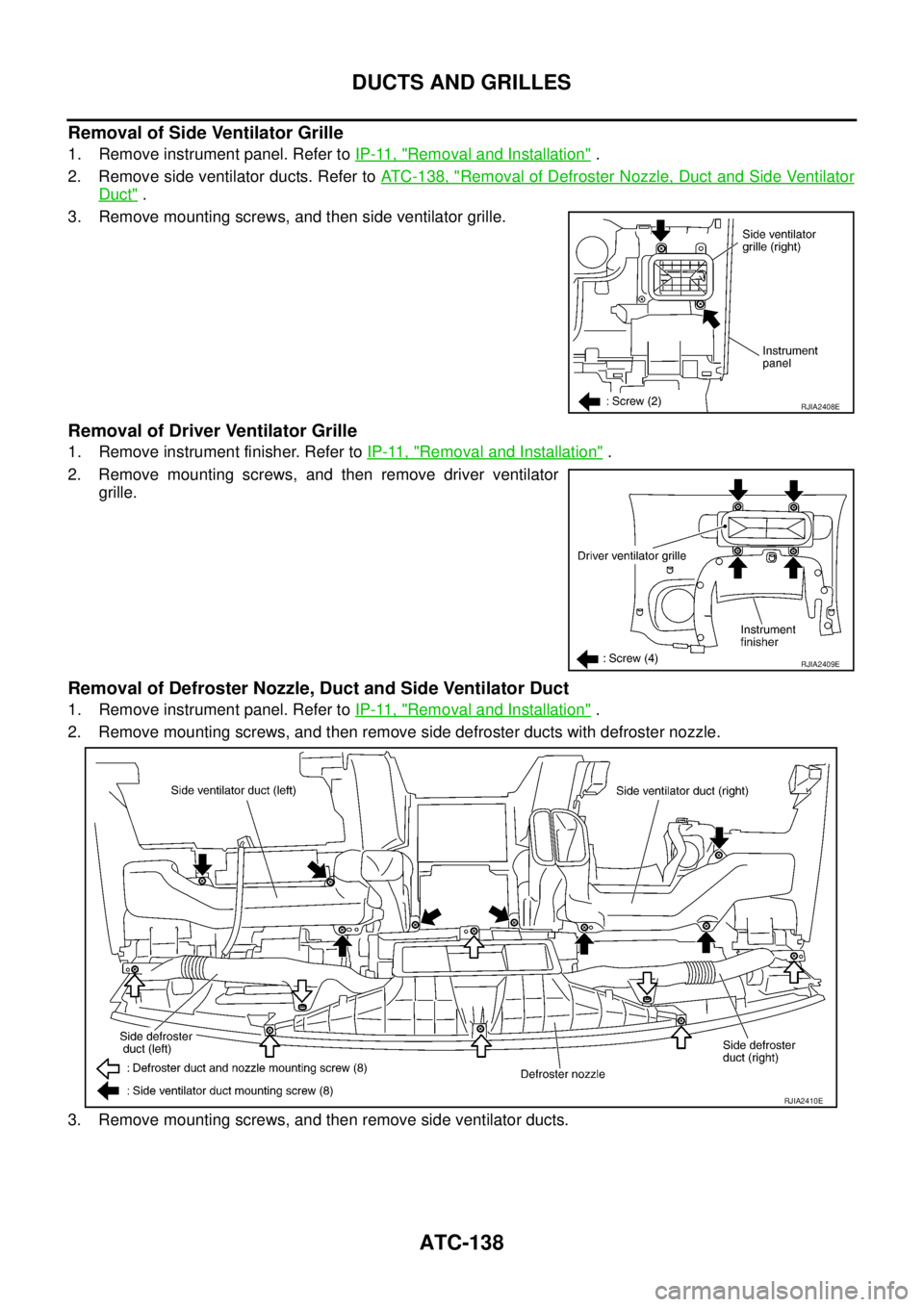

NISSAN X-TRAIL 2005 Service Repair Manual ATC-138 DUCTS AND GRILLES Removal of Side Ventilator Grille 1. Remove instrument panel. Refer to IP-11, "Removal and Installation" . 2. Remove side ventilator ducts. Refer to ATC-138, " Removal of D

Page 3317 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DUCTS AND GRILLES ATC-139 C D E F G H I K L MA B AT C Removal of Adaptor 1. Remove heater & cooling unit. Refer to ATC-131, "HEATER & COOLING UNIT ASSEMBLY" . 2. Remove mounting screw and clip. 3. S

Page 3318 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ATC-140 DUCTS AND GRILLES Removal of Floor Duct 1. Remove the front seats. Refer to SE-24, "FRONT SEAT" . 2. Remove multi-box (Instrument center lower panel). Refer to IP-11, " Removal and Installat

Page 3319 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual REFRIGERANT LINES ATC-141 C D E F G H I K L MA B AT C REFRIGERANT LINESPFP:92600 HFC-134a (R-134a) Service ProcedureEJS000V7 SETTING OF SERVICE TOOLS AND EQUIPMENT Discharging Refrigerant WARNING: A

Page 3320 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ATC-142 REFRIGERANT LINES *1ATC-24, "LUBRICANT RETURN OPERATION".*2ATC-160, " Checking for Refrigerant Leaks".*3ATC-161, " CHECKING PROCE- DURE". *4ATC-98, " PERFORMANCE TEST DIAGNOSIS". RJIA1940
