NISSAN X-TRAIL 2005 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-69
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

RELATIONSHIP BETWEEN MI, DTC, 1ST TRIP DTC AND DRIVING PATTERNS FOR “MISFIRE”
<EXHAUST QUALITY DETERIORATIO

Page 474 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-70
[QR (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

EXPLANATION FOR DRIVING PATTERNS FOR “MISFIRE <EXHAUST QUALITY DETERIORA-
TION>”, “FUEL INJECTION SYSTEM”
<Driving Pattern B>
Driv

Page 475 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-71
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

RELATIONSHIP BETWEEN MI, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE <EXHAUST QUALITY DETERIO

Page 476 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-72
[QR (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY
DETERIORATION>”, “FUEL INJECTION SYSTEM”
<Driving Pattern

Page 477 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
EC-73
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionEBS010LP
INTRODUCTION
The engine has an ECM to control major systems s

Page 478 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-74
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

WORK FLOW
Flow Chart
*1 If time data of “SELF-DIAG
RESULTS” is other than [0] or [1t],
perform EC-124, "
TROUBLE DIAG-
NOSIS FOR INTERMITTENT INCI-

Page 479 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
EC-75
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Description for Work Flow
STEP DESCRIPTION
STEP IGet detailed information about the conditions and the environment when the inc

TROUBLE DIAGNOSIS
EC-75
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Description for Work Flow
STEP DESCRIPTION
STEP IGet detailed information about the conditions and the environment when the incident/symptom occurred using EC-76,
"DIAGNOSTIC WORKSHEET" .
STEP IIBefore confirming the concern, check and write down (print out using CONSULT-II or GST) the (1st trip) DTC and the
(1st trip) freeze frame data, then erase the DTC and the data. (Refer to EC-63, "
HOW TO ERASE EMISSION-
RELATED DIAGNOSTIC INFORMATION" .) The (1st trip) DTC and the (1st trip) freeze frame data can be used when
duplicating the incident at STEP III & IV.
If the incident cannot be verified, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Study the relationship between the cause, specified by (1st trip) DTC, and the symptom described by the customer.
(The Symptom Matrix Chart will be useful. See EC-84, "
Symptom Matrix Chart" .)
Also check related service bulletins for information.
STEP IIITry to confirm the symptom and under what conditions the incident occurs.
The DIAGNOSTIC WORK SHEET and the freeze frame data are useful to verify the incident. Connect CONSULT-II
to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
If the malfunction code is detected, skip STEP IV and perform STEP V.
STEP IVTry to detect the (1st trip) DTC by driving in (or performing) the DTC Confirmation Procedure. Check and read the (1st
trip) DTC and (1st trip) freeze frame data by using CONSULT-II or GST.
During the (1st trip) DTC verification, be sure to connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO
TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
In case the DTC Confirmation Procedure is not available, perform the Overall Function Check instead. The (1st trip)
DTC cannot be displayed by this check, however, this simplified check is an effective alternative.
The NG result of the Overall Function Check is the same as the (1st trip) DTC detection.
STEP VTake the appropriate action based on the results of STEP I through IV.
If the malfunction code is indicated, proceed to TROUBLE DIAGNOSIS FOR DTC PXXXX.
If the normal code is indicated, proceed to the BASIC INSPECTION. (Refer to EC-79, "
Basic Inspection" .)Then per-
form inspections according to the Symptom Matrix Chart. (Refer to EC-84, "
Symptom Matrix Chart" .)
STEP VIIdentify where to begin diagnosis based on the relationship study between symptom and possible causes. Inspect the
system for mechanical binding, loose connectors or wiring damage using (tracing) Harness Layouts.
Gently shake the related connectors, components or wiring harness with CONSULT-II set in “DATA MONITOR
(AUTO TRIG)” mode.
Check the voltage of the related ECM terminals or monitor the output data from the related sensors with CONSULT-II.
Refer to EC-95, "
ECM Terminals and Reference Value" , EC-115, "CONSULT-II Reference Value in Data Monitor
Mode" .
The Diagnostic Procedure in EC section contains a description based on open circuit inspection. A short circuit
inspection is also required for the circuit check in the Diagnostic Procedure. For details, refer to Circuit Inspection in
GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" .
Repair or replace the malfunction parts.
If malfunctioning part cannot be detected, perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT" .
STEP VIIOnce you have repaired the circuit or replaced a component, you need to run the engine in the same conditions and
circumstances which resulted in the customer's initial complaint.
Perform the DTC Confirmation Procedure and confirm the normal code [DTC No. P0000] is detected. If the incident is
still detected in the final check, perform STEP VI by using a method different from the previous one.
Before returning the vehicle to the customer, be sure to erase the unnecessary (already fixed) (1st trip) DTC in ECM
and TCM (Transmission control module). (Refer to EC-63, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC
INFORMATION" and AT-42, "HOW TO ERASE DTC" .)

Page 480 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-76
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

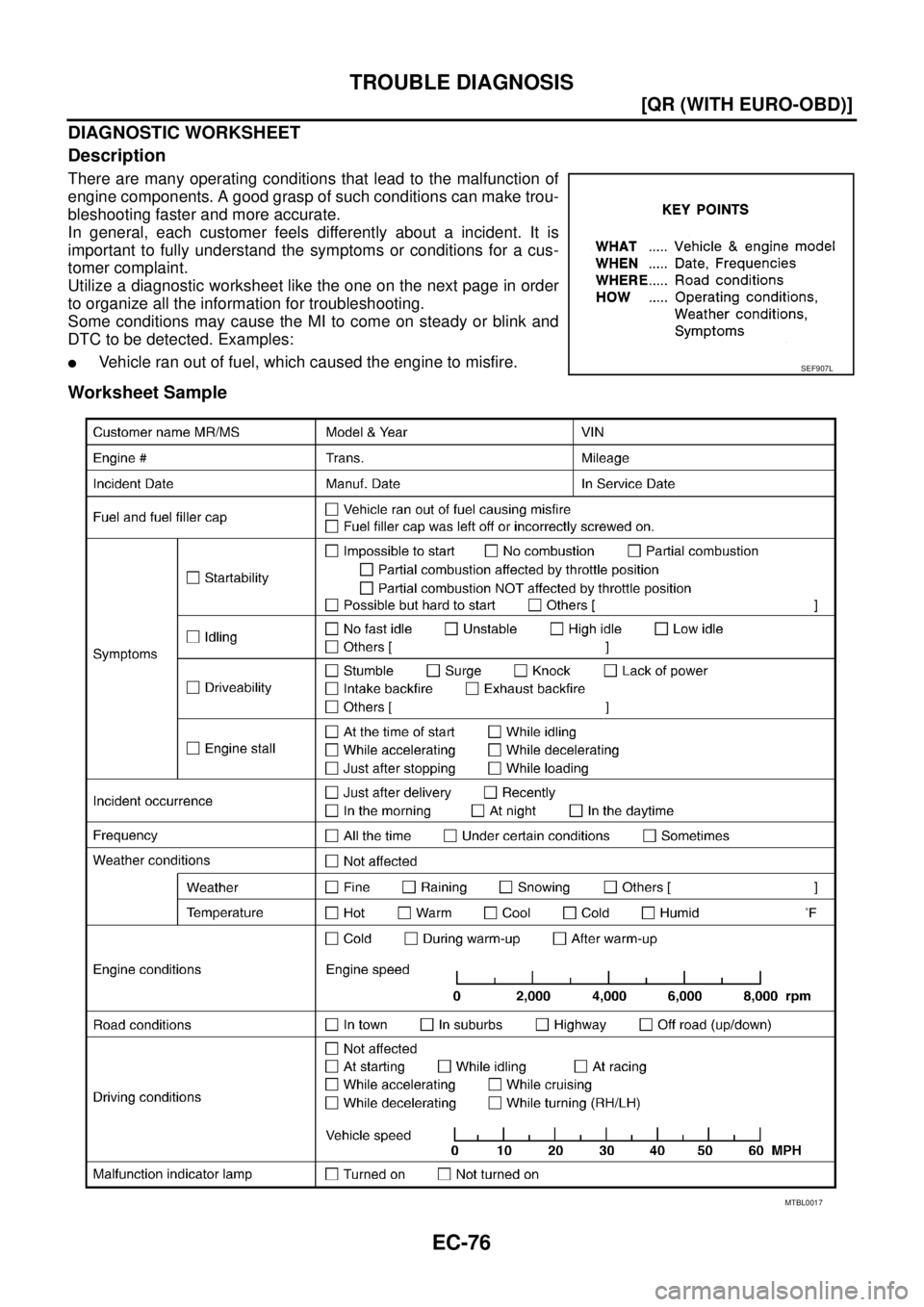

DIAGNOSTIC WORKSHEET
Description
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions c
