NISSAN X-TRAIL 2005 Service Repair Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING ..............................

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING ...................................... 2
Schematic ................................................................ 2
Wiring Diagram — POWER — ................................. 3
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 3
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” ......................................... 7
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” .................................... 8
Fuse ....................................................................... 12
Fusible Link ............................................................ 12
Circuit Breaker ....................................................... 12
GROUND .................................................................. 13
Ground Distribution ................................................ 13
MAIN HARNESS/LHD MODELS ........................ 13
MAIN HARNESS/RHD MODELS ........................ 16
ENGINE ROOM HARNESS/LHD MODELS ....... 19
ENGINE ROOM HARNESS/RHD MODELS ....... 21
ENGINE ROOM HARNESS ................................ 23
ENGINE CONTROL HARNESS/GASOLINE
ENGINE MODELS .............................................. 24
ENGINE CONTROL HARNESS/DIESEL
ENGINE MODELS .............................................. 25
BODY HARNESS/LHD MODELS ....................... 26
BODY HARNESS/RHD MODELS ....................... 27
BODY NO. 2 HARNESS/LHD MODELS ............. 28
BODY NO. 2 HARNESS/RHD MODELS ............ 29
ROOM LAMP HARNESS .................................... 30
BACK DOOR SUB HARNESS/REAR WINDOW
DEFOGGER HARNESS ..................................... 31
HARNESS ................................................................. 32
Harness Layout ...................................................... 32
HOW TO READ HARNESS LAYOUTS ............... 32
OUTLINE/LHD MODELS .................................... 33
OUTLINE/RHD MODELS .................................... 34
MAIN HARNESS/LHD MODELS ........................ 35MAIN HARNESS/RHD MODELS ........................ 37
ENGINE ROOM HARNESS/LHD MODELS ........ 39
ENGINE ROOM HARNESS/RHD MODELS ....... 45
ENGINE CONTROL HARNESS .......................... 51
BODY HARNESS/LHD MODELS ....................... 56
BODY HARNESS/RHD MODELS ....................... 57
BODY NO. 2 HARNESS/LHD MODELS ............. 58
BODY NO. 2 HARNESS/RHD MODELS ............. 59
ROOM LAMP HARNESS .................................... 60
FRONT DOOR HARNESS/LHD MODELS .......... 61
FRONT DOOR HARNESS/RHD MODELS ......... 62
REAR DOOR HARNESS .................................... 63
BACK DOOR HARNESS .................................... 64
Wiring Diagram Codes (Cell Codes) ...................... 65
ELECTRICAL UNITS LOCATION ............................ 69
Electrical Units Location ......................................... 69
ENGINE COMPARTMENT .................................. 69
PASSENGER COMPARTMENT/LHD MODELS ... 70
PASSENGER COMPARTMENT/RHD MODELS ... 72
HARNESS CONNECTOR ......................................... 74
Description .............................................................. 74
HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 74
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 75
ELECTRICAL UNITS ................................................ 76
Terminal Arrangement ............................................ 76
STANDARDIZED RELAY .......................................... 77
Description .............................................................. 77
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 77
TYPE OF STANDARDIZED RELAYS ................. 77
FUSE BLOCK - JUNCTION BOX (J/B) .................... 79
Terminal Arrangement ............................................ 79
FUSE AND FUSIBLE LINK BOX .............................. 80
Terminal Arrangement ............................................ 80

Page 4418 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PG-2
POWER SUPPLY ROUTING

POWER SUPPLY ROUTING PFP:00011
Schematic EKS00322
TKWB1779E

Page 4419 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual POWER SUPPLY ROUTING
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG

Wiring Diagram — POWER — EKS00323
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWA1634E

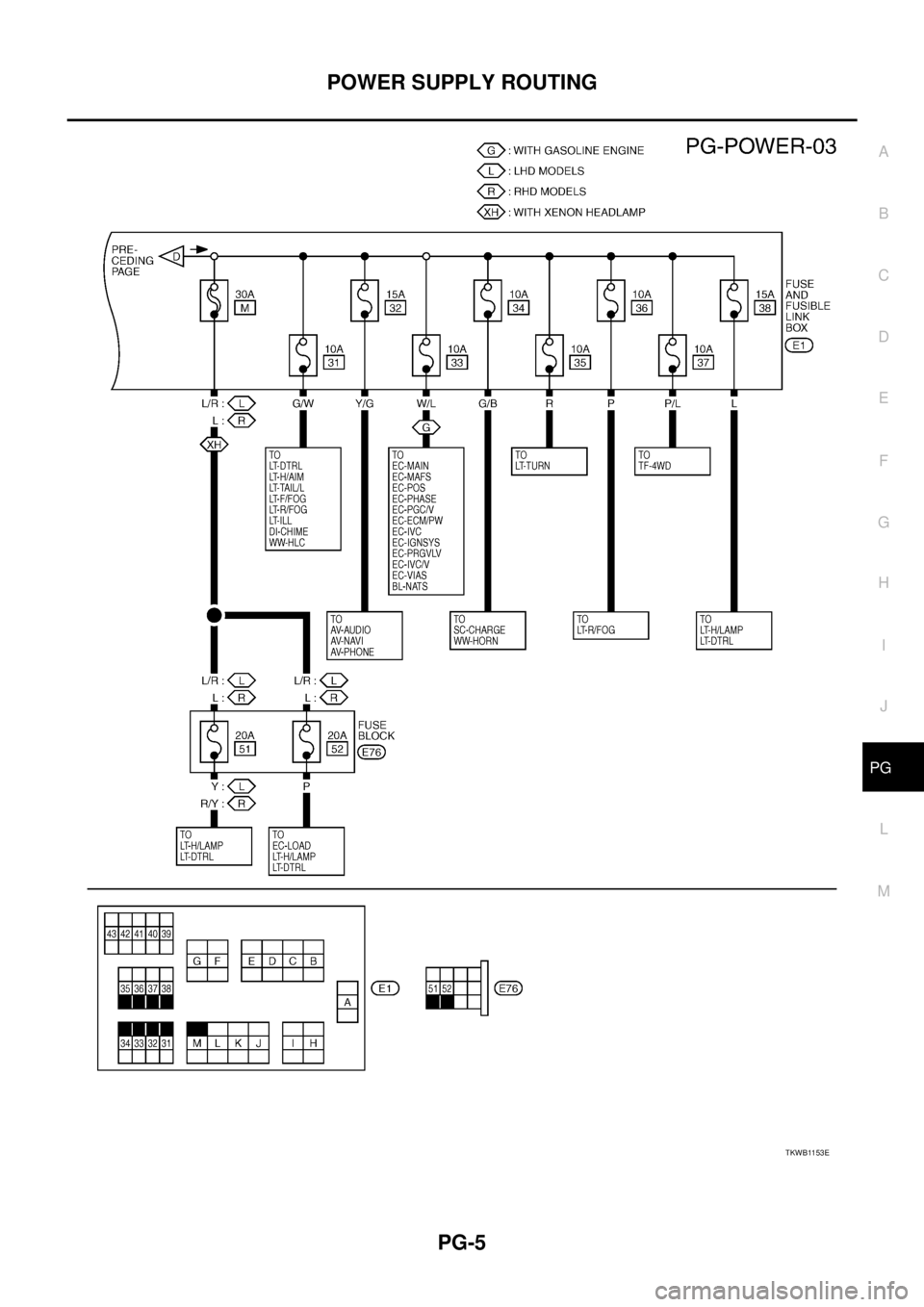

Page 4420 of 4555

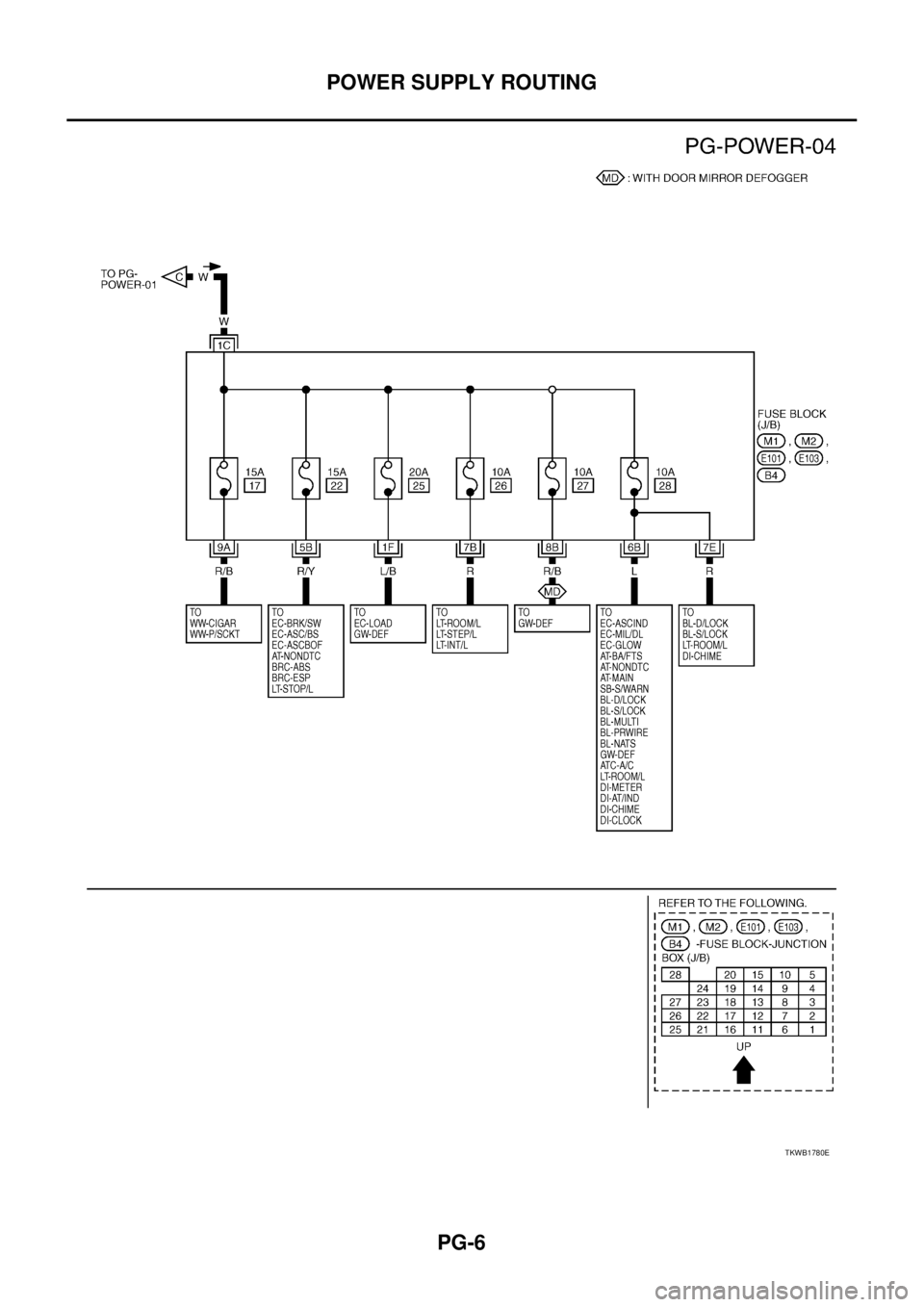

NISSAN X-TRAIL 2005 Service Repair Manual PG-4
POWER SUPPLY ROUTING

TKWA1635E

Page 4421 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual POWER SUPPLY ROUTING
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG

TKWB1153E

Page 4422 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PG-6
POWER SUPPLY ROUTING

TKWB1780E

Page 4423 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual POWER SUPPLY ROUTING
PG-7
C
D
E
F
G
H
I
J
L
MA
B
PG

ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON”
TKWB1781E

Page 4424 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PG-8
POWER SUPPLY ROUTING

IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START”
TKWB1155E
