2005 NISSAN X-TRAIL remote control

AV-28
AUDIO

Terminals and Reference Value for Audio Unit Without Cassette Deck EKS00EHT
26
(L/B)GroundRemote con-
trol AInput ONPress SOURCE
switchApprox. 0V
Steering wheel audio
controls do not func-
tion. Press SEEK UP
switchApprox. 1.7V
Press VOL UP
switchApprox. 3.3V
Except for above Approx. 5V
27
(L/R)GroundRemote con-
trol BInput ONPress SPECIAL
switchApprox. 0V
Steering wheel audio
controls do not func-
tion. Press SEEK
DOWN switchApprox. 1.7V
Press VOL
DOWN switchApprox. 3.3V
Except for above Approx. 5V
29
(B)GroundRemote con-
trol ground– ON – Approx. 0V – Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value Example of symptom
(+) (–)Ignition
switchOperation
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
1
(R/L)GroundLighting
switch signalInput ONLighting switch
ON (1st position)Approx. 12VAudio unit illumi-
nation does not
function when
lighting switch is
ON (position 1). Lighting switch
OFFApprox. 0V
3
(GY/L)Ground ACC power Input ACC – Battery voltageSystem does not
work properly.
5
(PU)– immobilizer – – – – –
6
(Y/R)GroundAntenna
signalOutput ON – More than approx. 10VReceiving status
of radio broadcast
becomes bad.
9
(Y/G)Ground Battery power Input OFF – Battery voltage System does not
work properly.
11
(SB)
*1
(L)*2
10
(GY)*1
(B/W)*2
Audio sound
signal front
LH Output ONReceive audio
signalNo sound from
front door speaker
or tweeter LH.
12
(LG)13
(B/Y)Audio sound
signal rear
LH Output ONReceive audio
signalNo sound from
rear door speaker
LH.
SKIA0177E
SKIA0177E

AUDIO
AV-29
C
D
E
F
G
H
I
J
L
MA
B
AV


*1: LHD model with navigation system

*2: Except *1

*3: RHD model with navigation system

*4: Except *3

*5: With audio steering wheel switch only
Audio Steering Wheel Switch Resistance CheckEKS00EHW
15
(SB)*3
(BR)*4
14
(GY)*3
(B/R)*4
Audio sound
signal front
RHOutput ONReceive audio
signalNo sound from
front door speaker
or tweeter RH.
16
(OR)7
(B/P)Audio sound
signal rear
RHOutput ONReceive audio
signalNo sound from
rear speaker RH.
20
*5
(L/B)22
*5
(B)Remote con-
trol AInput ONPress SOURCE
switchApprox. 0V
Steering wheel
audio controls do
not function. Press SEEK UP
switchApprox. 1.7V
Press VOL UP
switchApprox. 3.3V
Except for above Approx. 5V
21
*5
(L/R)22
*5
(B)Remote con-
trol BInput ONPress SPECIAL
switch Approx. 0V
Steering wheel
audio controls do
not function. Press SEEK
DOWN switchApprox. 1.7V
Press VOL
DOWN switchApprox. 3.3V
Except for above Approx. 5V
22
*5
(B)GroundRemote con-
trol ground– ON – Approx. 0V Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
SKIA0177E
SKIA0177E
Terminal Signal name ConditionResistance
(Ω)
1
2Source Depress source switch. Approx.0
Seek up (next) Depress (station) up switch. Approx.165
Volume (up) Depress volume up switch. Approx.652
3Special Depress special switch. Approx.0
Seek up (previous)Depress (station) down
switch.Approx.165
Volume (down)Depress volume down
switch.Approx.652
PKIB8676E

BCS-6
TIME CONTROL UNIT

15 W/GSeat belt warning lamp
(passenger side)Seat belt warning lamp (passenger
side) is illuminated (seat belt is unfas-
tened).12V
Seat belt warning lamp (passenger
side) is not illuminated (seat belt is
unfastened).0V
16 B/R Ground — 0V
17 G Ignition switch (ON) — 12V
18 W/L Ignition key switch (Insert)Key inserted → key removed from Igni-
tion key cylinder12V → 0V
19 R/L Lighting switch 1ST, 2ND position: ON → OFF 12V → 0V
20 GY Door lock/unlock switch Neutral → Locked 5V → 0V
21 BR/WSeat belt buckle switch
(driver side)Seat belt buckle switch (driver side) is
unfastened.*20V
Seat belt buckle switch (driver side) is
fastened.*212V
22 G/ORSeat belt buckle switch
(passenger side)Seat belt buckle switch (passenger
side) is unfastened.0V
Seat belt buckle switch (passenger
side) is fastened.12V
23 PU Door lock/unlock switchNeutral → Door lock/Unlock switch is
pushed.5V → 0V
24 LG/RDoor key cylinder switch
(driver side)OFF (neutral) → ON (locked) 5V → 0V
25 GY/LDoor key cylinder switch
(driver side)OFF (neutral) → ON (unlocked) 5V → 0V
26 R/Y Interior room lampWhen interior room lamp is operated
using remote controller
(Lamp switch is “DOOR” position.)12V → 0V
27 G/W Rear window defogger relayOFF → ON
(Ignition key is “ON” position.)12V → 0V
28 Y/G Door unlock sensor (driver side) Driver door: Locked → Unlocked 10V → 0V
29*1 Y/LDoor unlock sensor
(passenger side)Passenger door: Locked → Unlocked 5V → 0V
30 SB Front door switch (driver side) OFF (closed) → ON (open) 5V → 0V
31 R/W Passenger and rear doors switch OFF (closed) → ON (open) 5V → 0V
32 OR Multi-remote control unitRemote controller lock button is pushed.
(Ignition switch is not “ON” position.)0V → 5V
33 P/L Multi-remote control unitRemote controller unlock button is
pushed.
(Ignition switch is not “ON” position.)0V → 5V
34 B/Y NATS release signal Ignition switch ON→OFF 0V → 5V Terminal
No.Wire
colorConnections Operation condition Voltage (Approximate values)

BL-2 PRELIMINARY CHECK ....................................... 53
SYMPTOM CHART ............................................. 54
Power Supply and Ground Circuit Check ............... 55
Door Lock/Unlock Switch Check ............................ 56
Door Key Cylinder Switch Check ............................ 58
Front Door Lock Actuator (Driver Side) Check ....... 60
Front Door Lock Actuator (Passenger Side) Check ... 61
Rear Door Lock Actuator LH Check ....................... 62
Rear Door Lock Actuator RH Check ....................... 63
Back Door Lock Actuator Check ............................. 64
Door Switch Check ................................................. 65
Door Unlock Sensor Check .................................... 66
Key Switch Check ................................................... 67
Super Lock Actuator (Driver Side) Check ............... 68
Super Lock Actuator (Passenger Side) Check ....... 69
Super Lock Actuator Check / Rear LH ................... 70
Super Lock Actuator Check / Rear RH ................... 71
NATS Release Signal Check .................................. 72
Ignition Switch “ON” Circuit Check ......................... 73
MULTI-REMOTE CONTROL SYSTEM ..................... 74
Component Parts and Harness Connector Location ... 74
System Description ................................................. 75
FUNCTION .......................................................... 75
LOCK OPERATION ............................................. 75
UNLOCK OPERATION ........................................ 75
HAZARD REMINDER .......................................... 75
MULTI-REMOTE CONTROLLER ID CODE
ENTRY ................................................................ 75
Schematic ............................................................... 76
Wiring Diagram — MULTI — .................................. 77
Terminal and Reference Value for Multi-remote
Control Unit ............................................................. 80
Terminal and Reference Value for Time Control Unit ... 80
Symptom Chart ....................................................... 81
Remote Controller Battery Check ........................... 82
Power Supply and Ground Circuit Check for Time
Control Unit ............................................................. 82
Power Supply and Ground Circuit Check for Multi-
Remote Control Unit ............................................... 83
Time Control Unit Lock Signal Circuit Check .......... 84
Time Control Unit Unlock Signal Circuit Check ...... 85
Hazard Reminder Check ........................................ 86
ID Code Entry Procedure ....................................... 89
Remote Controller Battery Replacement ................ 90
FRONT DOOR LOCK ............................................... 91
Component Parts Location ..................................... 91
Component Parts Location (Super Lock) ................ 91
Inspection and Adjustment ..................................... 91
OUT SIDE HANDLE ROD ADJUSTMENT .......... 92
Removal and Installation ........................................ 92
REMOVAL ........................................................... 92
INSTALLATION .................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY ................................................... 93
ASSEMBLY ......................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY (SUPER LOCK) ......................... 93
ASSEMBLY ......................................................... 94
REAR DOOR LOCK .................................................. 95Component Parts Location ..................................... 95
Component Parts Location (Super Lock) ................ 95
Inspection and Adjustment ...................................... 95
OUT SIDE HANDLE ROD ADJUSTMENT .......... 96
Removal and Installation ......................................... 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 97
Disassembly and Assembly .................................... 98
DISASSEMBLY .................................................... 98
ASSEMBLY .......................................................... 98
Disassembly and Assembly .................................... 98
DISASSEMBLY (SUPER LOCK) ......................... 98
ASSEMBLY .......................................................... 98
BACK DOOR ............................................................. 99
Fitting Adjustment ................................................... 99
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT ................................................................... 99
Back Door Assembly .............................................100
REMOVAL AND INSTALLATION .......................100
INSPECTION .....................................................100
Removal and Installation of Back Door Handle ....100
REMOVAL ..........................................................100
INSTALLATION ..................................................101
Removal and Installation of Back Door Lock and
Actuator .................................................................101
REMOVAL ..........................................................101
INSTALLATION ..................................................101
Removal and Installation of Back Door Weatherstrip .102
REMOVAL ..........................................................102
INSTALLATION ..................................................102
FUEL FILLER LID OPENER ...................................103
Component Parts Location ...................................103
THEFT WARNING SYSTEM ...................................104
Wiring Diagram — THEFT —/PRI-WIRE ..............104
LHD MODELS ....................................................104
RHD MODELS ...................................................106
NATS (NISSAN ANTI-THEFT SYSTEM) .................108
Component Parts and Harness Connector Location .108
System Description ...............................................109
System Composition .............................................110
ECM Re-communicating Function ........................110
Wiring Diagram — NATS — .................................. 111
LHD MODELS .................................................... 111
RHD MODELS ...................................................113
CONSULT-II ..........................................................115
CONSULT-II INSPECTION PROCEDURE ........115
CONSULT-II DIAGNOSTIC TEST MODE FUNC-
TION ..................................................................116
HOW TO READ SELF-DIAGNOSTIC RESULTS .116
NATS SELF-DIAGNOSTIC RESULTS ITEM
CHART ...............................................................117
Work Flow .............................................................118
Trouble Diagnoses ................................................119
SYMPTOM MATRIX CHART 1 ..........................119
SYMPTOM MATRIX CHART 2 ..........................121
DIAGNOSTIC SYSTEM DIAGRAM ...................121
Diagnostic Procedure 1 .........................................121
Diagnostic Procedure 2 .........................................122
Diagnostic Procedure 3 .........................................125

BL-22
POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEMPFP:24814
System DescriptionEIS001SE
OPERATION
Power door lock/unlock operation by door key cylinder

With the key inserted into driver's door key cylinder, turning it to LOCK will lock all doors.

With the key inserted into driver's door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch setting to LOCK will lock all doors.

With lock/unlock switch setting to UNLOCK will unlock all doors.
Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)

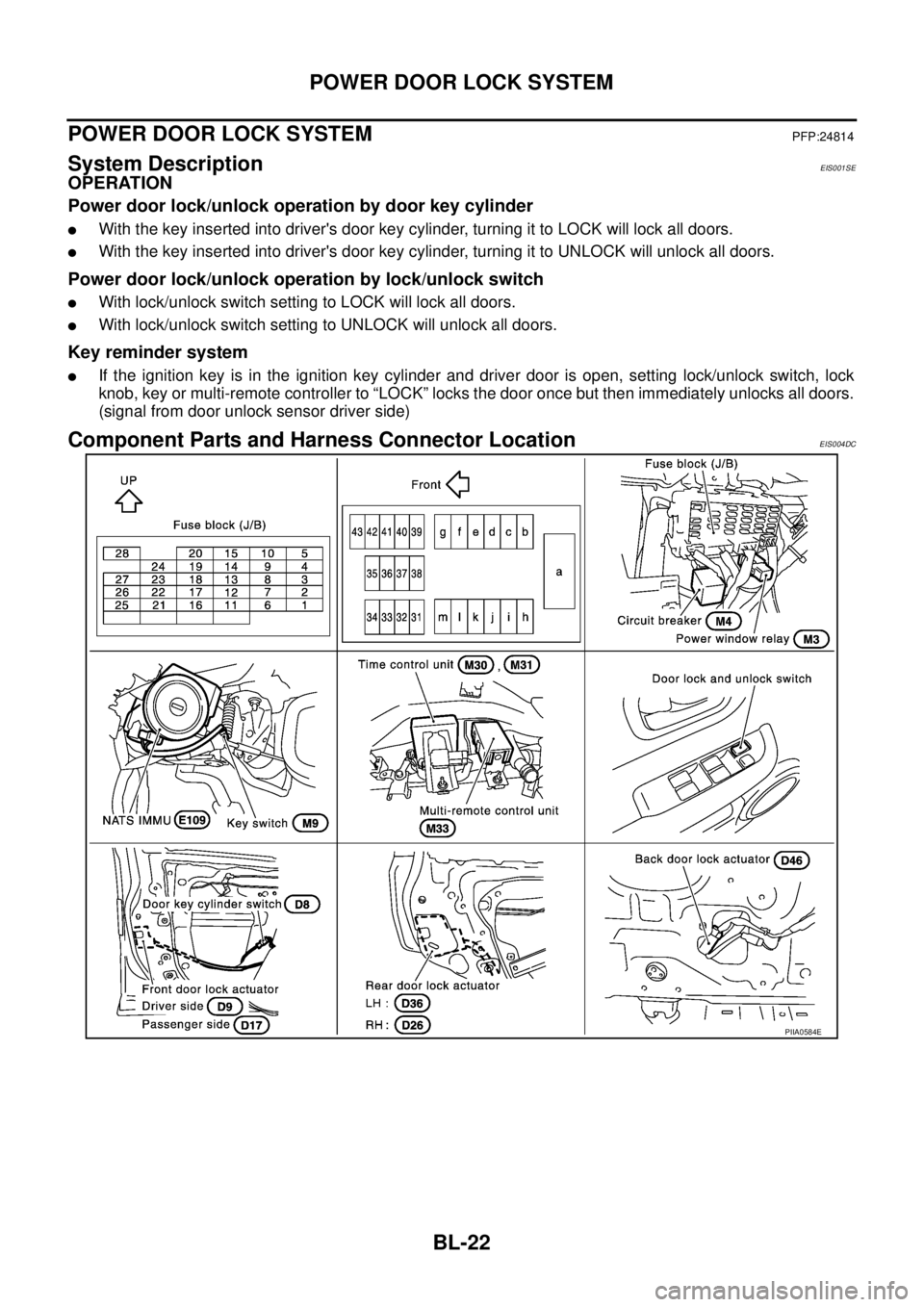

Component Parts and Harness Connector LocationEIS004DC
PIIA0584E

BL-42
POWER DOOR LOCK — SUPER LOCK —

POWER DOOR LOCK — SUPER LOCK —PFP:24814
System DescriptionEIS001R6
OUTLINE
Power door lock system with super lock and key reminder is controlled by time control unit. Super lock has a
higher anti-theft performance than conventional power door lock systems.

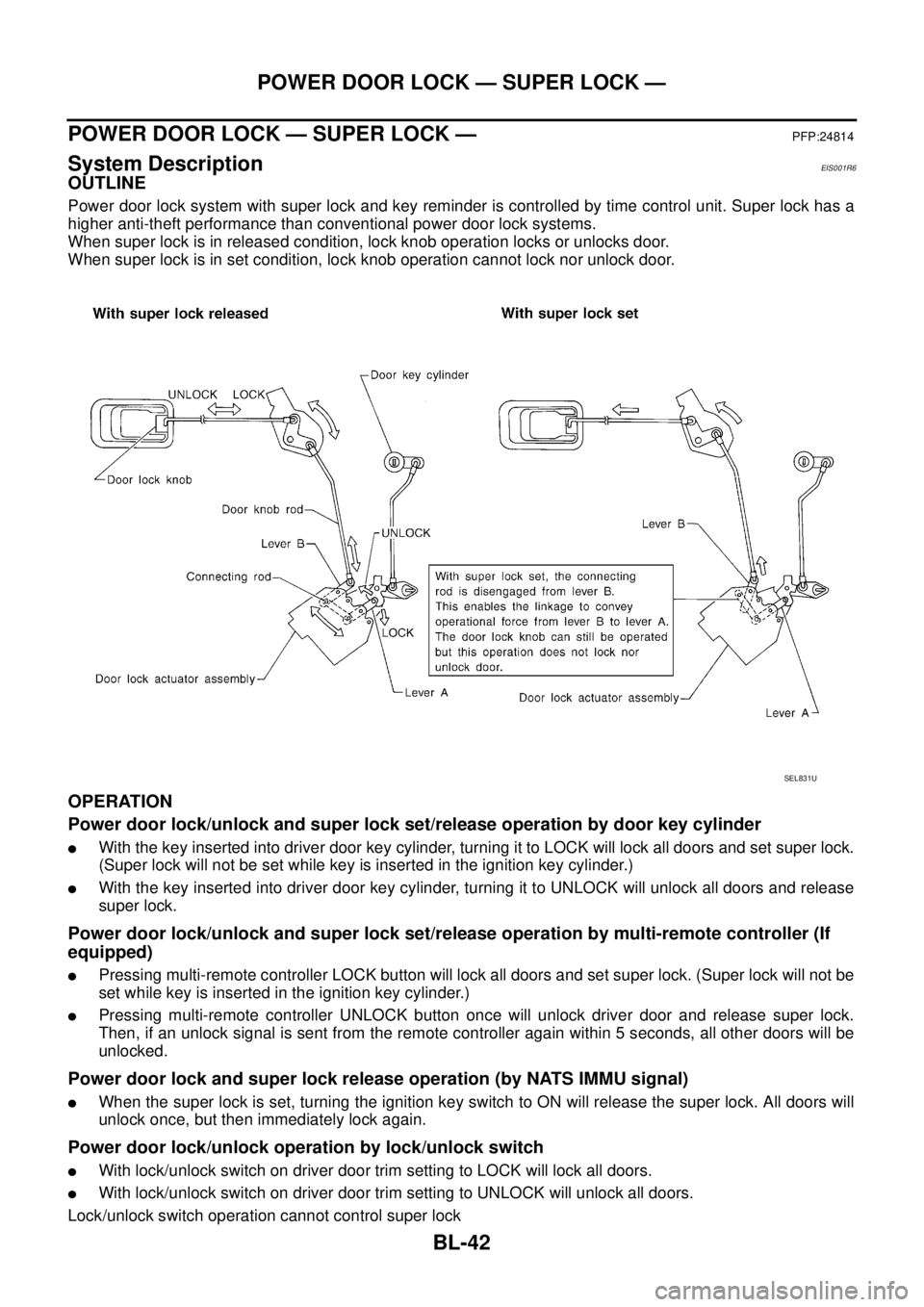

When super lock is in released condition, lock knob operation locks or unlocks door.
When super lock is in set condition, lock knob operation cannot lock nor unlock door.
OPERATION
Power door lock/unlock and super lock set/release operation by door key cylinder

With the key inserted into driver door key cylinder, turning it to LOCK will lock all doors and set super lock.
(Super lock will not be set while key is inserted in the ignition key cylinder.)

With the key inserted into driver door key cylinder, turning it to UNLOCK will unlock all doors and release
super lock.
Power door lock/unlock and super lock set/release operation by multi-remote controller (If
equipped)

Pressing multi-remote controller LOCK button will lock all doors and set super lock. (Super lock will not be
set while key is inserted in the ignition key cylinder.)

Pressing multi-remote controller UNLOCK button once will unlock driver door and release super lock.
Then, if an unlock signal is sent from the remote controller again within 5 seconds, all other doors will be
unlocked.
Power door lock and super lock release operation (by NATS IMMU signal)

When the super lock is set, turning the ignition key switch to ON will release the super lock. All doors will
unlock once, but then immediately lock again.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch on driver door trim setting to LOCK will lock all doors.

With lock/unlock switch on driver door trim setting to UNLOCK will unlock all doors.
Lock/unlock switch operation cannot control super lock
SEL831U

POWER DOOR LOCK — SUPER LOCK —
BL-43
C
D
E
F
G
H
J
K
L
MA
B
BL

Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
System initialization

System initialization is required when battery cables are reconnected. Conduct the following to release
super lock once;
– insert the key into the ignition key cylinder and turn it to ON.
– LOCK/UNLOCK operation using door key cylinder or multi-remote controller.

BL-52
POWER DOOR LOCK — SUPER LOCK —

25 OR/L Door key cylinder unlock switch OFF (Neutral) → ON (Unlocked) 5 → 0
28 Y/G Door unlock sensor (driver side) Driver door: Locked → Unlocked 10 → 0
29 Y/LDoor unlock sensor
(passenger side)Passenger door: Locked → Unlocked 5 → 0
30 SB Front door switch (driver side) Door open (ON) → close (OFF) 0 →5
32 OR Key less lock signalRemote controller button
Lock pressed
(Ignition switch is not at “ON” position.)0 → 5 (For 0.5 seconds)
33 P/L Key less unlock signalRemote controller button
Unlock pressed
(Ignition switch is not at “ON” position.)0 → 5 (For 0.5 seconds)
34 B/Y NATS release signal — 0 → 5 Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approx.)
