RADIATOR
CO-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using a radiator cap tester adapter (special service tool: EG17650301)
and a radiator cap tester (commercial service tool). Refer to CO-9, "
LEAK CHECK" .
Start and warm up engine. Visually check if there is no leaks of engine coolant and A/T fluid (A/T models).
Checking Radiator CapEBS00KOK
Check valve seat of radiator cap.
–Check if valve seat is swollen to the extent that the edge of the
plunger cannot be seen when watching it vertically from the top.
–Check if valve seat has no soil and damage.
Pull negative-pressure valve to open it, and make sure that it is
completely closed when released.
–Make sure that there is no dirt or damage on the valve seat of
radiator cap negative-pressure valve.
–Make sure that there are no unusualness in the opening and
closing conditions of negative-pressure valve.
Check radiator cap relief pressure.
–When connecting radiator cap to the radiator cap tester (com-
mercial service tool) and the radiator cap tester adapter [SST],
apply engine coolant to the cap seal surface.
Replace radiator cap if there is an unusualness related to the above three.
CAUTION:
When installing radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue
or foreign material.
Checking RadiatorEBS00KOL
Check radiator for mud or clogging. If necessary, clean radiator as follows.
Be careful not to bend or damage radiator fins.
When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radiator
shroud and horns. Then tape harness and connectors to prevent water from entering.
1. Apply water by hose to the back side of the radiator core vertically downward.
2. Apply water again to all radiator core surface once per minute.
PBIC2816E
SMA967B
Standard:
78 - 98 kPa (0.78 - 0.98bar, 0.8 - 1.0 kg/cm
2 , 11 - 14 psi)
Limit:
59 kPa (0.59bar, 0.6 kg/cm
2 , 9 psi)
SLC755AC
Page 370 of 4555
CO-14
[QR]
RADIATOR
3. Stop washing if any stains no longer flow out from the radiator.
4. Blow air into the back side of radiator core vertically downward.
Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm2 , 71 psi) and keep distance more than 30 cm
(11.8 in).
5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.
Page 371 of 4555
RADIATOR (ALUMINUM TYPE)
CO-15
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
RADIATOR (ALUMINUM TYPE)PFP:21460
Disassembly and AssemblyEBS00KOM
PREPARATION
1. Attach the spacer to the tip of radiator plate pliers A (special ser-
vice tool).
Spacer specification: 1.5 mm (0.059 in) thick × 18 mm (0.71 in)
wide × 8.5 mm (0.335 in) long.
2. Make sure that when radiator plate pliers A (special service tool) are closed dimension H′′ is approx. 7.6
mm (0.299 in).
3. Adjust dimension H′′ with the spacer thickness, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with a radiator plate pliers B
(special service tool).
CAUTION:
Do not disassemble lower tank and A/T fluid cooler. (A/T
models)
NOTE:
Regard lower tank and A/T fluid cooler as an assembly. (A/T
models)

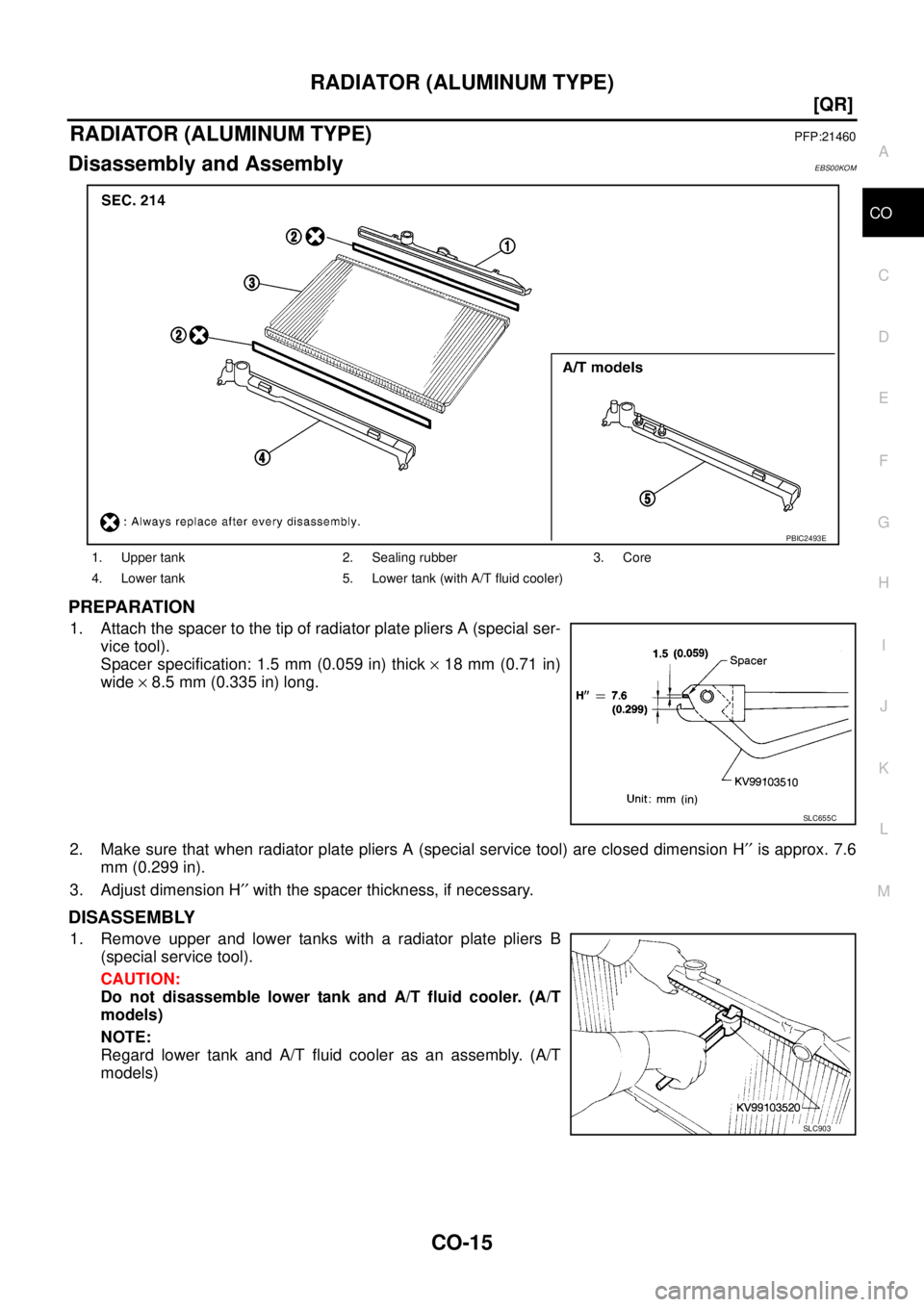

1. Upper tank 2. Sealing rubber 3. Core
4. Lower tank 5. Lower tank (with A/T fluid cooler)
PBIC2493E
SLC655C
SLC903
Page 372 of 4555
CO-16
[QR]
RADIATOR (ALUMINUM TYPE)
Grip the crimped edge and bend it upwards so that radiator
plate pliers B slips off.
CAUTION:
Do not bend excessively.
In areas where radiator plate pliers B cannot be used, use
screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932
Page 373 of 4555
RADIATOR (ALUMINUM TYPE)
CO-17
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
2. Install sealing rubber while pushing it in with fingers.
CAUTION:
Be careful not to twist sealing rubber.

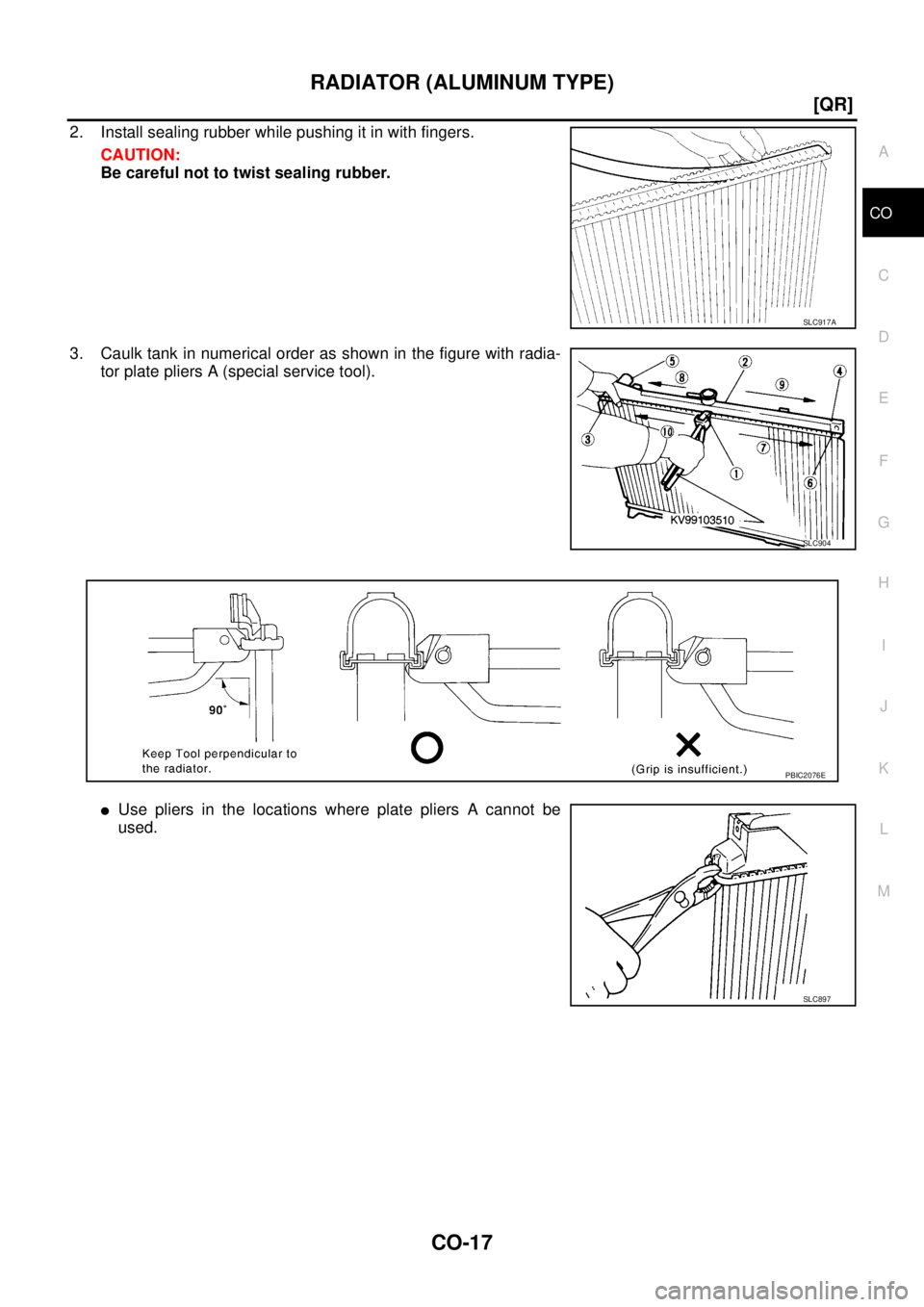

3. Caulk tank in numerical order as shown in the figure with radia-
tor plate pliers A (special service tool).
Use pliers in the locations where plate pliers A cannot be
used.
SLC917A
SLC904
PBIC2076E
SLC897
Page 374 of 4555
CO-18
[QR]
RADIATOR (ALUMINUM TYPE)
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage.
Refer to CO-18, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (special service
tool) and radiator cap tester (commercial service tool).
WARNING:
To prevent the risk of hose coming undone while under
pressure, securely fasten it down with hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
(A/T models)
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC933
SLC934
Page 375 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual COOLING FAN
CO-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
COOLING FANPFP:21140
Removal and InstallationEBS011TD
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-9, "Changing Engine Coolant" .
CAUTI NISSAN X-TRAIL 2005 Service Repair Manual COOLING FAN
CO-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
COOLING FANPFP:21140
Removal and InstallationEBS011TD
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-9, "Changing Engine Coolant" .
CAUTI](/manual-img/5/57403/w960_57403-374.png)
COOLING FAN
CO-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
COOLING FANPFP:21140
Removal and InstallationEBS011TD
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belt.
2. Remove air duct (inlet) and air duct assembly. Refer to EM-16, "
AIR CLEANER AND AIR DUCT" .
3. Disconnect radiator hose (upper) at radiator side. Refer to CO-12, "
RADIATOR" .
CAUTION:
Do not spill engine coolant on drive belt.
4. Disconnect harness connectors from fan motors, and move them to aside.
5. Remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
Cooling fans are controlled by ECM. For details, refer to EC-352, "
DTC P1217 ENGINE OVER TEMPERA-
TURE" (WITH EURO-OBD) or EC-755, "DTC P1217 ENGINE OVER TEMPERATURE" (WITHOUT EURO-
OBD).
1. Fan motor (LH) 2. Fan motor (RH) 3. Fan shroud
4. Cooling fan (RH) 5. Cooling fan (LH)
PBIC2593E
Page 376 of 4555
CO-20
[QR]
COOLING FAN
Disassembly and Assembly EBS01FCL
DISASSEMBLY
1. Remove cooling fans (RH and LH) from fan motors (RH and LH).
Put marks to identify installation positions of cooling fans (RH and LH).
2. Remove fan motors (RH and LH) from fan shroud.
Put marks to identify installation positions of cooling fan motors (RH and LH).
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
ASSEMBLY
Assembly is the reverse order of disassembly.
CAUTION:
RH and LH cooling fans and fan motors are different. Be careful not to misassemble them.
