NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER BLOCK
EM-99
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Install drive plate, reinforcement plate and pilot converter as
shown in figure (A/T models).
Using a drift of 33 mm (1.30 in) in diameter, pres

CYLINDER BLOCK
EM-99
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Install drive plate, reinforcement plate and pilot converter as
shown in figure (A/T models).
Using a drift of 33 mm (1.30 in) in diameter, press-fit pilot con-
verter into the end of crankshaft until it stops (A/T models).
14. Install knock sensor.
Install knock sensor with connector facing lower left by 45
degrees as shown in the figure.
CAUTION:
Do not tighten mounting bolts while holding the connec-
tor.
If any impact by dropping is applied to knock sensor,
replace it with a new one.
NOTE:
Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of knock sensor.
Make sure that knock sensor does not interfere with other
parts.
15. Install crankshaft position sensor (POS).
16. Assemble in the reverse order of disassembly after this step.
How to Select Piston and Bearing EBS00KNV
DESCRIPTION
*For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only grade “0” is available.) The
information at the shipment from the plant is described as a reference.
The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.
For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
KBIA0075E
KBIA0069E
Selection points Selection parts Selection items Selection methods
Between cylinder block and
crankshaftMain bearingMain bearing grade (bearing
thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft and con-
necting rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer
diameter determine connecting
rod bearing selection.
Between cylinder block and pis-
tonPiston and piston pin assembly
(piston is available together
with piston pin as an assembly.)Piston grade (piston outer
diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
Between piston and connecting
rod
*———

Page 154 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-100
[QR]
CYLINDER BLOCK

HOW TO SELECT PISTON
When New Cylinder Block is Used
Check the cylinder bore grade on rear left side of cylinder block,
and select piston of the same grade.
If there is

Page 155 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER BLOCK
EM-101
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

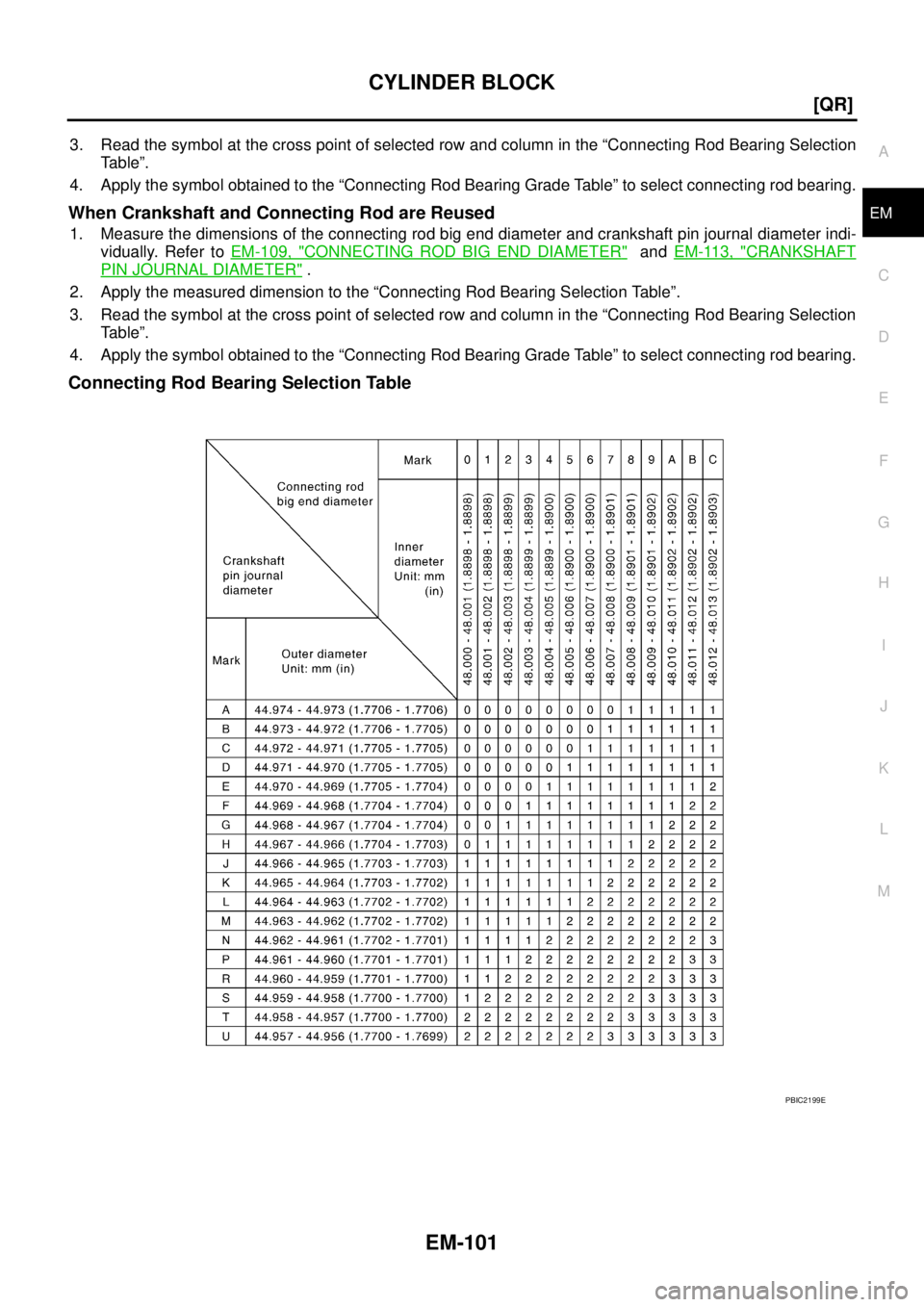

3. Read the symbol at the cross point of selected row and column in the “Connecting Rod Bearing Selection
Table”.
4. Apply the symbol obtaine

Page 156 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-102
[QR]
CYLINDER BLOCK

Connecting Rod Bearing Grade Table
Unit: mm (in)
Undersize Bearings Usage Guide
When the specified connecting rod bearing oil clearance is not obtained with standard size

Page 157 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER BLOCK
EM-103
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

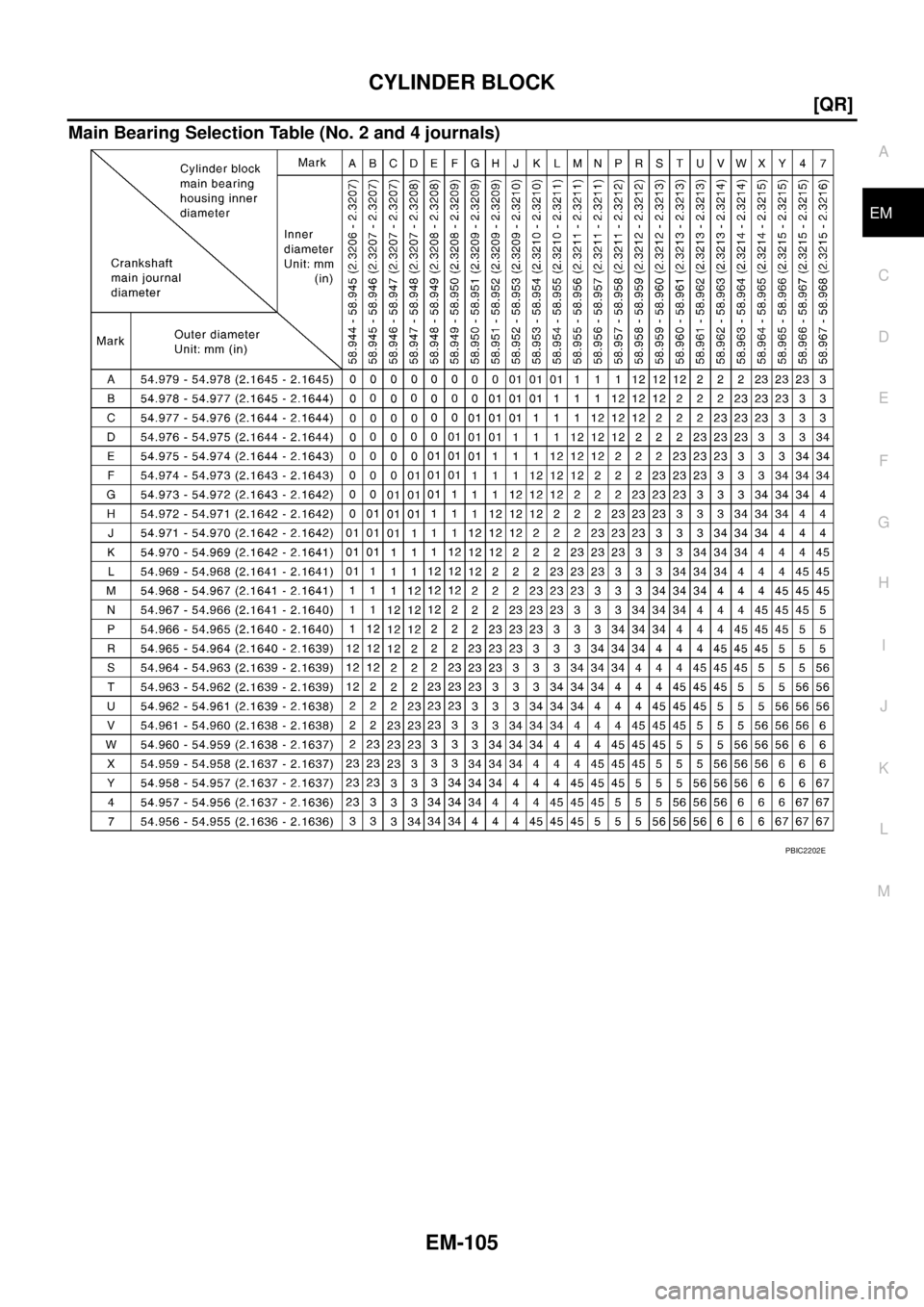

3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.
CAUTION:
There are two main bearing s

Page 158 of 4555

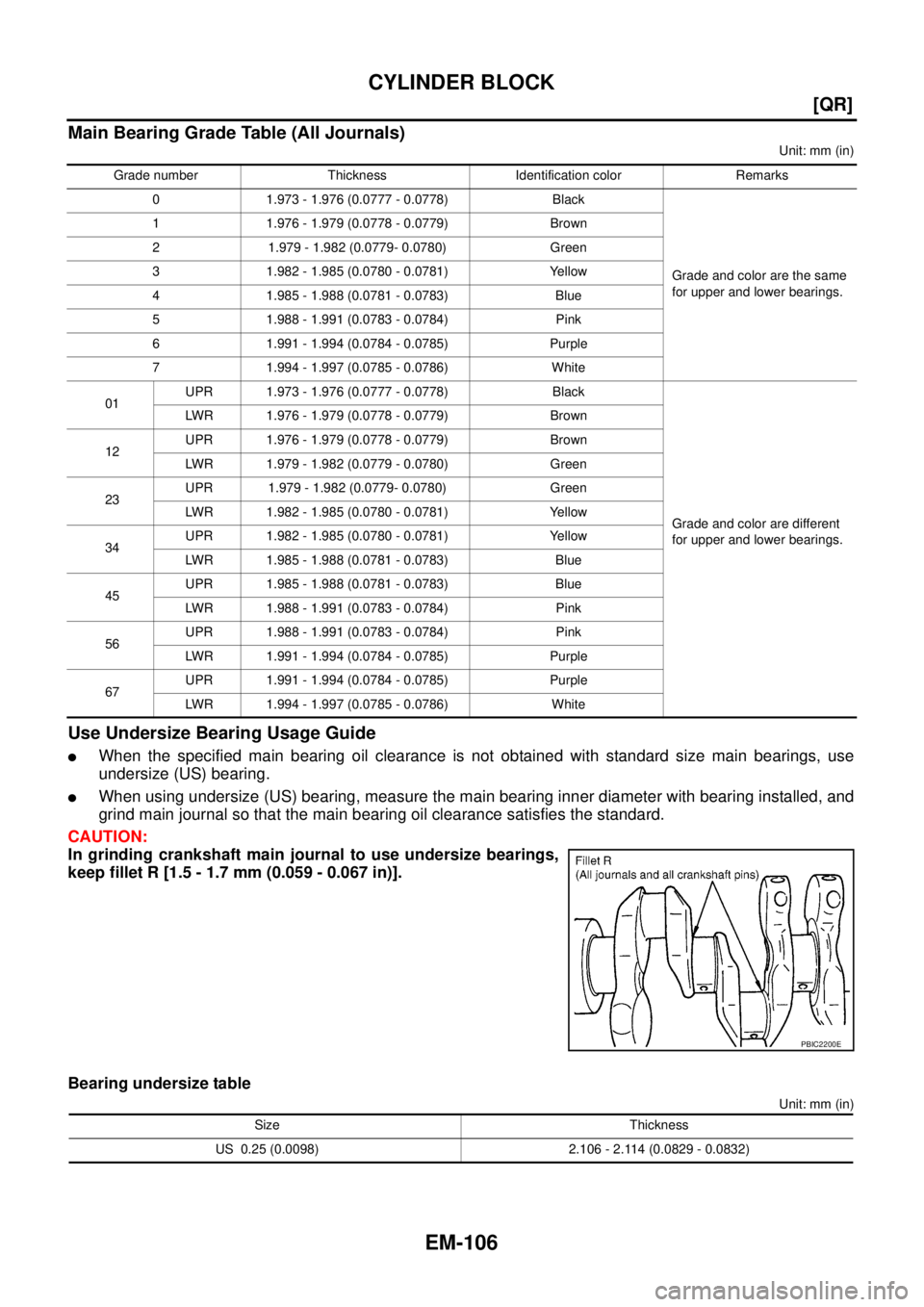

NISSAN X-TRAIL 2005 Service Repair Manual EM-104
[QR]
CYLINDER BLOCK

Main Bearing Selection Table (No. 1, 3 and 5 journals)
PBIC2201E

Page 159 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER BLOCK
EM-105
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

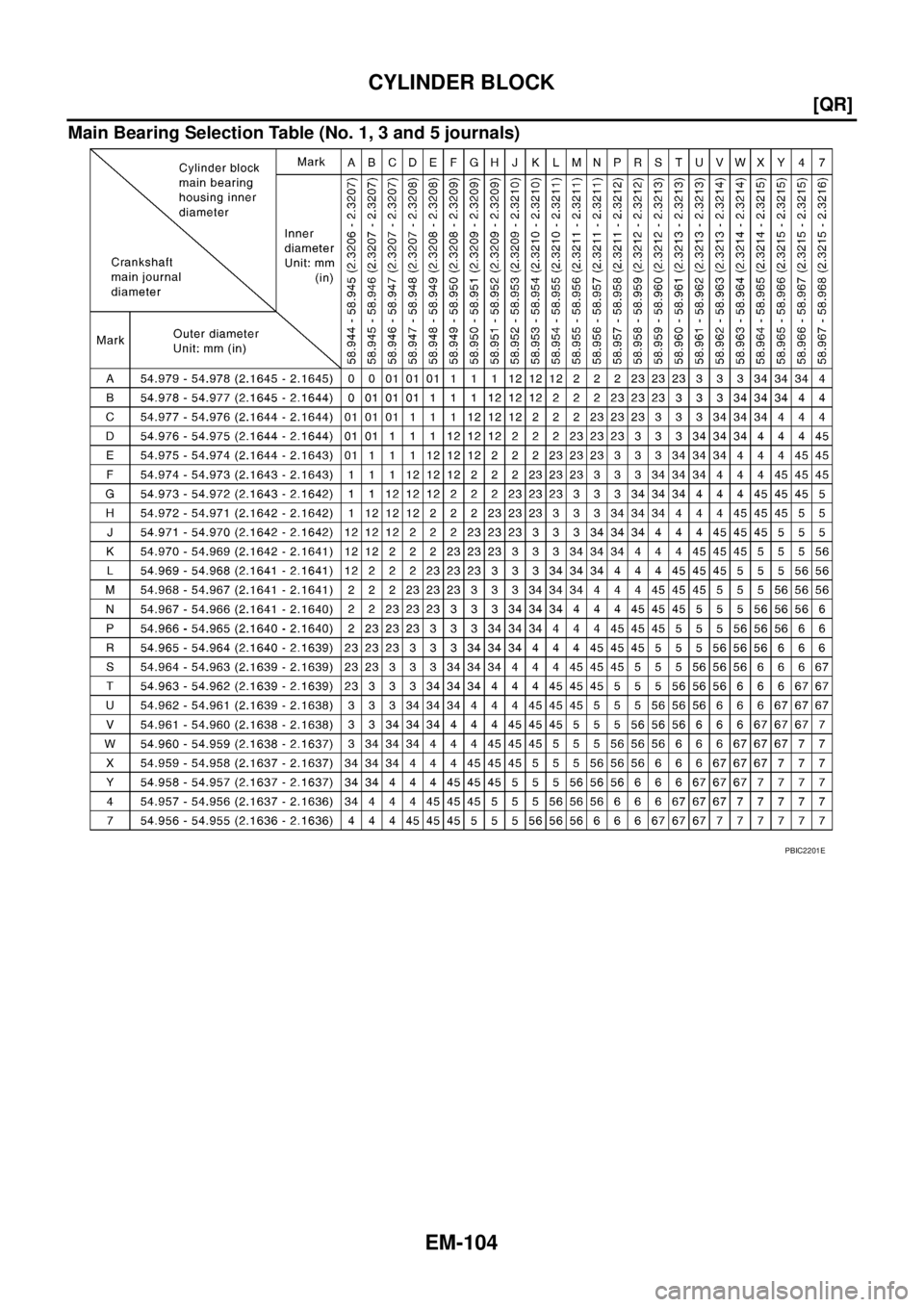

Main Bearing Selection Table (No. 2 and 4 journals)
PBIC2202E

Page 160 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-106
[QR]
CYLINDER BLOCK

Main Bearing Grade Table (All Journals)
Unit: mm (in)
Use Undersize Bearing Usage Guide
When the specified main bearing oil clearance is not obtained with standard size m
