TC BOOST CONTROL SOLENOID VALVE
EC-1661
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference valves, and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS0125W
1. CHECK OVERALL FUNCTION
1. Start engine and let it idle.
2. Make sure that turbocharger control actuator rod moves slightly
when engine is started.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
6LTurbocharger boost control
solenoid valve[Ignition switch ON]
Warm-up condition
Idle speed0 - 12.5V
[Ignition switch ON]
Warm-up condition
Engine speed is 2,000 rpm0 - 12.5V
MBIB0889E
MBIB0890E
PBIB1936E
Page 2066 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EC-1662
[YD (WITHOUT EURO-OBD)]
TC BOOST CONTROL SOLENOID VALVE
2. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Disconnect turbocharger boost control solenoid valve harnes NISSAN X-TRAIL 2005 Service Repair Manual EC-1662
[YD (WITHOUT EURO-OBD)]
TC BOOST CONTROL SOLENOID VALVE
2. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Disconnect turbocharger boost control solenoid valve harnes](/manual-img/5/57403/w960_57403-2065.png)
EC-1662
[YD (WITHOUT EURO-OBD)]
TC BOOST CONTROL SOLENOID VALVE
2. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Disconnect turbocharger boost control solenoid valve harness
connector.
2. Turn ignition switch ON.
3. Check voltage between turbocharger boost control solenoid
valve terminals 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F30, M63
Harness for open and short between turbocharger boost control solenoid valve and ECM relay
Harness for open and short between turbocharger boost control solenoid valve and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 6 and turbocharger boost control solenoid valve terminal
2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE
Refer to EC-1663, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace turbocharger boost control solenoid valve.
PBIB1897E
Voltage: Battery voltage
PBIB1945E
Continuity should exist.
Page 2067 of 4555
TC BOOST CONTROL SOLENOID VALVE
EC-1663
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS0125X

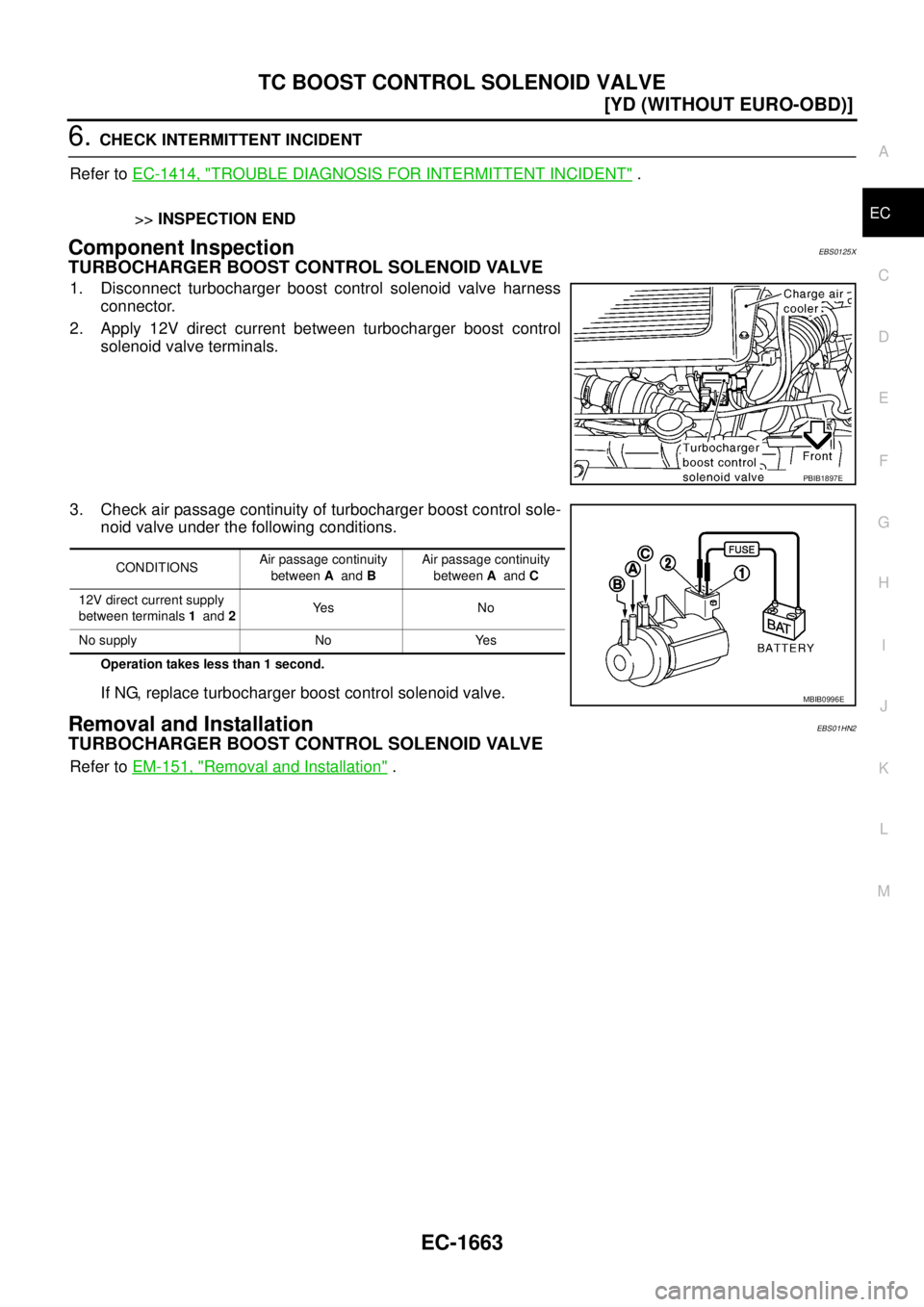

TURBOCHARGER BOOST CONTROL SOLENOID VALVE
1. Disconnect turbocharger boost control solenoid valve harness
connector.
2. Apply 12V direct current between turbocharger boost control
solenoid valve terminals.
3. Check air passage continuity of turbocharger boost control sole-
noid valve under the following conditions.
Operation takes less than 1 second.
If NG, replace turbocharger boost control solenoid valve.
Removal and InstallationEBS01HN2
TURBOCHARGER BOOST CONTROL SOLENOID VALVE
Refer to EM-151, "Removal and Installation" .
PBIB1897E
CONDITIONSAir passage continuity
between A and BAir passage continuity
between A and C
12V direct current supply
between terminals 1 and 2Ye s N o
No supply No Yes
MBIB0996E
Page 2068 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EC-1664
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
BRAKE SWITCHPFP:25230
DescriptionEBS0125Z
STOP LAMP SWITCH
The stop lamp switch (1) is installed to brake pedal bracket. The
switch senses brake pedal po NISSAN X-TRAIL 2005 Service Repair Manual EC-1664
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
BRAKE SWITCHPFP:25230
DescriptionEBS0125Z
STOP LAMP SWITCH
The stop lamp switch (1) is installed to brake pedal bracket. The
switch senses brake pedal po](/manual-img/5/57403/w960_57403-2067.png)
EC-1664
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
BRAKE SWITCHPFP:25230
DescriptionEBS0125Z
STOP LAMP SWITCH
The stop lamp switch (1) is installed to brake pedal bracket. The
switch senses brake pedal position and sends an ON-OFF signal to
the ECM. The ECM uses the signal to control the fuel injection con-
trol system.
ASCD BRAKE SWITCH (MODELS WITH ASCD)
When depress on the brake pedal, ASCD brake switch is turned OFF and stop lamp switch is turned ON. ECM
detects the state of the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-1690, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeEBS01260
Specification data are reference values.
PBIB2883E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly
depressedON
BRAKE SW2
Ignition switch: ONBrake pedal and clutch pedal:
Fully releasedOFF
Brake pedal and/or clutch
pedal: Slightly depressedON
Page 2069 of 4555
BRAKE SWITCH
EC-1665
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS01FH0
MODELS WITHOUT ASCD

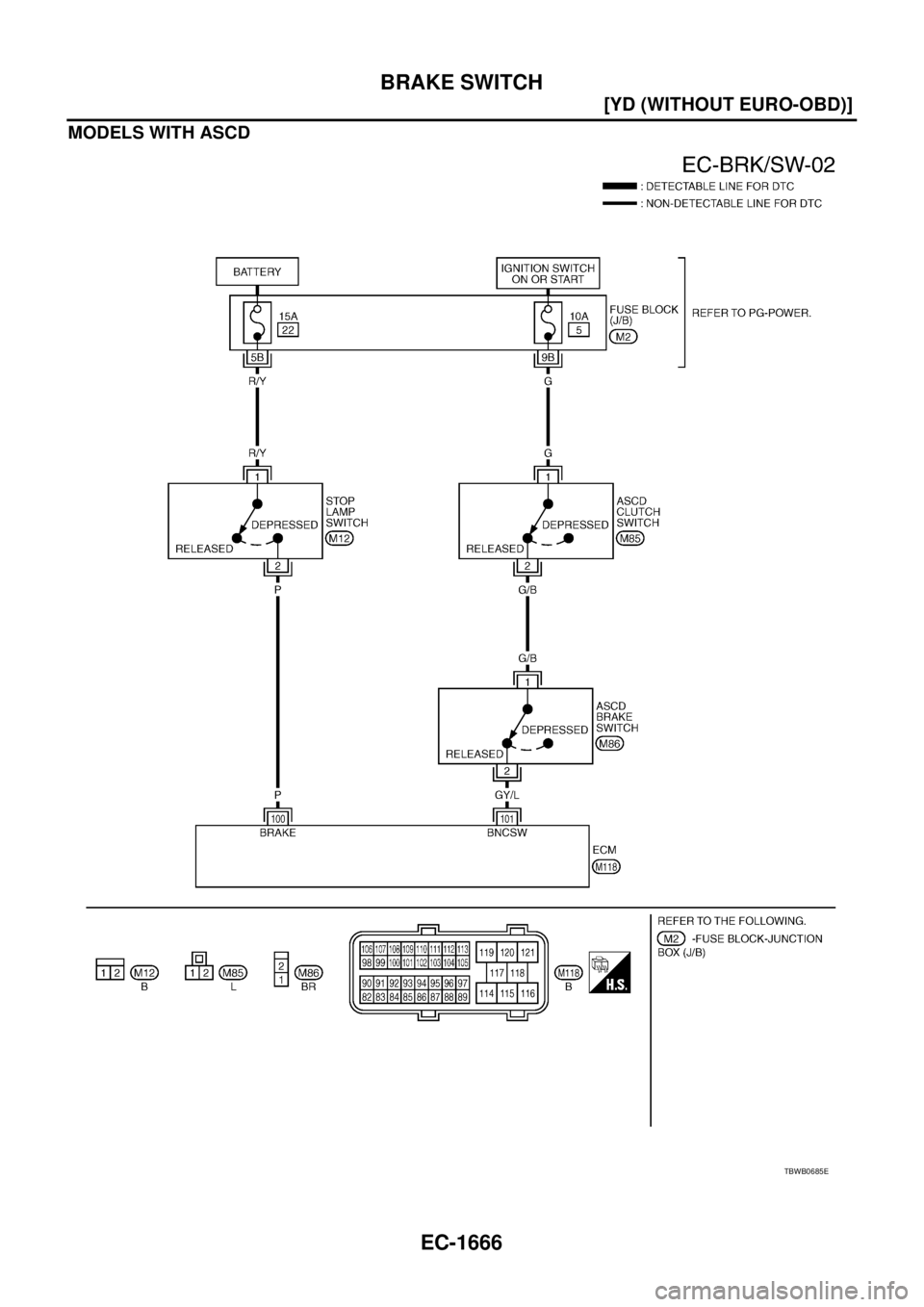

TBWA0580E
Page 2070 of 4555
EC-1666
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
MODELS WITH ASCD
TBWB0685E
Page 2071 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual BRAKE SWITCH
EC-1667
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground termi NISSAN X-TRAIL 2005 Service Repair Manual BRAKE SWITCH
EC-1667
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground termi](/manual-img/5/57403/w960_57403-2070.png)
BRAKE SWITCH
EC-1667
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01263
1. CHECK OVERALL FUNCTION-I

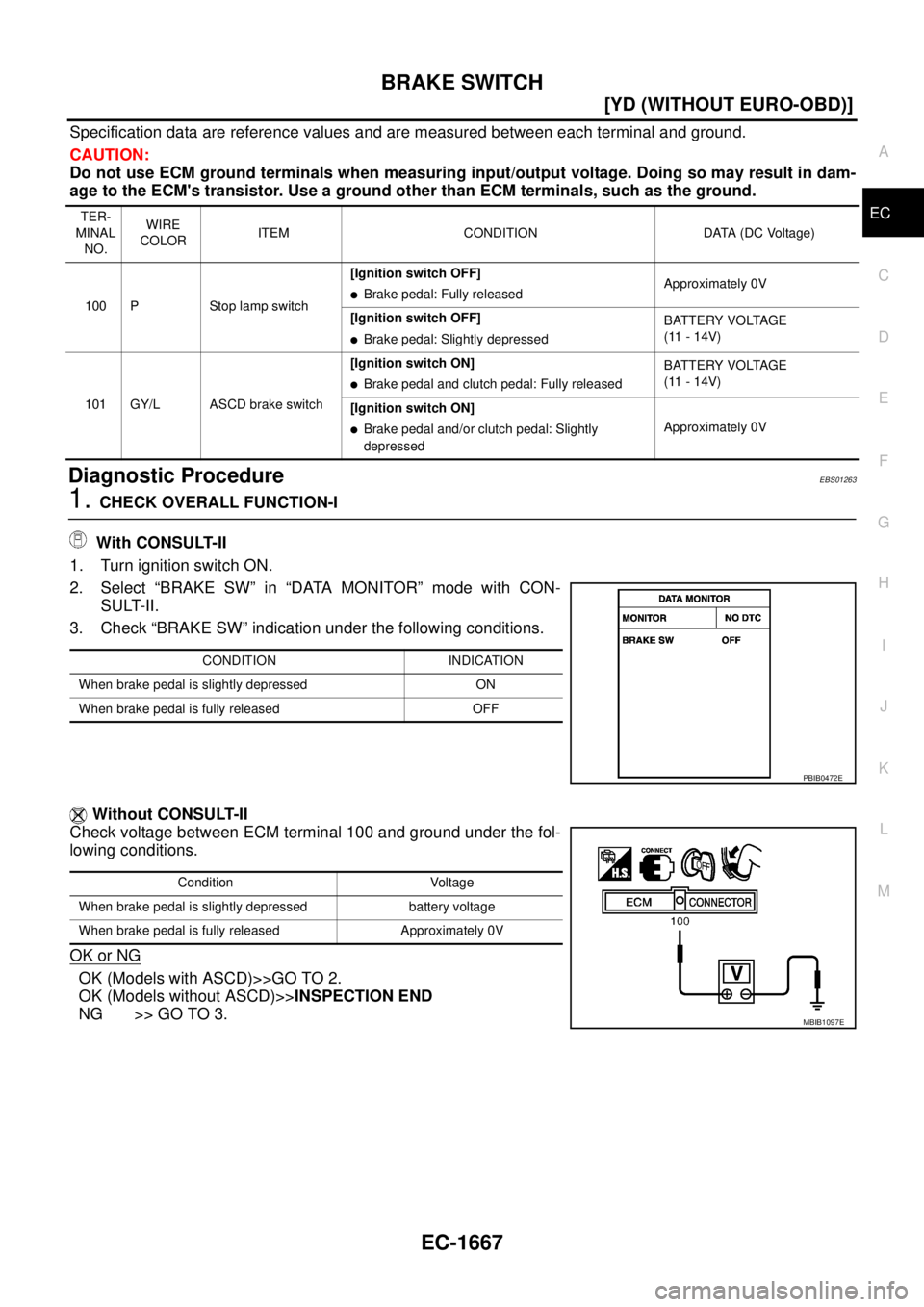

With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW” indication under the following conditions.
Without CONSULT-II
Check voltage between ECM terminal 100 and ground under the fol-
lowing conditions.
OK or NG
OK (Models with ASCD)>>GO TO 2.
OK (Models without ASCD)>>INSPECTION END
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
100 P Stop lamp switch[Ignition switch OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
101 GY/L ASCD brake switch[Ignition switch ON]
Brake pedal and clutch pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch ON]
Brake pedal and/or clutch pedal: Slightly
depressedApproximately 0V
CONDITION INDICATION
When brake pedal is slightly depressed ON
When brake pedal is fully released OFF
PBIB0472E
Condition Voltage
When brake pedal is slightly depressed battery voltage
When brake pedal is fully released Approximately 0V
MBIB1097E
Page 2072 of 4555
EC-1668
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 101 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
CONDITION INDICATION
When brake pedal and/or clutch pedal is fully depressed ON
When brake pedal and clutch pedal are slightly released OFF
SEC013D
Condition Voltage
When brake pedal and/or clutch pedal is slightly depressed Approximately 0V
When brake pedal and clutch pedal are fully released Battery voltage
PBIB1677E
