Page 1705 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P2147, P2148 FUEL INJECTOR CIRCUIT EC-1301 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 2. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT 1. Disconnect fuel injector harness connector. 2. D

Page 1706 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1302 [YD (WITH EURO-OBD)] DTC P2147, P2148 FUEL INJECTOR CIRCUIT 2. Check continuity between terminals as shown in the figure. 3. If NG, replace fuel injector. Removal and InstallationEBS011FB FU

Page 1707 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P2228, P2229 BARO SENSOR EC-1303 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC P2228, P2229 BARO SENSORPFP:23731 DescriptionEBS011FC The barometric pressure sensor is built into ECM. The se

Page 1708 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1304 [YD (WITH EURO-OBD)] DTC P2228, P2229 BARO SENSOR Diagnostic ProcedureEBS011FF 1. INSPECTION START With CONSULT-II 1. Turn ignition switch ON. 2. Select “SELF DIAG RESULTS” mode with CO

Page 1709 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual GLOW CONTROL SYSTEM EC-1305 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC GLOW CONTROL SYSTEMPFP:25230 DescriptionEBS011FG SYSTEM DESCRIPTION When engine coolant temperature is more than approximat

Page 1710 of 4555

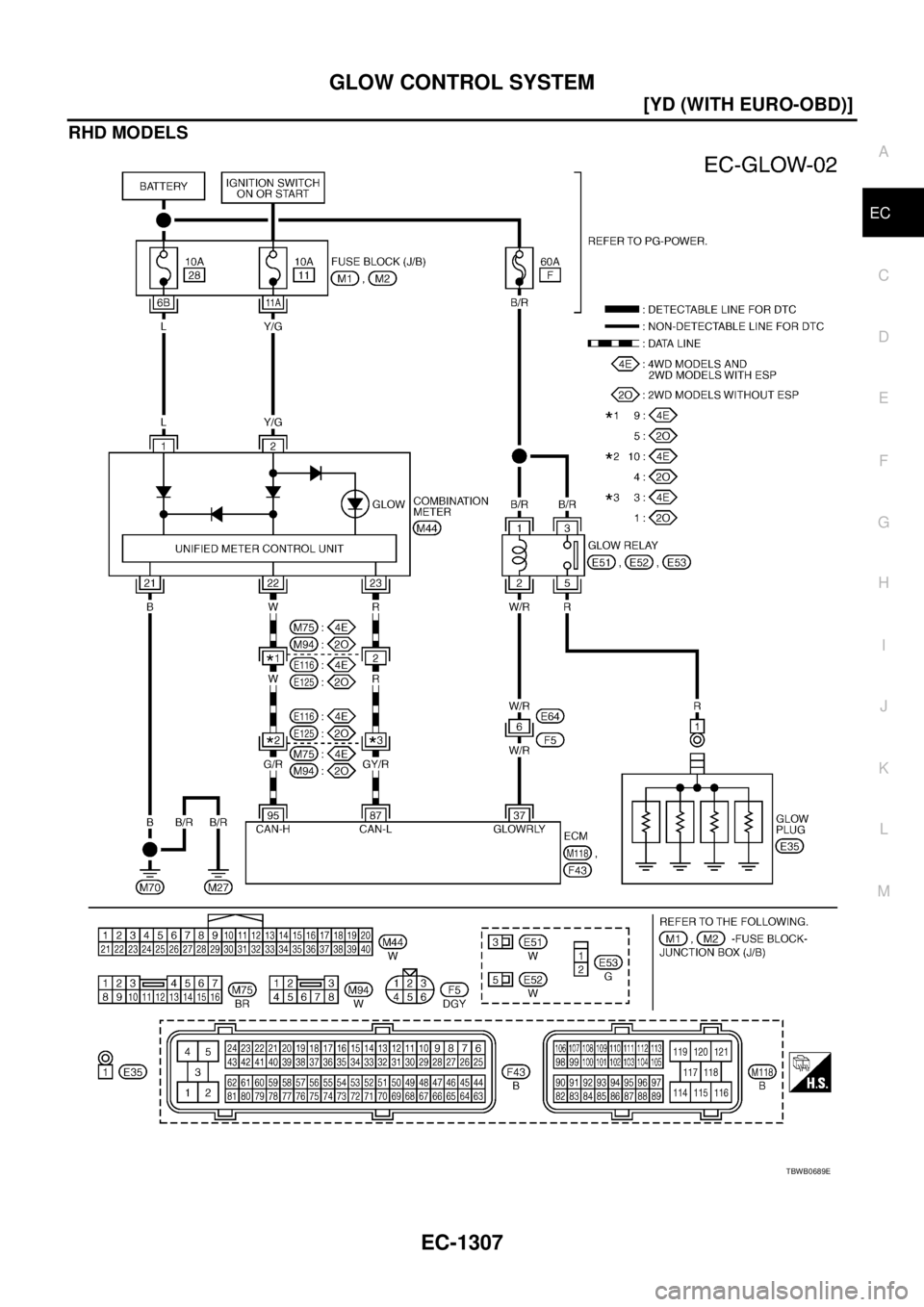

NISSAN X-TRAIL 2005 Service Repair Manual EC-1306 [YD (WITH EURO-OBD)] GLOW CONTROL SYSTEM Wiring DiagramEBS011FI LHD MODELS TBWA0577E

Page 1711 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual GLOW CONTROL SYSTEM EC-1307 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC RHD MODELS TBWB0689E

Page 1712 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1308 [YD (WITH EURO-OBD)] GLOW CONTROL SYSTEM Diagnostic ProcedureEBS011FJ 1. INSPECTION START Check fuel level, fuel supplying system, starter motor, etc. OK or NG OK >> GO TO 2. NG >> Correct.
