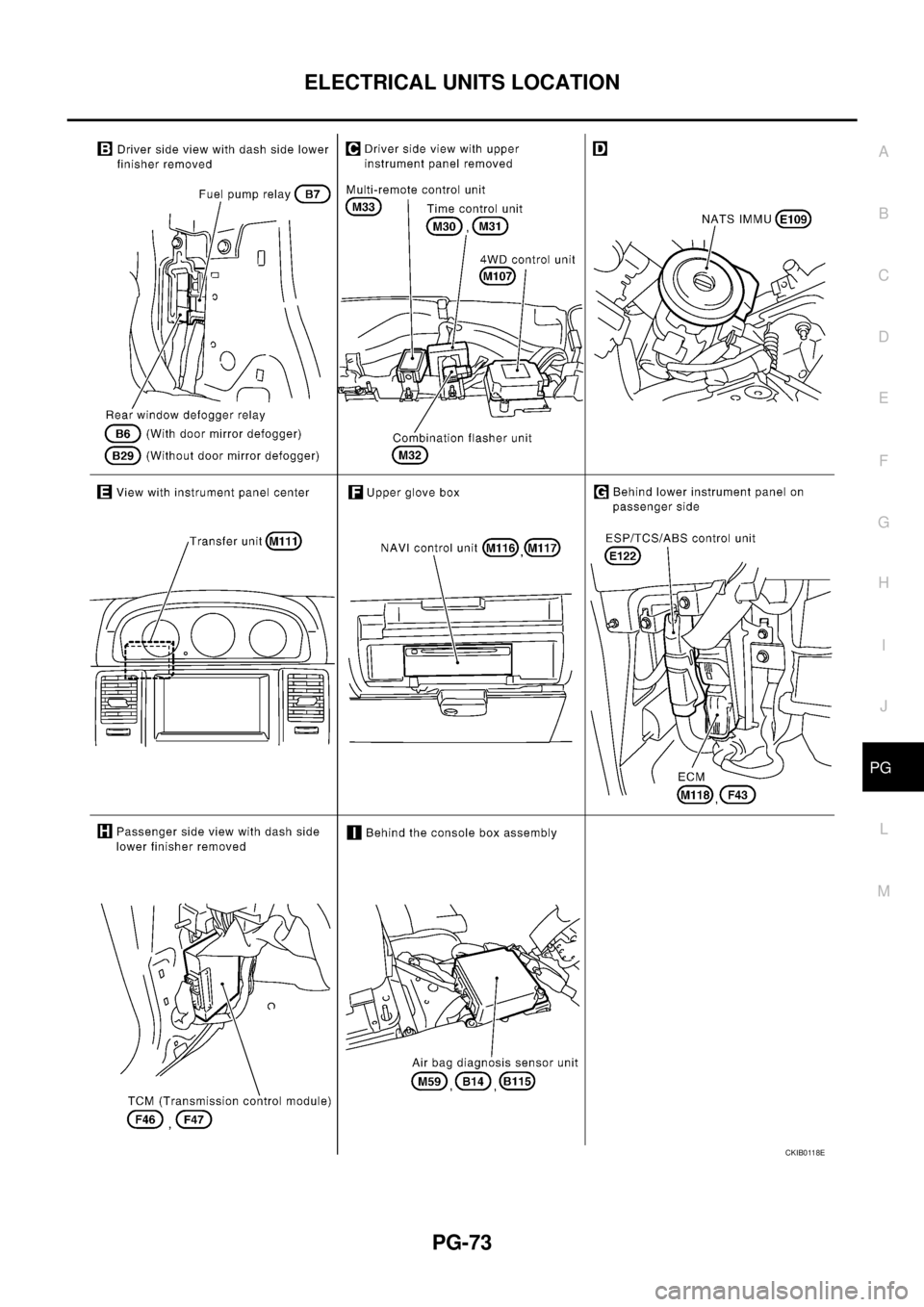

ELECTRICAL UNITS LOCATION
PG-73
C
D
E
F
G
H
I
J
L
MA
B
PG
CKIB0118E
Page 4490 of 4555
PG-74
HARNESS CONNECTOR
HARNESS CONNECTOR PFP:00011
Description EKS0032B
HARNESS CONNECTOR (TAB-LOCKING TYPE)
The tab-locking type connectors help prevent accidental looseness or disconnection.
The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the fig-
ure below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
SEL769DA
Page 4491 of 4555
HARNESS CONNECTOR
PG-75
C
D
E
F
G
H
I
J
L
MA
B
PG
HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.
The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure
below.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V
Page 4492 of 4555
PG-76
ELECTRICAL UNITS
ELECTRICAL UNITS PFP:00011
Terminal Arrangement EKS0032D
CKIA0382E

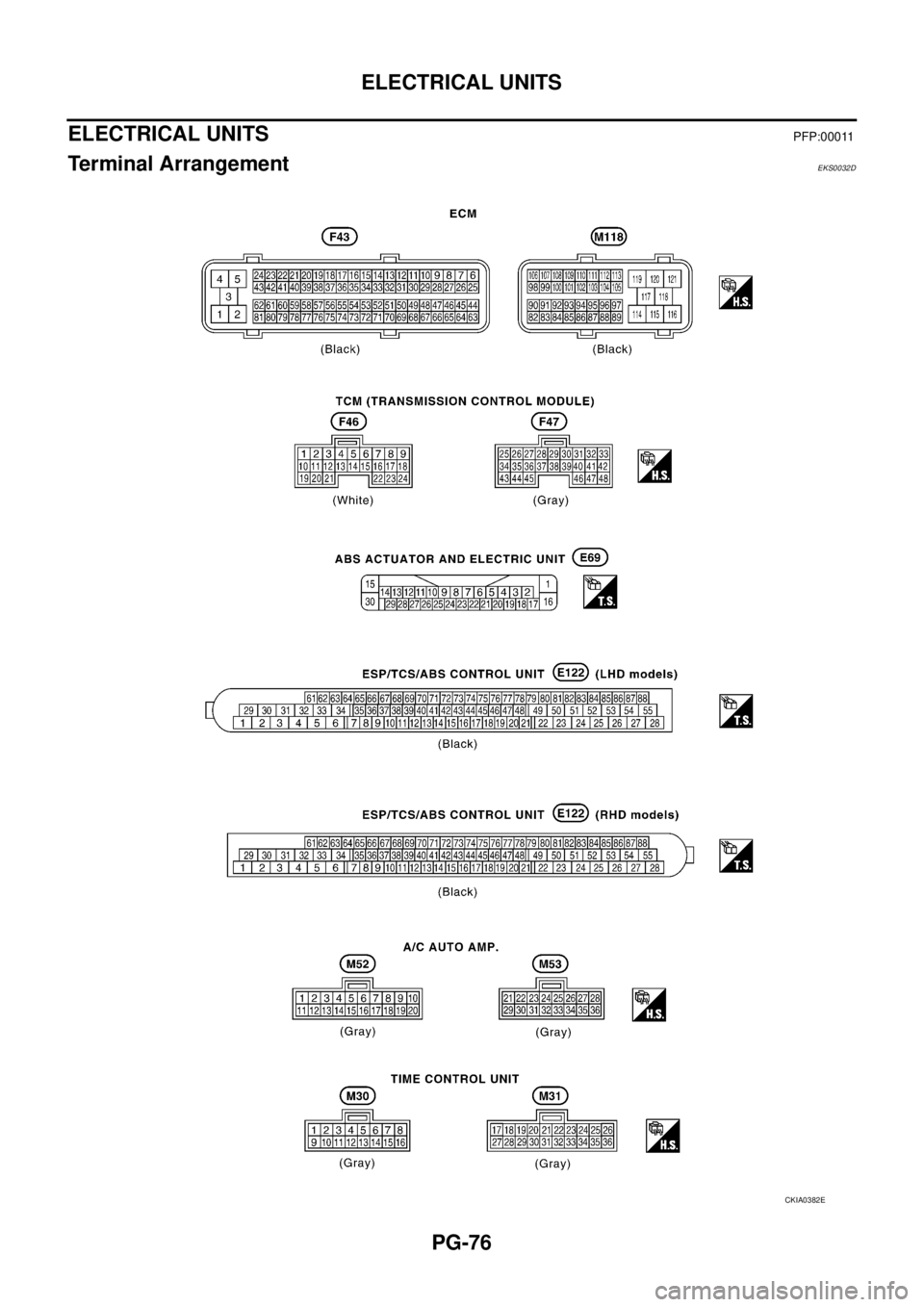

Page 4493 of 4555
STANDARDIZED RELAY
PG-77
C
D
E
F
G
H
I
J
L
MA
B
PG
STANDARDIZED RELAY PFP:00011
Description EKS0032E

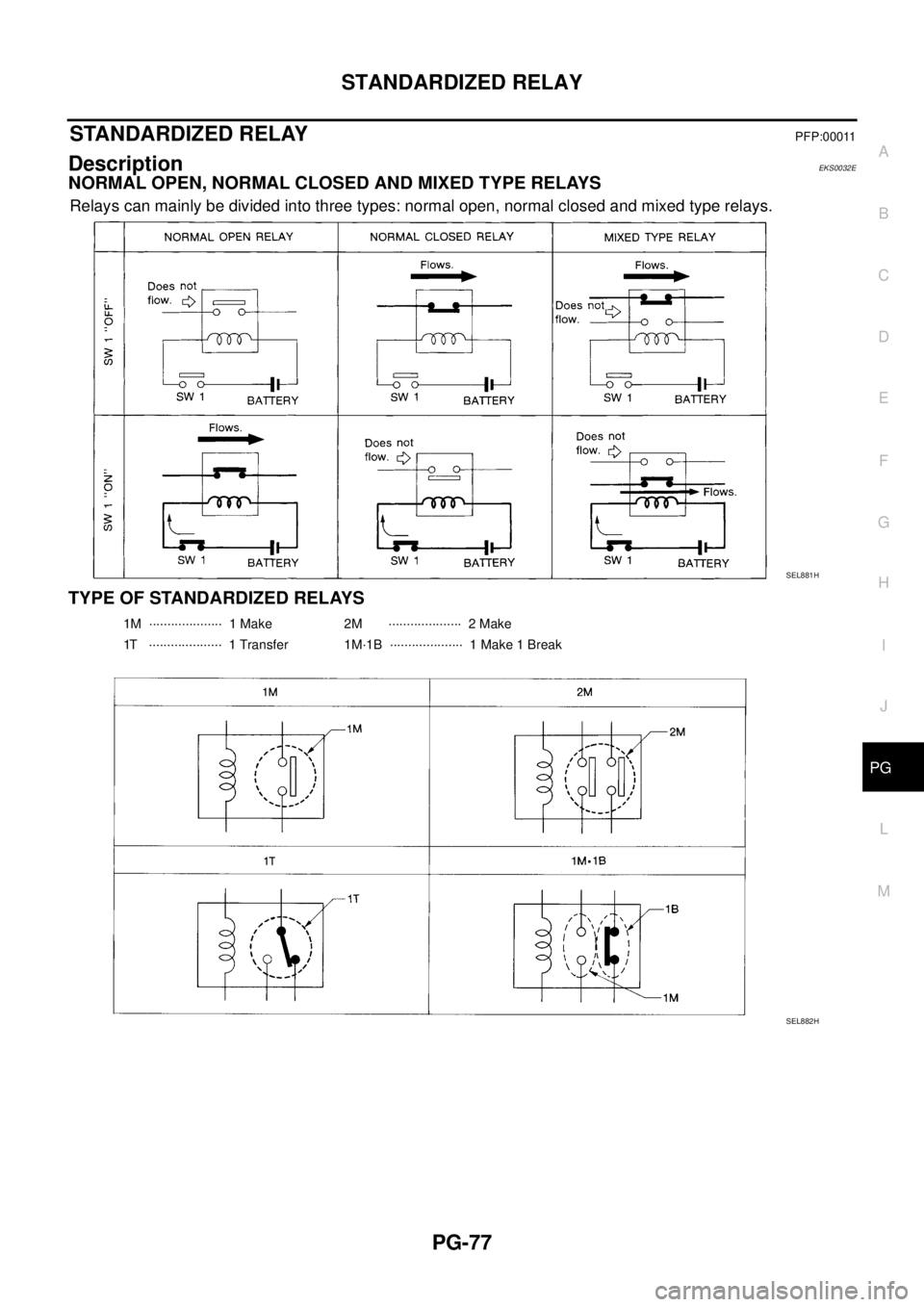

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H
Page 4494 of 4555
PG-78
STANDARDIZED RELAY
SEL188W
Page 4495 of 4555
FUSE BLOCK - JUNCTION BOX (J/B)
PG-79
C
D
E
F
G
H
I
J
L
MA
B
PG
FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350
Terminal ArrangementEKS0032F
CKIA0383E
Page 4496 of 4555
PG-80
FUSE AND FUSIBLE LINK BOX
FUSE AND FUSIBLE LINK BOXPFP:24381
Terminal ArrangementEKS0032G
CKIB0119E
