Page 3017 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BRAKE MASTER CYLINDER BR-19 C D E G H I J K L MA B BR 3. Tilt reservoir tank as shown in the figure for the mounting pin to be inserted. Return the reservoir tank to the upright position when mounti

Page 3018 of 4555

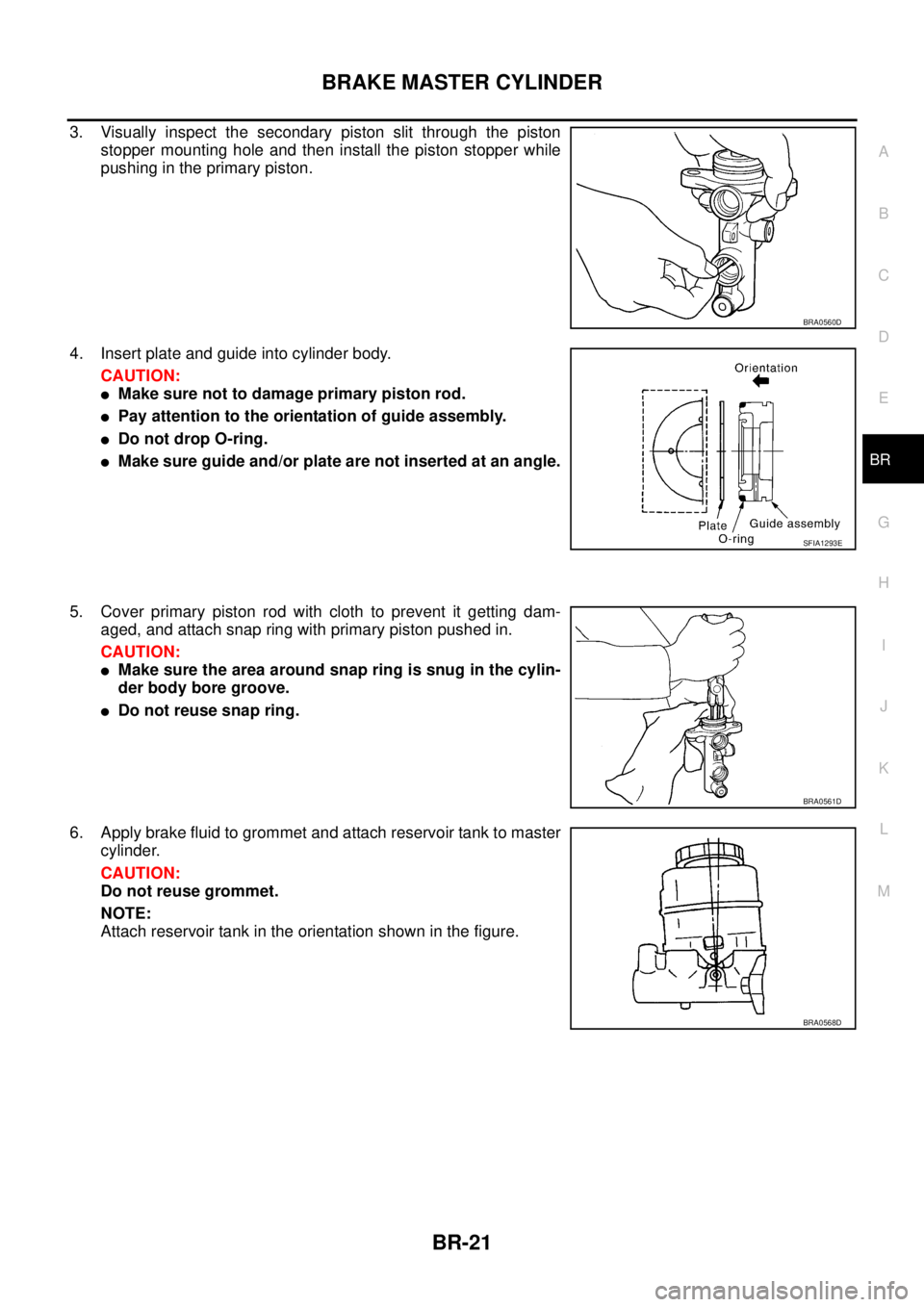

NISSAN X-TRAIL 2005 Service Repair Manual BR-20 BRAKE MASTER CYLINDER 6. Remove the snap ring while pushing primary piston in to prevent piston from popping out. 7. Holding primary piston rod, pull primary piston assembly, plate, and guide

Page 3019 of 4555

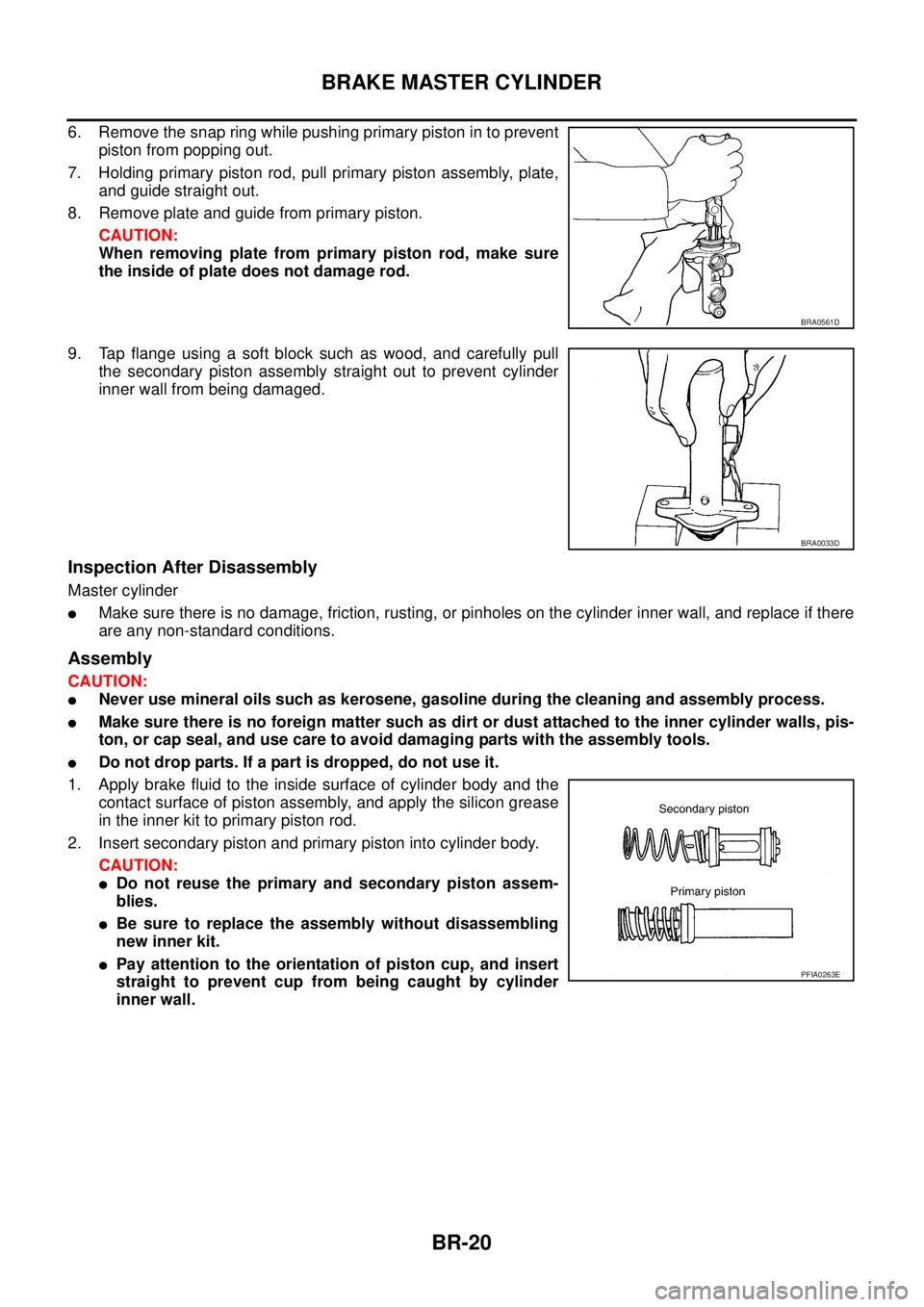

NISSAN X-TRAIL 2005 Service Repair Manual BRAKE MASTER CYLINDER BR-21 C D E G H I J K L MA B BR 3. Visually inspect the secondary piston slit through the piston stopper mounting hole and then install the piston stopper while pushing in the

Page 3020 of 4555

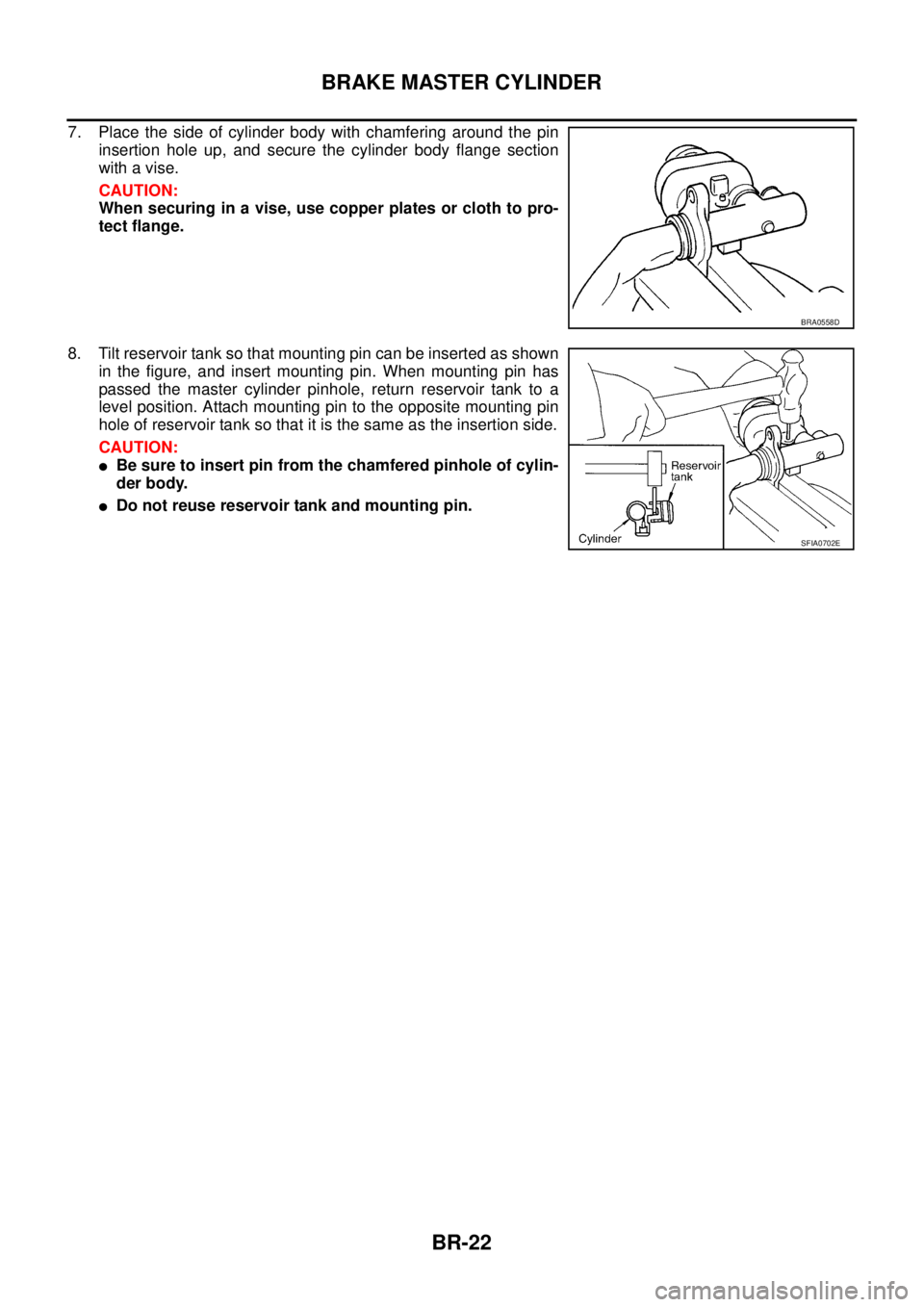

NISSAN X-TRAIL 2005 Service Repair Manual BR-22 BRAKE MASTER CYLINDER 7. Place the side of cylinder body with chamfering around the pin insertion hole up, and secure the cylinder body flange section with a vise. CAUTION: When securing in a

Page 3021 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BRAKE BOOSTER BR-23 C D E G H I J K L MA B BR BRAKE BOOSTERPFP:47200 On-Vehicle Inspection and ServiceEFS000CC FUNCTION INSPECTION With engine stopped, discharge stored vacuum by depressing brake pe

Page 3022 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BR-24 BRAKE BOOSTER INSPECTION AFTER REMOVAL Output rod length inspection 1. Using a handy vacuum pump, apply a vacuum of -66.7 kPa (-500 mmHg, -19.69 inHg) to the brake booster. 2. Check output rod

Page 3023 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual VACUUM LINES BR-25 C D E G H I J K L MA B BR VACUUM LINESPFP:41920 Removal and InstallationEFS000CE RHD MODELS LHD MODELS CAUTION: Because vacuum hose contains a check valve, it must be installed i

Page 3024 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BR-26 VACUUM LINES Insert the vacuum hose at least 24 mm (0.94 in). Never use lubricating oil during assembly. InspectionEFS000CF VISUAL INSPECTION Check for improper assembly, damage and aging. C
