CAN SYSTEM (TYPE 7)
LAN-141
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >>
LHD models
–Repair harness between ECM and harness connector
M75.
RHD models
–Repair harness between ECM and harness connector M94.
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W) and 23 (R).
OK or NG
OK >> GO TO 5.
NG >>
LHD models
–Repair harness between ABS actuator and electric
unit (control unit) and harness connector E116.
RHD models
–Repair harness between ABS actuator and electric
unit (control unit) and harness connector E125.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >>
LHD models
–Repair harness between ABS actuator and electric
unit (control unit) and harness connector E116.
RHD models
–Repair harness between ABS actuator and electric unit (control unit) and harness connector
E125. 94 (G/R) - Ground : Continuity should not exist.
86 (GY/R) - Ground : Continuity should not exist.
PKIA9593E
20 (W) - 23 (R) : Continuity should not exist.
SKIA9769E
20 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9778E
Page 4386 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-142
[CAN]
CAN SYSTEM (TYPE 7)
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) a NISSAN X-TRAIL 2005 Service Repair Manual LAN-142
[CAN]
CAN SYSTEM (TYPE 7)
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) a](/manual-img/5/57403/w960_57403-4385.png)
LAN-142
[CAN]
CAN SYSTEM (TYPE 7)
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 7.
NG >>
LHD models
–Repair harness between combination meter and har-
ness connector M75.
RHD models
–Repair harness between combination meter and har-
ness connector M94.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >>
LHD models
–Repair harness between combination meter and har-
ness connector M75.
RHD models
–Repair harness between combination meter and harness connector M94.
8. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-142, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-133, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00NL7
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Remove ECM and combination meter from vehicle.
Check resistance between ECM terminals 94 and 86.
Check resistance between combination meter terminals 22 and
23.22 (W) - 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 - 86
108 - 132
Combination meter 22 - 23
PKIA0830E
Page 4387 of 4555
CAN SYSTEM (TYPE 8)
LAN-143
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN SYSTEM (TYPE 8)PFP:23710
System DescriptionEKS00NHR
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Component Parts and Harness Connector LocationEKS00NHS
SKIB0327E
Page 4388 of 4555
LAN-144
[CAN]
CAN SYSTEM (TYPE 8)
Wiring Diagram — CAN —EKS00NHT
TKWB1886E
Page 4389 of 4555
CAN SYSTEM (TYPE 8)
LAN-145
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

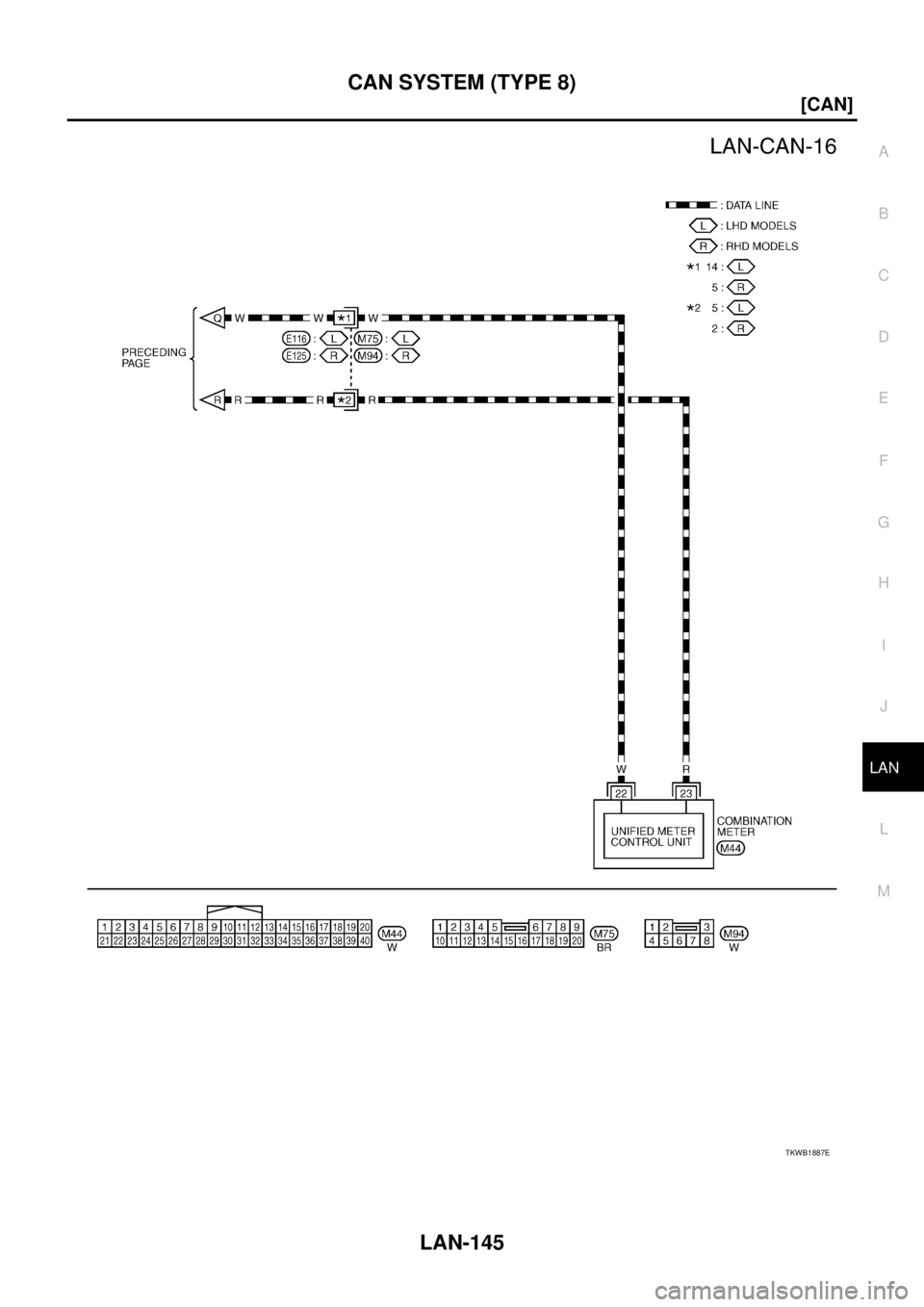

TKWB1887E
Page 4390 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-146
[CAN]
CAN SYSTEM (TYPE 8)
Work FlowEKS00NHU
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPP NISSAN X-TRAIL 2005 Service Repair Manual LAN-146
[CAN]
CAN SYSTEM (TYPE 8)
Work FlowEKS00NHU
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPP](/manual-img/5/57403/w960_57403-4389.png)
LAN-146
[CAN]
CAN SYSTEM (TYPE 8)
Work FlowEKS00NHU
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE” and “ABS” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-147, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-147, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-148, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4391 of 4555
CAN SYSTEM (TYPE 8)
LAN-147
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC0307E
Page 4392 of 4555
LAN-148
[CAN]
CAN SYSTEM (TYPE 8)
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check ECM circuit. Refer to LAN-151, "ECM Circuit Inspection" .
PKIC0311E
PKIA7561E
