FUEL PUMPPFP:17042
Removal and InstallationEBS00LRP
CAUTION:
Before removing and installing fuel pump, be sure to remove sprocket. Do not loose NISSAN X-TRAIL 2005 Service Repair Manual FUEL PUMP
EM-171
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
FUEL PUMPPFP:17042
Removal and InstallationEBS00LRP
CAUTION:
Before removing and installing fuel pump, be sure to remove sprocket. Do not loose](/manual-img/5/57403/w960_57403-224.png)
FUEL PUMP
EM-171
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
FUEL PUMPPFP:17042
Removal and InstallationEBS00LRP
CAUTION:
Before removing and installing fuel pump, be sure to remove sprocket. Do not loosen or remove
installation nut in the center of fuel pump. If loosened or removed, replace fuel pump.
After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting
surfaces with new engine oil.
REMOVAL
1. Remove engine coolant reservoir tank. Refer to CO-35, "RADIATOR" .
2. Remove charge air cooler. Refer to EM-144, "
Removal and Installation" .
3. Remove RH engine mounting insulator and bracket. Refer to EM-222, "
ENGINE ASSEMBLY" .
4. Pull power steering reservoir tank out of brackets to move power steering piping. Refer to PS-37,
"HYDRAULIC LINE" .
CAUTION:
To avoid removing power steering reservoir tank out of brackets, move it with power steering pip-
ing aside.
5. Remove RH front wheel.
1. Washer 2. Fuel pump sprocket 3. Seal washer
4. O-ring 5. Adjust shim 6. Sprocket nut
7. Coupling 8. Oil seal 9. Key
10. Fuel hose 11. Fuel pump 12. Spacer
PBIC2639E
Page 226 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EM-172
[YD22DDTi]
FUEL PUMP
6. Remove RH engine undercover.
7. Remove front exhaust tube. Refer to EX-2, "
EXHAUST SYSTEM" .
8. Remove fuel hoses from fuel pump.
CAUTION:
While hoses are disconnect NISSAN X-TRAIL 2005 Service Repair Manual EM-172
[YD22DDTi]
FUEL PUMP
6. Remove RH engine undercover.
7. Remove front exhaust tube. Refer to EX-2, "
EXHAUST SYSTEM" .
8. Remove fuel hoses from fuel pump.
CAUTION:
While hoses are disconnect](/manual-img/5/57403/w960_57403-225.png)
EM-172
[YD22DDTi]
FUEL PUMP
6. Remove RH engine undercover.
7. Remove front exhaust tube. Refer to EX-2, "
EXHAUST SYSTEM" .
8. Remove fuel hoses from fuel pump.
CAUTION:
While hoses are disconnected, plug them to prevent fuel from draining.
Be careful not to spill fuel in the engine component.
9. Disconnect harness connector from fuel pump.
10. Remove injection tube center, clip and insert rubber. Refer to EM-167, "
INJECTION TUBE AND FUEL
INJECTOR" .
CAUTION:
Be careful not to spill fuel in the engine component.
11. Remove secondary timing chain. Refer to EM-193, "
Removal and Installation" .
12. Hold fuel pump sprocket and remove bolt.
a. Insert the positioning stopper pin (special service tool) into the
hole 6 mm (0.24 in) in the diameter on the fuel pump sprocket.
b. Using the TORX wrench (special service tool), turn pump shaft
little by little to adjust the position of fuel pump sprocket so that
the holes align.
c. Push the positioning stopper pin (special service tool) through
fuel pump sprocket to fuel pump body to hold fuel pump
sprocket.
Insert the positioning stopper pin until its flange contacts the fuel
pump sprocket.
13. Using the hexagon wrench (special service tool) remove tighten-
ing bolts of fuel pump sprocket.
MBIA0049E
PBIC2535E
PBIC2404E
Page 227 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual FUEL PUMP
EM-173
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
14. Using the sprocket holder (special service tool), hold fuel pump
sprocket to prevent falling.
For sprocket holder, use KV11106060 machined NISSAN X-TRAIL 2005 Service Repair Manual FUEL PUMP
EM-173
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
14. Using the sprocket holder (special service tool), hold fuel pump
sprocket to prevent falling.
For sprocket holder, use KV11106060 machined](/manual-img/5/57403/w960_57403-226.png)
FUEL PUMP
EM-173
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
14. Using the sprocket holder (special service tool), hold fuel pump
sprocket to prevent falling.
For sprocket holder, use KV11106060 machined as shown in
the figure, because the previous bore is not fitting.
When the sprocket holder is installed, if the positioning stop-
per pin (special service tool) interferes, pull out the positioning
stopper pin approximately 10 mm (0.39 in), then install it.
After the sprocket holder is installed temporarily, tighten the
sprocket holder after making extension bar and TORX socket
(size: E10) insert into the machined bore.
The length of the sprocket holder mounting bolts should be
approximately 15 mm (0.59 in) (M6 thread length).
Make sure that the a- and b-faces of the sprocket holder con-
tact the bottom side of the sprocket (small diameter side).
CAUTION:
Do not remove the sprocket holder (special service tool) until fuel pump is installed.
After the sprocket holder is installed, pull out the positioning
stopper pin from fuel pump sprocket.
MBIA0074E
SBIA0217E
PBIC2534E
MBIA0075E
Page 228 of 4555
EM-174
[YD22DDTi]
FUEL PUMP

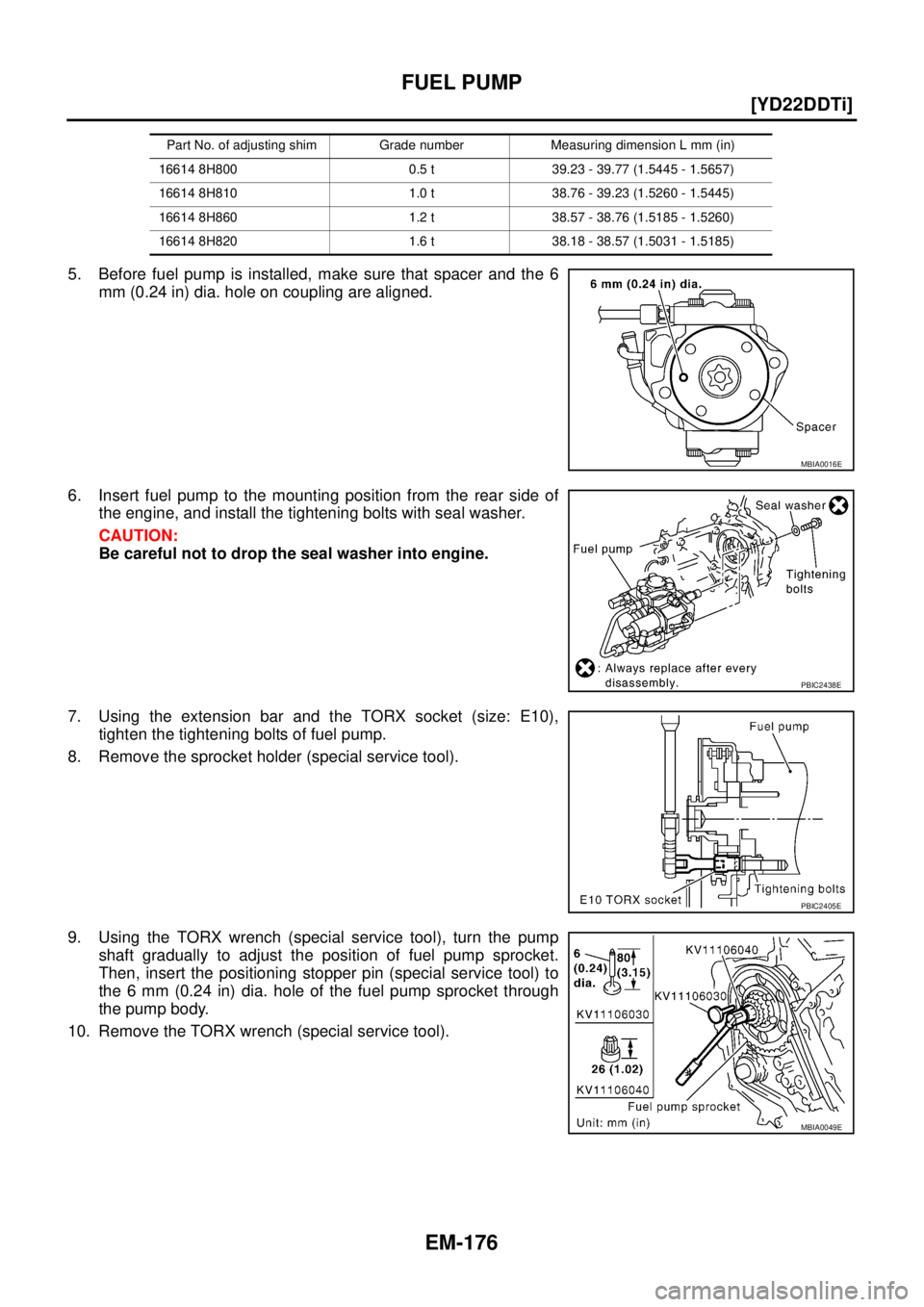

15. Using the extension bar and the TORX socket (size: E10),
