TROUBLE DIAGNOSIS
ATC-95
C
D
E
F
G
H
I
K
L
MA
B
AT C
Dual-pressure Switch (With Diesel Engine)
Thermal Protector (With diesel engine)
Check continuity between compressor harness terminal and field
coil.
RJIA2954E
Compressor: ON
kPa (bar, kg/cm2 , psi)Compressor: OFF
kPa (bar, kg/cm2 , psi)
Low-pressure side 186 (1.86, 1.9, 27) 177 (1.77, 1.8, 26)
High-pressure side 1,569 (15.7, 16, 228) 2,746 (27.5, 28, 398)
RJIA0691E
RHA671H
Page 3274 of 4555
ATC-96
TROUBLE DIAGNOSIS
Insufficient CoolingEJS004H2

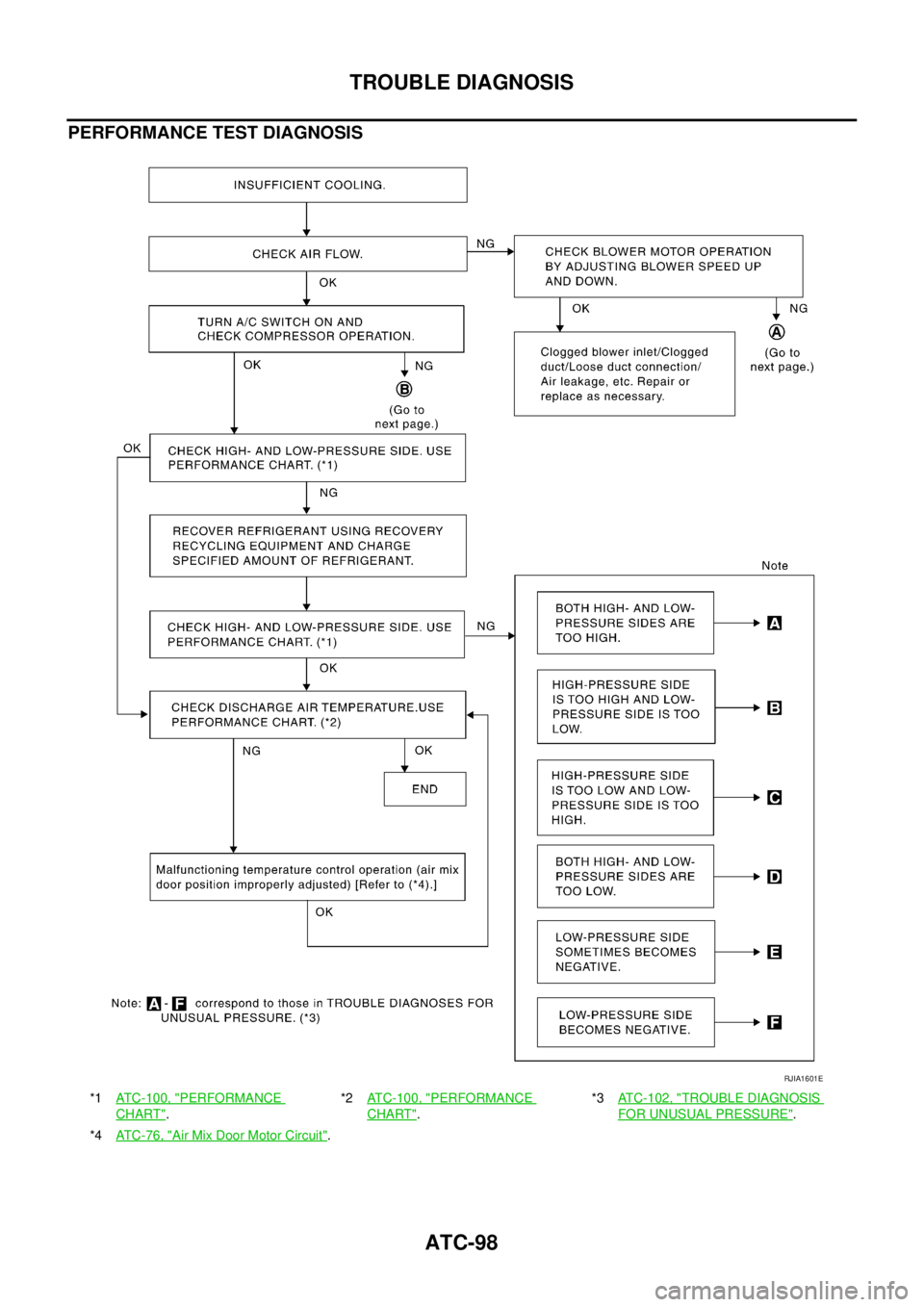

SYMPTOM: Insufficient cooling
INSPECTION FLOW
*1ATC-65, "Operational Check".*2ATC-59, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 1.*3AT C - 5 9 , "
FUNCTION CONFIRMA-
TION PROCEDURE", see No. 5 to 7.
*4 QR engine; EM-13, "
Checking Drive
Belts" or YD engine; EM-140,
"Checking Drive Belts" .*5ATC-76, "
Air Mix Door Motor Circuit".*6ATC-100, "Test Reading (QR
Engine)" or ATC-101, "Test Reading
(YD Engine)" .
*7ATC-63, "
AUXILIARY MECHA-
NISM: TEMPERATURE SETTING
TRIMMER".*8ATC-59, "
FUNCTION CONFIRMA-
TION PROCEDURE", see No. 9.*9AT C - 6 9 , "
LAN System Circuit".
SJIA0408E
Page 3275 of 4555
TROUBLE DIAGNOSIS
ATC-97
C
D
E
F
G
H
I
K
L
MA
B
AT C
*10ATC-82, "Blower Motor Circuit".*11AT C - 8 8 , "Magnet Clutch Circuit". *12 QR engine; (WITH EURO-OBD) EC-
352, "System Description" .
QR engine; (WITHOUT EURO-OBD)
EC-755, "
System Description" .
YD engine; (WITH EURO-OBD) EC-
1124, "System Description" .
YD engine; (WITHOUT EURO-OBD)
EC-1480, "
System Description" .
*13ATC-98, "
PERFORMANCE TEST
DIAGNOSIS".
Page 3276 of 4555
ATC-98
TROUBLE DIAGNOSIS
PERFORMANCE TEST DIAGNOSIS
*1ATC-100, "PERFORMANCE
CHART".*2ATC-100, "
PERFORMANCE
CHART".*3ATC-102, "
TROUBLE DIAGNOSIS
FOR UNUSUAL PRESSURE".
*4ATC-76, "
Air Mix Door Motor Circuit".
RJIA1601E
Page 3277 of 4555
TROUBLE DIAGNOSIS
ATC-99
C
D
E
F
G
H
I
K
L
MA
B
AT C
*1ATC-146, "Removal and Installation
of Compressor Clutch".*2 AT C - 8 2 , "
Blower Motor Circuit" . *3 QR engine; EM-13, "Checking Drive
Belts" or YD engine; EM-140,
"Checking Drive Belts" .
RJIA3107E
Page 3278 of 4555

ATC-100
TROUBLE DIAGNOSIS
PERFORMANCE CHART
Test Condition
Testing must be performed as follows:
Test Reading (QR Engine)
Recirculating-to-discharge Air Temperature Table
Ambient Air Temperature-to-operating Pressure Table
Vehicle location Indoors or in the shade (in a well-ventilated place)
Doors Closed
Door windows Open
Hood Open
TEMP. Max. COLD
Mode control dial
(Ventilation) set
Intake switch
(Recirculation) set
Fan (blower) speedMax. speed set
Engine speed Idle speed
Operate the air conditioning system for 10 minutes before taking measurements.
Inside air (Recirculating air) at blower assembly inlet
Discharge air temperature at center ventilator
°C (°F) Relative humidity
%Air temperature
°C (°F)
50 - 6025 (77) 10.0 - 11.6 (50 - 53)
30 (86) 13.9 - 16.2 (57 - 61)
35 (95) 17.8 - 21.4 (64 - 71)
60 - 7025 (77) 11.6 - 13.9 (53 - 57)
30 (86) 16.2 - 18.9 (61 - 66)
35 (95) 21.4 - 24.5 (71 - 76)
Ambient air
High-pressure (Discharge side)
kPa (bar, kg/cm
2 , psi)Low-pressure (Suction side)
kPa (bar, kg/cm2 , psi) Relative humidity
%Air temperature
°C (°F)
50 - 7030 (86)980 - 1,180
(9.8 - 11.8, 9.99 - 12.04, 142 - 171)230 - 270
(2.3 - 2.7, 2.35 - 2.75, 33 - 39)
35 (95)1,180 - 1,390
(11.8 - 13.9, 12.04 - 14.18, 171 - 202)260 - 310
(2.6 - 3.1, 2.65 - 3.16, 38 - 45)
40 (104)1,400 - 1,580
(14.0 - 15.8, 14.28 - 16.12, 203 - 229)300 - 350
(3.0 - 3.5, 3.06 - 3.57, 44 - 51)
Page 3279 of 4555

TROUBLE DIAGNOSIS
ATC-101
C
D
E
F
G
H
I
K
L
MA
B
AT C
Test Reading (YD Engine)
Recirculating-to-discharge Air Temperature Table
Ambient Air Temperature-to-operating Pressure Table
Inside air (Recirculating air) at blower assembly inlet
Discharge air temperature at center ventilator
°C (°F) Relative humidity
%Air temperature
°C (°F)
50 - 6020 (68) 6.5 - 9.0 (44 - 48)
25 (77) 12 - 14 (54 - 57)
30 (86) 15.5 - 18.8 (60 - 66)
35 (95) 20.4 - 24.0 (69 - 75)
60 - 7020 (68) 9.0 - 11.0 (48 - 52)
25 (77) 14.0 - 16.5 (57 - 62)
30 (86) 18.8 - 21.5 (66 - 71)
35 (95) 24 - 27 (75 - 81)
Ambient air
High-pressure (Discharge side)
kPa (bar, kg/cm
2 , psi)Low-pressure (Suction side)
kPa (bar, kg/cm2 , psi) Relative humidity
%Air temperature
°C (°F)
50 - 7020 (68) 765 - 922
(7.65 - 9.22, 7.8 - 9.4, 111 - 134) 177 - 226
(1.77 - 2.26, 1.8 - 2.3, 26 - 33)
25 (77) 922 - 1,020
(9.22 - 10.20, 9.4 - 10.4, 134 - 148) 196 - 245
(1.96 - 2.45, 2.0 - 2.5, 28 - 36)
30 (86)1,177 - 1,451
(11.77 - 14.51, 12.0 - 14.8, 171 - 210) 235 - 284
(2.35 - 2.84, 2.4 - 2.9, 34 - 41)
35 (95)1,373 - 1,667
(13.73 - 16.67, 14.0 - 17.0, 199 - 242) 275 - 333
(2.75 - 3.33, 2.8 - 3.4, 40 - 48)
40 (104)1,618 - 1,961
(16.18 - 19.61, 16.5 - 20.0, 235 - 284)333 - 392
(3.33 - 3.92, 3.4 - 4.0, 48 - 57)
Page 3280 of 4555

ATC-102
TROUBLE DIAGNOSIS
TROUBLE DIAGNOSIS FOR UNUSUAL PRESSURE
Whenever system’s high and/or low side pressure(s) is/are unusual, diagnose using a manifold gauge. The
marker above the gauge scale in the following tables indicates the standard (usual) pressure range. Since the
standard (usual) pressure, however, differs from vehicle to vehicle, refer to above table (Ambient air tempera-
ture-to-operating pressure table).
Both High- and Low-pressure Sides are Too High
High-pressure Side is Too High and Low-pressure Side is Too Low
Gauge indication Refrigerant cycle Probable cause Corrective action
Both high- and low-pressure
sides are too high.Pressure is reduced soon after
water is splashed on con-
denser.Excessive refrigerant charge in
refrigeration cycleReduce refrigerant until speci-
fied pressure is obtained.
Air suction by cooling fan is
insufficient.Insufficient condenser cooling
performance
↓
1. Condenser fins are clogged.
2. Improper fan rotation of cool-
ing fan
Clean condenser.
Check and repair cooling fan
as necessary.
Low-pressure pipe is not
cold.
When compressor is stopped
high-pressure value quickly
drops by approximately 196
kPa (1.96 bar, 2 kg/cm
2 , 28
psi). It then decreases gradu-
ally thereafter.Poor heat exchange in con-
denser
(After compressor operation
stops, high-pressure decreases
too slowly.)
↓
Air in refrigeration cycleEvacuate repeatedly and
recharge system.
Engine tends to overheat.Engine cooling systems mal-
function.Check and repair each engine
cooling system.
An area of the low-pressure
pipe is colder than areas
near the evaporator outlet.
Plates are sometimes cov-
ered with frost.
Excessive liquid refrigerant
on low-pressure side
Excessive refrigerant dis-
charge flow
Expansion valve is open a lit-
tle compared with the specifi-
cation.
↓
Improper expansion valve
adjustmentReplace expansion valve.
AC359A
Gauge indication Refrigerant cycle Probable cause Corrective action
High-pressure side is too high and
low-pressure side is too low.
Upper side of condenser and
high-pressure side are hot,
however, liquid tank is not so
hot.High-pressure tube or parts
located between compressor
and condenser are clogged or
crushed.
Check and repair or replace
malfunctioning parts.
Check lubricant for contami-
nation.
AC360A
