CAMSHAFT

b. Push in chain tensioner plunger. Insert a stopper pin into hole on
chain tensioner body to secure chain tensioner plunger and
remove chain tensioner.
NOTE:
Use approximately 0.5 mm (0.02 in) dia. hard metal pin as a
stopper pin.
c. Secure hexagonal part of camshaft with a wrench. Loosen cam-
shaft sprocket mounting bolts and remove camshaft sprockets.
CAUTION:
Do not rotate crankshaft or camshaft while timing chain is
removed. It causes interference between valve and piston.
NOTE:
Chain tension holding work is not necessary. Crankshaft
sprocket and timing chain do not disconnect structurally while
front cover is attached.
8. Remove camshaft position sensor (PHASE) from cylinder head back side.
CAUTION:

Handle carefully to avoid dropping and shocks.

Do not disassemble.

Do not allow metal powder to adhere to magnetic part at sensor tip.

Do not place sensor in a location where it is exposed to magnetism.
9. Loosen mounting bolts in reverse order as shown in the figure,
and remove camshaft brackets and camshafts.

Remove camshaft bracket (No. 1) by slightly tapping it with a
plastic hammer.
10. Remove valve lifters.

Identify installation positions, and store them without mixing them up.
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on a precise flat table, and support No. 2 and 5 jour-
nal of camshaft.
CAUTION:
Do not support No. 1 journal (on the side of camshaft
sprocket) because it has a different diameter from the other
four locations.
2. Set dial indicator vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure the
camshaft runout on dial indicator. (Total indicator reading)
KBIA0048E
KBIA0049E
SBIA0255E
Standard: Less than 0.02 mm (0.0008 in).PBIC2499E

CYLINDER BLOCK
EM-89
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CYLINDER BLOCKPFP:11010
Disassembly and AssemblyEBS00KNU

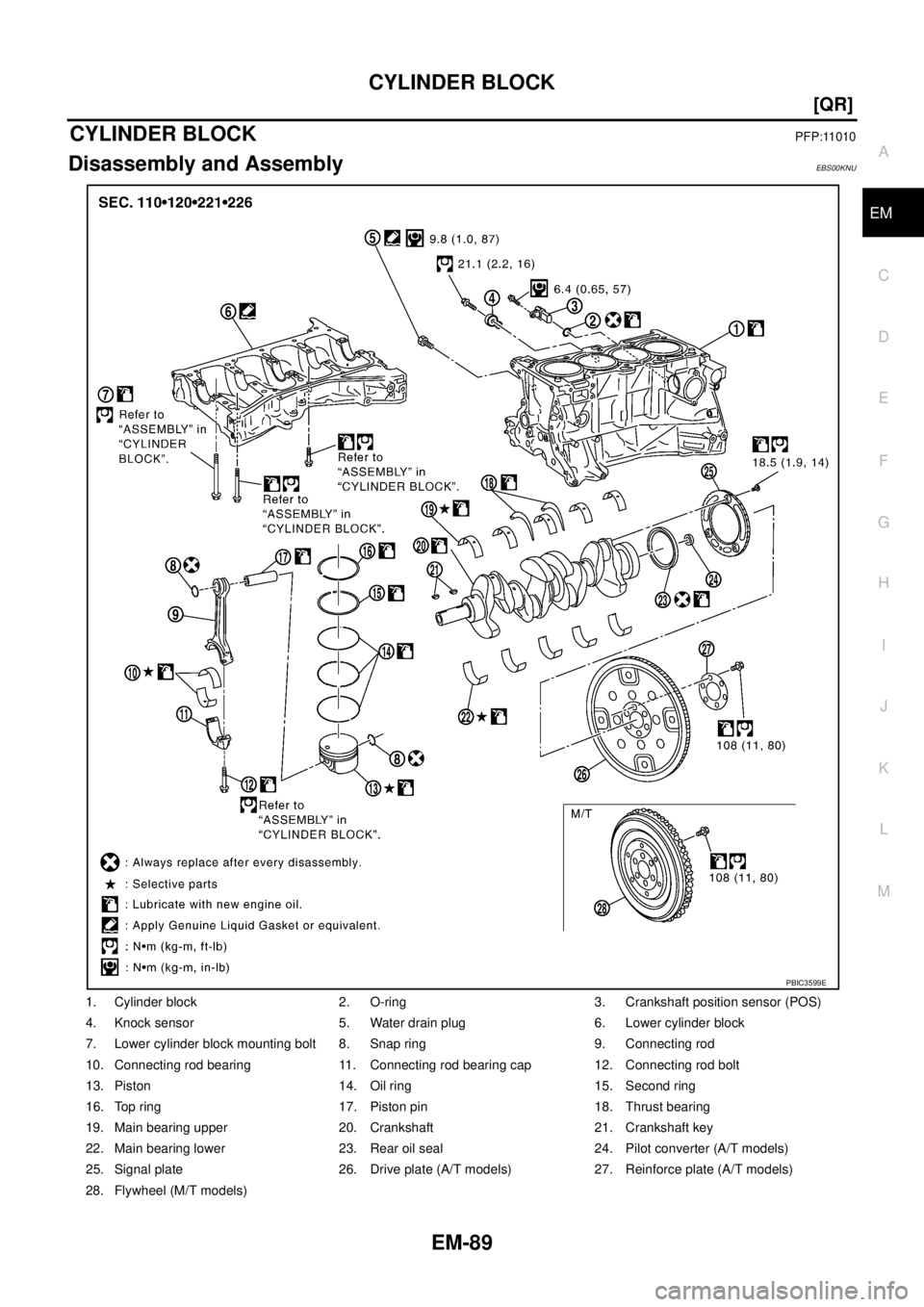

1. Cylinder block 2. O-ring 3. Crankshaft position sensor (POS)
4. Knock sensor 5. Water drain plug 6. Lower cylinder block
7. Lower cylinder block mounting bolt 8. Snap ring 9. Connecting rod
10. Connecting rod bearing 11. Connecting rod bearing cap 12. Connecting rod bolt
13. Piston 14. Oil ring 15. Second ring
16. Top ring 17. Piston pin 18. Thrust bearing
19. Main bearing upper 20. Crankshaft 21. Crankshaft key
22. Main bearing lower 23. Rear oil seal 24. Pilot converter (A/T models)
25. Signal plate 26. Drive plate (A/T models) 27. Reinforce plate (A/T models)
28. Flywheel (M/T models)
PBIC3599E

CYLINDER BLOCK
EM-91
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


A widely use engine stand can be used.
NOTE:
This example is an engine stand for holding at transaxle
mounting side with flywheel (M/T models) or drive plate (A/T
models) removed.
3. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
4. Drain engine coolant by removing water drain plug from inside of
engine.
5. Remove cylinder head. Refer to EM-70, "
CYLINDER HEAD" .
6. Remove knock sensor.
CAUTION:
Carefully handle knock sensor avoiding shocks.
7. Remove crankshaft position sensor (POS).
CAUTION:

Avoid impacts such as a dropping.

Do not disassemble.

Keep it away from metal particles.

Do not place sensor in a location where it is exposed to
magnetism.
8. Remove clutch cover and clutch disc (M/T models). Refer to CL-16, "
CLUTCH DISC, CLUTCH COVER
AND FLYWHEEL" .
9. Remove flywheel (M/T models) or drive plate (A/T models).

Secure crankshaft with a stopper plate, and remove mounting
bolts.

Using the following TORX socket, loosen mounting bolts.
CAUTION:
Be careful not to damage contact surface for clutch disc of
flywheel (M/T models).
PBIC0085E
PBIC2716E
PBIC2191E
Flywheel (M/T models)
: size T55 (commercial service tool)
Drive plate (A/T models)
: size E20
PBIC2352E

CYLINDER BLOCK
EM-99
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


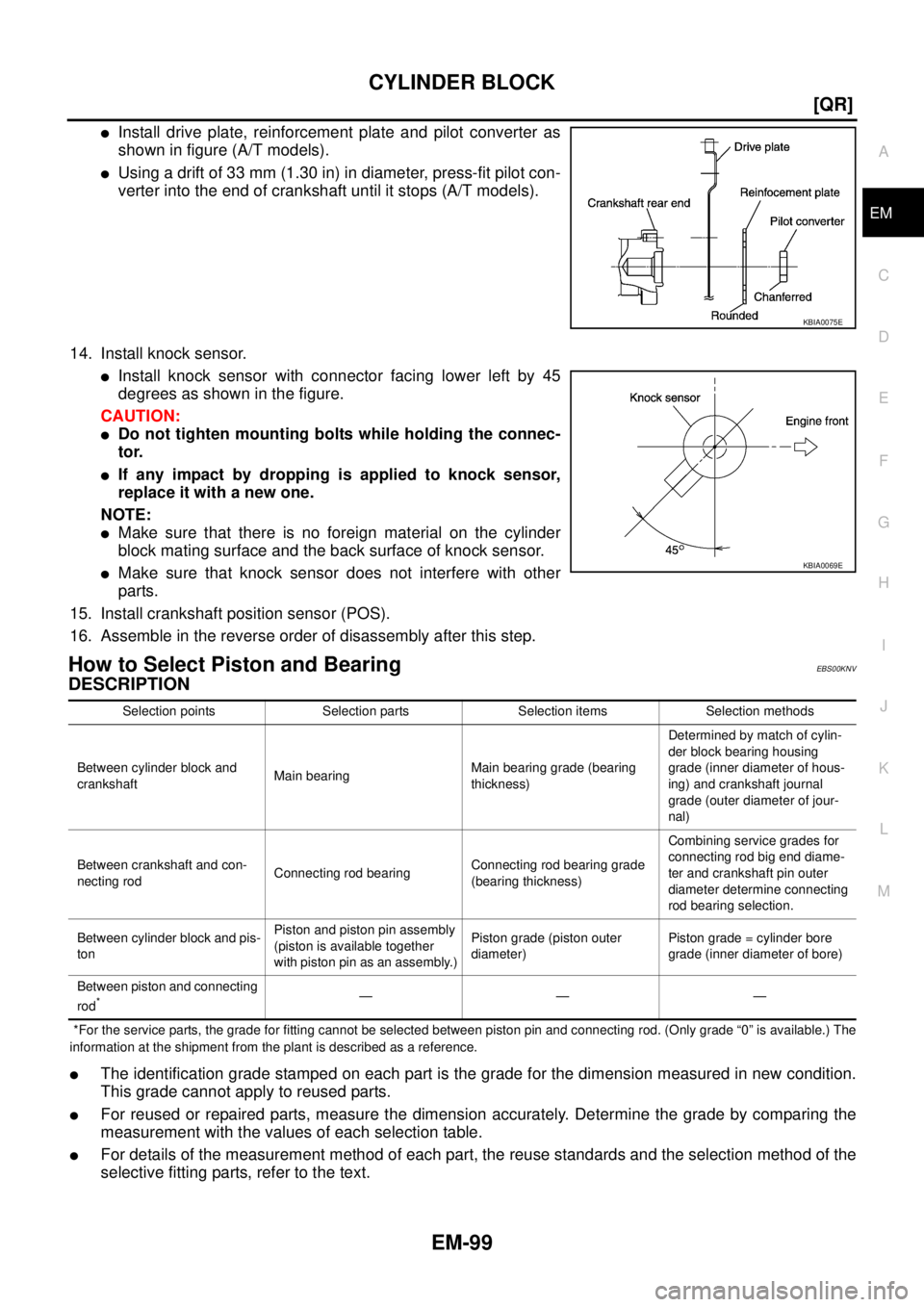

Install drive plate, reinforcement plate and pilot converter as
shown in figure (A/T models).

Using a drift of 33 mm (1.30 in) in diameter, press-fit pilot con-
verter into the end of crankshaft until it stops (A/T models).
14. Install knock sensor.

Install knock sensor with connector facing lower left by 45
degrees as shown in the figure.
CAUTION:

Do not tighten mounting bolts while holding the connec-
tor.

If any impact by dropping is applied to knock sensor,
replace it with a new one.
NOTE:

Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of knock sensor.

Make sure that knock sensor does not interfere with other
parts.
15. Install crankshaft position sensor (POS).
16. Assemble in the reverse order of disassembly after this step.
How to Select Piston and Bearing EBS00KNV
DESCRIPTION
*For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only grade “0” is available.) The
information at the shipment from the plant is described as a reference.

The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.

For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.

For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
KBIA0075E
KBIA0069E
Selection points Selection parts Selection items Selection methods
Between cylinder block and
crankshaftMain bearingMain bearing grade (bearing
thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft and con-
necting rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer
diameter determine connecting
rod bearing selection.
Between cylinder block and pis-
tonPiston and piston pin assembly
(piston is available together
with piston pin as an assembly.)Piston grade (piston outer
diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
Between piston and connecting
rod
*———

EM-128
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

Oil strainer M6 bolt
8.8 (0.90, 78) *2
M8 bolt 21.6 (2.2, 16)
Ignition coil
6.4 (0.65, 57) *
2
Spark plug24.5 (2.5, 18)
*1 Fuel tube1) 10.1 (1.0, 7)
2) 23.6 (2.4, 17)
*1 Rocker cover 1)
2.0 (0.20, 18) *
2
2)
8.3 (0.85, 73) *2
PCV valve
2.5 (0.26, 22) *2
Intake valve timing control solenoid valve
6.4 (0.65, 57) *2
*1 Intake valve timing control cover 12.8 (1.3, 9)
Camshaft position sensor (PHASE)
6.4 (0.65, 57) *
2
Camshaft sprockets (Intake and Exhaust) 142 (14, 105)
Chain tensioner
7.0 (0.71, 62) *
2
*1 Camshaft bracket 1) 2.0 (0.2, 1)
2) 5.9 (0.6, 4)
3) 10.4 (1.1, 8)
Crankshaft pulley 1) 42.1 (4.3, 31)
2) 60° (Angle tightening)
*1 Front cover 12.8 (1.3, 9)
Timing chain slack guide 16.7 (1.7, 12)
Timing chain tension guide 16.7 (1.7, 12)
Balancer unit timing chain tensioner
7.0 (0.71, 62) *
2
*1 Balancer unit 1) 48.1 (4.9, 35)
2) 90° (Angle tightening)
3) 0 (0, 0)
4) 48.1 (4.9, 35)
5) 90° (Angle tightening)
*1 Cylinder head 1) 50 (5.1, 37)
2) 60° (Angle tightening)
3) 0 (0.0, 0)
3) 39.2 (4.0, 29)
4) 75° (Angle tightening)
5) 75° (Angle tightening)
Flywheel (M/T)108 (11, 80)
Drive plate (A/T)108 (11, 80)
Connecting rod bearing cap 1) 19.6 (2.0, 14)
2) 90° (Angle tightening)
*1 Lower cylinder block M8 bolt 1) 25.1 (2.6, 19)
M10 bolt 2) 39.2 (4.0, 29)
M10 bolt 3) 60° (Angle tightening)
Signal plate18.5 (1.9, 14)
Water drain plug
9.8 (1.0, 87) *
2

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-129
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Knock sensor 21.1 (2.2, 16)
Crankshaft position sensor (POS)
6.4 (0.65, 57) *
2

OIL PAN AND OIL STRAINER
EM-157
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationEBS00LRK
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove engine undercover.
2. Drain engine oil. Refer to LU-21, "
Changing Engine Oil" .
3. Remove oil pan lower as follows:
a. Loosen bolts in reverse order of that shown in the figure to
remove.
1. Rear plate cover 2. Oil pan upper 3. Gasket
4. Oil strainer 5. Oil pan drain plug 6. Drain plug washer
7. Oil pan lower 8. Crankshaft position sensor
PBIC2313E
SBIA0161E
