PRECAUTIONSPFP:00001
DescriptionEAS000FN
Observe the following precautions to ensure safe and proper servicing. These precautions are not
described in each individual section.
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EAS000P8
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for NATS (NISSAN ANTI-THEFT SYSTEM)EAS000FP
NATS will immobilize the engine if someone tries to start it without the registered key of NATS.
Both of the originally supplied ignition key IDs have been NATS registered.
The security indicator is located on the instrument panel. The indicator blinks when the immobilizer system is
functioning.
Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system.

When NATS detects trouble, the security indicator lamp lights up while ignition switch is in "ON" position.
This lighting up indicates that the anti-theft is not functioning, so prompt service is required.

When servicing NATS (trouble diagnoses, system initialization and additional registration of other NATS
ignition key IDs), CONSULT-II hardware and CONSULT-II NATS software is necessary.
Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to CONSULT-
II operation manual, NATS.
Therefore, CONSULT-II NATS software (program card and operation manual) must be kept strictly con-
fidential to maintain the integrity of the anti-theft function.

When servicing NATS (trouble diagnoses, system initialization and additional registration of other NATS
ignition key IDs), it may be necessary to re-register original key identification. Therefore, be sure to
receive all keys from vehicle owner. A maximum of four or five key IDs can be registered into NATS.

When failing to start the engine first time using the key of NATS, start as follows.
1. Leave the ignition key in "ON" position for approximately 5 seconds.
2. Turn ignition key to "OFF" or "LOCK" position and wait approximately 5 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while keeping the key separate from any others on key-chain.

PRECAUTIONS
GI-5
C
D
E
F
G
H
I
J
K
L
MB
GI


Use approved bonding agent, sealants or their equivalents when required.

Use tools and recommended special tools where specified for safe and efficient service repairs.

When repairing the fuel, oil, water, vacuum or exhaust systems, check all affected lines for leaks.

Before servicing the vehicle:
Protect fenders, upholstery and carpeting with appropriate cov-
ers.
Take caution that keys, buckles or buttons do not scratch paint.
WARNING:
To prevent ECM from storing the diagnostic trouble codes, do not carelessly disconnect the harness
connectors which are related to the engine control system and TCM (transmission control module)
system. The connectors should be disconnected only when working according to the WORK FLOW of
TROUBLE DIAGNOSES in EC and AT sections.
Precautions for All Mode 4 × 4 SystemEAS000GQ
Even if the 2WD mode is selected, the All mode 4 × 4 system occasionally changes from 2WD to 4WD auto-
matically depending on the driving conditions.
When spinning the front wheels by running the engine with the front wheels jacked up or mounted on the free
rollers / or a chassis dynamometer, be careful because the vehicle may suddenly move due to the driving
force from the rear wheels.
To avoid personal injury and vehicle damage, use one of the following methods when working with the front
wheels drive force and spinning freely.

Remove the propeller shaft.

Use free rollers / chassis dynamometer designed for 4WD vehicles.
Precautions for Three Way CatalystEAS000FR
If a large amount of unburned fuel flows into the catalyst, the catalyst temperature will be excessively high. To
prevent this, follow the instructions.

Use unleaded gasoline only. Leaded gasoline will seriously damage the three way catalyst.

When checking for ignition spark or measuring engine compression, make tests quickly and only when
necessary.

Do not run engine when the fuel tank level is low, otherwise the engine may misfire, causing damage to
the catalyst.
Do not place the vehicle on flammable material. Keep flammable material off the exhaust pipe and the three
way catalyst.
Precautions for FuelEAS000P9
GASOLINE ENGINE
Use unleaded gasoline with an octane rating of at least 95 (RON).
CAUTION:
Do not use leaded gasoline. Using leaded gasoline will damage the three way catalyst. Using a fuel
other than that specified could adversely affect the emission control devices and systems, and could
also affect the warranty coverage validity.
DIESEL ENGINE
Diesel fuel of at least 50 cetane.
If two types of diesel fuel are available, use summer or winter fuel properly according to the following temper-
ature conditions.

Above –7°C (20°F) ... Summer type diesel fuel.

Below –7°C (20°F) ... Winter type diesel fuel.
SGI234

GI-8
HOW TO USE THIS MANUAL

HOW TO USE THIS MANUALPFP:00008
Description EAS000FY
This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diag-
noses”.
Te r m sEAS000FZ

The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal
injury and/or damage to some part of the vehicle.
WARNING indicates the possibility of personal injury if instructions are not followed.
CAUTION indicates the possibility of component damage if instructions are not followed.
BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.
Standard value:Tolerance at inspection and adjustment.
Limit value:The maximum or minimum limit value that should not be exceeded at inspection and adjust-
ment.
UnitsEAS0015F

The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit),
and alternatively expressed in the metric system and in the yard/pound system.
Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about
the standard tightening torque.
“Example”
Range
Standard
ContentsEAS000G1

ALPHABETICAL INDEX is provided at the end of this manual so that you can rapidly find the item and
page you are searching for.

A QUICK REFERENCE INDEX, a black tab (e.g. ) is provided on the first page. You can quickly find
the first page of each section by matching it to the section's black tab.

THE CONTENTS are listed on the first page of each section.

THE TITLE is indicated on the upper portion of each page and shows the part or system.

THE PAGE NUMBER of each section consists of two or three letters which designate the particular sec-
tion and a number (e.g. “BR-5”).

THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks
of work and hidden or tricky steps which are not shown in the previous large illustrations.
Assembly, inspection and adjustment procedures for the complicated units such as the automatic tran-
saxle or transmission, etc. are presented in a step-by-step format where necessary.Outer Socket Lock Nut : 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)
Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb)

CONSULT-II CHECKING SYSTEM
GI-33
C
D
E
F
G
H
I
J
K
L
MB
GI

CONSULT-II CHECKING SYSTEMPFP:00000
DescriptionEAS000G8

CONSULT-II is a hand-held type tester. When it is connected with a diagnostic connector equipped on the
vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various
kinds of diagnostic tests.

Refer to “CONSULT-II Software Operation Manual” for more information.
Function and System Application EAS000G9
x: Applicable
*1: Nissan Anti-Theft System
*2: Gasoline engine models
*3: This item is indicated, but it is what it does not use.
Nickel Metal Hydride Battery Replacement EAS000GA
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace the nickel metal hydride battery with Genuine CONSULT-II battery only. Use of another bat-
tery may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard if
mistreated. Do not recharge, disassemble or dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regulations.
Diagnostic test
modeFunction
ENGINE
A/T
AIR BAG
ABS
ABS (Including ESP)
ALL MODE AWD/ 4WD
NATS*
1
HEADLAMP LEVELIZER
Work supportThis mode enables a technician to adjust some devices faster and more
accurately by following the indications on CONSULT-II.x*2x- -x- -x
Self-diagnostic
resultsSelf-diagnostic results can be read and erased quickly. x x x x x x x x
Trouble diagnos-
tic recordCurrent self-diagnostic results and all trouble diagnostic records previously
stored can be read.--x-----
Data monitor Input/Output data in the ECU can be read. x x - x x x - x
Active testDiagnostic Test Mode in which CONSULT-II drives some actuators apart
from the ECU and also shifts some parameters in a specified range.x - - xxx -x
CAN diagnosis
support monitorThe communication condition of CAN communication line can be indicated. x x - x x x - -
DTC confirmationThe results of SRT (System Readiness Test) and the self-diagnosis status/
result can be confirmed.x*
2-------
DTC work supportThe operating condition to confirm Diagnosis Trouble Codes can be
selected.- x------
ECU (ECM/TCM)
part numberECU (ECM/TCM) part number can be read. x x - x x x - x
ECU discrimi-
nated No.Classification number of a replacement ECU can be read to prevent an
incorrect ECU from being installed.--x-----
Function testThis mode can show results of self-diagnosis of ECU with either “OK” or
“NG”. For engines, more practical tests regarding sensors/switches and/or
actuators are available.xxxxx---
Control unit initial-
izationAll registered ignition key IDs in NATS components can be initialized and
new IDs can be registered.- -----x-
Configuration*
3— - ------x

GI-36
LIFTING POINT

LIFTING POINTPFP:00000
Special Service Tools EAS000FH
CAUTION:

Every time the vehicle is lifted up, maintain the complete vehicle curb condition.

Since the vehicle's center of gravity changes when removing main parts on the front side (engine,
transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission
jack or equivalent.

Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle,
suspension, etc.), support a jack up point on the front side garage jack with a mission jack or
equivalent.

Be careful not to smash or do not do anything that would affect piping parts.
Garage Jack and Safety Stand EAS000FI

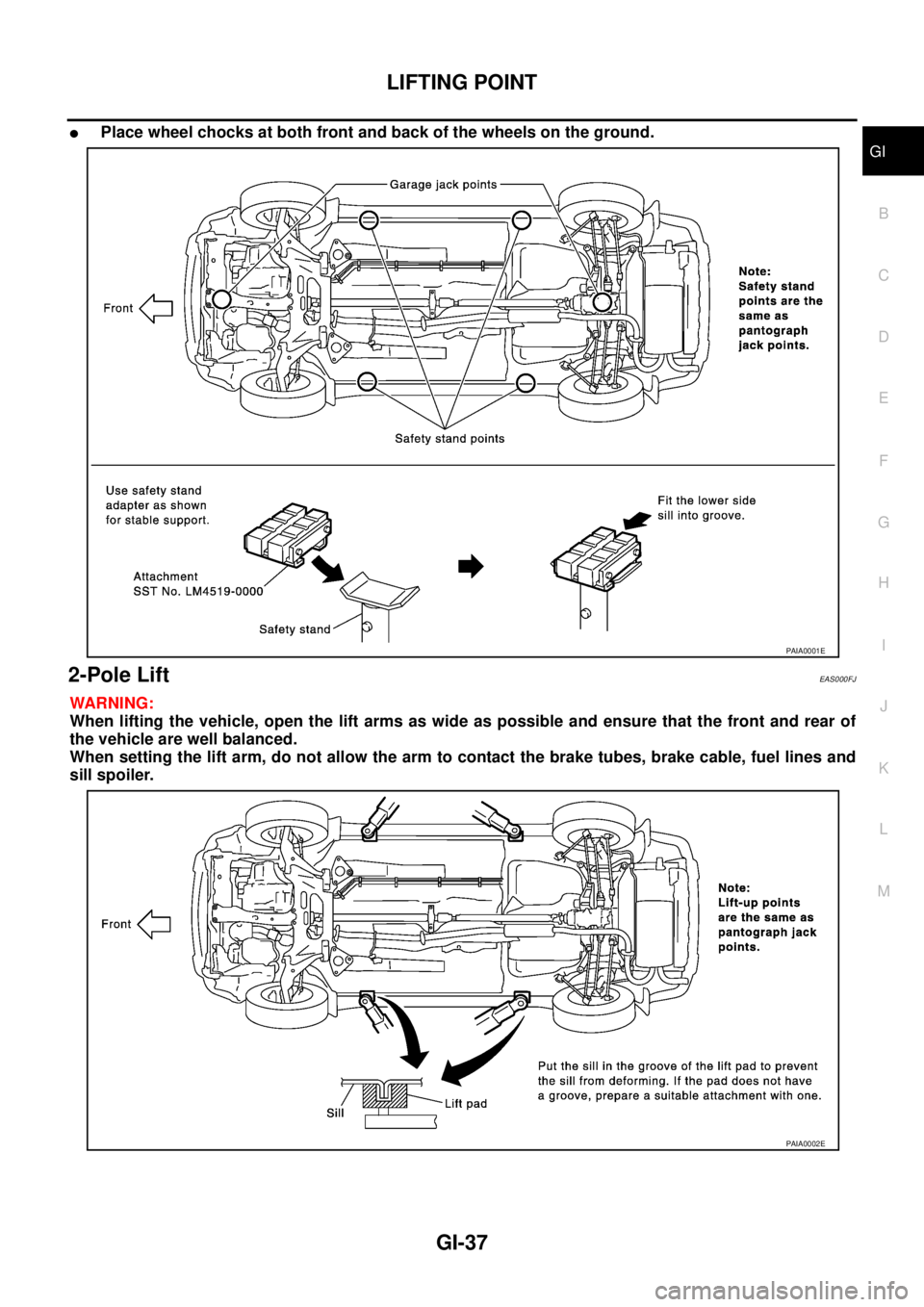

WARNING:

Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes,
tubes, etc. under the vehicle.

Never get under the vehicle while it is supported only by the jack. Always use safety stands when
you have to get under the vehicle.
Tool number
Tool nameDescription
LM4086-0200
Board on lift attachment
LM4519-0000
Safety stand attachment
S-NT001
S-NT002

LIFTING POINT
GI-37
C
D
E
F
G
H
I
J
K
L
MB
GI


Place wheel chocks at both front and back of the wheels on the ground.
2-Pole Lift EAS000FJ
WARNING:
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of
the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines and
sill spoiler.
PAIA0001E
PAIA0002E

GI-40
TOW TRUCK TOWING


When towing two wheel drive automatic transmission model with the rear wheels on the ground (if
you do not use towing dollies): Always release the parking brake.
4WD MODELS
NISSAN recommends that a dolly be used as illustrated when towing 4WD models.
CAUTION:
Never tow automatic transmission 4WD models with any of the wheels on the ground as this may
cause serious and expensive damage to the drive train.
Vehicle Recovery (Freeing a Stuck Vehicle) EAS001JC

Use the recovery hooks only, not other parts of the vehicle. Oth-
erwise, the vehicle body will be damaged.

Use the recovery hook only to free a vehicle stuck in sand,
snow, mud, etc. Never tow the vehicle for a long distance using
only the recovery hook.

The recovery hook is under tremendous force when used to free
a stuck vehicle. Always pull the cable straight out from the front
or rear of the vehicle. Never pull on the hook at an angle.

Stand clear of a stuck vehicle.
WARNING:

Do not spin the tires at high speed. This could cause them
to explode and result in serious injury. Parts of the vehicle
could also overheat and be damaged.
PAIA0275E
PAIA0014E

DRIVE BELTS
EM-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

DRIVE BELTSPFP:02117
Checking Drive BeltsEBS00KN7
WARNING:
Be sure to perform this step when the engine is stopped.

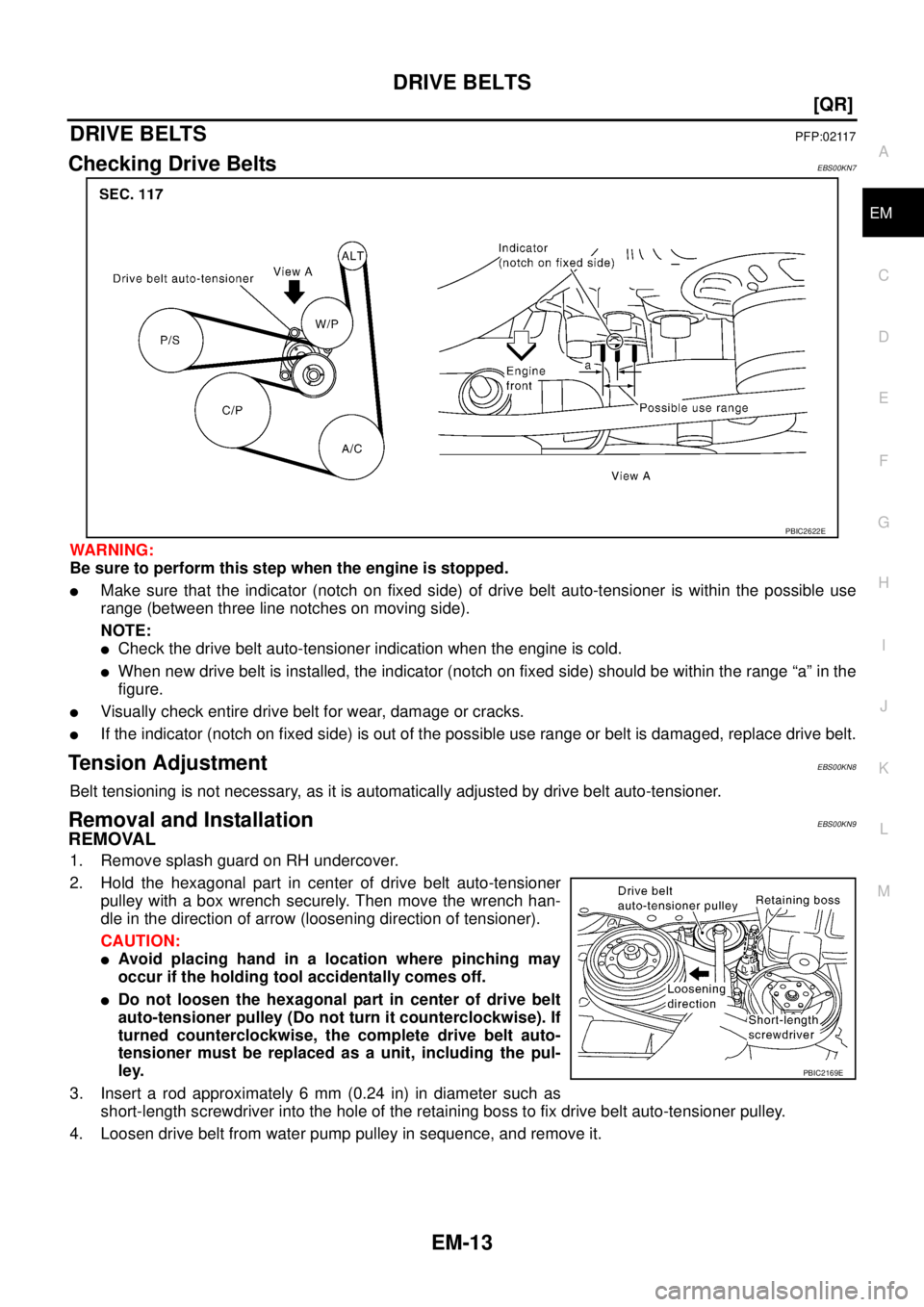

Make sure that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use
range (between three line notches on moving side).
NOTE:

Check the drive belt auto-tensioner indication when the engine is cold.

When new drive belt is installed, the indicator (notch on fixed side) should be within the range “a” in the
figure.

Visually check entire drive belt for wear, damage or cracks.

If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.
Tension AdjustmentEBS00KN8
Belt tensioning is not necessary, as it is automatically adjusted by drive belt auto-tensioner.
Removal and InstallationEBS00KN9
REMOVAL
1. Remove splash guard on RH undercover.
2. Hold the hexagonal part in center of drive belt auto-tensioner
pulley with a box wrench securely. Then move the wrench han-
dle in the direction of arrow (loosening direction of tensioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto-tensioner pulley (Do not turn it counterclockwise). If
turned counterclockwise, the complete drive belt auto-
tensioner must be replaced as a unit, including the pul-
ley.
3. Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole of the retaining boss to fix drive belt auto-tensioner pulley.
4. Loosen drive belt from water pump pulley in sequence, and remove it.
PBIC2622E
PBIC2169E
