2005 NISSAN X-TRAIL warning

OIL PAN AND OIL STRAINER
EM-27
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationEBS00KNE
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain the engine oil when the engine is hot.
1. Remove RH and LH undercovers.
2. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
3. Remove oil pan (lower) with the following procedure:
a. Loosen mounting bolts in reverse order as shown in the figure.
1. Oil level gauge 2. Oil level gauge guide 3. O-ring
4. Oil pan (upper) 5. Cylinder block 6. O-ring
7. Oil filter 8. O-ring 9. Drain plug washer
10. Oil strainer 11. Drain plug 12. Oil pan (lower)
13. Rear plate cover
PBIC2177E
KBIA0096E

ENGINE ASSEMBLY
EM-81
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

ENGINE ASSEMBLYPFP:10001
Removal and Installation (2WD Models)EBS01FKJ
WARNING:

Situate the vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with a transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-36, "Garage Jack and
Safety Stand" .
1. Rear engine mounting insulator 2. Rubber seat 3. Rear engine mounting bracket
4. RH engine mounting insulator 5. RH engine mounting bracket 6. Front engine mounting bracket
7. Front engine mounting insulator 8. Grommet 9. Center member
10. LH engine mounting insulator 11. Stopper 12. LH engine mounting bracket
PBIC3831E

ENGINE ASSEMBLY
EM-85
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Removal and Installation (4WD Models)EBS00KNT
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-36, "Garage Jack and
Safety Stand" .
REMOVAL
Outline
Remove engine, transaxle and transfer assembly with front suspension member from vehicle downward. Sep-
arate front suspension member, and then separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
1. Rear engine mounting insulator 2. Rear engine mounting bracket 3. RH engine mounting insulator
4. RH engine mounting bracket 5. Front engine mounting bracket 6. Front engine mounting insulator
7. Center member 8. LH engine mounting insulator 9. LH engine mounting bracket
10. Stopper 11. Grommet
PBIC3830E

EM-146
[YD22DDTi]
INTAKE MANIFOLD

INTAKE MANIFOLDPFP:14003
Removal and InstallationEBS00LRF
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine coolant when engine is hot.
1. Drain engine coolant. Refer to CO-32, "
Changing Engine Coolant" .
2. Remove air duct. Refer to EM-142, "
Removal and Installation" .
3. Remove charge air cooler. Refer to EM-144, "
Removal and Installation" .
4. Remove air inlet pipes. Refer to EM-151, "
Removal and Installation" .

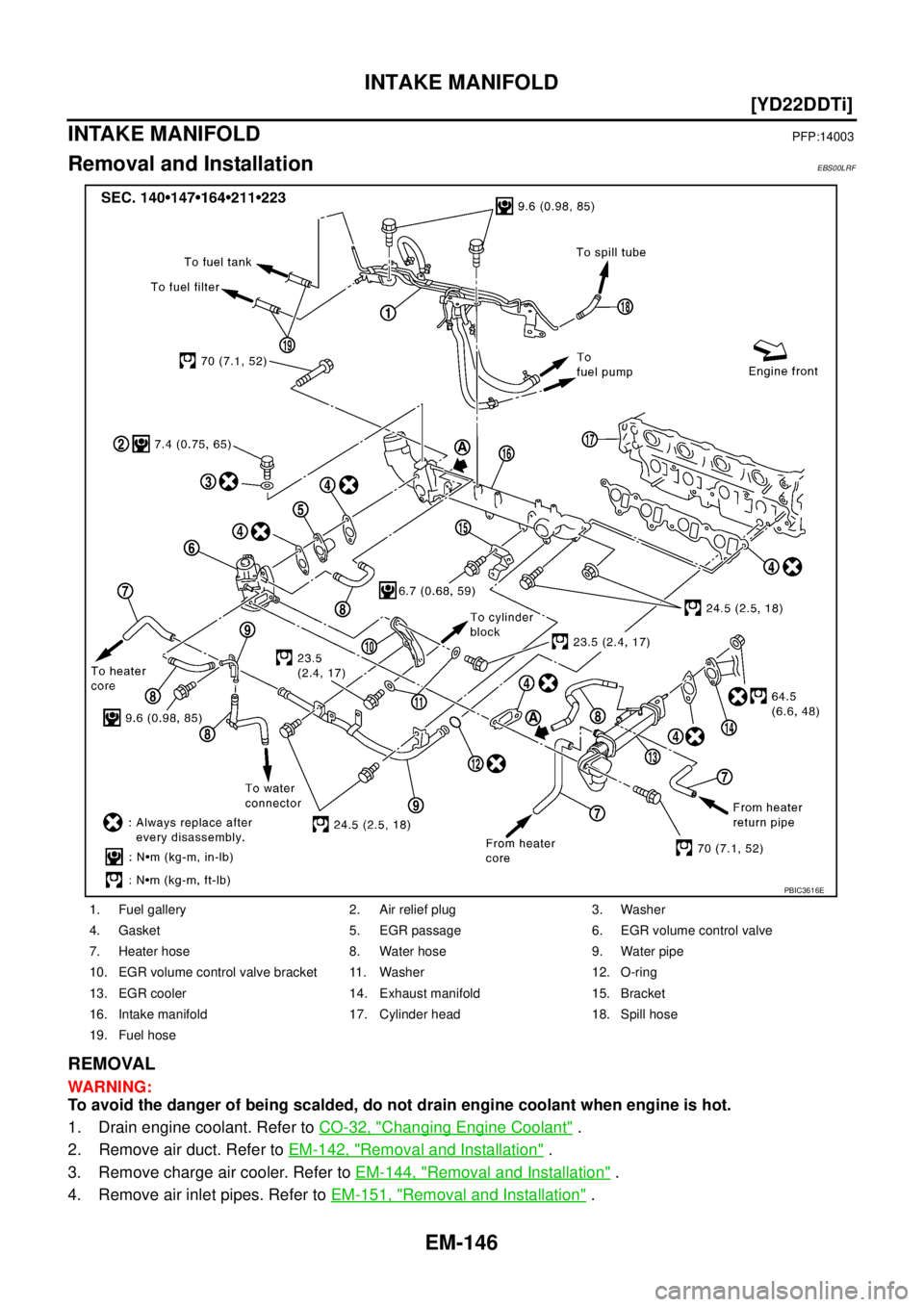

1. Fuel gallery 2. Air relief plug 3. Washer
4. Gasket 5. EGR passage 6. EGR volume control valve
7. Heater hose 8. Water hose 9. Water pipe
10. EGR volume control valve bracket 11. Washer 12. O-ring
13. EGR cooler 14. Exhaust manifold 15. Bracket
16. Intake manifold 17. Cylinder head 18. Spill hose
19. Fuel hose
PBIC3616E

OIL PAN AND OIL STRAINER
EM-157
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationEBS00LRK
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove engine undercover.
2. Drain engine oil. Refer to LU-21, "
Changing Engine Oil" .
3. Remove oil pan lower as follows:
a. Loosen bolts in reverse order of that shown in the figure to
remove.
1. Rear plate cover 2. Oil pan upper 3. Gasket
4. Oil strainer 5. Oil pan drain plug 6. Drain plug washer
7. Oil pan lower 8. Crankshaft position sensor
PBIC2313E
SBIA0161E

EM-222
[YD22DDTi]
ENGINE ASSEMBLY

ENGINE ASSEMBLYPFP:10001
Removal and Installation (2WD Models)EBS01FKK
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine main body section, refer to the applicable
sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-36, "Garage Jack and
Safety Stand" .
1. Rear engine mounting insulator 2. Rubber seat 3. Rear engine mounting bracket
4. RH engine mounting insulator 5. RH engine mounting bracket 6. Front engine mounting bracket
7. Front engine mounting insulator 8. Grommet 9. Center member
10. LH engine mounting insulator 11. Stopper 12. LH engine mounting bracket
PBIC3901E

EM-226
[YD22DDTi]
ENGINE ASSEMBLY

Removal and Installation (4WD Models)EBS00LRY
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine main body section, refer to the applicable
sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-36, "Garage Jack and
Safety Stand" .

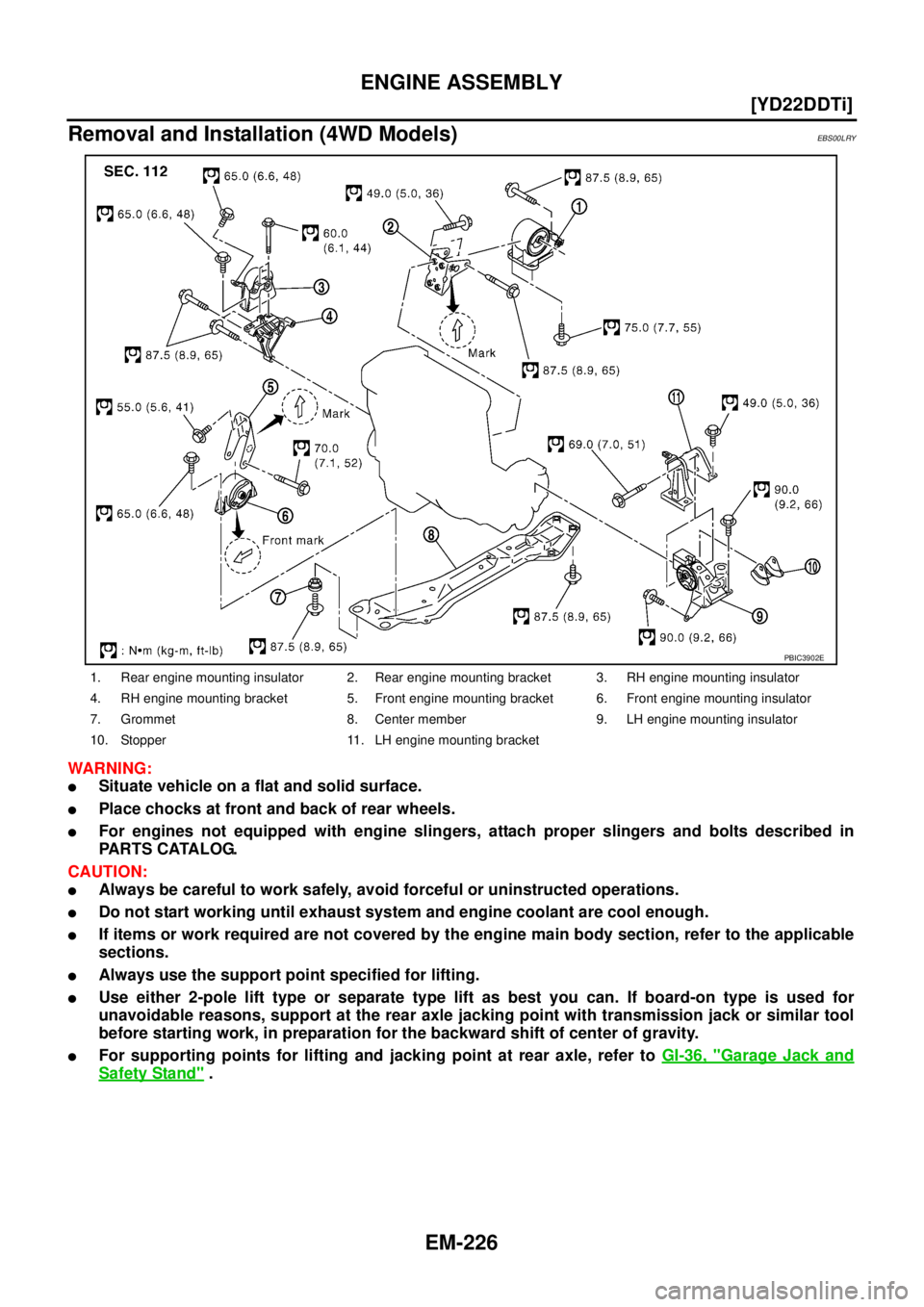

1. Rear engine mounting insulator 2. Rear engine mounting bracket 3. RH engine mounting insulator
4. RH engine mounting bracket 5. Front engine mounting bracket 6. Front engine mounting insulator
7. Grommet 8. Center member 9. LH engine mounting insulator
10. Stopper 11. LH engine mounting bracket
PBIC3902E

ENGINE OIL
LU-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU

ENGINE OILPFP:KLA92
InspectionEBS00KO3
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 10 minutes before checking.
1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and make sure the engine oil level is within
the range shown in the figure.
3. If it is out of range, adjust it.
ENGINE OIL APPEARANCE

Check engine oil for white turbidity or heavy contamination.

If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.
ENGINE OIL LEAKAGE
Check for engine oil leakage around the following area.

Oil pan

Oil pan drain plug

Oil pressure switch

Oil filter

Oil cooler

Intake valve timing control cover and intake valve timing control solenoid valve

Front cover

Mating surface between cylinder block and lower cylinder block

Mating surface between cylinder block and cylinder head

Mating surface between cylinder head and rocker cover

Crankshaft oil seals (front and rear)
OIL PRESSURE CHECK
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Engine oil pressure check should be in “ Parking position” (A/T models) or “Neutral position” (M/T
models), and should apply parking brake securely.
1. Check engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
2. Remove RH undercover.
PBIC0249E
