2005 NISSAN X-TRAIL Starting & Charging System

MODEL T30 SERIES
2005 NISSAN EUROPE S.A.S.
All rights reserved. No part of this Electronic Service Manual may be reproduced or stored in a retrieval system, or transmitted in any
form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan
Europe S.A.S., Paris, France.
A GENERAL INFORMATION
B ENGINE
C TRANSMISSION/TRANSAXLE
D DRIVELINE/AXLE
E SUSPENSION F BRAKES
G STEERING H RESTRAINTS
I BODY
J AIR CONDITIONER
K ELECTRICAL
L MAINTENANCE
M INDEXGI General Information
EM Engine Mechanical
LU Engine Lubrication System
CO Engine Cooling System
EC Engine Control System
FL Fuel System
EX Exhaust System
ACC Accelerator Control System
CL Clutch
MT Manual Transaxle
AT Automatic Transaxle
TF Transfer
PR Propeller Shaft
RFD Rear Final Drive
FAX Front Axle
RAX Rear Axle
FSU Front Suspension
RSU Rear Suspension
WT Road Wheels & Tires
BR Brake System
PB Parking Brake System
BRC Brake Control System
PS Power Steering System
SB Seat Belts
SRS Supplemental Restraint System (SRS)
BL Body, Lock & Security System
GW Glasses, Window System & Mirrors
RF Roof
EI Exterior & Interior
IP Instrument Panel
SE Seat
ATC Automatic Air Conditioner
MTC Manual AIr Conditioner
SC Starting & Charging System
LT Lighting System
DI Driver Information System
WW Wiper, Washer & Horn
BCS Body Control System
LAN LAN System
AV Audio Visual, Navigation & Telephone System
ACS Auto Cruise Control System
PG Power Supply, Ground & Circuit Elements
MA Maintenance
IDX Alphabetical Index
QUICK REFERENCE INDEX
A
B
C
D
E
F
G
H
I
J
K
L
M

EM-82
[QR]
ENGINE ASSEMBLY

REMOVAL
Outline
Remove engine and transaxle assembly from vehicle downward. Separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Release fuel pressure. Refer to EC-49, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Drain engine coolant from radiator. Refer to CO-9, "
Changing Engine Coolant" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belt.
4. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-4, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-16, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-13, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hoses, and plug them to prevent fuel from draining. Refer to EM-34, "FUEL INJEC-
TOR AND FUEL TUBE" .
2. Disconnect heater hoses, and install plugs them to prevent engine coolant from draining. Refer to CO-23,
"THERMOSTAT AND WATER CONTROL VALVE" .
3. Disconnect clutch operating cylinder from transaxle, and move it aside. Refer to CL-12, "
OPERATING
CYLINDER" .
4. Disconnect shift and select cable from transaxle. Refer to MT-16, "
CONTROL LINKAGE" .
5. Disconnect B terminal harness of starter motor. Refer to SC-23, "
STARTING SYSTEM" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
3. Remove power steering oil pump with piping connected from engine. Temporarily secure it on vehicle side
with a rope to avoid putting load on it. Refer to PS-37, "
HYDRAULIC LINE" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-19, "
TRAN-
SAXLE ASSEMBLY" .
3. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-46, "
WHEEL SEN-
SORS" .
4. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on the
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
5. Remove LH and RH drive shafts from steering knuckle. Refer to FAX-11, "
FRONT DRIVE SHAFT" .
Removal
1. Install engine slingers into front-left of cylinder head and rear-right of cylinder head.

DTC P0563 BATTERY VOLTAGE
EC-1215
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0563 BATTERY VOLTAGEPFP:24410
On Board Diagnosis LogicEBS011BS
This self-diagnosis has the one trip detection logic.
MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS011BT
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

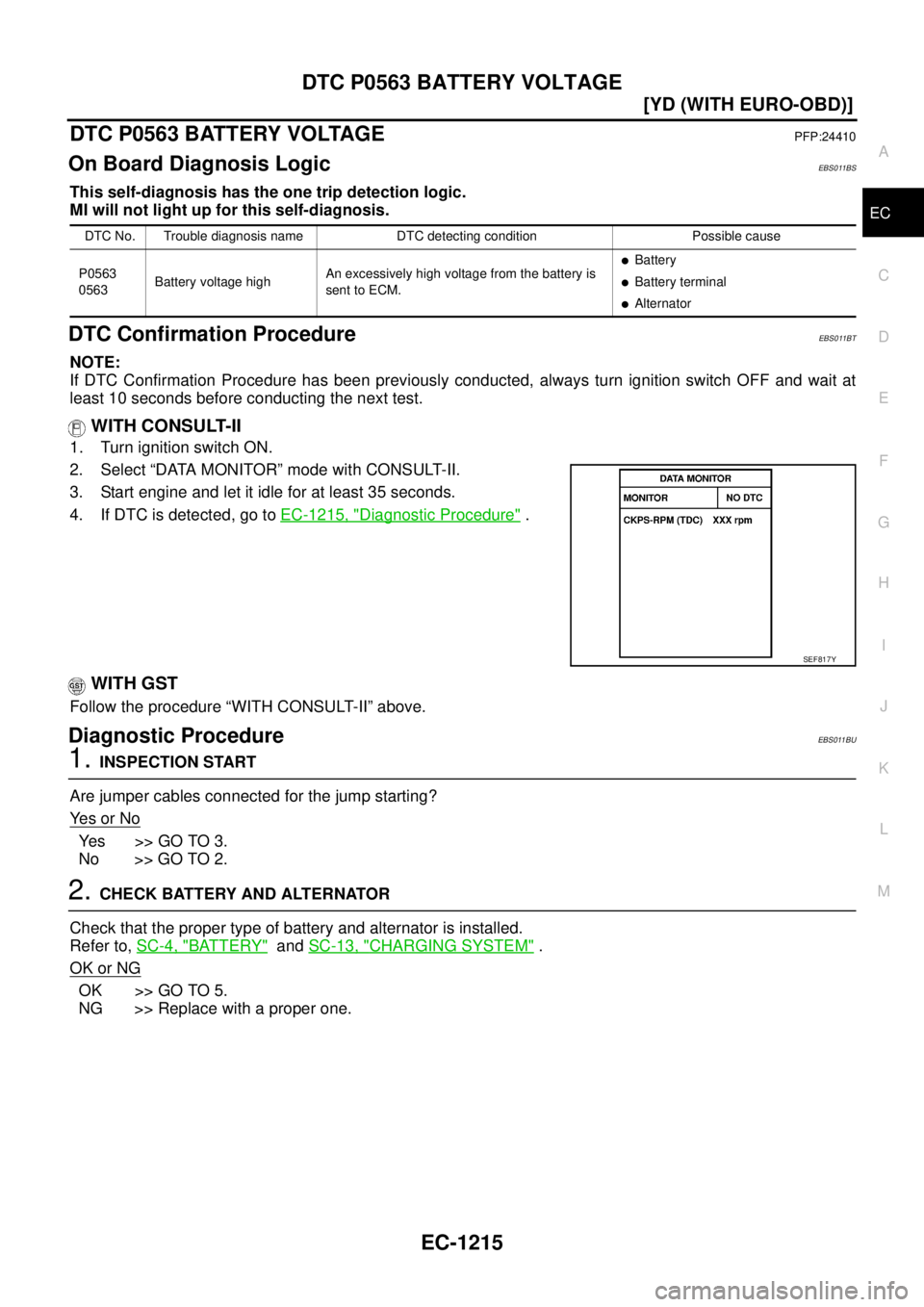

WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 35 seconds.
4. If DTC is detected, go to EC-1215, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureEBS011BU
1. INSPECTION START
Are jumper cables connected for the jump starting?
Ye s o r N o
Ye s > > G O T O 3 .
No >> GO TO 2.
2. CHECK BATTERY AND ALTERNATOR
Check that the proper type of battery and alternator is installed.
Refer to, SC-4, "
BATTERY" and SC-13, "CHARGING SYSTEM" .
OK or NG
OK >> GO TO 5.
NG >> Replace with a proper one.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0563
0563Battery voltage highAn excessively high voltage from the battery is
sent to ECM.

Battery

Battery terminal

Alternator
SEF817Y

EC-1554
[YD (WITHOUT EURO-OBD)]
DTC P0563 BATTERY VOLTAGE

DTC P0563 BATTERY VOLTAGEPFP:24410
On Board Diagnosis LogicEBS01221
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS01222
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 35 seconds.
4. If DTC is detected, go to EC-1554, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 35 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1554, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS01223
1. INSPECTION START
Are jumper cables connected for the jump starting?
Ye s o r N o
Yes >> GO TO 3.
No >> GO TO 2.
2. CHECK BATTERY AND ALTERNATOR
Check that the proper type of battery and alternator is installed.
Refer to SC-4, "
BATTERY" and SC-13, "CHARGING SYSTEM" .
OK or NG
OK >> GO TO 5.
NG >> Replace with a proper one.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0563
0563Battery voltage highAn excessively high voltage from the battery is
sent to ECM.

Battery

Battery terminal

Alternator
SEF817Y

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION SC
A
B
SC

STARTING & CHARGING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Wiring Diagrams and Trouble Diagnosis .................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
BATTERY .................................................................... 4
How to Handle Battery ............................................. 4
METHODS OF PREVENTING OVER-DIS-
CHARGE ............................................................... 4
CHECKING ELECTROLYTE LEVEL .................... 4
SPECIFIC GRAVITY CHECK ............................... 5
Battery Test and Charging Chart .............................. 6
CHART I ................................................................ 6
CHART II ............................................................... 7
A: SLOW CHARGE ............................................... 8
B: STANDARD CHARGE ...................................... 9
C: QUICK CHARGE ............................................. 11
Removal and Installation ........................................ 12
CHARGING SYSTEM ............................................... 13
System Description ................................................ 13
Wiring Diagram — CHARGE — /With Gasoline
Engine .................................................................... 14
Wiring Diagram — CHARGE — /With Diesel Engine ... 15
Trouble Diagnosis .................................................. 16
WITH IC REGULATOR ....................................... 16
MALFUNCTION INDICATOR .............................. 16
Removal and Installation ........................................ 17
REMOVAL (QR ENGINE MODELS) ................... 17
REMOVAL (YD ENGINE MODELS) ................... 17
ALTERNATOR PULLEY INSPECTION (QR ENGINE MODELS) ............................................. 17
INSTALLATION ................................................... 18
Disassembly and Assembly .................................... 19
DISASSEMBLY ................................................... 20
INSPECTION ...................................................... 21
ASSEMBLY ......................................................... 22
STARTING SYSTEM ................................................. 23
System Description ................................................. 23
M/T MODELS ...................................................... 23
A/T MODELS ....................................................... 23
Wiring Diagram — START — /M/T Models ............ 24
Wiring Diagram — START — /A/T Models ............. 25
Trouble Diagnosis ................................................... 26
Removal and Installation ........................................ 27
REMOVAL ........................................................... 27
INSTALLATION ................................................... 27
Disassembly and Assembly .................................... 28
QR ENGINE MODELS ........................................ 28
YD ENGINE MODELS ........................................ 30
Inspection ............................................................... 31
MAGNETIC SWITCH CHECK ............................. 31
PINION/CLUTCH CHECK ................................... 31
BRUSH CHECK .................................................. 31
YOKE CHECK ..................................................... 32
ARMATURE CHECK ........................................... 33
Assembly ................................................................ 34
PINION PROTRUSION LENGTH ADJUST-
MENT .................................................................. 34
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 36
Battery .................................................................... 36
Starter ..................................................................... 36
Alternator ................................................................ 36

SC-16
CHARGING SYSTEM

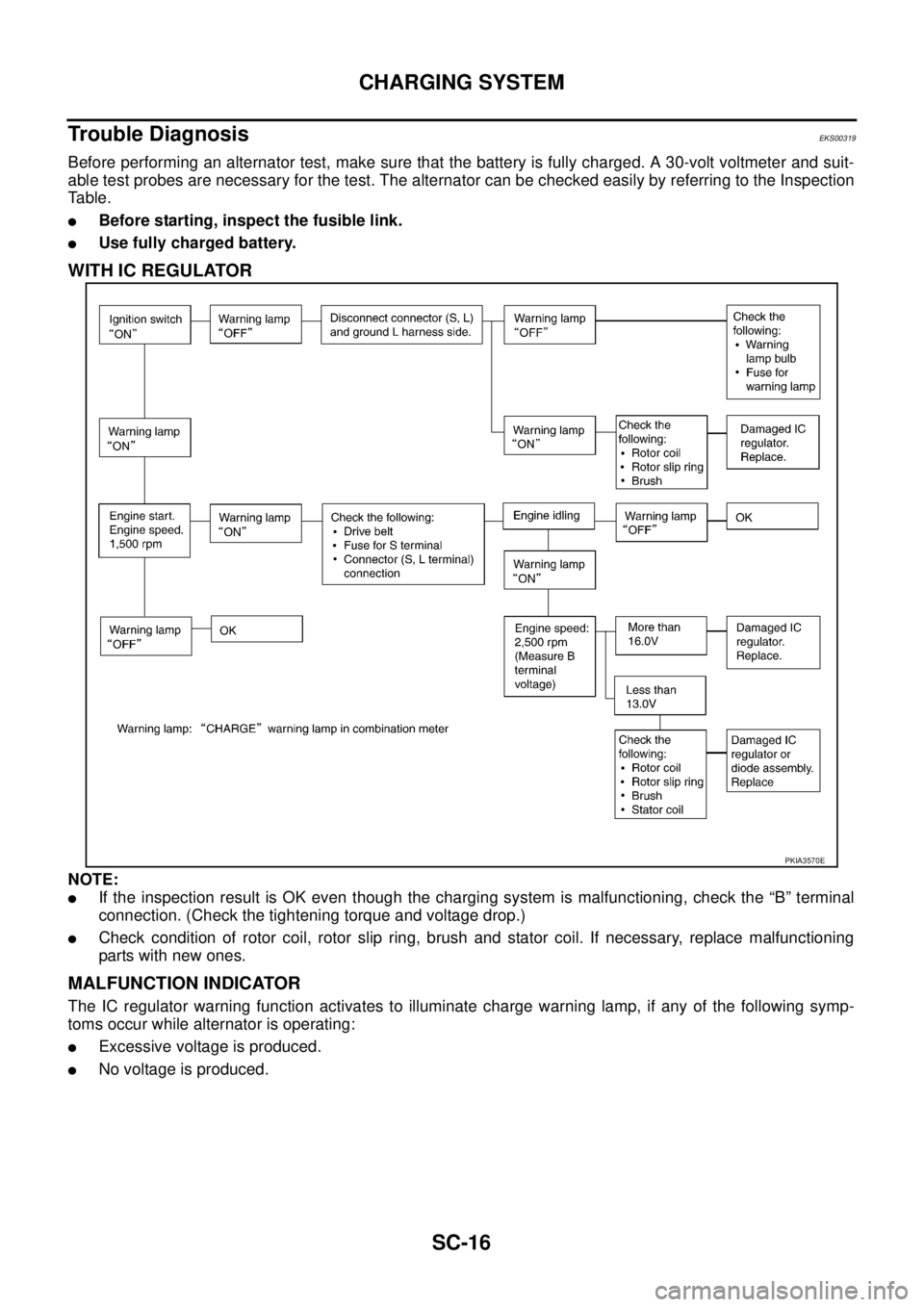

Trouble DiagnosisEKS00319
Before performing an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and suit-
able test probes are necessary for the test. The alternator can be checked easily by referring to the Inspection
Ta b l e .

Before starting, inspect the fusible link.

Use fully charged battery.
WITH IC REGULATOR
NOTE:

If the inspection result is OK even though the charging system is malfunctioning, check the “B” terminal
connection. (Check the tightening torque and voltage drop.)

Check condition of rotor coil, rotor slip ring, brush and stator coil. If necessary, replace malfunctioning
parts with new ones.
MALFUNCTION INDICATOR
The IC regulator warning function activates to illuminate charge warning lamp, if any of the following symp-
toms occur while alternator is operating:

Excessive voltage is produced.

No voltage is produced.
PKIA3570E
